Old January 3rd, 2013, 07:03 PM   #1
Regular Crew

Join Date: Sep 2009
Location: Ft. Lauderdale, FL
Posts: 166
Samsung Single-lens 3D DSLR

Samsung NX300 Combines Speed, Performance and Connectivity for Perfect Shooting in Every Moment

Samsung 45mm F1.8 2D/3D lens is the World's first one-lens 3D system, capable of capturing both stills and 1080p Full HD video in perfect 3D quality

RIDGEFIELD PARK, N.J. January 3, 2013 Samsung Electronics Co., Ltd, a global leader in digital media and convergence technologies, today announced the launch of the NX300, the new flagship model in its successful NX series. The NX300 once again raises the bar for compact system cameras (CSC), delivering an outstanding combination of features, functionality and style for perfect shooting in every moment. Samsung also announced the new NX 45mm F1.8 2D/3D lens, the first one-lens 3D system capable of capturing both still images and full HD movies in perfect 3D quality.

Myoung Sup Han, Senior Vice President and Head of the Digital Imaging Business, Samsung Electronics, commented: "Since its launch in 2010, the Samsung NX System has become synonymous with innovation and design, making the best digital imaging technology available to everyone without compromising on style. The NX300 builds even further on this illustrious heritage. Not only does it deliver incredible speed and accuracy through advanced photographic features, but it is truly built around the user, with upgraded SMART Camera functions making shooting and sharing both easy and seamless. We are also very proud to introduce the first one-lens 3D system alongside the NX300, opening up a whole new world of 3D photography and video recording for consumers everywhere."

Perfect shooting

Central to the NX300's outstanding imaging performance is its brand new 20.3 Megapixel APS-CMOS sensor, capable of capturing high quality detailed. Images boast sharp, life-like colors and are crisp and clear in all light conditions. The wide ISO range (ISO100-25600) further improves performance, letting users capture beautifully balanced images in even the darkest conditions. A brand new Hybrid Auto Focus (AF) system also delivers fast, accurate phase and contrast detection, while the 1/6000 sec shutter speed and 8.6fps continuous shooting mode ensure you never miss a moment.

The Samsung's unique in-house developed DRIMe IV imaging engine provides outstanding developments in speed, and image quality. The DRIMe IV engine enables better color reproduction and greater noise reduction, as well as support for full 1080p HD video capture in both 2D and 3D (when combined with Samsung's new 45mm 2D/3D lens).

The NX300's 84mm (3.31") AMOLED screen makes capturing and reviewing your images a pleasure, while the hybrid touch screen and 5-way manual key interface is simple and intuitive to use. The tilt display makes it easier than ever to take high and low angle shots, letting you capture your world from any angle you choose.

Easy usability and stylish retro design

The compact NX300 makes it simple for anyone to achieve pro-like and impressive pictures easily with minimal technical knowledge or time spent adjusting parameters. Using the camera's Smart Mode, users can choose from 14 different settings, such as Creative Shot, Landscape, Light Trace or Action Freeze which will automatically adjust parameters such as aperture and shutter speed in order to obtain the best shot possible for the desired situation. The NX300 also includes i-Depth, an easy and simple way to adjust the depth of an image using the NX Series' unique i-Function system which enables users to modify camera parameters using the lens itself, adjusting the image without ever having to move off target.

The NX acclaimed design returns with the NX300 sporting a stylish yet simple retro feel that is available in either black or white with a contrast silver band, conveying elegance and authenticity.

Instant sharing through enhanced Wi-Fi connectivity

The NX300's Wi-Fi connectivity of SMART CAMERA allows users to share their cherished photos instantly and securely between their camera and smartphone (or tablet). To connect a smartphone to the camera, users simply need to download the Samsung SMART CAMERA App., which is available for both Android and iOS based application markets, onto their smartphone or tablet and follow the easy steps to create a secure connection with the camera. The NX300 will be able to detect and auto-connect to the smartphone wirelessly whenever any of the SMART CAMERA features are activated. These include AutoShare; which automatically sends every high-quality photos to your smart phone for safe keeping, and Mobile Link; which allows users to select and transfer images or album from the camera directly to your smartphone at their leisure. The SMART CAMERA App. also features a Remote Viewfinder function for the NX300, allowing for even more inventive and exciting photography.

The NX300's enhanced Wi-Fi connectivity also lets users share images with friends and family directly from the camera via social networking sites using the cameras one-touch DIRECT LINK hot key. Alternatively, images can be automatically backed up or stored in the cloud through AllShare Play ensuring they are always safe and easily accessible.

Samsung 45mm 2D/3D lens

The Samsung 45mm 2D/3D lens(sold separately) opens up an exciting world of 3D imaging possibilities and is the world's first one-lens 3D system for a consumer camera. Capable of capturing both still pictures and full 1080p HD video, the Samsung NX300 and 45mm 2D/3D lens kit have become the only compact system camera supporting both 3D still and 3D movie. The NX300 is also compatible with Samsung's entire range of NX lenses and professional standard accessories, giving users an unparalleled range of options when striving for that perfect shot.

Please visit our booth to experience this future technology firsthand. Samsung's product line will be displayed January 8-11 at booth #12004 in the Central Hall of the Las Vegas Convention Center.

Full details, video content and product images are available at the Samsung microsite at: Samsung CES 2013 or mobile site at: Digital Video News, Reviews and Forums at DVInfo.net as well.

The Samsung press conference and Samsung Tomorrow TV CES 2013 Specials will be streamed live on the Samsung Tomorrow blog at: SAMSUNG TOMORROW / Samsung Electronics Official Global Blog and Samsung's microsite site also.

After the live presentations, videos will be available at SAMSUNG TOMORROW TV - YouTube

About Samsung Electronics Co., Ltd.

Samsung Electronics Co., Ltd. is a global leader in consumer electronics and the core components that go into them. Through relentless innovation and discovery, we are transforming the worlds of televisions, smartphones, personal computers, printers, cameras, home appliances, medical devices, semiconductors and LED solutions. We employ 227,000 people across 75 countries with annual sales exceeding US$143 billion. Our goal is opening new possibilities for people everywhere. To discover more, please visit Samsung US | TVs ? Tablets ? Smartphones ? Cameras ? Laptops ? Refrigerators.

Note to Editors

NX300 Product Specifications

Image Sensor

20.3 effective megapixel APS-C CMOS

IS

OIS mode is only provided on 2D shooting mode

Display

84.0mm (3.31") AMOLED with a Tilt Touch Panel

WVGA (800x400) 768k dots

ISO

Auto, 100, 200, 400, 800, 1600, 3200, 6400, 12800, 25600


JPEG (3:2):20.0M (5472x3648), 10.1M (3888x2592), 5.9M (2976x1984),

2.0M (1728x1152), 5.0M (2736x1824): Burst mode only

JPEG (16:9):16.9M (5472x3080), 7.8M (3712x2088), 4.9M (2944x1656), 2.1M (1920x1080)

JPEG (1:1):13.3M (3648x3648), 7.0M (2640x2640), 4.0M (2000x2000),

1.1M (1024x1024)

RAW : 20.0M (5472x3648)

* 3D Image Size : JPEG (16:9) 4.1M (2688x1512), (16:9) 2.1M (1920x1080)

Video

MP4 (Video: MPEG4, AVC/H.264, Audio: AAC)

1920x1080, 1920x810, 1280x720 , 640x480, 320x240 for Sharing

Video Output

HDMI 1.4a

Value-added Features

SMART Mode : Beauty Face, Landscape, Macro, Action Freeze, Rich Tone, Panorama, Waterfall, Silhouette, Sunset, Night, Fireworks, Light Trace, Creative Shot, Best Face

3D still image & video capturing

Wi-Fi Connectivity

IEEE 802.11b/g/n support Dual Channel (SMART Camera 2.0)

. AutoShare

. Cloud

. Email

. Auto Backup

. Remote Viewfinder

. MobileLink

. Wi-Fi Direct (playback)

. AllSharePlay

. Social Sharing

Bundle PC software

iLauncher, Adobe Lightroom

Storage

SD, SDHC, SDXC, UHS-1

Battery

BP1130 (1130mAh)

Dimension (WxHxD)

122 x 63.7 x 40.7mm (excluding the projection part)

Weight

280 g (without battery)

45mm 2D/3D lens Specifications

Focal Length

45mm (equivalent to 69.3mm in 35mm format)

Elements in Groups

7 elements in 6 groups

Angle of View

34.7

Aperture

As of 2D : F1.8* (Min. F22), (Number of Blades : 9 , Circular Aperture Diaphragm)

OIS

NO

Minimum

Focus Distance

0.50m

Maximum Magnification

Approx. 0.12X

i Scene

Night, Portrait, Beauty shot, Children, Backlight, Sports

Lens Hood

Yes

Filter Size

43mm

Mount Type

NX Mount

Dimension (DxL)

44.4 x 61.5mm

Weight

115g

*All functionality, features, specifications and other product information provided in this document including, but not limited to, the benefits, design, pricing, components, performance, availability, and capabilities of the product are subject to change without notice or obligation.
David M. Cole is offline   Reply With Quote
Old January 4th, 2013, 08:57 AM   #2
Wrangler

Join Date: Aug 2005
Location: Toronto, ON, Canada
Posts: 3,637
Re: Samsung Single-lens 3D DSLR

This is just my theory based on preliminary specs, but it sounds like it might be a plenoptic camera (a.k.a. light field camera) when the lens is in "3D" mode and include built-in software to process the micro-lens data into stereoscopic 3D. I've been researching this technology for a long time but the only one to come to market so far has been the Lytro. The fact that the Samsung camera's 2D images are 20MP but the 3D images are only 4MP suggests a micro-lens plenoptic configuration. Interesting... if my assumption is correct.

I won't be at CES this year. Anyone else going who can visit this camera at the Samsung booth?
__________________
Tim Dashwood
Tim Dashwood is offline   Reply With Quote
Old January 4th, 2013, 09:03 AM   #3
Wrangler

Join Date: Aug 2005
Location: Toronto, ON, Canada
Posts: 3,637
Re: Samsung Single-lens 3D DSLR

I found a pic of the lens. It looks like it does have a drop-in microlens, but it is only two segments.
http://news.doddleme.com/wp-content/...1/original.jpg
__________________
Tim Dashwood
Tim Dashwood is offline   Reply With Quote
Old January 5th, 2013, 06:58 AM   #4
New Boot

Join Date: May 2012
Location: Ljubljana, Slovenia
Posts: 18
Re: Samsung Single-lens 3D DSLR

Quote:
Originally Posted by Tim Dashwood View Post
This is just my theory based on preliminary specs, but it sounds like it might be a plenoptic camera (a.k.a. light field camera) when the lens is in "3D" mode and include built-in software to process the micro-lens data into stereoscopic 3D. I've been researching this technology for a long time but the only one to come to market so far has been the Lytro. The fact that the Samsung camera's 2D images are 20MP but the 3D images are only 4MP suggests a micro-lens plenoptic configuration. Interesting... if my assumption is correct.
I think that it's simpler than that. On the following site:
Samsung NX300 previewed: Is this 3D-ready mirrorless the fastest focusing digital camera? - Imaging Resource

it is written that: "This is achieved by employing two LCD shutters that swing into the optical path when the lens is switched to 3D mode, a design reminiscent of one announced several years ago by Canadian firm ISee3D, although we understand that Samsung has developed its system in-house."

It uses LCD shutter, once it opens the left half of the lens (and takes the left picture) and then it opens the right half of the lens and takes the right picture. Nothing too complicated as it seems...

If, for example, the left part of the pucture is taken on the left (right) part of the sensor and vice versa, and if aspect ratio of the picture is kept unchanged, only 1/4 of the sensor surface is covered by left (or right) picture. When adding some horizontal (and slight vertical) croppings of the pictures for aligning stereoscopic window and depth, you probably get about 1/5 of the sensor surface. 20M/5 = 4M.

OK. This is only speculation. It it is true then highly synchronous pictures would not be possible as well as we would get some more noise in 3D mode, since only half (or even less) of the lens area would be "active" during taking the picture.

Damir
Damir Vrancic is offline   Reply With Quote
Old February 16th, 2013, 12:34 PM   #5
New Boot

Join Date: May 2012
Location: Ljubljana, Slovenia
Posts: 18
Re: Samsung Single-lens 3D DSLR

If the footage is really from that lens, it is not suitable for moving objects (as predicted). See her moving her hands at about 10s.

Damir Vrancic is offline   Reply With Quote
Old February 16th, 2013, 01:57 PM   #6
Wrangler

Join Date: Aug 2005
Location: Toronto, ON, Canada
Posts: 3,637
Re: Samsung Single-lens 3D DSLR

I think that's just a very short shutter, but maybe that is required if the shutter method is actually used as suggested. The temporal sync seems to be perfect.
__________________
Tim Dashwood
Tim Dashwood is offline   Reply With Quote
Old February 16th, 2013, 04:32 PM   #7
New Boot

Join Date: May 2012
Location: Ljubljana, Slovenia
Posts: 18
Re: Samsung Single-lens 3D DSLR

Perfect? Have you seen the clip?

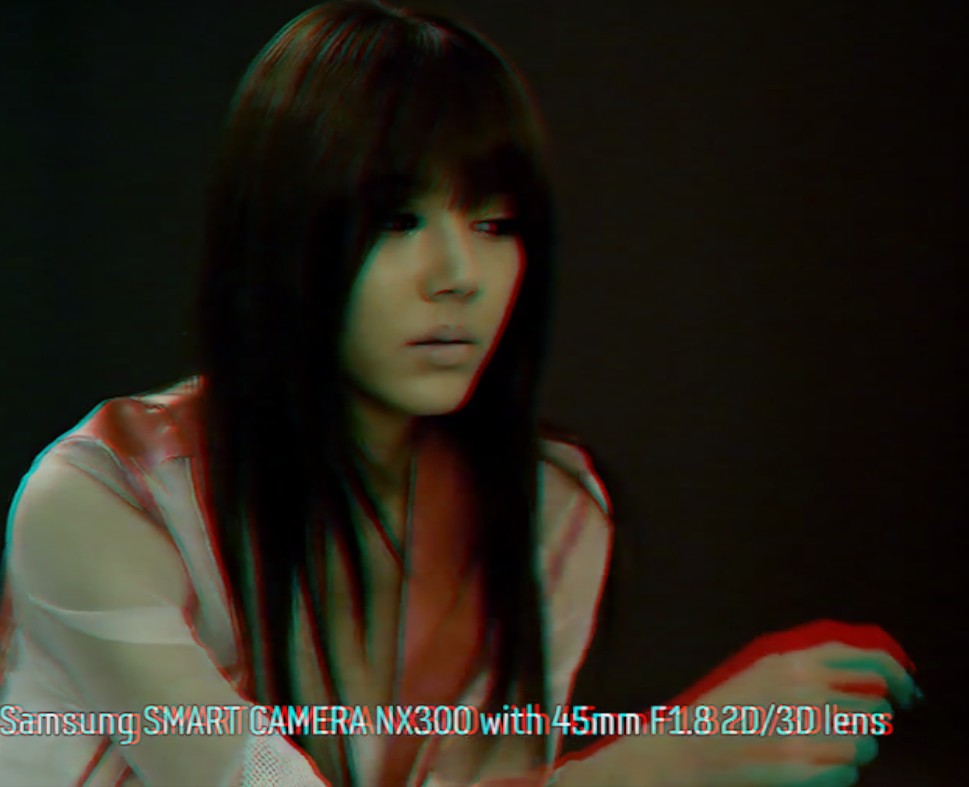

Anyway, up to now the (bad) results are perfectly in accordance with physics (when taken into account the working principle). I would be very surprised if they would get much better synch on the final product (in all circumstances).
Attached Thumbnails
Samsung Single-lens 3D DSLR-missynch1.jpg
Damir Vrancic is offline   Reply With Quote
Old February 18th, 2013, 06:01 PM   #8
Major Player

Join Date: Apr 2008
Location: Malibu, CA
Posts: 480
Re: Samsung Single-lens 3D DSLR

This camera could be a very interesting development in 3D photography in that it employs such a small form factor so it could be a crash cam or off-angle B or C cam on shoots. The slowness of the lens (f3.5) in 3D mode is not so bad given the large sensor size and it's inherent low light capabilities, but the almost 2X crop factor makes it a telephoto lens.

I'm curious as to whether it is only a side-by-side half resolution recording or a MVC type R/L Delta frame recording which might get you to full resolution with some finessing in post. It appears that it is the former, but would be very nice if the latter. And speaking of post, is there any info on a post production workflow, or is it just designed to feed Samsung 3D TV's from the camera body? The music video itself would indicate that the footage is somehow editable.
Bruce Schultz is offline   Reply With Quote
Old February 19th, 2013, 12:07 AM   #9
Regular Crew

Join Date: Sep 2009
Location: Ft. Lauderdale, FL
Posts: 166
Re: Samsung Single-lens 3D DSLR

I watched several of these clips and have to agree with Damir, seems to be temporal offset. When I freeze the "Baby" clip, I can see that the position of the baby's feet when she is kicking quickly, is different in the left and right eyes.

I HOPE this is a beta issue - had great hopes for this thing!

-- David
David M. Cole is offline   Reply With Quote
Old February 19th, 2013, 07:26 AM   #10
Wrangler

Join Date: Aug 2005
Location: Toronto, ON, Canada
Posts: 3,637
Re: Samsung Single-lens 3D DSLR

When I watched it on YouTube the first time on my passive 3DTV I didn't notice any temporal issues, but there are moments that are apparent when paused. The concept still has potential if they can get the shutter switchover to happen faster, but it may not be possible with LCD.
__________________
Tim Dashwood
Tim Dashwood is offline   Reply With Quote
Old February 23rd, 2013, 02:37 PM   #11
Major Player

Join Date: Mar 2009
Location: Laguna Hills, CA
Posts: 352
Re: Samsung Single-lens 3D DSLR

This interests me. The root cause of the Pulfrich Effect (Phenomenology of Motion) is that horizontal motion in plane perpendicular to the viewer appears moving on z-axis (away or towards) the viewer, if the image in one eye is perceived as delayed, due to darkening it. If then L/R are delayed, the horizontally moving object should be perceived as being misplaced in depth, depending on the delay and direction of the motion. I never experimented with this. Can anyone comment on this? This should be dynamic only phenomena.
Pavel Houda is offline   Reply With Quote
Old February 27th, 2013, 12:47 PM   #12
Regular Crew

Join Date: Nov 2011
Location: Los Angeles, CA
Posts: 137
Re: Samsung Single-lens 3D DSLR

The specs mention a normal focusing range of:
28 cm to Infinity
11.0 in to Infinity

but do not have a macro range. Maybe this means no macro?

And I didn't see mention of how close you can shoot 3D? It sure would be easier to get one lens close to the small subject, than two.

BTW, Panasonic seems to be working on a similar deal:
Panasonic's CMOS Sensor Enables to Take 3D Video With Single Lens -- Tech-On!
Matt Faw is offline   Reply With Quote
Old March 25th, 2013, 02:31 PM   #13
Regular Crew

Join Date: Sep 2009
Location: Ft. Lauderdale, FL
Posts: 166
Re: Samsung Single-lens 3D DSLR

Apparently they've started shipping (somewhere in the world)...

Samsung NX300 Hits Retail
David M. Cole is offline   Reply
