Old January 27th, 2013, 04:24 AM   #1
Major Player

Join Date: Aug 2010
Location: United Kingdom
Posts: 325
spinning credits

Hi All. I want to create a spinning credit on a video with Adobe premiere pro CS5. Once I open the FX control panel I have no idea what the jargon means. I have made a few attempts but the results are not very good. I have searched Adobe help, I have searched YouTube and the internet for any tutorials with no luck. I have just bought the manual "classroom in a book" and can't find any reference to the subject. I would be grateful if any knowledgable expert out there could tell how to achieve this FX in a simple step by step guide or point me to a tutorial on youtube that I can follow. Thanks in anticipation.
Roy Alexander is offline   Reply With Quote
Old January 27th, 2013, 12:16 PM   #2
Major Player

Join Date: Jun 2007
Location: The Netherlands
Posts: 694
Re: spinning credits

If you have no idea what all that jargon means you better start here:
http://tv.adobe.com/show/learn-premiere-pro-cs5/
http://tv.adobe.com/show/learn-premiere-pro-cs6/

What does a spinning credit exactly do?
__________________
ACE Premiere Pro CC
Adobe Community Professional
Ann Bens is offline   Reply With Quote
Old January 27th, 2013, 02:28 PM   #3
Major Player

Join Date: Aug 2010
Location: United Kingdom
Posts: 325
Re: spinning credits

[QUOTE=Ann Bens;1775596]
http://tv.adobe.com/show/learn-premiere-pro-cs5/
http://tv.adobe.com/show/learn-premiere-pro-cs6/

I have looked at all these items and they do not tell me what I want to know. After a lot of experimenting I have got the result I want. The opening credits are now spinning around and finally coming to rest in the way I want, although slower than I really want. I can't get the spin any faster.
Roy Alexander is offline   Reply With Quote
Old January 27th, 2013, 03:49 PM   #4
Major Player

Join Date: Jun 2007
Location: The Netherlands
Posts: 694
Re: spinning credits

That is really a job for AE where you add motion blur which Premiere does not have.
__________________
ACE Premiere Pro CC
Adobe Community Professional
Ann Bens is offline   Reply With Quote
Old January 27th, 2013, 04:39 PM   #5
Trustee

Join Date: Nov 2008
Location: Miami, FL USA
Posts: 1,483
Re: spinning credits

Ann is right, AE has lots more controls. If you want the image to rotate about its vertical axis, that's a job for AE. If you want it to whirl around (like the sample attached) it's pretty easy and you can do it in PPro effects.

Select the clip on the timeline, open effects, select scale to make image fit within the frame, if necessary.
Select rotation, click on the clock icon to set your first keyframe, move time selector to where you want the effect to end and move the roatation amount to however many rotations you want in that time. It will spin as fast--within reason--as you like in the time you give it. See attached jpeg and mpeg sample.

{edit} I completely forgot about video effect >transform>camera view, which does easily do the vertical spin (longitude) or on horizontal axis (latitude) or does the whirl thing (roll) even more easily than the above. It's in CS6, I don't know if it appears in other versions.
Attached Thumbnails

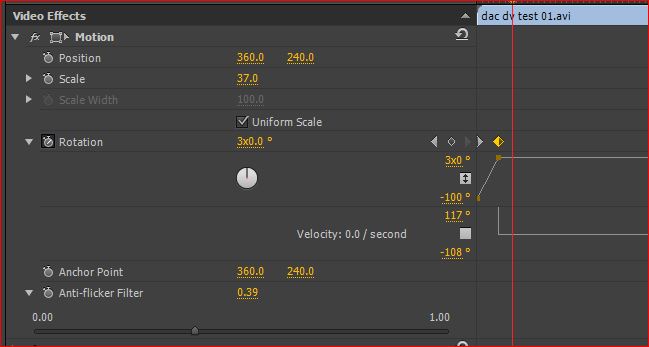

spinning credits-capture.jpg
Attached Files
File Type: mpg dac dv test 01.avi_1.mpg (726.0 KB, 65 views)

Last edited by Battle Vaughan; January 27th, 2013 at 05:18 PM. Reason: addendum
Battle Vaughan is offline   Reply With Quote
Old January 28th, 2013, 04:11 AM   #6
Major Player

Join Date: Aug 2010
Location: United Kingdom
Posts: 325
Re: spinning credits

Quote:
Originally Posted by Battle Vaughan View Post
.
Select the clip on the timeline, open effects, select scale to make image fit within the frame, if necessary.
Select rotation, click on the clock icon to set your first keyframe, move time selector to where you want the effect to end and move the roatation amount to however many rotations you want in that time. It will spin as fast--within reason--as you like in the time you give it. See attached jpeg and mpeg sample.
.
Thank you battle for a very enlightening input. However my problem is knowing where to type in to move the rotation amount. There are so many panels on show I simply don't know the correct one to alter to get a fast spin speed. A diagram pointing to the panel would be helpful. Thanks

I SEEM TO HAVE WORKED OUT HOW TO ALTER THE ROTATION SPEED. I HAVE NOW CREATED A TEXT CLIP WHICH ZOOMS FROM NOTHING TO FULL SIZE REQUIRED WHILST ROTATING I WOULD STILL LIKE TO INCREASE THE SPEED SO THAT THE TEXT IS UNREADABLE WHILST ROTATING. i WOULD STILL LIKE YOU TO POINT TO THE PANEL AS REQUESTED ABOVE JUST FOR ME TO BE SURE I'VE DONE IT CORRECTLY. WHAT IS THE HIGHEST NUMBER I CAN TYPE IN TO MAKE A FAST SPEED.? I GET TO A CERTAIN SPEED AND IT DOESN'T INCREASE ANYMORE. THANKS AGAIN FOR YOUR HELP.

Last edited by Roy Alexander; January 28th, 2013 at 10:05 AM. Reason: ADDED TO MESSAGE
Roy Alexander is offline   Reply With Quote
Old January 28th, 2013, 12:39 PM   #7
Trustee

Join Date: Nov 2008
Location: Miami, FL USA
Posts: 1,483
Re: spinning credits

OK -- afaik you can type in any number of rotations, any degree of rotation,or any number of rotations plus a number of degrees in addition --- to, say, make the page end up at at 45 degree angle when it comes to rest. See the attached jpeg.

The rate of rotation is simply the duration of the rotations times the number of rotations ---- if you type in 20 rotations and your beginning and ending keyframes are one second apart (see jpeg) you get twenty rotations per second. If your keyframes are two seconds apart you would get ten rotations per second. If the keyframes are a half-second apart you would get an effective rate of 40 rotations per second, over a half-second duration.

PS: the video clip above is not the quality you should get, I arbitrarily sent it as NTSC mpeg2, which caused interlace combing. If you are working in wmv or mov this should look much smoother.
Attached Thumbnails

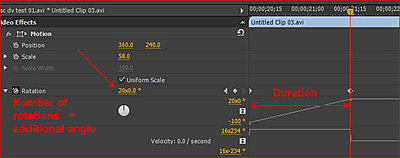

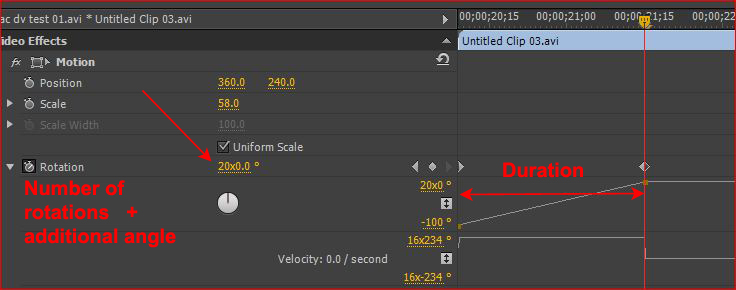

spinning credits-capture2.jpg
Battle Vaughan is offline   Reply With Quote
Old January 28th, 2013, 03:16 PM   #8
Major Player

Join Date: Jun 2007
Location: The Netherlands
Posts: 694
Re: spinning credits

-I WOULD STILL LIKE TO INCREASE THE SPEED SO THAT THE TEXT IS UNREADABLE WHILST ROTATING-

You wont get that in Premiere. You need motion blur for that.
__________________
ACE Premiere Pro CC
Adobe Community Professional
Ann Bens is offline   Reply With Quote
Old January 28th, 2013, 04:13 PM   #9
Major Player

Join Date: Aug 2010
Location: United Kingdom
Posts: 325
Re: spinning credits

Thanks Battle for the info. However Ann is right, using Premiere Pro 5 I can't increase the speed above a certain amount of rotations. I think the max number is 90 clockwise and 90 anti clockwise.
Roy Alexander is offline   Reply With Quote
Old January 28th, 2013, 04:21 PM   #10
Trustee

Join Date: Nov 2008
Location: Miami, FL USA
Posts: 1,483
Re: spinning credits

Maybe could fake the blur thing with adding directional blur to the image, and fading it out as the image starts to come to rest....
Battle Vaughan is offline   Reply With Quote
Old January 28th, 2013, 04:22 PM   #11
Trustee

Join Date: Nov 2008
Location: Miami, FL USA
Posts: 1,483
Re: spinning credits

Quote:
Originally Posted by Roy Alexander View Post
Thanks Battle for the info. However Ann is right, using Premiere Pro 5 I can't increase the speed above a certain amount of rotations. I think the max number is 90 clockwise and 90 anti clockwise.
If you realllllllly need more than 90 turns, just do 90 turns, then copy the 90 turn clip and paste it behind the first one.......ad infinitum....
Battle Vaughan is offline   Reply With Quote
Old January 28th, 2013, 05:24 PM   #12
Major Player

Join Date: Jun 2007
Location: The Netherlands
Posts: 694
Re: spinning credits

The more rotations you put in the less you will see of it actual turning.
__________________
ACE Premiere Pro CC
Adobe Community Professional
Ann Bens is offline   Reply With Quote
Old January 29th, 2013, 03:06 AM   #13
Major Player

Join Date: Aug 2010
Location: United Kingdom
Posts: 325
Re: spinning credits

ANN. BATTLE. Thanks for all your inputs. I think I will just stick to 90 rotations. As I have included a Zoom to the rotations, It looks alright.
Roy Alexander is offline   Reply
