Sony XLR-1 Adaptor for the PCM-D50 and D1.

Well my guess is this Sony 48volt XLR passive adaptor easily fits the Sony PCM-D1 recorder, but it sure has problems being fitted to the Sony D50 for easy operation.

The adaptor comes with a spacer plate and a base plate and you have 2 options to accommodate the D50. Both of them have operational problems.

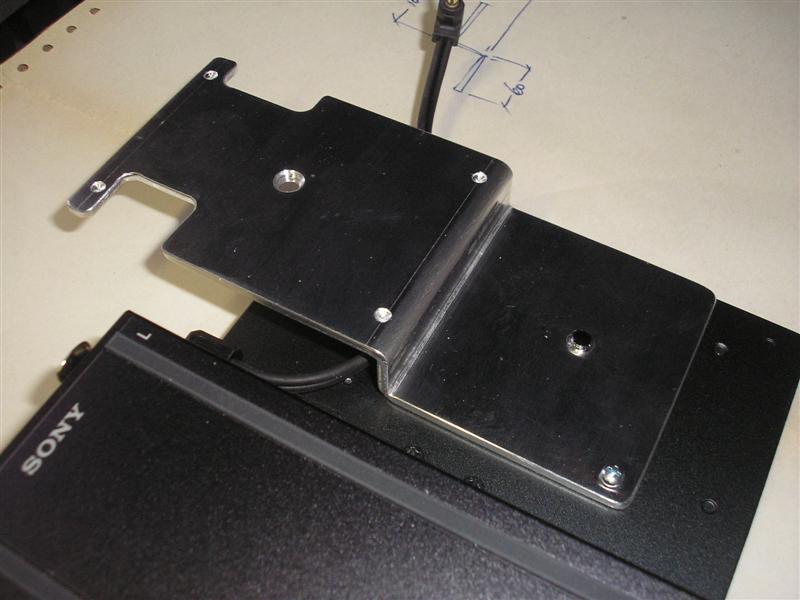

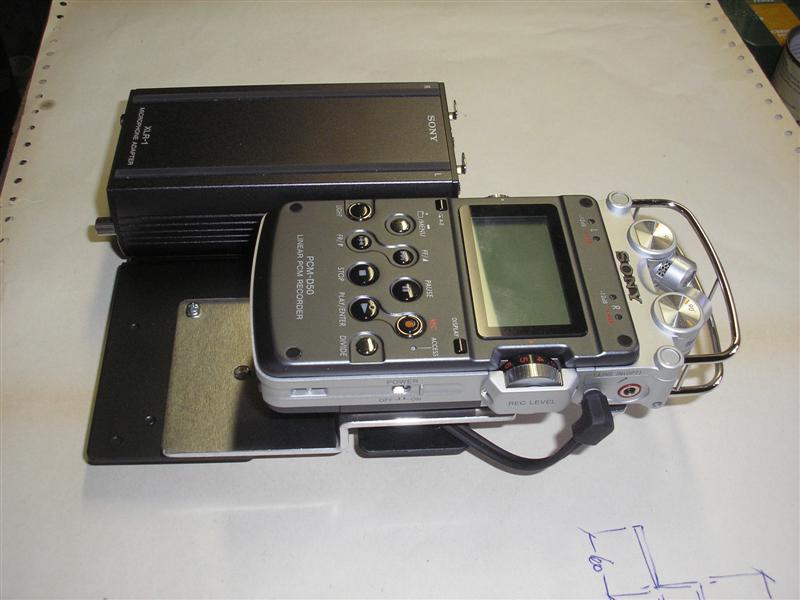

Fitted alongside each other, they're to close together. So I made a plate to sit the D50 further away from the adaptor so I can easily access the controls on its left, easily plug headphones in and also get access to the low cut and limiter on/offs, which are under the D50.

Cheers.
Attached Thumbnails
Sony XLR-1 Adaptor for the PCM-D50 and D1.-xlr-plate.jpg   Sony XLR-1 Adaptor for the PCM-D50 and D1.-xlr-adaptor-mod.jpg

Allan Black is offline   Reply With Quote
Old September 27th, 2008, 10:51 AM   #2
Go Go Godzilla

Join Date: Nov 2004
Location: Scottsdale, AZ USA
Posts: 2,739
Images: 15
I recently demoed and tried this exact setup; my biggest issue wasn't access to controls but that there's no easy way to make it a truly portable rig. There's no built-in clips for a shoulder strap and in this configuration shown here it's too cumbersome and unwieldy to be handheld.

Considering Sony put rubber feet on the bottom of the XLR-1 mounting plate they assumed this would transform the D50 into a table-top unit rather than an XLR-capable field recorder.

As a handheld device the D50 is an amazing unit bested only by it's big brother the D1, however when you consider the cost of the D50 and XLR-1 together - and it's lack of portability in the XLR configuration it makes more sense to simply use a unit that was designed from the get-go as an XLR-type input field recorder. I opted to go with the Tascam HD-P2 rather than fuss with the D50's shortcomings when using the XLR-1.

The HD-P2 is the same amount of money as the D50/XLR-1 combo almost to the dollar and, the HD-P2 does things the D50 can't such as timecode in/push/sync, has a much better LCD screen (I didn't like the fact that the D50 has no ability to change the contrast on the dimly lit screen) and a more organic, natural responding limiter.
__________________
Producer/CEO
Reel Lane Films LLC

Last edited by Robert Lane; September 28th, 2008 at 10:40 AM.
Robert Lane is offline   Reply With Quote
Old September 27th, 2008, 03:50 PM   #3
Major Player

Join Date: Jul 2007
Location: Bristol U.K.
Posts: 244
Yeah. D50 is great as is or with the mini jack line in but that xlr thing seems far too expensive.

I like the back lit screen.

cheers
Jimmy Tuffrey is offline   Reply With Quote
Old September 28th, 2008, 08:41 PM   #4
Inner Circle

Join Date: Sep 2006
Location: Sydney.
Posts: 2,569
It depends on what your needs are. After much research (read mucking about) I bought the Sony D50 as a small 2 track multipurpose recorder not needing timecode. Its biggest feature is its peerless sound quality, even the inbuilt mics do a creditable job with their 90 and 120 degree positions.

IMO the limiter sounds Ok, the headphone output sounds great and the 2 low cuts are 75 or 150Hz. I find the Sony Super Bit Mapping difficult to audition, but the theory and reason is there so I use it. The menu is easy to navigate, once you get used to it the storage folder system is great. The LCD light could be brighter, but I haven't found it too dim.

I also like its 5 secs pre-record..... saved my butt a couple of times.

The D50 is good enough to warrant running 48volt mics into it, so I looked at 2 other XLR adaptors first, but they've got limitations. The only option (so far) is this expensive Sony XLR-1 with the problems I listed above. So I made that plate (pix) to overcome them.

Sony do illustrate a 2nd option to mount this XLR adaptor, it's UNDER the D50. Hopeless!! Again you can't access the D50 limiter and low cut on/off switches, there's no tripod mount, so you'd have to handhold it outdoors or make some sort of support rig.

But another D50 standout is its amazing battery life. I'm still only halfway through the first 4 x AAs after I figure I should have used about 8 more. At this rate I'm *slowly* offsetting the cost of this adaptor. Rechargeable batteries are a drag if you do a lot of recording. Indoors now, I don't bother with its a/c power adaptor.

The more I use this combo the better it gets, I intended to be able to dismantle it but now find there's no need. With the D50 sitting forward on my plate I can use the inbuilt mics then easily swap to any 48volt XLR mics, including dynamics, by instantly accessing all the D50 controls on its left side.

Uploading is a snap, any computer sees the D50 as a USB mass or removable storage device without the need for any drivers. I've xfered stuff out on location.

Quote:
Originally Posted by Robert Lane View Post
Considering Sony put rubber feet on the bottom of the XLR-1 mounting plate they assumed this would transform the D50 into a table-top unit rather than an XLR-capable field recorder.
The XLR-1 mounting plate also comes with a tripod mount on the bottom, I use that in the field and use the rig handheld by holding the XLR adaptor without problems. The D50 by itself is very susceptible to hand holding noises, for its mics you need a windscreen outdoors at all times.

The D50 manual only lists 4GB external cards, but I believe the D50 appeared before 8GB cards were available. I've ordered a second one along with the remote unit.

I did take more quick pix before.

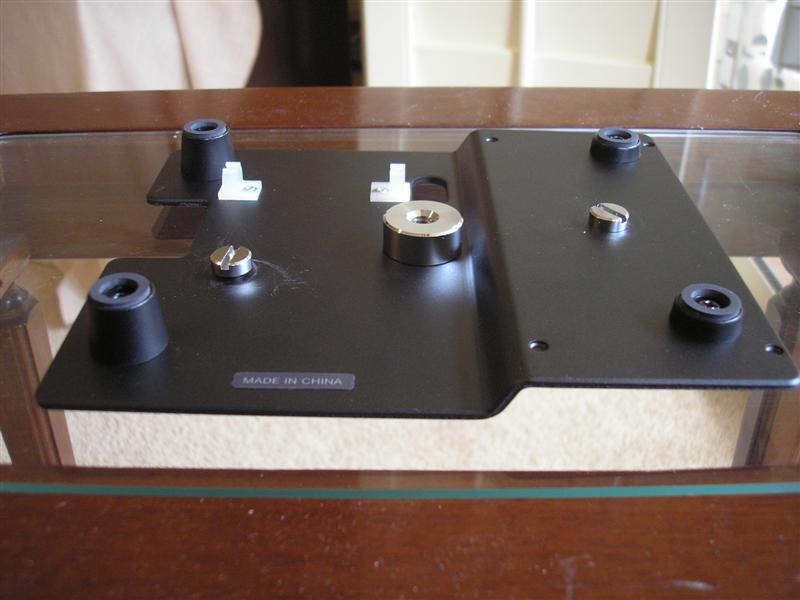

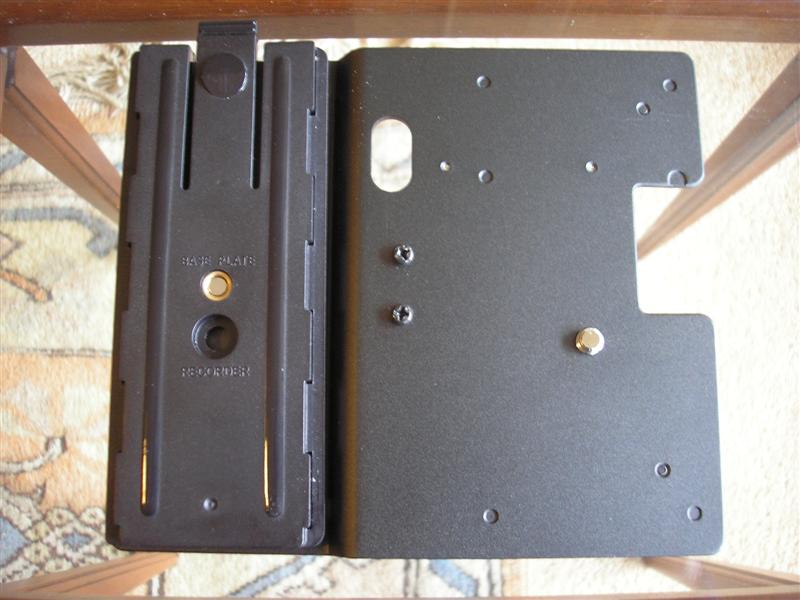

Pix 1 shows the Sony XLR adaptor base plate with the table feet and tripod mount.

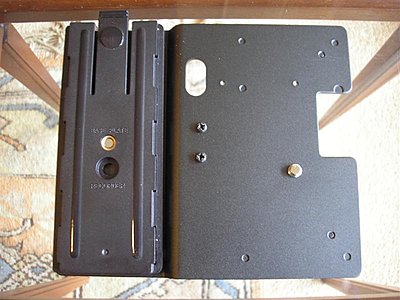

Pix 2 shows the XLR spacer plate fitted to the base plate.

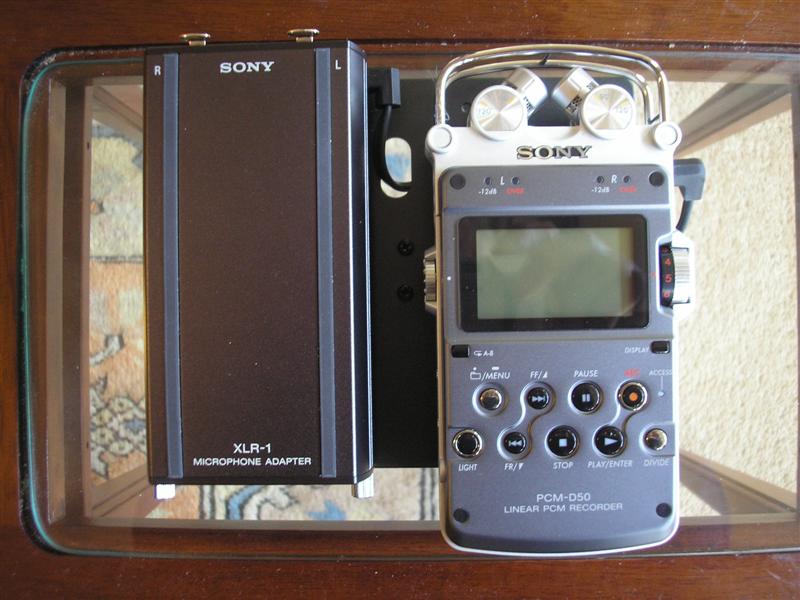

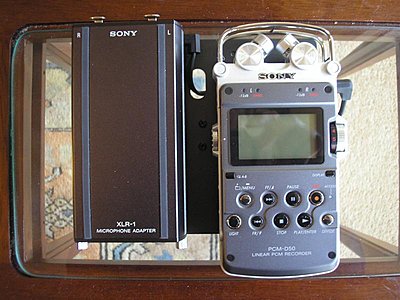

Pix 3 shows the adaptor fitted with the D50 on the base plate as standard, but they're to close together. You can slide the adaptor on the spacer plate, back and down to access the left D50 controls, a right royal pain up on a tripod on location. Also I didn't like how that output cable runs under the base plate, another reason I angled my plate up.

Added to those advantages in post 1, this also allows AA battery and external card access without dismantling the D50 from the base plate.

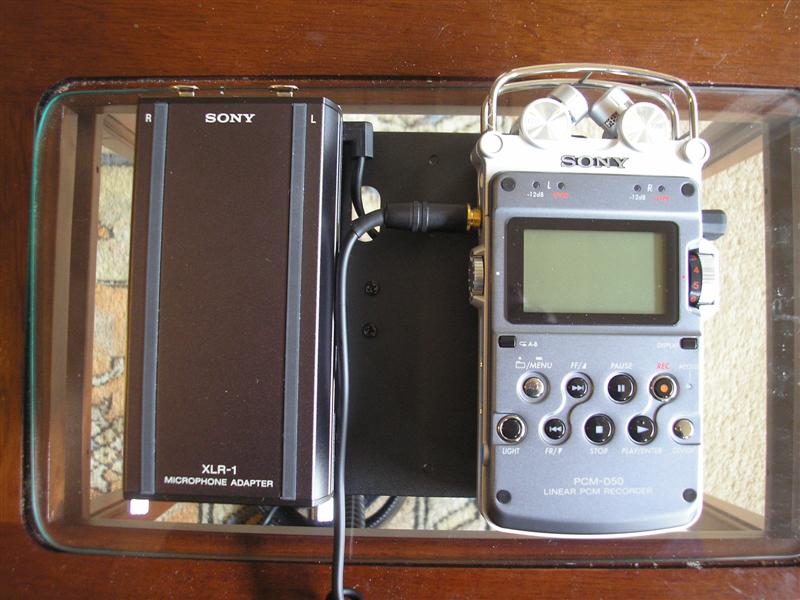

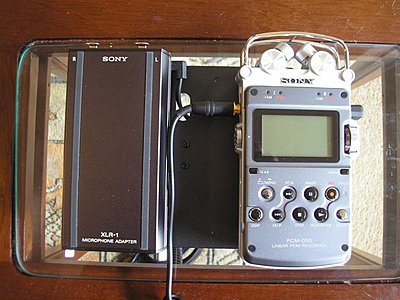

Pix 4 shows the distance they really need to be apart sitting flat on the base plate, just to plug headphones in. Sorry 'bout the quality.
