Old October 10th, 2008, 11:01 AM   #16
Inner Circle

Join Date: Nov 2004
Location: Baltimore, MD USA
Posts: 2,323
Sounds like light dimmer buzz.

Ty Ford
Ty Ford is offline   Reply With Quote
Old October 10th, 2008, 11:03 AM   #17
Inner Circle

Join Date: Sep 2002
Location: Vancouver, British Columbia (formerly Winnipeg, Manitoba) Canada
Posts: 4,087
Quote:
Originally Posted by David Scattergood View Post
I'm going to double the track up as per Jon's advice in Logic, adding compression and perhaps another effect should it need one. Though I've not commenced this, might there be a problem with phasing on the two tracks or will the added compression on one (and perhaps a very slight pitch alteration?) take care of that?
If both tracks are from the same source (ie. you double the SAME mic track for mixing) and you are VERY careful in placing both tracks in your timeline AND you don't add any modulation or time based effects, they SHOULD remain perfectly in phase.
__________________
Shaun C. Roemich Road Dog Media - Vancouver, BC - Videographer - Webcaster
www.roaddogmedia.ca Blog: http://roaddogmedia.wordpress.com/
Shaun Roemich is offline   Reply With Quote
Old October 10th, 2008, 11:10 AM   #18
Major Player

Join Date: Aug 2006
Location: Manchester, UK
Posts: 755
Quote:
Originally Posted by Ty Ford View Post
Sounds like light dimmer buzz.

Ty Ford
Great...every room in the house...sorry studio has dimmers in them. These were not on in the room where the mic was set up mind, but likely in the room where the desk and feed was in. I thought I'd checked everything too (mobiles were turned off etc).
So, might there be a chance I can somehow electronically eradicate this? Soundtrack pro/freq filter within logic?

Cheers.

Quote:
If both tracks are from the same source (ie. you double the SAME mic track for mixing) and you are VERY careful in placing both tracks in your timeline AND you don't add any modulation or time based effects, they SHOULD remain perfectly in phase.
Yes - fortunately the snap function is on so no danger of misplacing on timeline. Compression and reverb ok to add when doubling up?

Thanks.
David Scattergood is offline   Reply With Quote
Old October 10th, 2008, 12:10 PM   #19
Regular Crew

Join Date: Jul 2008
Location: Chichester UK
Posts: 167
Dimmers

Yes, it sounds like 50 Hz square (ish) wave. That's the trade mark of domestic lamp dimmers, which goes away when the light is turned up to full. The good news is that as it is relatively stable, you can invert the phase of a good sample of buzz alone. Then you stand a good chance of cancellation. These cursed dimmers are even more of a pain on film sets, where instead of the dear old rheostats, which reduced the voltage and preserved the wave form, they chop the top and bottom of each cycle. Lighter in weight, cheaper to make, but sound like a hive of demented bees. And woe betide you if you lay an audio cable anywhere near the dimmer or its cable.

Last edited by Nick Flowers; October 10th, 2008 at 12:35 PM. Reason: Making it less boring.
Nick Flowers is offline   Reply With Quote
Old October 10th, 2008, 12:35 PM   #20
Major Player

Join Date: Aug 2006
Location: Manchester, UK
Posts: 755
Quote:
Originally Posted by Nick Flowers View Post
Yes, it sounds like 50 Hz square (ish) wave. That's the trade mark of domestic lamp dimmers, which goes away when the light is turned up to full. The good news is that as it is relatively stable, you can invert the phase of a good sample of buzz alone. Then you stand a good chance of cancellation. These cursed dimmers are even more of a pain on film sets, where instead of the dear old rheostats, which reduced the voltage and preserved the wave form, they chop the top of each cycle. Lighter in weight, cheaper to make, but sound like a hive of demented bees.
Aye...I can't stand bright lights in the house, hence we're full of halogens on dimmers (perhaps I should sway towards LED's eventually, for 'green' reasons and all that).
But they do buzz somewhat.

I'm not entirely sure how I would begin to invert the phase of the buzz however - doable in soundtrack pro?

I'll know next time...table lamps from now on when the 'live on air' light is red!

Cheers Nick.
David Scattergood is offline   Reply With Quote
Old October 10th, 2008, 12:43 PM   #21
Major Player

Join Date: Aug 2006
Location: Manchester, UK
Posts: 755

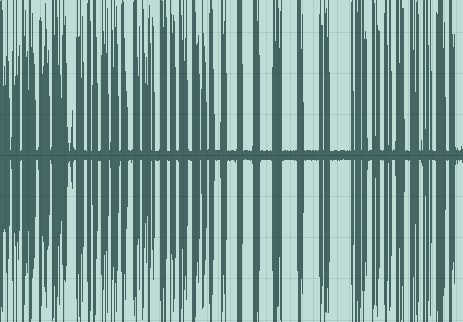

I think from the frequency wave (in STP) this then is fairly evident (if it's the central band running throughout the entire waveform):
Attached Thumbnails
Voice over advice-freq-vocal.jpg
David Scattergood is offline   Reply With Quote
Old October 10th, 2008, 01:23 PM   #22
Inner Circle

Join Date: Sep 2002
Location: Vancouver, British Columbia (formerly Winnipeg, Manitoba) Canada
Posts: 4,087
David, I notice a couple of points in the posted timeline/waveform where there is ONLY background noise. Try this:

Carefully select just a section of "noise"
In the Process menu select Noise Reduction > Set Noise Print
Select the entire wave form
In the Process menu select Noise Reduction . Reduce Noise and play with the settings until you've eliminated or lowered the 50Hz noise floor.

WARNING: Overly aggressive use of the Noise Reduce function MAY cause mosquito style artifacting which in some cases is WORSE than the 50Hz hum.
__________________
Shaun C. Roemich Road Dog Media - Vancouver, BC - Videographer - Webcaster
www.roaddogmedia.ca Blog: http://roaddogmedia.wordpress.com/
Shaun Roemich is offline   Reply With Quote
Old October 10th, 2008, 01:30 PM   #23
Major Player

Join Date: Aug 2006
Location: Manchester, UK
Posts: 755
Quote:
Originally Posted by Shaun Roemich View Post
David, I notice a couple of points in the posted timeline/waveform where there is ONLY background noise. Try this:

Carefully select just a section of "noise"
In the Process menu select Noise Reduction > Set Noise Print
Select the entire wave form
In the Process menu select Noise Reduction . Reduce Noise and play with the settings until you've eliminated or lowered the 50Hz noise floor.

WARNING: Overly aggressive use of the Noise Reduce function MAY cause mosquito style artifacting which in some cases is WORSE than the 50Hz hum.
Hi Shaun, I just happened to be playing with Noise Reduction in Soundtrack Pro...and it's working quite remarkably. Not sure yet at what level the db noise reduction should be set at (defaults at -60db which is just about right...a slight buzz is left but it's almost perfect.). I haven't tried the Set Noise Print route yet, rather selected the whole waveform (or parts when first testing) then clicked on apply. There seems to be a slight, almost negligible degradation of the vocal performance...although I'm almost convincing myself there is one rather than it being obvious.

I guess I can then send this back to Logic and apply compression (double tracked), EQ if required and the odd effect (again if required).

Still like to work out the method for inverting the phase mind. The DC offset, Power line hum analysis in STP didn't seem to do anything, rather strangely??
I'll post a before and after quick sample of the Noise reduction and see whether you folks think the vocal has been lightly 'stripped' of something.

Many thanks.
