Sennheiser G2 on cam mounting solutions

I just got a new Senn. G2 wireless kit and noticed that the hot shoe adapter mounts the receiver in a way that the antenna is a horizontal position. I would like the receiver to maintain a vertical position to match the orientation of the transmitter which is vertical. What kind of adapter would work best, I know there are a few out, I just want something simple.


Thanks
Ben
Ben Moore is offline   Reply With Quote
Old April 5th, 2009, 03:52 PM   #2
Major Player

Join Date: Feb 2004
Location: France
Posts: 578
Hi Ben
I have used heavy duty velcro for years. I use the G2 plastic mounting plate minus the hotshoe attachement which unscrews, and just attach to the camera battery...Works great.
Regards
Gareth
__________________
www.gwenllyn.com
Gareth Watkins is offline   Reply With Quote
Old April 5th, 2009, 09:58 PM   #3
Regular Crew

Join Date: Jul 2007
Location: Bli Bli Qld Australia
Posts: 93
+ 1 for the velcro - very simple and very cost effective - win-win

Cheers
Darren
Darren Smith is offline   Reply With Quote
Old April 6th, 2009, 03:38 AM   #4
Major Player

Join Date: Oct 2007
Location: London, UK
Posts: 792
I don't use my G2 very often but when I do I clip it onto the strap on the camera (Canon XH A1), like you would clip it to a belt.
__________________
http://www.gooderick.com
Richard Gooderick is offline   Reply With Quote
Old April 6th, 2009, 04:42 AM   #5
Major Player

Join Date: Oct 2008
Location: Oxfordshire, UK
Posts: 974
How about using a bounce shoe adaptor like this one - so uou can tilt it through 90-degrees.
__________________
John Willett - Sound-Link ProAudio and Circle Sound Services
President: Fédération Internationale des Chasseurs de Sons
John Willett is offline   Reply With Quote
Old April 6th, 2009, 06:06 AM   #6
Major Player

Join Date: Feb 2004
Location: France
Posts: 578
Other advantages of Velcro on the battery are that it :
1) adds weight to the rear of the camera improving balance...
2) Its out of the way of the controls, mic and handle
3) It leaves the hotshoe free for a video light which I often use..
4) As Darren pointed out it is a very cheap solution.

I leave mine in place most of the time, only removing if I use with a mixer....

cheers
Gareth
__________________
www.gwenllyn.com
Gareth Watkins is offline   Reply With Quote
Old April 6th, 2009, 11:04 AM   #7
Trustee

Join Date: Jan 2005
Location: Maryland
Posts: 1,505
Quote:
Originally Posted by Ben Moore View Post
I just got a new Senn. G2 wireless kit and noticed that the hot shoe adapter mounts the receiver in a way that the antenna is a horizontal position. I would like the receiver to maintain a vertical position to match the orientation of the transmitter which is vertical. What kind of adapter would work best, I know there are a few out, I just want something simple.


Thanks
Ben
Ben two solid ways to mount your wireless vertical, would be using Velcro like what was mentioned and Velcro it to the back or your camera batteries. this way the camera stays nicely balanced.

Another way, is if your camera has a shotgun mount already attached is to get a J-Rod Twin (thej-rod.com), This will enable you to mount a shotgun mic and wireless receiver to your shotgun mount. I swear by them, as they work fantastic and keep my setup lean.
__________________
Michael
www.lvpvideo.com
Michael Liebergot is offline   Reply With Quote
Old April 6th, 2009, 12:22 PM   #8
Major Player

Join Date: Feb 2004
Location: France
Posts: 578
Quote:
Originally Posted by Michael Liebergot View Post
Another way, is if your camera has a shotgun mount already attached is to get a J-Rod Twin (thej-rod.com), This will enable you to mount a shotgun mic and wireless receiver to your shotgun mount. I swear by them, as they work fantastic and keep my setup lean.
I don't know about other cameras but the Z1 has two really tiny little screws holding the mic mount to the camera... I'm not sure I'd want too much more weight on it. I have a system made in the UK by CVP that incorporates a mic mount with a shock mount for the mic but I don't use it for this reason.
Other cameras of course may have more solid fixing systems..

regards
Gareth
__________________
www.gwenllyn.com
Gareth Watkins is offline   Reply With Quote
Old April 6th, 2009, 12:32 PM   #9
Trustee

Join Date: Jan 2005
Location: Maryland
Posts: 1,505
Quote:
Originally Posted by Gareth Watkins View Post
I don't know about other cameras but the Z1 has two really tiny little screws holding the mic mount to the camera... I'm not sure I'd want too much more weight on it. I have a system made in the UK by CVP that incorporates a mic mount with a shock mount for the mic but I don't use it for this reason.
Other cameras of course may have more solid fixing systems..

regards
Gareth
Gareth, I have 2 modified FX1's which have use the Z1 mic mount assembly, and is mounted using the exact 2 screws that you mention.
In 3 plus year of using the J-Rod, I have had 0 issues with it.

The only thing that it may do is make one side of your camera a bit heavier than the other, so if you place the camera flat on the ground, while having a QR plate attached, then it might tip over. So I just place my camera on it's side, if I ever have to place it on the ground, which is rare.

But rest assured, that your Z1 mic mount will be strong enough to support a Sennhesier wireless and shotgun mic.

BTW, I use a Sennheiser G2 system and Rode NTG1 mic on the J-Rod. And just for reference
__________________
Michael
www.lvpvideo.com
Michael Liebergot is offline   Reply With Quote
Old April 6th, 2009, 03:38 PM   #10
Regular Crew

Join Date: Nov 2007
Location: Vancouver, WA
Posts: 189
Thanks everybody for the great suggestions!

I'm begining to wonder why the receiver bracket was ever designed to mount the receiver in a horizontal position. I would think that more after than not the transmitter would be in a vertical position. I did not read anything in the documentation about antenna orientation. I wonder if Sennheiser has an opinion in this matter. Maybe its not an issue with these units, you would think they would mention it in troubleshooting tips if it were an issue.

Ben
Ben Moore is offline   Reply With Quote
Old April 7th, 2009, 11:02 AM   #11
DVCreators.Net

Join Date: Oct 2001
Location: Seattle, WA
Posts: 888

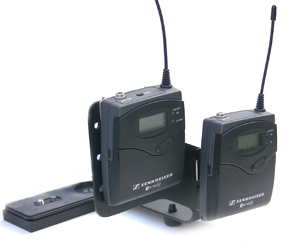

I was hoping that Sennheiser would listen and make the G3 antennas rotate like the Sony. For now, I'm using a Bracket1 with the EW clip as a great solution. Feels very solid and stable. I can swing around, run etc and not worry about the receivers flying off. Bracket1 at DVcreators.net
Attached Images

__________________
Guy Cochran
DVinfo Sponsor, Cool Gear - DVeStore!
Guy Cochran is offline   Reply With Quote
Old April 7th, 2009, 12:28 PM   #12
Major Player

Join Date: Oct 2008
Location: Oxfordshire, UK
Posts: 974
Quote:
Originally Posted by Guy Cochran View Post
I was hoping that Sennheiser would listen and make the G3 antennas rotate like the Sony.
This is a bad idea!

Rotating aerials add cost, moving parts and unreliability. The G2 antennas are extremely tough and reliable with virtually never any problems or breakage.

I would say that reliability is more important than being able to rotate an antenna.

With G3 this becomes unimportant as the G3 is diversity.
__________________
John Willett - Sound-Link ProAudio and Circle Sound Services
President: Fédération Internationale des Chasseurs de Sons
John Willett is offline   Reply With Quote
Old April 7th, 2009, 12:50 PM   #13
DVCreators.Net

Join Date: Oct 2001
Location: Seattle, WA
Posts: 888
Quote:
Originally Posted by John Willett View Post
This is a bad idea!

Rotating aerials add cost, moving parts and unreliability. The G2 antennas are extremely tough and reliable with virtually never any problems or breakage.

I would say that reliability is more important than being able to rotate an antenna.

With G3 this becomes unimportant as the G3 is diversity.

Since you work for Sennheiser John, you'd know better.
I just know that having sold thousands of sets of G2 that the antennas do break, and that the less expensive Sony receiver with moveable antennas does in fact have a greater range than the G2. I'll put up a comparison when the G3 beta unit arrives.
__________________
Guy Cochran
DVinfo Sponsor, Cool Gear - DVeStore!
Guy Cochran is offline   Reply With Quote
Old April 7th, 2009, 01:07 PM   #14
DVCreators.Net

Join Date: Oct 2001
Location: Seattle, WA
Posts: 888

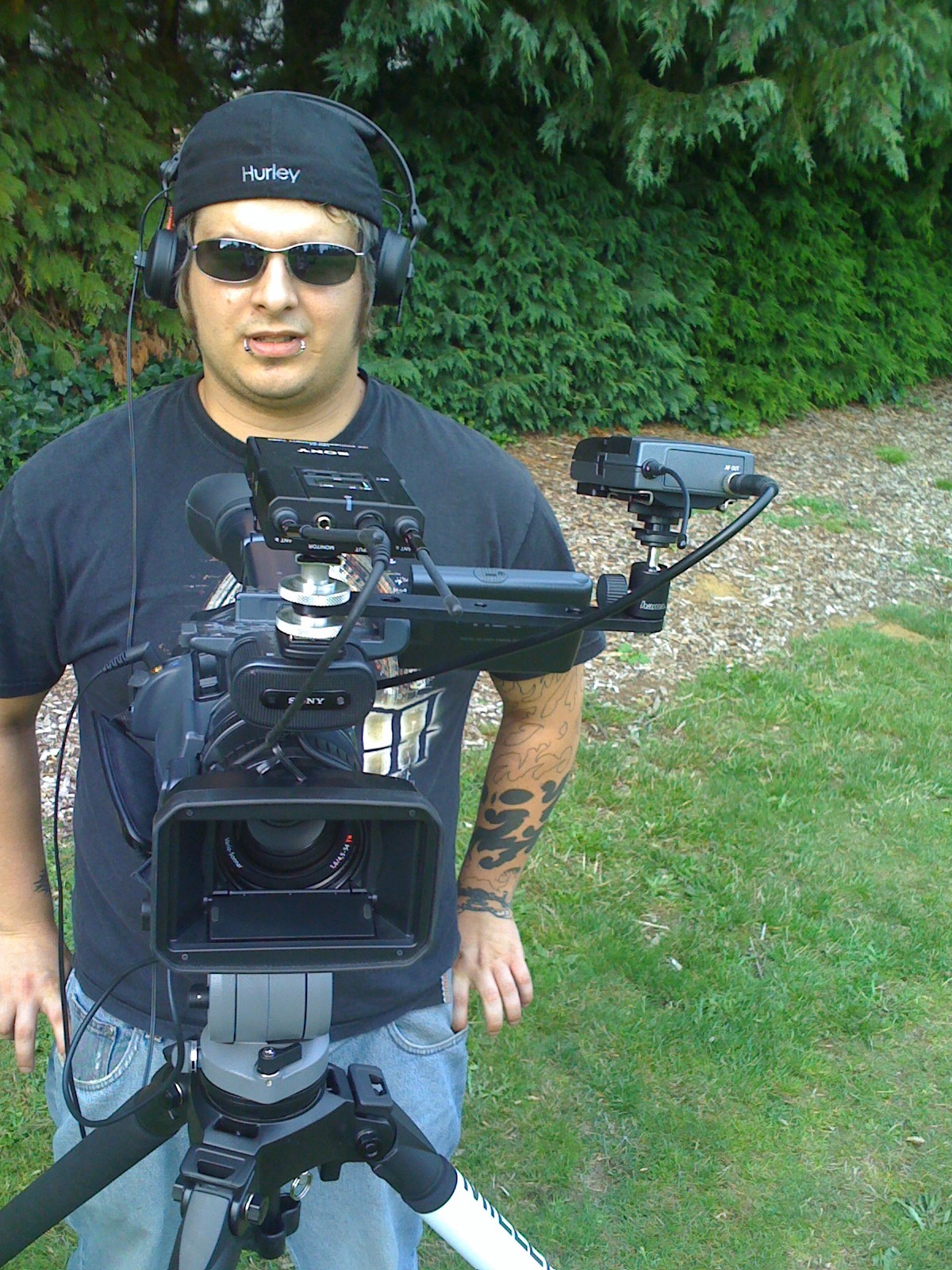

One more less expensive shoe option is the HAMA Delvcam Hot Shoe Mount solution. It has a cold shoe and 1/4-20 thread with moveable ball. Here is a picture from our Sony/Sennheiser range test.

It's tough to tell in the pic, but you can do a full 90 degree angle with the ball head.
Attached Thumbnails
Sennheiser G2 on cam mounting solutions-img_0947.jpg
__________________
Guy Cochran
DVinfo Sponsor, Cool Gear - DVeStore!
Guy Cochran is offline   Reply With Quote
Old April 7th, 2009, 02:19 PM   #15
Regular Crew

Join Date: Nov 2007
Location: Vancouver, WA
Posts: 189
Quote:
Originally Posted by John Willett View Post
This is a bad idea!

Rotating aerials add cost, moving parts and unreliability. The G2 antennas are extremely tough and reliable with virtually never any problems or breakage.

I would say that reliability is more important than being able to rotate an antenna.

With G3 this becomes unimportant as the G3 is diversity.
John

What is your opinion on antenna orientation? Does it affect reception on the G2 units?

Thanks
Ben
Ben Moore is offline   Reply
