Old March 6th, 2014, 04:53 PM   #16
Trustee

Join Date: Dec 2007
Location: Glasgow, Scotland
Posts: 1,521
Re: Which Mic? Please listen.

Quote:
The ME-66 is presenting a lower noise floor.. .
Eh?
It's a noisier mic by 5 dB (but that's still pretty good for a shotgun. Røde's NTG-3 is 3 dB more).
OK that's just the self noise, but looking at the files in any editing software, it's very easy to see a higher noise floor from the ME 66. The extra noise can also clearly be heard, so how is that 'presenting a lower noise floor'?

Unless I have been misunderstanding the term 'noise floor' all these years?


EDIT: I clearly need to put more water in my whisky - see later post.

Last edited by Colin McDonald; March 7th, 2014 at 05:30 AM.
Colin McDonald is offline   Reply With Quote
Old March 6th, 2014, 05:54 PM   #17
Regular Crew

Join Date: Nov 2010
Location: Ferrisburgh, VT
Posts: 178
Re: Which Mic? Please listen.

Colin, if we can both hear and see excess noise in one of the samples during the "silence" portion, then one of us has the two mics backwards.

I can hear more during the silence in the file called "mic #1." That's the Rode, if I read correctly.

Am I confusing "Noise Floor" with "Signal-to-Noise Ratio?"
Finn Yarbrough is offline   Reply With Quote
Old March 6th, 2014, 06:50 PM   #18
Trustee

Join Date: Aug 2008
Location: New York
Posts: 1,844
Re: Which Mic? Please listen.

Noise floor. There's significant acoustical borne noise in there.
My rough measurements are:
#1 -50dBFS (-61.5 LUFS int.)
#2 -54dBFS.(-66.5 LUFS int.)
The difference is insignificant for this.
Rick Reineke is offline   Reply With Quote
Old March 7th, 2014, 05:16 AM   #19
Trustee

Join Date: Dec 2007
Location: Glasgow, Scotland
Posts: 1,521
Re: Which Mic? Please listen.

Quote:
Originally Posted by Finn Yarbrough View Post
Colin, if we can both hear and see excess noise in one of the samples during the "silence" portion, then one of us has the two mics backwards.

I can hear more during the silence in the file called "mic #1." That's the Rode, if I read correctly.

Am I confusing "Noise Floor" with "Signal-to-Noise Ratio?"
[Grovel] No - it's MY mistake. I had the mics the wrong way round for some reason. A thousand apologies.[/Grovel]

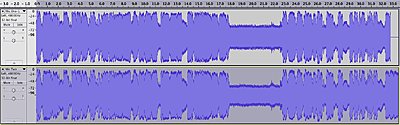

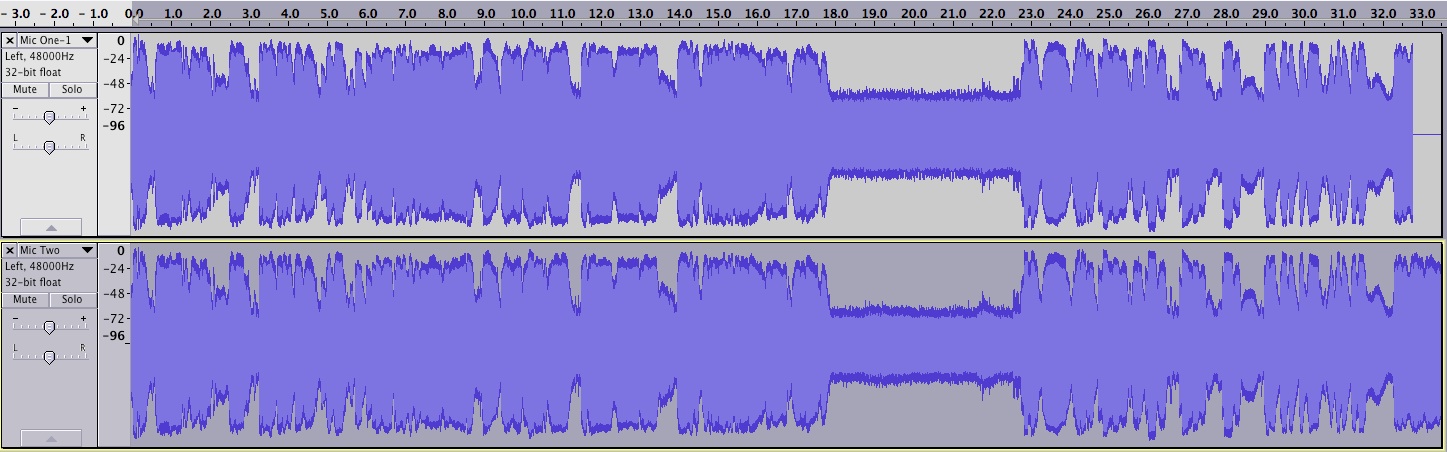

I downloaded them again (this time in the right order) and checked. Here's a screen shot in Audacity
(I dumped one of the stereo channels (R) in each for clarity:
Attached Thumbnails
Which Mic?  Please listen.-two-mics.jpg
Colin McDonald is offline   Reply With Quote
Old March 7th, 2014, 11:19 AM   #20
Trustee

Join Date: Aug 2008
Location: New York
Posts: 1,844
Re: Which Mic? Please listen.

That's a strange looking waveform Colin. Looks like it's highly compressed (dynamic). Could be just the Audacity display.

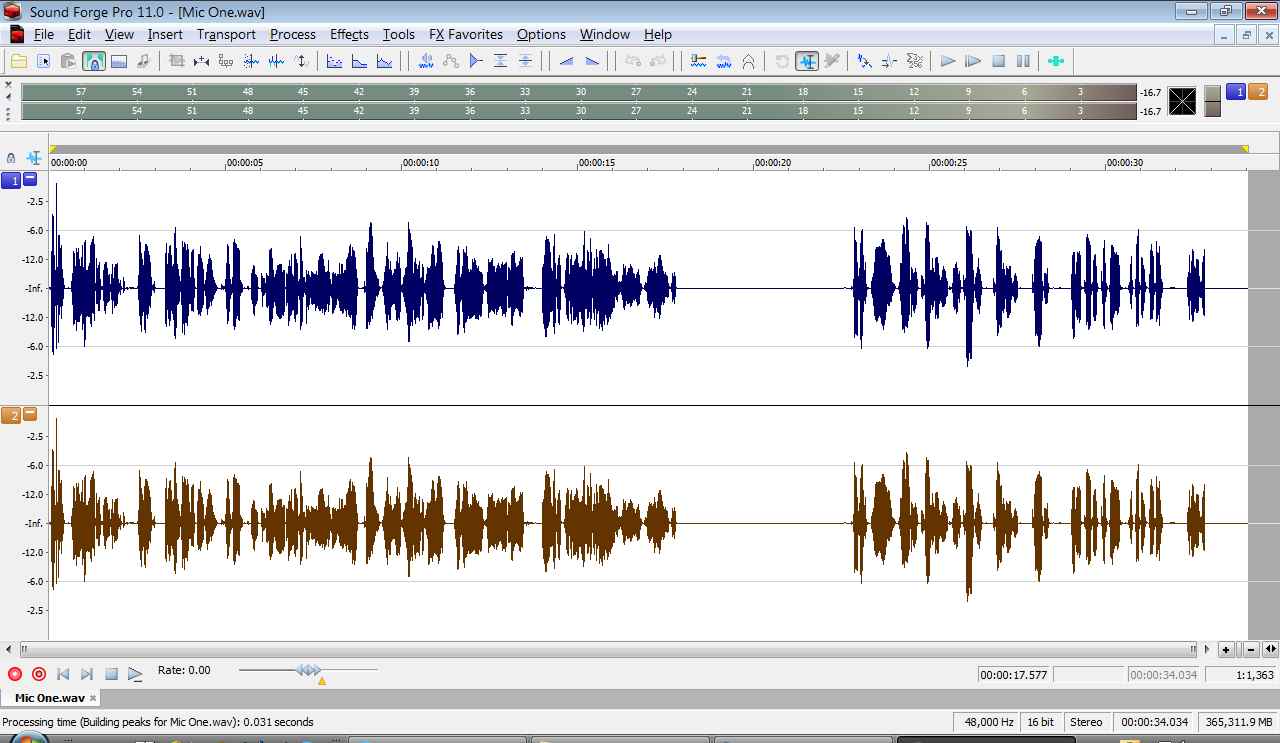

Here's what I get:
http://www.dvinfo.net/forum/members/...-sf-11-pro.jpg
Attached Thumbnails
Which Mic?  Please listen.-mic-one.jpg
Rick Reineke is offline   Reply With Quote
Old March 7th, 2014, 12:26 PM   #21
Trustee

Join Date: Oct 2002
Location: Phoenix, AZ
Posts: 1,682
Re: Which Mic? Please listen.

Quote:
Originally Posted by Finn Yarbrough View Post
You have a voice for radio, by the way.
Finn, Thanks for the prop, but it made me laugh! I can't stand the sound of my own recorded voice. I am not ready to confess what this project is in it's entirety but I AM a part of it. With more than 20 years in the business I know my place is behind the camera, not in front of one. I tried to sweeten an audio track from this set up last night. I found it very difficult to EQ my own voice. I think I got it, but it was hard to know when to let it go.

Colin, You did use dynamic compression on that file, right. That was the first thing I noticed on your screen shot. Those files are dry, straight, from the camera. Mic, XLR, Sony pre-amps. I considered recording audio outside of the camera to avoid the Sony pre-amps. But look what mics I am using anyway. Overall, the recordings are good enough to work with in post. Nothing big to repair, just normal sweetening.

This is a work in progress, stay tuned. I could be back crying and screaming for help! Thanks for everyone's input.

By the way. I am recording with both mics but the ME66 gets discarded in post. The NT1A clearly gives me more of what I want to work with.

Steve

Steve
__________________
www.CorporateShow.com
Been at this so long I'm rounding my years of experience down...not up!
Steven Digges is offline   Reply With Quote
Old March 7th, 2014, 12:28 PM   #22
Trustee

Join Date: Dec 2007
Location: Glasgow, Scotland
Posts: 1,521
Re: Which Mic? Please listen.

I had set the Audicity display for a larger than usual bit depth (16 bit) to look at the noise floor.

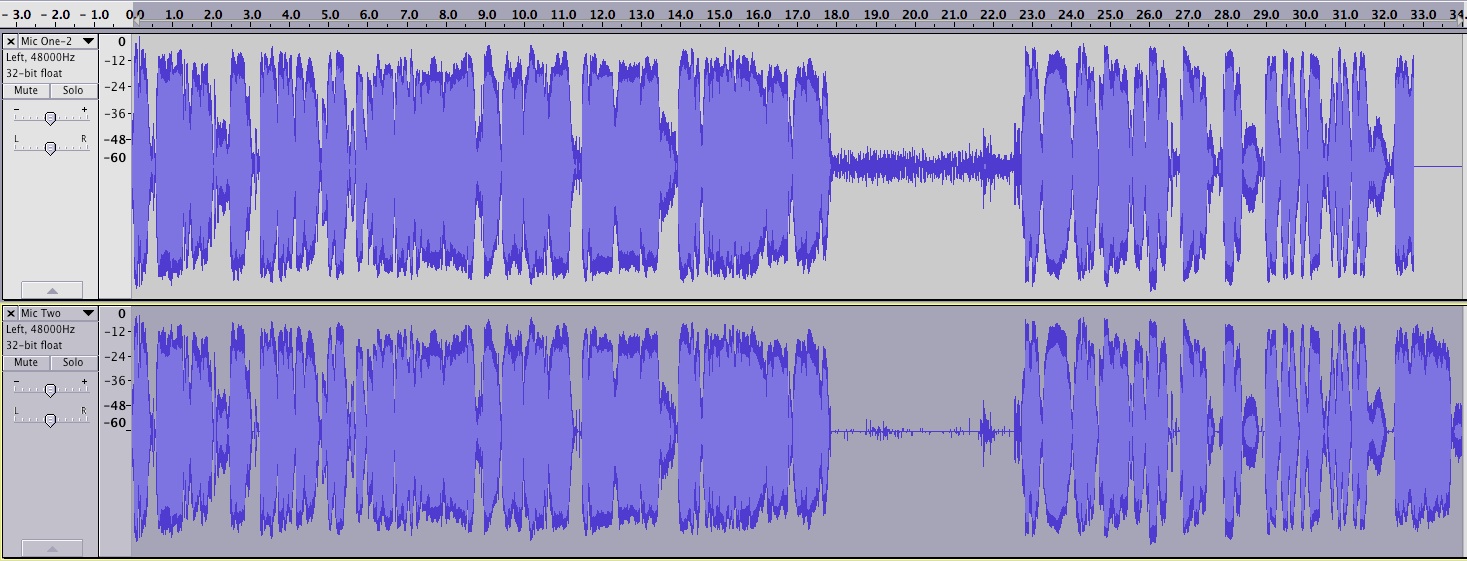

Here are the same files with the display set to 10 bit:
Attached Thumbnails
Which Mic?  Please listen.-two-mics-10bit.jpg
Colin McDonald is offline   Reply
