Old March 10th, 2014, 04:04 PM   #1
Regular Crew

Join Date: Jan 2010
Location: Seattle, Washington
Posts: 173
H6 Backup Recording Question

Is there a difference when using the L/R channels as opposed to the numbered channels? The manual says these are stereo. Is there a way to force them to record mono? I'd really like to use the backup recording feature (where it creates a second audio file at -12db). I'm using this mainly for weddings.

Would it be safe to use either the L/R for wireless mics or a connection to the soundboard? Will the audio come out okay or will I have to level the left and right channels in post?

Thanks!
__________________
Lead Videographer/Editor at TSP Video
www.tspvideo.com
Edward Calabig is offline   Reply With Quote
Old March 10th, 2014, 04:33 PM   #2
Trustee

Join Date: Dec 2007
Location: Glasgow, Scotland
Posts: 1,521
Re: H6 Backup Recording Question

Channels 1 - 4 are all enabled as individual (mono) channels by default, however it is possible to pair them as stereo channels (see manual p.26)
Quote:
If you press track button 2 while pressing and holding track button 1, tracks 1/2 will become a stereo track (stereo link). Tracks 3/4 can be made into a stereo track in the same way.
Stereo links can also be deactivated in the same way. The L/ R track stereo link, however, cannot be deactivated.
However, what that doesn't tell you is that when using the optional plug-in XLR/TRS module on the L/R channels, they behave in exactly the same way, as unlike the X/Y, the M/S and the shotgun mic modules, there are separate gain controls for each channel on the XLR/TRS module. I've been using the L/R inputs to record from audio mixers so that I have the -12 dB backup available if necessary.
I have also used a TRS +4 dB line output from a mixer on the L input (20 dB pad required) while having a radio mic receiver on the R input, giving me a backup for both.

But as I said, you will need the optional XLR/TRS module for that - you can't separate the L & R channels when using the 3.5mm jack input on the X/Y mic module.

Just remember, no phantom power is available with the plug-in XLR/TRS module but that's not a problem with how you want to use the H6.
Attached Thumbnails

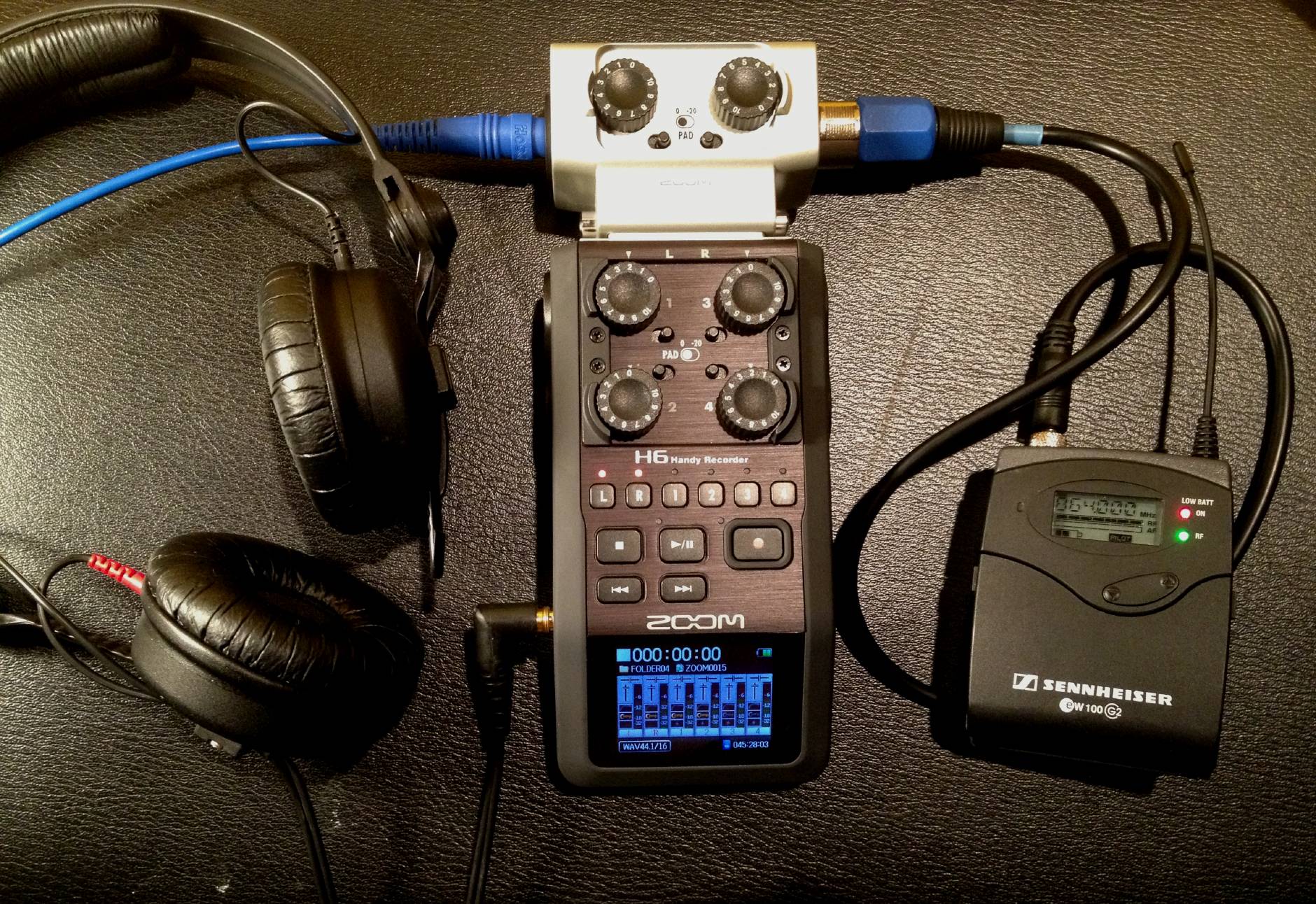

H6 Backup Recording Question-h6-l_r.jpg

Last edited by Colin McDonald; March 10th, 2014 at 05:15 PM. Reason: + photo
Colin McDonald is offline   Reply With Quote
Old March 11th, 2014, 04:49 PM   #3
Regular Crew

Join Date: Jan 2010
Location: Seattle, Washington
Posts: 173
Re: H6 Backup Recording Question

Ah great thanks! I will pick up the extra XLR module.
__________________
Lead Videographer/Editor at TSP Video
www.tspvideo.com
Edward Calabig is offline   Reply With Quote
Old March 11th, 2014, 06:38 PM   #4
Trustee

Join Date: Dec 2007
Location: Glasgow, Scotland
Posts: 1,521
Re: H6 Backup Recording Question

Glad you found that helpful.
You might like to have a look at What's your kit-list to attach various sound desks to your cam's XLR input? as well if you haven't already. Just as useful for connecting to an audio recorder like the H6.
Colin McDonald is offline   Reply
