6 XLR mixer?

Anyone know of a 6 channel XLR input mixer that's not GIANT or crazy money? This is for recording audio at depositions, I must use wire lavs, be XLR (I am told they don't 'like" adapters) and capable of 6 inputs. Needs to be reasonable size for the table.
Darryn Carroll is offline   Reply With Quote
Old February 27th, 2016, 01:38 PM   #2
Trustee

Join Date: Nov 2008
Location: Miami, FL USA
Posts: 1,483
Re: 6 XLR mixer?

Here's one possibility:
Soundcraft Signature 10 10-Input Mixer with Effects 5049551 B&H

Mackie, Behringer, Yamaha and others have similar units. Behringer has a 4 channel one that runs off 9 volt batteries, commonly these units need ac power.
Battle Vaughan is offline   Reply With Quote
Old February 27th, 2016, 04:07 PM   #3
Trustee

Join Date: Aug 2008
Location: New York
Posts: 1,843
Re: 6 XLR mixer?

The venerable Mackie 1402-VLZ, 6 mic/line inputs + 4 stereo line inputs. They are very rugged and have been around since the mid 1990s, currently the forth generation of the series. Many in/out options, the Alt 3/4 outs are good for mix-minus feeds, ect., as are the two pre/post fader aux. sends.
Rick Reineke is offline   Reply With Quote
Old February 27th, 2016, 04:18 PM   #4
Major Player

Join Date: Jan 2010
Location: Adelaide, South Australia
Posts: 463
Re: 6 XLR mixer?

What is the recorder?
Are you dual recording?
What are the input connections of the recorders?
Some of the newer digital consoles have a direct USB recorder built in (Allen Heath QU16 / 24/32)
Do you need slider faders or would Knobs be ok?
What about a touch surface like some of the mackie desks?
Do you actually need to 'Mix' or would isolated record tracks be better?
What about direct recording to PC or Mac?
Zoom F8?
Brian P. Reynolds is offline   Reply With Quote
Old February 28th, 2016, 07:20 AM   #5
Trustee

Join Date: Jul 2003
Location: Burlington
Posts: 1,961
Re: 6 XLR mixer?

I agree with Rick on the Mackie 1402-VLZ. I have had 3 of them since the late 1990's and use them all still with no problems, often on the same job for different physically separated functions.

One thing to keep in mind, while it is slightly larger and heavier than some other brands of mixer with this number of inputs, it uses an actual standard AC power cord that plugs directly into the mixer.
The others mostly use a unique line-lump power adapter, which makes packing, setting up, misplacing or damaging it more of a concern.

Also accessories like specifically sized carrying cases for that exact model are more readily available.

I have some other brands that have even greater routing functionality than the 1402, but I never transport them around because it's a pain.
Jay Massengill is offline   Reply With Quote
Old February 28th, 2016, 05:18 PM   #6
Regular Crew

Join Date: Jul 2015
Location: Champaign, IL
Posts: 30
Re: 6 XLR mixer?

Another vote for the Mackie. Solid, simple, classic, no-nonsense industry standard, with audio quality and routing options that are way more than adequate for your application. Spare parts, cases and other accessories are readily available.

- Greg
Greg Smith is offline   Reply With Quote
Old March 3rd, 2016, 04:15 PM   #7
New Boot

Join Date: Jan 2009
Location: Smyrna, GA
Posts: 21
Re: 6 XLR mixer?

I do depositions and definitely need six XLR inputs. I currently use an Allen & Heath ZED14. It's pretty bulky (I put my equipment on an AV cart) and has bells and whistles I'll never use, but does a good job for me. It cost me about $400.

When I started out 20 years ago, I had a Shure M367, which was very popular among legal videographers. It was not as bulky as the ones I and other posters have mentioned. It's long been discontinued. I don't know if there are any refurbished models available or if you would even want to consider one.
Tom Sheats is offline   Reply With Quote
Old March 4th, 2016, 10:46 AM   #8
Trustee

Join Date: Aug 2008
Location: New York
Posts: 1,843
Re: 6 XLR mixer?

There's probably lots of M367s around When I was recording the audio legal seminars, I encountered them frequently in hotel ballrooms and such. lots of 267s as well. As I recall, neither had adjustable pre-amp gain, EQ or any routing options.
For your amusement, I still have a dinosaur M67 lying around from the dark ages. I had replaced the (line level) binding posts with an XLR, a variable pad and a ground lift.
Rick Reineke is offline   Reply With Quote
Old March 4th, 2016, 10:50 AM   #9
Trustee

Join Date: Apr 2008
Location: Cornsay Durham UK
Posts: 1,940
Re: 6 XLR mixer?

I still have an M367 that I picked up on USA e-bay for $150 and it is still a very good 6 channel basic mixer with a limiter.

Two on this site : http://www.ebay.co.uk/sch/m.html?_od...+M367&_sacat=0
__________________
Over 15 minutes in Broadcast Film and TV production: http://www.imdb.com/name/nm1044352/
Gary Nattrass is offline   Reply With Quote
Old March 4th, 2016, 02:45 PM   #10
Trustee

Join Date: Jul 2003
Location: Burlington
Posts: 1,961
Re: 6 XLR mixer?

I still have an M267, that I cut the non-removable AC Power Cord out of. Runs quietly on 3x 9V internal batteries. Times were simpler then. Maybe that's why Shure named their phantom power switches and mic power voltage nameplates "Simplex Power" on these old devices. Mine has the binding posts also, but I never modified those.

Last edited by Jay Massengill; March 4th, 2016 at 06:08 PM. Reason: Corrected number of 9V batteries.
Jay Massengill is offline   Reply With Quote
Old March 4th, 2016, 05:34 PM   #11
Trustee

Join Date: Aug 2008
Location: New York
Posts: 1,843
Re: 6 XLR mixer?

I never used it on external pwr., but the M67 has 30 volt + / - blade terminals... bizarre. Yes I recall the "Simplex Power", but never used it or investigated the particulars. (volts/config) I'll probably give the M67 to the broadcast museum here in NY.
Sorry to get more off-topic.
Rick Reineke is offline   Reply With Quote
Old March 4th, 2016, 06:03 PM   #12
Trustee

Join Date: Jul 2003
Location: Burlington
Posts: 1,961
Re: 6 XLR mixer?

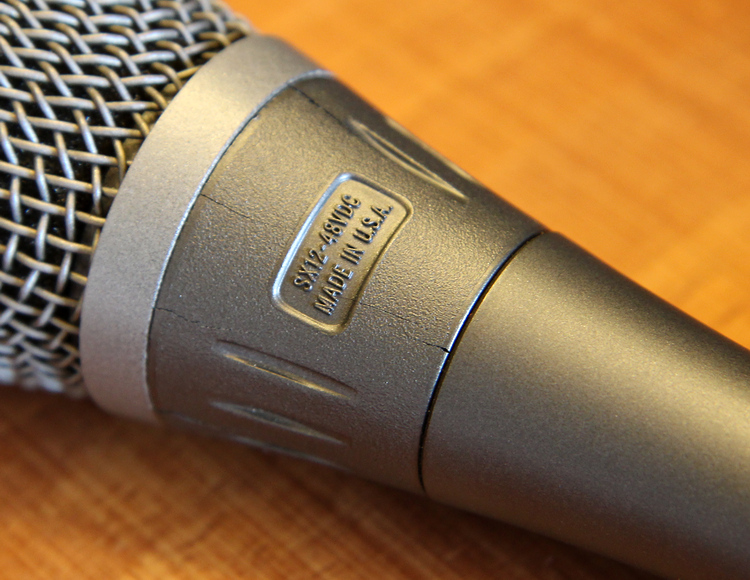

Simplex was the same as Phantom, although on some of their products the voltage varied, just a marketing name I guess. The M267 manual says 30 volts Simplex, but some of the early SM87 mics I still have from that time say SX12-48VDC on the imprint on the back of the mic (opposite the name plate side), so they could handle up to standard 48V Phantom. I've run them as low as 18 volts from an AKG battery supply and they sounded fine.

Hopefully the OP can tell us what he's decided to buy and bring us back out of the past.
Attached Thumbnails
6 XLR mixer?-shure-sm87-rear-badge-cu-low-res-img_0936.jpg

Last edited by Jay Massengill; March 4th, 2016 at 06:25 PM. Reason: Memory failing, had to look back at the actual mic!
Jay Massengill is offline   Reply With Quote
Old March 4th, 2016, 07:51 PM   #13
Major Player

Join Date: Mar 2010
Location: Raleigh, NC, USA
Posts: 677
Re: 6 XLR mixer?

Quote:
Originally Posted by Darryn Carroll View Post
Anyone know of a 6 channel XLR input mixer that's not GIANT or crazy money? This is for recording audio at depositions, I must use wire lavs, be XLR (I am told they don't 'like" adapters) and capable of 6 inputs. Needs to be reasonable size for the table.
No one has mentioned the
Tascam DR-680
. Not the newer mkii version, the original DR-680. Six micpres, XLRs, and phantom power available at all six.
Bruce Watson is offline   Reply With Quote
Old March 4th, 2016, 10:59 PM   #14
Trustee

Join Date: Jan 2011
Location: Pennsylvania
Posts: 1,359
Re: 6 XLR mixer?

Wow, the price has really come down on those! I feel the urge to spend a few bucks.

I wonder how the preamps compare with a DR-70 ... or with an H6 for that matter. Can anyone compare & comment?
Greg Miller is offline   Reply With Quote
Old March 5th, 2016, 03:46 PM   #15
Major Player

Join Date: Mar 2006
Location: NYC Metro area
Posts: 579
Re: 6 XLR mixer?

I've used a Shure M367 for deps. Keep in mind it's only a mixer, not a recorder. I'm considering getting a Zoom F8; it's both an 8-input mixer and 8-track recorder, and the benefit over plain mixers is that each track can be played back and isolated to the degree allowed by the pick-up pattern of the mics used.
Over the years, I've had only one case where isolating each attorney to their own track would have been helpful for playback. Unfortunately, the Shure didn't allow that. Granted, it's rare when that isolation is needed, but it's impressive when it is and you can provide it.
Last I looked, B&H had the F8 it listed for $ 999.
__________________
Denis
------------
Our actions are based on our own experience and knowledge. Thus, no one is ever totally right, nor totally wrong. We simply act from what we "know" to be true, based on that experience and knowledge. Beyond that, we pose questions to others.
Denis Danatzko is offline   Reply
