Rode Wireless Film Maker Modification

Some new toys arrived yesterday. Amongst them a Panasonic AG-UX180 and a Rode Wireless Film Maker kit.

I didn't like the idea of having large plugs and messy cabling all over the camera, and I will be leaving the receiver attached so I decided to reduce the footprint of the receiver. I also hate having to use batteries when there is a perfectly good power supply available, in this case the USB host port on the camera.

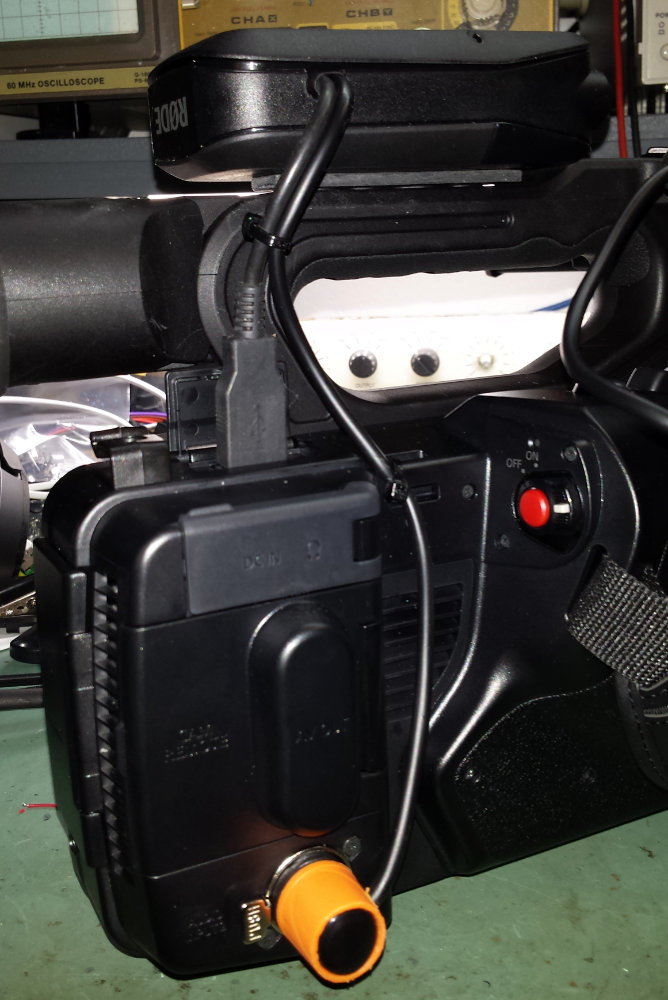

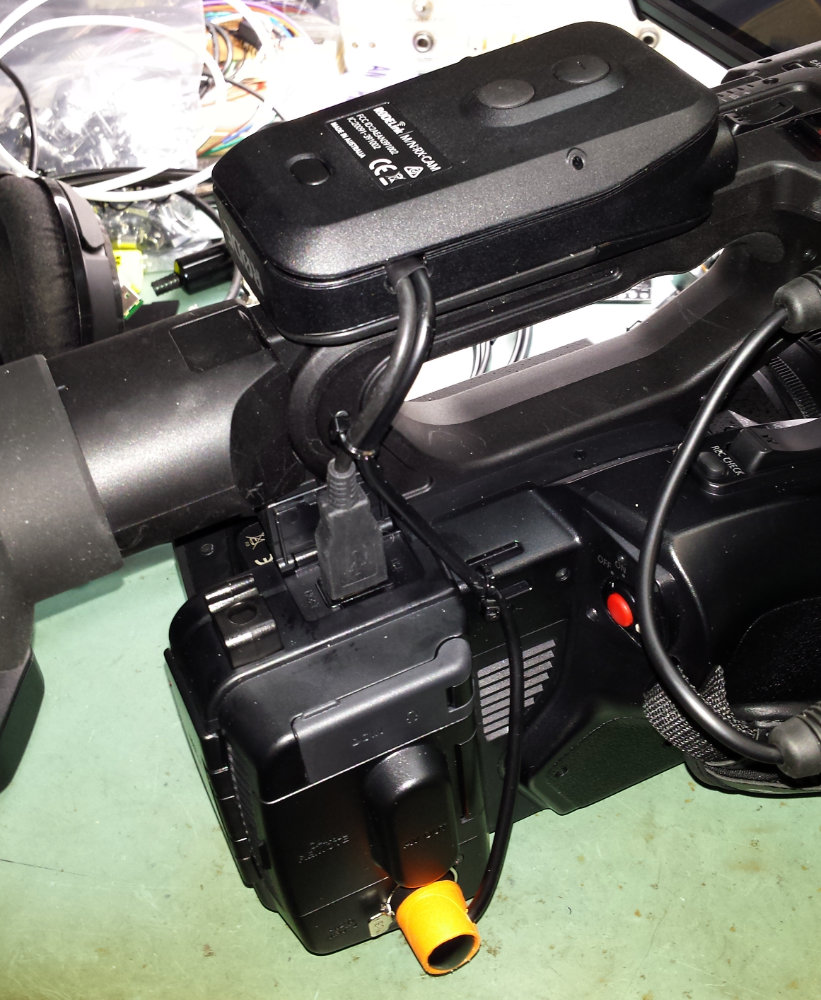

I drilled a couple of holes in the front side of the receiver to line up with the 1/2" threads on the camera's handle and used a couple of countersunk brass screws to attach it with a strip of 4mm ABS plastic in between to space it up a little so it didn't hit the curve of the handle.

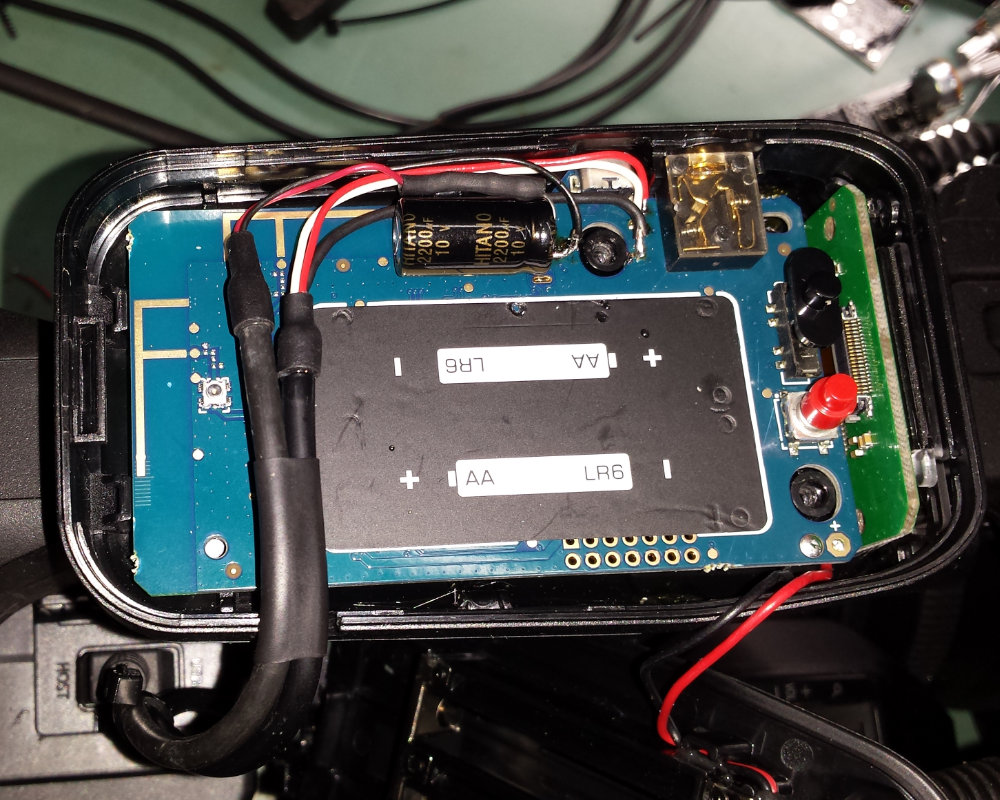

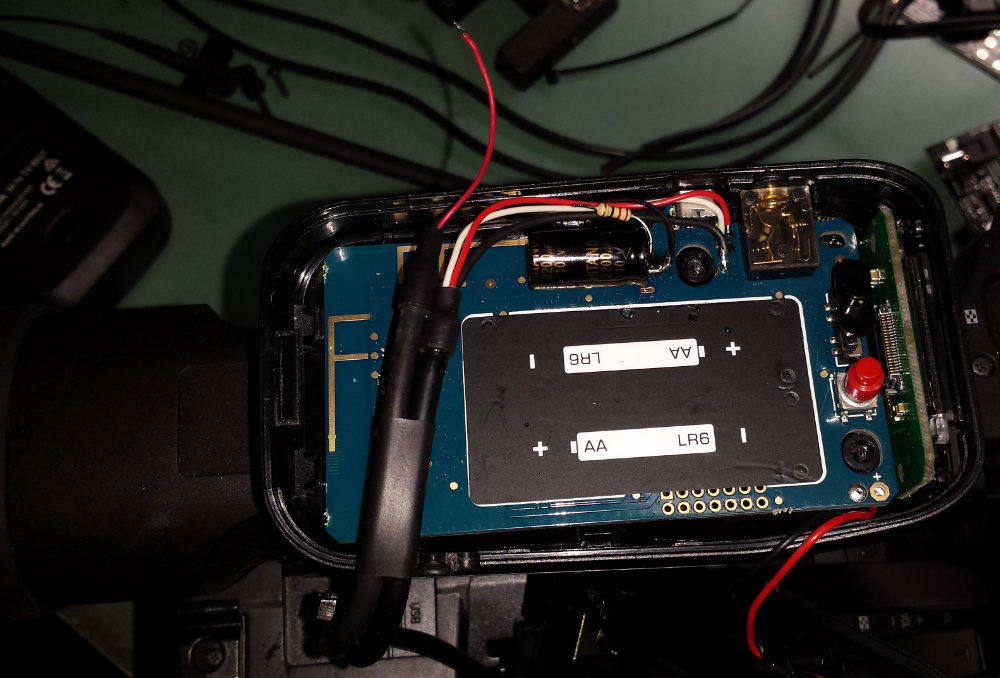

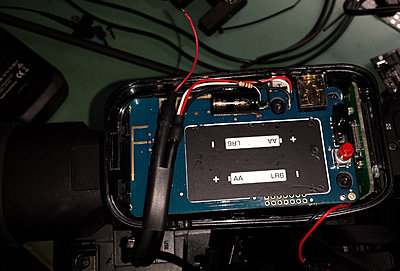

Electrically, I found some test points I could connect to on the PCB for audio out and 5V USB power. I had to scrape some of the solder resist away to expose a couple of ground points.

The power supply needed filtering to remove a small buzz, which I did with a 12 Ohm resistor and a 2200uF capacitor.

Finally, I modified a plastic XLR plug to reduce its size and ran the cable out the side.

This setup work well and comes on automatically with the camera.

I was concerned about the possibility of reduced range because of the proximity to the antennas of the cables I added, but I could not notice any change from my tests before I started the modification.
