having to use macro to see ground glass.

We've just taken delivery of our 1st Letus Extreme from Zacuto and are having the following issues.

In order to focus on the ground glass you have to use the macro function. This is after zooming in far enough to see grain of course. I don't need to go on about how this renders the unit useless!

Are we overlooking something completely obvious here? Surely we are.

Of the units we've hired until now, we have always noticed how close to the end of the focus limit the ground glass sits. Here's what we are using the Letus on and how we did it.

JVC GYHD200e with Fujinon 16x5.5
26" monitor for focus, 7" LCD, 9" CRT all to check against each other.
Letus Extreme with Nikon attachment.
Siemens star chart
Daylight conditions
Studio conditions

all same result!

lenses, Nikon 24mm, 50mm, 85mm 135mm Zeiss Planars 50mm 85mm 105mm

We followed the instructions as per Letus. We've also tried focusing on GG with lenses off and on.

If anyone can point out the blindingly obvious that would be great.

2nd issue;

Whilst I understand that alignment of image sensors is not always perfect, the horizontal position of the image is WAY off!!!! Ignoring the focus issue, you'd have to zoom in a long way to fill the screen! This presents a problem when our customers ask for vignetting! (which they do). To fill the camera with the image you've zoomed way past the left hand vignette before the right hand side has filled the screen. The vertical alignment of the image is also off, by about 20 degrees, but not too much of a bother.

Is there a way of centering up this image within the Letus as its current position is far from acceptable? and how is it that of all the Letus units we have hire until now they have all had the images in different positions!! but none as bad as the one we now own!


p.s Also, is it just me or does anyone else find the cheap photocopy instructions page very unprofessional and lacking in detail? My opinion of Letus as a bona fide company is rapidly waning!
Stuart Campbell is offline   Reply With Quote
Old June 3rd, 2008, 05:42 AM   #2
Join Date: May 2005
Location: Allen, Texas U.S.A
Posts: 1,114
i use an hd100 with an adapter.

To use an adapter, our 16x lens is at FULL macro, focus at Infinity. Tweaking is done with the zoom. In our set up its up at 30mm. different adapters and users could vary. My settings is based on a +10 achromat.

Last edited by Ted Ramasola; June 3rd, 2008 at 05:43 AM. Reason: typo
Ted Ramasola is offline   Reply With Quote
Old June 4th, 2008, 01:17 AM   #3
Inner Circle
Join Date: Dec 2003
Posts: 4,299

With any of the adaptors, relaying via the camcorder's own lens, you have to zoom in a fair way, some more than others, in the region of 32mm to 54mm for 1/3" sensors.

With the JVC standard zoom lenses I have played around with when modifying my own AGUS35 to fit, the filter thread is contained in a plastic housing which the lens hood attaches to.

The lens focus movement is free to move inside this housing. The housing can be flexed enough to put your image centre off.

I observe that the Zacuto rails system on some illustrated kits has a step or dogleg in the structure. The system for the JVC may not have this.

If there is a step or dogleg in your kit, this means that there are four points of fixture in the combined structure where off-axis angular or torsional deviations from optical centre can be introduced, six if you include the Letus and camera holdfasts.

Therefore angular loadings on the lens hood filter mount on front of the Fujinon could deviate the optical centre axis of the Letus relative to the Fujinon lens optical centre axis.

It takes very little deviation at the long end of the zoom-in you have to use, to move the Letus screen image frame across the camera image as viewed.

There might be variation between individual Letus units but variations introduced in the combined assembly might more likely account for the centering deviations you are observing across different individual units you have attached.

As for having to use macro focus, attaching my home-build appliance I found the standard Fujinon presented a serious challenge to my efforts. The filter mount was too far forward for best position of the Century achromat I used and I was forced to move it to the lens itself.

My imagining is that you if want to avoid macro use, you may need to dismount the inbuilt Letus achromat from the Letus body and attach the achromat directly to the front of the Fujinon focus barrel as close as you can get it.

You would need to remount the Letus body as close to the front of the Fujinon lens as you could with a custom shorter attachment adaptor ring you would have to get made in a machine shop.

You would need to make a custom ring to mount the now free achromatic inside the moving front of the Fujinon lens itself.

The new Letus attachment adaptor ring might likely need to have the allen screws replaced with short grub screws in radial holes within the 82mm filter thread itself as there would likely be only enough allowable front-to-back thickness to permit a threaded shoulder and not enough extra for a plain shoulder for the normal screws.

Because the optical axial alignment of the Letus to the camera is maintained by the threaded adaptor pieces, you will most likely have even more problems with centering if you follow my hack without making a new machined adaptor ring.

This hack would probably eliminate your need to use macro which I found to be unsatisfactory for both focus and edge distortion on my own adaptor.

Please do not attempt my hack unless you have good engineering skills.

This comment is also speculative theory so please do not take it at all seriously. I have made a few mistakes recently and the engineering for the Zacuto system you are using may be perfectly fine.

Perhaps you could post an image of your adaptor including a close-up of the LEtUS to front of Fujinon attachement to assist or correct any of the number of assumptions I am making which could be wildly incorrect.

Finally if you are achieving good edge-to-edge sharpness and no other optical defects when using the macro function of your Fujinon lens, leave best alone and concentrate on getting the alignments of the combined assembly correct.

Last edited by Bob Hart; June 4th, 2008 at 01:29 AM. Reason: error
Bob Hart is offline   Reply With Quote
Old June 4th, 2008, 01:59 AM   #4
Major Player
Join Date: Nov 2006
Location: Hannover, Germany
Posts: 400
Firstly Bob,

Many thanks for your reply. Some interesting suggestions!

I'm loathe to tinker with the unit (I'm more of an operator than engineer) because the unit was purchased to fit a purpose, not to be adapted and bastardised to do so. What's really disappointing is that I've used other Letus units that don't display the same problems! This can only mean that there are massive differences between each unit sold! I wonder though, if this 'supposed' relay lens that Letus are 'bringing out' would solve the problem. I'm really beginning to wonder about this company. This relay was supposed to be released in March, April, then May, then June and so on............

The edge distortion (when somewhere near focus) is terrible, so we cannot even 'make do' with a fudge of correct focus.

The excellent Zacuto unit does allow for doglegging and alignment alteration but I find the filter ring on the Fujinon too stiff to skew the positioning. I'll try again, but I'm always reluctant to start forcing things into a position they were not designed to be in!

I'll attach an image of the unit assembled for you nonetheless.

Many thanks for your thoughts Bob.


You use full macro and infinity zoom????? Really? I can't see how that could work. You've got my mind ticking now. Can't think of a situation where I've ever had any lens on any camera like that but, hey, I'll give it a go.

Many thanks

On the whole I'm massively disappointed. We've just ordered a totally useless lump of glass in metal case. I'm nearing the point where it goes back. Not surprisingly I've had no reply from Letus, and I really don't expect one either.
Stuart Campbell is offline   Reply With Quote
Old June 4th, 2008, 05:10 AM   #5
Join Date: May 2005
Location: Allen, Texas U.S.A
Posts: 1,114
quote :

You use full macro and infinity zoom????? Really? ..."


Just to clarify its full macro and zoom between the 20 and 40 mark. Theres no number 30 on the barrel but counting the notches its approx in between.

Its the Focus ring thats at infinity. with this method. You lock down two variables and just tweak one-the zoom.

The setting up of a lens adapter would be less cumbersome than if you have to tweak 3 variables every time.

Again, let me add that settings vary between diff adapters.

Heres an old article in showreel mag of Taylor Wigton on how he set up his hd100 witha n adapter for a shoot.


Ted Ramasola is offline   Reply With Quote
Old June 4th, 2008, 05:36 AM   #6
Major Player
Join Date: Nov 2006
Location: Hannover, Germany
Posts: 400
Hi Ted,

Interesting article. Thanks.

Well, I've spent the morning trying to get this lump to look sharp. I tried your infinity method and came up with the following for 'acceptable' sharpness.

Focus Infinity
Zoom 22mm
Macro somewhere in the middle!

Now, it amazes me how different each adapter can be and smacks of bad manufacturing processes.

I tried the 20mm, infinity and full macro option, but it doesn't work.

The whole thing is so fragile once set that I'm scared to look at the bloody thing in case it shifts! I really don't think I'm prepared to use this in a job. Too risky.

I tried Bob's suggestion for distorting the alignment, and it certainly improved things but I now have misgivings for stresses on both the camera and Letus, and also the effects on focal distortion by not having the Letus sitting flush with the Fujinon.

Right now I wish I'd spent the extra and bought the P+S.

Stuart Campbell is offline   Reply With Quote
Old June 4th, 2008, 06:10 AM   #7
Join Date: May 2005
Location: Allen, Texas U.S.A
Posts: 1,114

I consider myself an extensive HD100 + adapter user, in fact my adapter stays on my cam even inside the pelican case. I have done TV spots and cinema projected material using that setup.

I must say that be patient with it and it will pay off. once i locked focus I tape down the fujinon and never touch it.

The creative options that the adapter presents to you as a cameraman is in my opinon a great motivation to get it locked down.

heres a guage for you to try.

Put macro in full and focus into infinity. Iris at at least f2.8. any wider and you get CA and the adapter image tends to loose sharpness at corners.

place a 50mm lens on your letus and put it in full open or at 2.8

focus on a chart and counter check the distance on the 50mm with tape. (here you locked down the 50mm)

Lets go back to the fujinon adapter setup.

zoom in to the GG till you get sharp image. In my case its good to have the fujinon iris at f5.6 -8 for best calibration results.

if you think its good, take note of the image corners.

Take off your jvc and using a caliper or a piece of paper, note the image size you are getting on your adapter GG.

I dont know what the letus makers claim on the image size but in my adapter i can capture a 30mm x 16.8mm image.

cinema 35mm is at 24 mm x 18mm and full frame still 35 is at 36mm x 24mm.

if you are getting a very small image then adjust the distance between your adapter to the front element of the fujinon.

I had a hard time with this since the fujinon's front element is recessed deep inside the barrel. I can actually remove the ribbed anti flare ring in front of the lens and allowed my achromat to go in deeper and closer to the front glass element of the fujinon.

Doing so gave me much better results.

keep trying .

Ted Ramasola is offline   Reply With Quote
Old June 4th, 2008, 09:28 AM   #8
Inner Circle
Join Date: Dec 2003
Posts: 4,299

Did you source the Letus Extreme and the Zacuto kit together from Zacuto as a turnkey solution or were they bought in separately? You may have already said this so forgive me if I am repeating myself.

Sometimes there is different interpretation between US English and Strine on the same sets of words, so all I am doing to trying to eliminate any misunderstanding on my part. I hope I have not created mischief here.

Distorting alignment? - That sounds cruel bad. I was meaning your rig may have had some latent stresses already in existence deviating the two axes off true and moving the fittings might bring the alginment back in.

If you are having to do some serious bending then maybe the Letus has had a serious clout in shipping and moved something inside but the co-incident focus issue suggests something else.

It would be interesting to find out which dioptre is in back of your Extreme. I understand there are more than one version, some intended for a particular camera type.

Hopefully this may be the source of your problem with this particular adaptor and represent the potential cure.

I don't know whether there is a particular optimisation for the JVC GY-HD--- family.

Where your camera mounts to the rails, are there lateral adjustments and vertical adjustments?

When setting up, it is possible to introduce deviations with camera weight alone whilst trying to match it all up by hand.

I find it helpful to point the whole assembly nose upward when I tighten the assembly it to avoid camera weight bending on the Letus Extreme / Camcorder junction. This is not necessarily factory approved practice, just my own possibly bad habit.

One more experiment you might try is to take out any spacer or ring which is between the back of your Letus Extreme and the front of your Fujinon filter mount to enable you to move the Letus Extreme physically as close to the front of the Fujinon lens as you can get it.

This spacer will be the mounting ring which has three allen screws on radial centres locking it onto the back of the Letus Extreme. Taking this out and supporting the adaptor by hand, loosening the Letus support on the rails and moving it closer to the front of the Fujinon will give you an extra 9mm or so closer position to front of the Fujinon lens.

If this makes the focus worse by requiring more Fujinon macro to be turned in to focus or is even moving out of its range, then try adding some distance between the Letus and the Fujinon lens.

- The Fujinon macro may be comprised of a simular retrofocussing element as the larger ENG lenses. For best results without edge softness I think your Fujinon backfocus must be spot-on and no macro turned in or out.

This may seem counter to Ted's solution however he has optimised his arrangments around custom positionings of his achromat and his dual duty 35mm and medium format adaptor. I think his achromat is also from Wayne Kinney for a non-flip adaptor.

There are many effective ways to achieve the same cat skinning.

There is some interaction between achromat position in front of the Fujinon lens and this rear focussing element in the Fujinon.

If you can post the images of your setup and a frame grab of objectionable images, this might steer us in the direction of a solution for you.

However - before doing any more experiments, wait for a few more responses here unless you are up against a tight deadline to get this sorted.

Last edited by Bob Hart; June 4th, 2008 at 09:39 AM. Reason: error
Bob Hart is offline   Reply With Quote
Old June 4th, 2008, 11:48 AM   #9
Inner Circle
Join Date: Dec 2003
Posts: 4,299
Furthur to my post above.

It seems that Zacuto make their own version of a rails kit and buy in Letus Extremes to resell with their kit. It might be worth a phone call or email to them.

Letus make their own rails kit for the Extreme.
Bob Hart is offline   Reply With Quote
Old June 5th, 2008, 04:57 AM   #10
Major Player
Join Date: Nov 2006
Location: Hannover, Germany
Posts: 400
Hi Ted and Bob,

Many thanks for your time spent considering this problem it's really appreciated!

I've conducted a few more tests this morning in the office as you both suggested. Before I did anything I re-double checked back focus on the Fujinon. Its absolutely spot on.

I found that to achieve sharp focus on the grain (without macro or infinity focus) I had to slide the Letus 26mm away from the front of the Fujinon. This, however, then gave conflicting focal distances as marked on the 35mm lenses. If I'm right then all focal distances should include the difference of 26mm from what's marked on the lens, as the focal plane position has effectively been shifted 26mm. So a true distance of 474mm from the Letus focal plane shows as 500mm on the lens. I tested this and it was consistent. I don't really want to be sharpening my maths skills on every shoot as well! However, this does achieve the sharpest image of all my testing so far, but not still not great.

So, I went back to Ted's method and found the best focus I could with all focal distances correct and Letus fitted as it should be. See attachment for the best focus.

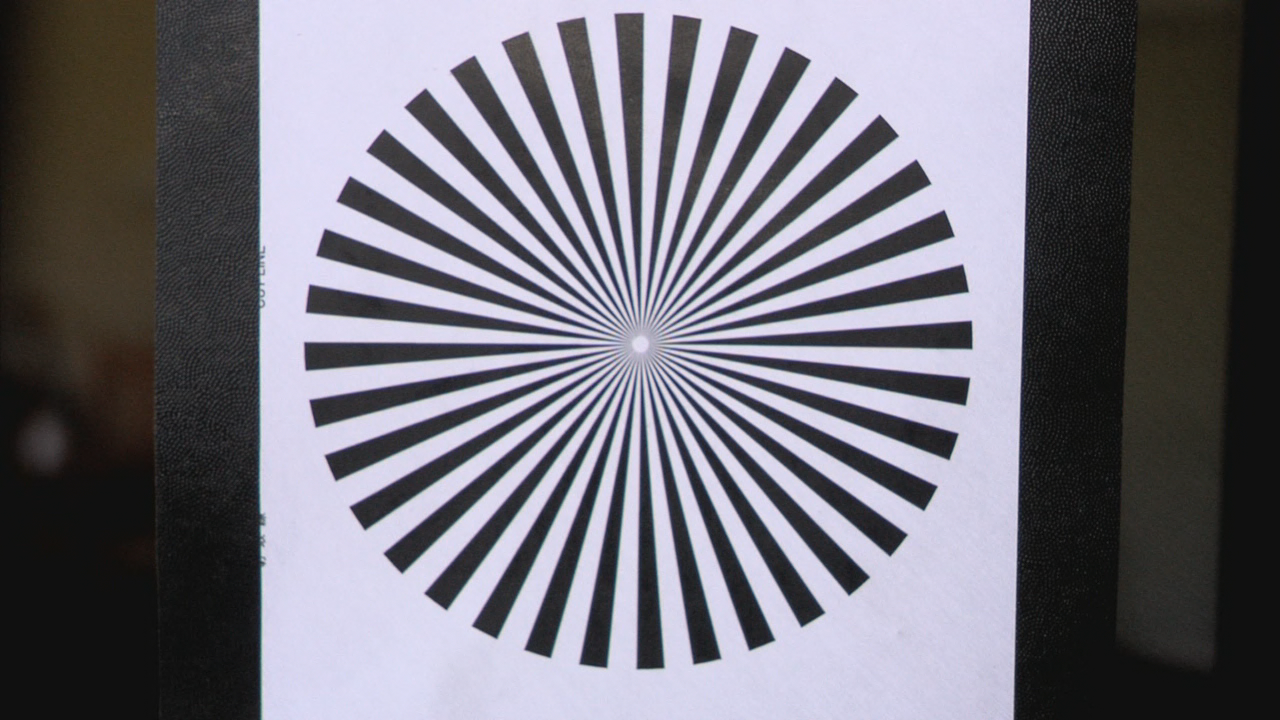

Settings: Infinity focus, 22mm zoom, macro mid way and marked.
50mm lens f4, Fujinon also at f4. I've tried various other aperture configurations, but you start to get aberrations elsewhere, which appear very quickly! etc.

(Ted I tried your method for measuring the image plane on the ground glass, but I'm not sure I follow where you measured. Did you disassemble the Letus to see the ground glass? It's not possible to take a measurement from the anchromat end or have I plainly misunderstood?)

Unfortunately this is still soft, although its the absolute best I could achieve. I thought I would double check again on the Letus instructed method and had the same results. Unable to focus on ground glass without using macro. I decided to try with the GG soft, but obviously all shots are also soft too.

I've since had an email from the manufacturer who suggested that many people use macro to obtain focus, and that doesn't seem to be unusual. However, I truly don't believe using macro gives you the sharpest image so I am awaiting my next reply.

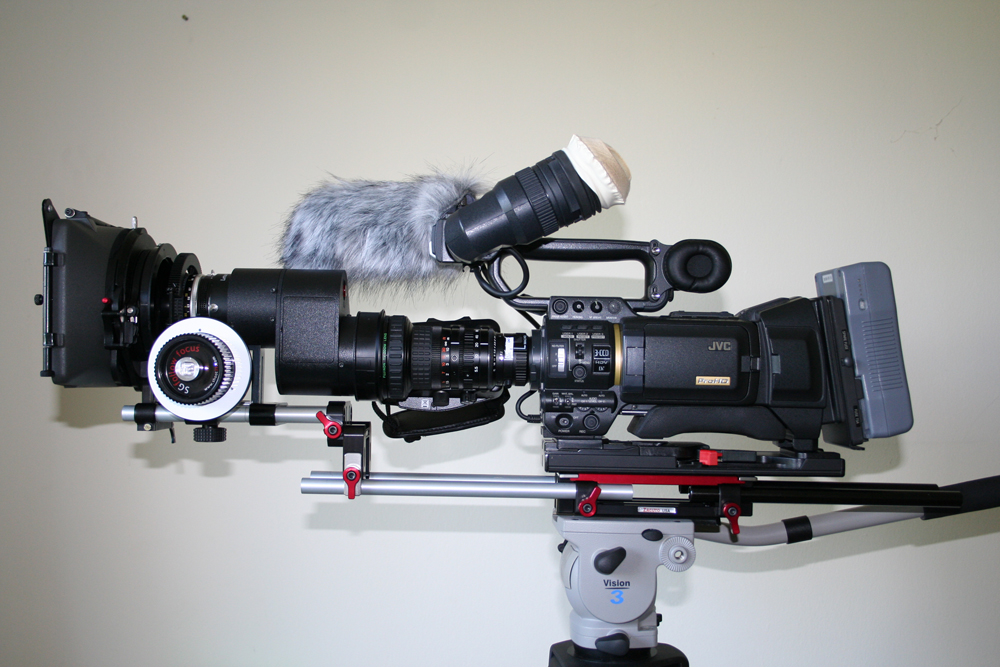

Bob, I've attached an image of the rails and support. I purchased the rails and Letus from Zacuto together for this camera. The quality of the Zacuto gear is extremely good and the support system is as stable as it gets. I've tried the Letus support and found them fragile, wobbly and not stable enough for a shoot with the JVC. I've also tried Cavision and another one who's name escapes me. Zacuto is by far the best. It offers adjustment on all planes and I have set it up so it lines up with the Letus exactly. The base plate, wedge and tripod plate all stay together as a single unit now so its very quick to set up.

Well this is now 3 mornings or 12 hours I've spent trying to get a sharp image from this unit. From the point of view of my business this is more than unacceptable. I'm wasting time on this unit when I have a thousand other things to do as it is. Am I not entitled to buy something and have it work without all this effort? Needless to say I'm a little frustrated! I'm really hoping this is something really daft on my part that I'm overlooking (which I'm always willing to accept as a possibility) and that one simple thing will get it working, but.....I'm really beginning to doubt that now!

Your efforts are really appreciated guys. Many thanks.
Attached Thumbnails
having to use macro to see ground glass.-50mm-inf-22mm-macro.png   having to use macro to see ground glass.-zacuto-support-2.jpg

Stuart Campbell is offline   Reply With Quote
Old June 5th, 2008, 05:56 AM   #11
Join Date: May 2005
Location: Allen, Texas U.S.A
Posts: 1,114

Your basicaly shooting a very small image, and thats the GG image, about the size of a post stamp and so close to your lens, this makes it normal to use macro. Engaging it fully can not only give you a better image, but also it locks down the variable to just your zoom to fix when setting up.
Ive been in your path around two years now so i had to contend with a lot of trial and error.

In your setup photo, is there a step down ring threaded on your fujinon filter thread? if so, try removing this, i assume its an 82-72 step down ring, after removing it push the achromat deeper into your front lens. You could get better results.
Thats how i set up mine. The achromat is pushed closer to the front glass element of the fujinon. -in fact i went further and removed the anti glare ring, its that round plastic inside your focus barrel at seem to look like a series of terraced rings, its just threaded there, removing it widens the front opening and allowing the achromat to get real close to the front glass element. This improved my edge to edge sharpness in my set up.

Ted Ramasola is offline   Reply With Quote
Old June 5th, 2008, 07:11 AM   #12
Major Player
Join Date: Nov 2006
Location: Hannover, Germany
Posts: 400
Hi Ted,

No, I don't have a step down ring. Just the normal 82mm fixing to the Letus. I'll try to remove the inside of the focus ring like you said and try the full macro test tomorrow. Does it just thread anti clockwise to come out?

Also, straying away from my problem, you say your Letus stays on the camera and goes straight into a Peli case. What size Peli are you using.....is must be huge! Have you got a pic by any chance? If I can ever get this unit to work satisfactorily I'd consider using it on all of our corporate work and as the JVC is used exclusively for any corporate stuff we get then it could remain as a JVC/Letus rig. But can you really fit it in a case with Matte Box attached etc?

Stuart Campbell is offline   Reply With Quote
Old June 5th, 2008, 08:59 AM   #13
Join Date: May 2005
Location: Allen, Texas U.S.A
Posts: 1,114

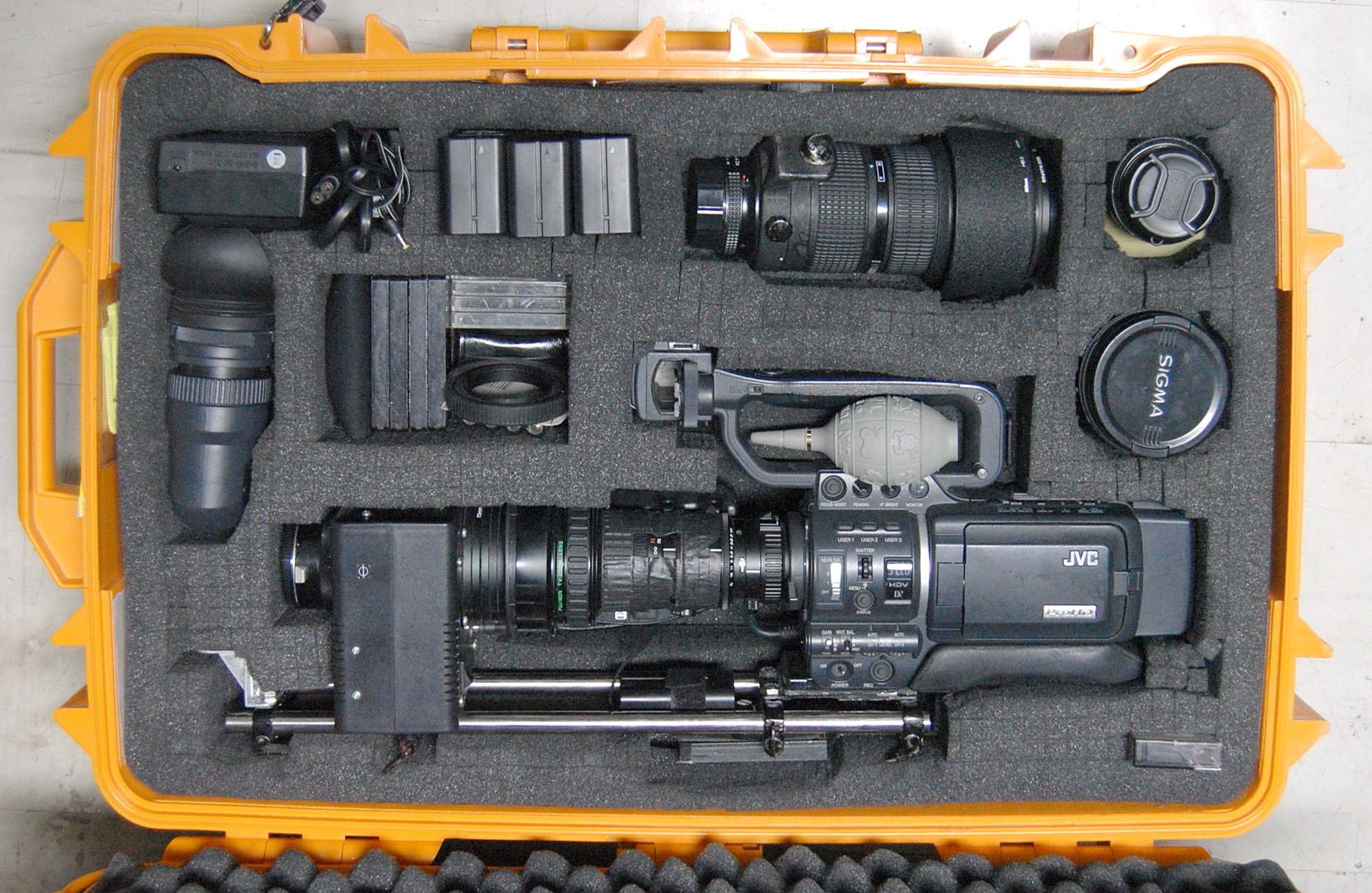

yes, it unthreads CC. Heres a shot of what goes in the peli. Thats my own custom made adapter and custom made rails.
It uses the SGpro Achromat. I had a Brevis achromat but it didnt pair well with the fujinon and caused excessive CA.

I must also add that i too was already frustrated with my results in the start but because of selfless people in this forum it kept me going, Bob Hart was one of those who was patient enough in helping me fine tune my own rig.

Attached Thumbnails
having to use macro to see ground glass.-pelican-contents.jpg
Ted Ramasola is offline   Reply With Quote
Old June 5th, 2008, 10:33 AM   #14
Inner Circle
Join Date: Dec 2003
Posts: 4,299

At the back of the Letus Extreme flip enclosure, there is an achromat, fastened in conventional optical practice inside an approx 8mm shoulder with a threaded ring. Its rim sits just inside the shoulder.

The various adaptor rings with their filter threads slip onto this shoulder and secure with three radius screws.

The depth of these rings and thus the setback of the camera from the Extreme varies for different filter thread diameters. The achromat would have to be removed from withn the Letus Extreme housing to move it to the front of the Fujinon lens.

I'm not sure about recommending this as any warranty open to him relating to the Letus would be voided.

When you removed the plastic ring out of the front of the Fujiono lens, did you find a 72mm diameter filter thread inside the rim?

I have observed two styles of lens attached to the JVC HD100 camera, both Fujinon. I did not study them closely.

One of Steve Rice's Fujinons looks like it either has no plastic ring or that it has been removed or fallen out. I did not study it to see if there was an internal thread there and have no opportunity to study it before I see it next.

If there is a 72mm thread, this raises a few options for experiment over here.

I have the 82mm ring so this would fit up to a JVC GY-HD100 standard Fujinon as I know it. I also have a 4+ and 7+ achromat which will fit up to a 72mm internal thread. I could do a limited bit of extra testing.

This won't likely happen until this Saturday and will depend on the crew numbers at the shoot as to whether I can take time out to play with the second camera.


The Siemens chart suggests there might be room for improvement by reference to what I have observed with another Letus Extreme on a different camera type. Unfortunately I don't have the same chart to make a valid comparison.

A MINI35 will resolve the "B" block (862 lines ) on a Lemac chart on a JVC and on the Sony Z1 and gives signs on both that optically, the cameras see the "A" block as there is a distinct moire pattern visible.

The Extreme on the Sony resolves the "B" and a moire pattern on the "A" block at a comparable framing as the Mini35 and when reframed for the wider view and the Lemac chart repositoned to frame in the wider view, the apparent resolution improves.

From my own opinion and independent of the Letus designers intent, my concern relating to performance does not concern the centricity of the groundglass frame but the centricity of the projected image which falls upon it.

In easyspeak the important bit is centre of Nikon lens image falling in centre of image seen by the camcorder. The generous groundglass area on the Letus Extreme and I think the Brevis and SGPro is a bonus where sometimes some added resolution can be sought with more zoom-back, but is not an absolute given. For consistent and predictable results across a range of SLR camera lenses I think 28mm image width and no more is about as wide on the groundglass as you should want to go.

If the client wants a vignette, then I would introduce it as an effect in post. If it absolutely has to be done in-camera I would make a cardboard do-nut to shove in the back of the Letus against the achromat and trim the inside diameter of the cardboard do-but until I got it centred. My personal preference is to shoot clean footage as you can put salt in the stew but you can't take it out again.

I observe with the Z1 and PD150, the centre of image shifts with zoom-in.

The Panasonic has been anecdotally reported here at dvinfo to do this as well, which direction I do not know. How the JVC behaves, I no not know.

It is a pretty tough call to expect adaptor builders to customise to the variety of offsets of different camera types with thread filter ring attachments.

It would require a lockable adjustable offset within the ring, a dog to build, a dog for the operator to set up and a potential mongrel for off-axis errors.

The alternative is designing to permit user access to the guts of the adaptor to move prisms or mirrors about.

P+S recommend people do not climb inside their MINI35 to get at the internal adjustment for reasons of introducing contaminants but they do advise that it does exist.

Letus have been more generous with user access information in a new manual about to be published but they also recommend against operators going beyond a certain stage in roaming around inside their adaptor.

The MINI35 for the Z1 relay focus point hits sharp uncomfortably close to the infinity point. My personal preference and it seems Letus also, has been to hit sharp focus much closer to the close-end of the relay focus range.

I can't speak for Dennis's Brevis, Wayne Kinney's SGPro or Brian Valente's RedrockM2.

The P+S Technik approach has obvious advantage in that operator relay focus errors at the faraway end might be less critical than at the close end. This requires some premium design and build quality management which is what you pay for with the MINI35.

Their "connecting kits" (relay lenses included) are also camera specific and are for a fairly narrow range.

The Letus has to please a wider range with generic connecting kits based on filter mount diameter, so relay focus biased to the closer end makes good sense as there is more scope for coarse adjustment.

This also means that the practical placement of their achromat remains within the rear body of their adaptor.

If the 82mm diameter adaptor ring is intended to be specific for the JVC, then I am surprised if it has been set up to require additional macro focus on the JVC standard Fujinon lens. If is generic, then this is understandable.

I wonder if the intended direct relay option for the JVC GY-HD--- camera family, also applicable to the Sony Z7 is the main priority of their intentions for this camera type. The 82mm adaptor ring may therefore be generic for other camera types.

As to the Zacuto rails system. Please conduct one more experiment for me.

Place the camera in a safe place like over a mattress or suitable padding and no height for anything to fall.

Release the Fujinon lens/JVC lens mount locking ring. Observe any movement of the entire combination, then without assisting by pushing or shoving on the lens or adaptor or the rails, attempt to re-secure that mount ring to the closed position.

If the lockring baulks and requires pushing or shoving to enable it to close to its locked position, the Zacuto rods need to be re-aligned so that in a pre-loaded position, the lockring will release and re-secure without other assistance needed.

The MINI35 can be set up to do this. The Extreme on its Letus rails can be made to do this, even with the small pillar under the front tube. The Zacuto rails kit should be no exception.

If it cannot be set up this way, then the structure is too compliant and will introduce some bending loads on the camera/adaptor junction and camcorder case structure in normal use.

The apparent forward weight bias on the Zacuto kit is also a bit of a worry to me. There may be bounce with long lenses. If you observe Ted's setup and the Letus rail system, there are no junctions but a continous unbroken structure.

The preceding is a big and complicated message. I hope I have not thrown you into total confusion and despair. Hopefully the next few days will find a solution for you.

Last edited by Bob Hart; June 5th, 2008 at 11:55 AM. Reason: errors
Bob Hart is offline   Reply With Quote
Old June 5th, 2008, 11:35 AM   #15
Inner Circle
Join Date: Dec 2003
Posts: 4,299

I'm covering this point in a separate post.

You have referenced a discrepency between the witness mark info on the side of the SLR camera lens on front of the Extreme and the real distance between the subject and the focal plane.

Just where you place the Letus Extreme relative to the Fujinon lens is totally divorced from the SLR lens focal plane position and its relationship to the SLR lens on front.

You should regard the SLR lens on front of your Letus Extreme to the groundglass as a separate camera.

If there is a discrepancy between lens witness marks and real distance between the focal plane which is the groundglass and the subject, then this is a separate issue to the Fujinon focus issue and a separate problem to resolve.

There will be four causes :

The lens witness marks are incorrect. (Sometimes the witness mark barrel can move on the internal focus barrel and can be re-adjusted by slacking off some small grub screws with the lens mounted on a reference instrument and resetting the position of the outer ring.)

The lens internal collimation is off.

The mount is incorrectly positioned in the Extreme.

The groundglass is out of position.

If you move the Letus body furthur forward of the Fujinon lens, you may find a little variation in the groundglass area you see for a given zoom setting on the Fujinon but that and an altered relay focal distance are the only other variations.

On the Extreme, the genuine Letus pillar which goes under the front tube of the Extreme body is normally attached so that the vertical upright which connects to the bridge is between the red thumbscrew and the flip enclosure, not forward of the red thumbscrew.

If it is in this correct rearward position, then the rear face of the pillar represents the focal plane and is what you hang your tape measure off.

So far as I know, the collimation or backfocus relating to the SLR lens mounted in front of the Extreme should be pretty close to correct with the Nikon mount and the others slipped fully home into the housing.

There may be a few millimetres discrepancy between real distance and lens witness marks. My concern is to have infinity focus available on the lenses. I want the backfocus to be correct as this is a critical issue for wide and especially ultrawide lenses which will simply go softer at all focal positions.

Last edited by Bob Hart; June 5th, 2008 at 11:49 AM. Reason: error
Bob Hart is offline   Reply

DV Info Net refers all where-to-buy and where-to-rent questions exclusively to these trusted full line dealers and rental houses...

Professional Video
(800) 833-4801
Portland, OR

Omega Broadcast
(512) 251-7778
Austin, TX

(973) 335-4460
Mountain Lakes, NJ

Abel Cine Tech
(888) 700-4416
N.Y. NY & L.A. CA

(800) 238-8480
Glendale, CA

Precision Camera
(800) 677-1023
Austin, TX

DV Info Net also encourages you to support local businesses and buy from an authorized dealer in your neighborhood.
  You are here: DV Info Net > Special Interest Areas > Alternative Imaging Methods

Thread Tools Search this Thread
Search this Thread:

Advanced Search



All times are GMT -6. The time now is 05:19 PM.

DV Info Net -- Real Names, Real People, Real Info!
1998-2015 The Digital Video Information Network
