Old August 11th, 2005, 06:21 AM   #16
Major Player

Join Date: Jun 2005
Location: Brighton, East Sussex, UK
Posts: 938
Quote:
Originally Posted by Jeff Tyler
I guess though if the camera doesn't have the mirror mode then it will still be backwards. Better than it being upside down though.
Jeff, remember that the image will only be backwards if the mirror mode is 'ON'. So if your cam does not have mirror mode then you should be fine as long as you can find the sweet spot.

Wayne.
Wayne Kinney is offline   Reply With Quote
Old August 11th, 2005, 08:29 AM   #17
Regular Crew

Join Date: Aug 2005
Posts: 88
Quote:
Originally Posted by Wayne Kinney
Jeff, remember that the image will only be backwards if the mirror mode is 'ON'. So if your cam does not have mirror mode then you should be fine as long as you can find the sweet spot.

Wayne.
Oh alright sounds good. Thanks.
Jeff Tyler is offline   Reply With Quote
Old August 12th, 2005, 03:36 PM   #18
New Boot

Join Date: Aug 2005
Location: Aachen, Germany
Posts: 19
and the trv900

Hoi, very interesting ...
i tried this magnetic method on my sony trv900 - no reaction - am i using a lousy magnet or is there another method inverting the screen on an sony camcorder?
greetz from Aachen, Germany
Maximilian
Maximilian Friedrich is offline   Reply With Quote
Old August 12th, 2005, 03:44 PM   #19
Major Player

Join Date: Mar 2005
Location: Ventura, California, USA
Posts: 751
Some cameras use a physical, nonmagnetic switch based on LCD position. Not all models of Panasonic camcorder seem to use magnets, either.

Last edited by Bill Porter; August 12th, 2005 at 07:50 PM. Reason: Clarification
Bill Porter is offline   Reply With Quote
Old August 12th, 2005, 07:19 PM   #20
Regular Crew

Join Date: Jan 2005
Location: Austin, TX
Posts: 94
I would've never tried this on my Optura Xi, but i figured since the GL2 works this way, I'd give it a shot. To my suprise, it works! Makes shooting with the adapter so much easier. Thanks.

And as a plus it is also automatically mirrored, so it's a normal image.
__________________
i can't yet see Productions
Riley Stearns is offline   Reply With Quote
Old August 12th, 2005, 08:44 PM   #21
Trustee

Join Date: Jun 2005
Location: Hollywood, CA
Posts: 1,675
Images: 1
Make sure you try both sides of the magnet. Polarity matters.
Ben Winter is offline   Reply With Quote
Old August 12th, 2005, 10:43 PM   #22
Trustee

Join Date: Jun 2005
Location: Hollywood, CA
Posts: 1,675
Images: 1
Also, some people have wondered why people with these adapters are shooting with a normal-sized LCD screen. Their arguement is, if you have to focus, shouldn't you need a larger, more detailed screen to decide what's in focus and what's not?

In a way, yes. But it's known that people with 20/20 vision cannot distinguish blurry artifacts that are barely noticed when blown up to an 8x10 and viewed at 1 foot. This basically equates to: if you have good vision and determine that something on the LCD screen is in focus, it probably is. Or at least no one will notice otherwise. You only really have to worry if you have really, really shallow depth of field.
Ben Winter is offline   Reply With Quote
Old August 13th, 2005, 01:41 AM   #23
Major Player

Join Date: Mar 2005
Location: Ventura, California, USA
Posts: 751
Quote:
Originally Posted by Ben Winter
But it's known that people with 20/20 vision cannot distinguish blurry artifacts that are barely noticed when blown up to an 8x10 and viewed at 1 foot.
I think that depends on one's definition of what "blurry" means. :)

I have a 7.2" LCD and I can focus better than with the factory LCD. The simple fact is, small details are lost on the smaller screen because it has less resolution. So the big screen does help.

Last edited by Bill Porter; August 13th, 2005 at 06:44 AM.
Bill Porter is offline   Reply With Quote
Old August 14th, 2005, 05:25 PM   #24
Regular Crew

Join Date: Aug 2005
Posts: 88
I got some small magnits from some magnetix thing I saw at target and I was wondering, how do I go about testing to see if it can be done on my camera? I held the magnet up to different parts of the lcd screen when its past the flipping point, then moved it back to position, I got no results but is that how you do it? Its really hard to do since the magnets aren't that small and obviously dont stick to my camera.
Jeff Tyler is offline   Reply With Quote
Old December 27th, 2006, 12:56 PM   #25
Regular Crew

Join Date: May 2003
Location: Charlotte, NC 28273
Posts: 108
problem with magnets is you always have the screen tilted up!

The problem with magnets is you always have the screen tilted up!

Thus you can't hold the camera above your head and film downwards.

Also taping the magnet in place is tedious.

A better solution is to simply unscrew the 3 silver screws around the lcd screen.

Remove the back portion and then move the magnet sensor from the hinge position and tape it to the back of the plastic housing.

Now you can velcro a magnet to the back of the screen and flip the footage much more easily independent of the LCD's angle or position.

Peace, Rolland
__________________
Rolland Elliott
Rolland Elliott is offline   Reply With Quote
Old December 27th, 2006, 09:21 PM   #26
Trustee

Join Date: Jun 2005
Location: Hollywood, CA
Posts: 1,675
Images: 1
Quote:
Originally Posted by Rolland Elliott
The problem with magnets is you always have the screen tilted up!

Thus you can't hold the camera above your head and film downwards.

Also taping the magnet in place is tedious.

A better solution is to simply unscrew the 3 silver screws around the lcd screen.

Remove the back portion and then move the magnet sensor from the hinge position and tape it to the back of the plastic housing.

Now you can velcro a magnet to the back of the screen and flip the footage much more easily independent of the LCD's angle or position.

Peace, Rolland
I owned a GL2 for a while and the magnet trick was never a pain as you described. The magnet was powerful enough to just stick on there, and the image remained flipped even if I had the LCD turned any which way. I never taped the magnet in place.
__________________
BenWinter.com
Ben Winter is offline   Reply With Quote
Old December 27th, 2006, 09:54 PM   #27
Regular Crew

Join Date: May 2003
Location: Charlotte, NC 28273
Posts: 108
I think you are mistaken

I think you are mistaken. There is no metal on the inside of the plastic housing, thus nothing to stick to.

I have my gl2 in front of me and just tried it.
__________________
Rolland Elliott
Rolland Elliott is offline   Reply With Quote
Old December 27th, 2006, 11:54 PM   #28
Trustee

Join Date: Jun 2005
Location: Hollywood, CA
Posts: 1,675
Images: 1
...nope, I'm pretty confident in my memory. Are you putting the magnet on the LCD between the LCD and the body of the camera?

I used a magnet like this:
http://www.magnetsandhealth.com/cata.../neodymium.jpg

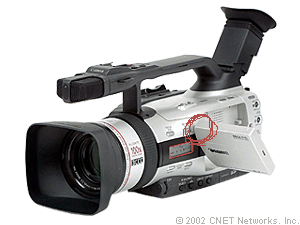

and put it here (see attachment) on the part of the LCD just above the hinge. If it doesn't work for you, Canon has obviously changed their camera design since then.
Attached Images

__________________
BenWinter.com
Ben Winter is offline   Reply With Quote
Old December 29th, 2006, 06:02 PM   #29
New Boot

Join Date: Dec 2006
Location: Los Angeles
Posts: 22
Quote:
Originally Posted by Maximilian Friedrich
Hoi, very interesting ...
i tried this magnetic method on my sony trv900 - no reaction - am i using a lousy magnet or is there another method inverting the screen on an sony camcorder?
greetz from Aachen, Germany
Maximilian
I have a TRV900 and the magnet trick does NOT work with it. It uses an electrical switch to flip the image, not a mechanical one like many other cameras. Shame, cuz the 900 has one of the best LCD screens out there. I bought an external LCD with line-in. But it's not very practical as the one I got is too big and cumbersome to mount on the camera, so I have it on a second tripod. Basically only good for controlled shoots on sticks. The best solution id to upgrade the camera! CAUTION: I hear some of the newer cameras do NOT work with magnet trick, namely the Canon A1. Viele Gruesse aus den USA!
http://img.photobucket.com/albums/v6...g/DSC06881.jpg
__________________
www.bionicpix.com
Stephen Lee is offline   Reply
