Old April 12th, 2011, 12:39 AM   #16
Major Player

Join Date: Jun 2006
Location: Saskatchewan, Canada
Posts: 382
Re: 345$ uncompressed recorder

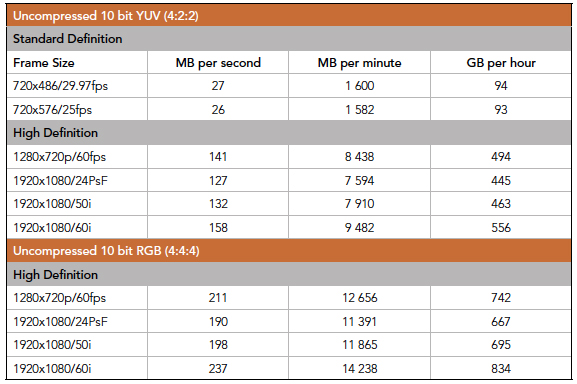

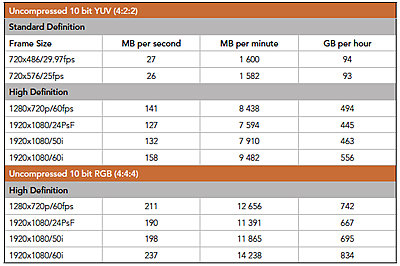

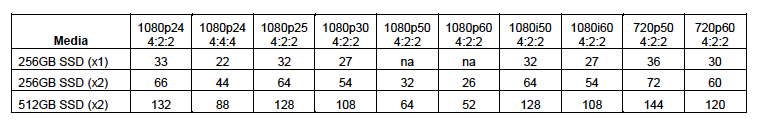

See the attached for precise data rates and record times for the various frame rates.

Basically its just under one hour of 10-bit 4:2:2 for 512GB drive. Thus one can understand why the Convergent Gemini went with two hot swap SSD slots.

What there not saying at this point is the required read/write speeds for the SSD. A 512GB SSD that will maintain consistent write speeds over its life span costs between $1100 - $1500 USD.
Attached Thumbnails
HyperDeck Shuttle from Blackmagic Design-uncompressed-10bit-data-rates.jpg   HyperDeck Shuttle from Blackmagic Design-uncompressed-ssd-record-times.jpg

Barry J. Anwender is offline   Reply With Quote
Old April 12th, 2011, 01:21 AM   #17
New Boot

Join Date: Mar 2011
Location: Delhi, India / Alex, Egypt
Posts: 5
re: HyperDeck Shuttle from Blackmagic Design

While the Hyperdeck Shuttle looks interesting and very handy I'm more intrigued by the new mixers.

We're looking at putting in new installations at a couple of places later this year and the ATEM Television Studio ($995) looks like a really good possibility for one, especially if paired with a touch screen laptop instead of a control surface to start with. Most of the alternatives offing this capability (HD, Six inputs 4 of which are HDMI/HDSDI, h264 encoding) are much more expensive and the ability to just run a ethernet cable to control it from anywhere could be a real benefit.

Also looking at the possibility of using ATEM 1 M/E Production Switcher or the ATEM 2 M/E Production Switcher at a couple of places though there, I'm looking forward to what new stuff Panasonic and datavideo are offering this year.
Baiju Gadhia is offline   Reply With Quote
Old April 12th, 2011, 03:39 AM   #18
Inner Circle

Join Date: Jun 2004
Location: Belgium
Posts: 2,195
re: HyperDeck Shuttle from Blackmagic Design

And a free version of DaVinci Resolve is very interesting for people to let them get to know the software (and it's pretty functional too, for being a free version).
Mathieu Ghekiere is offline   Reply With Quote
Old April 12th, 2011, 03:48 AM   #19
Inner Circle

Join Date: Dec 2005
Location: Bracknell, Berkshire, UK
Posts: 4,986
Re: 345$ uncompressed recorder

Guess BM are trying to corner the market and keep the Ninja from selling take a look at the 2nd section of this page if you want to know why Allens Arthur Robinson: Publication: Intellectual Property Bulletin and when it ships it's may not be $345 for long.
__________________
Alister Chapman, Film-Maker/Stormchaser http://www.xdcam-user.com/alisters-blog/ My XDCAM site and blog. http://www.hurricane-rig.com
Alister Chapman is offline   Reply With Quote
Old April 12th, 2011, 03:55 AM   #20
Major Player

Join Date: Feb 2010
Location: Slovenia
Posts: 356
re: HyperDeck Shuttle from Blackmagic Design

Sooo this ting records uncompressed 4:2:2 10bit files correct? What would be the bit rate of 1080 25p?
Sanjin Svajger is offline   Reply With Quote
Old April 12th, 2011, 04:05 AM   #21
Major Player

Join Date: Apr 2005
Location: Oslo, Norway
Posts: 395
re: HyperDeck Shuttle from Blackmagic Design

looks great. A bit strange that it dosenīt seem to have a lid over the SSD opening. Looks a bit exposed

Edit: Any time frame suggested?
Edit2; found it, May
Joachim Hoge is offline   Reply With Quote
Old April 12th, 2011, 04:49 AM   #22
Major Player

Join Date: Jul 2009
Location: Rancho Santa Margarita
Posts: 590
Re: 345$ uncompressed recorder

Heed the warning about crap SSD drives. I've tested quite a bit of them. Very few live up to the wild claims of datarate. I'm glad I have a few drives that are certified for sustained 4:2:2 uncompressed.
Aaron Newsome is offline   Reply With Quote
Old April 12th, 2011, 06:08 AM   #23
Regular Crew

Join Date: Oct 2007
Location: London
Posts: 190
re: HyperDeck Shuttle from Blackmagic Design

Sanjin,

From the Blackmagic Design site.

The storage and data rates for uncompressed video are listed below.

525 NTSC uncompressed;
8 bit @ 720 x 486 @ 29.97fps = 20 MB per/sec, or 70 GB per/hr.
10 bit @ 720 x 486 @ 29.97fps = 27 MB per/sec, or 94 GB per/hr.

625 PAL uncompressed;
8 bit @ 720 x 576 @ 25fps = 20 MB per/sec, or 70 GB per/hr.
10 bit @ 720 x 576 @ 25fps = 26 MB per/sec, or 93 GB per/hr.

720p HDTV uncompressed;
8 bit @ 1280 x 720 @ 59.94field = 105 MB per/sec, or 370 GB per/hr.
10 bit @ 1280 x 720 @ 59.94field = 140 MB per/sec, or 494 GB per/hr.



1080i and 1080p HDTV uncompressed;
8 bit @ 1920 x 1080 @ 24fps = 95 MB per/sec, or 334 GB per/hr.
10 bit @ 1920 x 1080 @ 24fps = 127 MB per/sec, or 445 GB per/hr.

8 bit @ 1920 x 1080 @ 25fps = 99 MB per/sec, or 348 GB per/hr.
10 bit @ 1920 x 1080 @ 25fps = 132 MB per/sec, or 463 GB per/hr.

8 bit @ 1920 x 1080 @ 29.97fps = 119 MB per/sec, or 417 GB per/hr.
10 bit @ 1920 x 1080 @ 29.97fps = 158 MB per/sec, or 556 GB per/hr.

1080i and 1080p HDTV RGB (4:4:4) uncompressed;
10 bit @ 1280 x 720p @ 60fps = 211 MB per/sec, or 742 GB per/hr.
10 bit @ 1920 x 1080 @ 24PsF = 190 MB per/sec, or 667 GB per/hr.
10 bit @ 1920 x 1080 @ 50i = 198 MB per/sec, or 695 GB per/hr.
10 bit @ 1920 x 1080 @ 60i = 237 MB per/sec, or 834 GB per/hr.
__________________
My vimeo page: http://vimeo.com/henryolonga/videos
My website: www.henryolonga.net
Henry Olonga is offline   Reply With Quote
Old April 12th, 2011, 06:49 AM   #24
Major Player

Join Date: Feb 2006
Location: Virginia Beach, VA
Posts: 220
re: HyperDeck Shuttle from Blackmagic Design

The thing I find interesting(and there may be nothing to it really) is that Blackmagic has a NEX-VG10 displayed a couple of times in the marketing materials for the Shuttle. The VG10's viewfinder and LCD are disabled when HDMI out is engaged and the Shuttle doesn't have a monitor. So why would they push a product that doesnt completely work with what they are selling? Maybe they have insight into a Sony firmware upgrade that will allow for simultaneous hdmi out/lcd viewing? I'm probably reading too much into something that isn't there. Will deff cop a Shuttle when it drops though!

-burk
Jason Burkhimer is offline   Reply With Quote
Old April 12th, 2011, 06:58 AM   #25
New Boot

Join Date: Mar 2011
Location: Sydney AUSTRALIA
Posts: 22
Re: 345$ uncompressed recorder

No pricing or capacity on the SSD cards, but with the recorder costing so little, hey!

Mounting options, can't see any, and there is little flexibility in the controls and monitoring unlike the Nanoflash (hands up who likes to see timecode ticking over?) Also it doesn't seem to allow you to change the bit rate. But the projected price is really the knockout punch in my opinion.
__________________
Pieter de Vries ACS Cinematographer & Camera Craft Educator | Sydney Australia | www.pieterdevries.com.au
Pieter de Vries is offline   Reply With Quote
Old April 12th, 2011, 07:20 AM   #26
Major Player

Join Date: Apr 2005
Location: Oslo, Norway
Posts: 395
re: HyperDeck Shuttle from Blackmagic Design

It would be nice if it did have an option to record a compressed format as well. Uncompressed still takes up a bit too much space to easily shoot for one day without having to dump the disks you are shooting on. (Depends on you shooting style, but still)
Joachim Hoge is offline   Reply With Quote
Old April 12th, 2011, 08:16 AM   #27
Regular Crew

Join Date: Oct 2006
Location: Lebanon
Posts: 51
Re: 345$ uncompressed recorder

With a 345$ price, i would happily use duct tape .
Tony Partamian is offline   Reply With Quote
Old April 12th, 2011, 09:48 AM   #28
Major Player

Join Date: Jul 2009
Location: Rancho Santa Margarita
Posts: 590
Re: 345$ uncompressed recorder

Pieter, no need to change the bitrate since it only records one rate.
Aaron Newsome is offline   Reply With Quote
Old April 12th, 2011, 10:20 AM   #29
Contributor

Join Date: Jan 2003
Location: Kansas City, MO
Posts: 4,441
Re: Hyperdeck: uncompressed w/5DMII?

Right, no good for the 5DII.
Bill Pryor is offline   Reply With Quote
Old April 12th, 2011, 10:34 AM   #30
Regular Crew

Join Date: Nov 2004
Posts: 1,414
re: HyperDeck Shuttle from Blackmagic Design

How does the Shuttle compare to the Nanoflash.... Also... anyone know the answer to this... looks like the Shuttle only works with Apple... did they say when it would work with PC based systems...
