Old March 7th, 2012, 09:49 PM   #16
Trustee

Join Date: Oct 2009
Location: Central Coast Australia
Posts: 1,008
Re: Hyperdeck Shuttle

Thanks for that Paul.
It'l do me fine.
cheers
__________________
http://vimeo.com/livewebvideo
Gerald Webb is offline   Reply With Quote
Old March 8th, 2012, 09:18 PM   #17

Join Date: Dec 2010
Location: Western Australia
Posts: 576
Re: Hyperdeck Shuttle

Wow cannot believe that you would get only 1/2 an hour of footage on a 256GB SATA drive. Are there any compressed settings for use with Premiere CS5.5?
Lee Mullen is offline   Reply With Quote
Old March 9th, 2012, 08:29 AM   #18
Regular Crew

Join Date: Jul 2011
Location: Sydney Australia
Posts: 111
Re: Hyperdeck Shuttle

Quote:
Originally Posted by Jalan Salur View Post
Wow cannot believe that you would get only 1/2 an hour of footage on a 256GB SATA drive. Are there any compressed settings for use with Premiere CS5.5?
That is with uncompressed video.
With the new Shuttle 2 and firmware 2.5, there are 2 types of Avid compressed DNxHD one of which works well with Premiere.
Hypderdeck Shuttle 2 Supports DNxHD
Paul Kapp is offline   Reply With Quote
Old April 1st, 2012, 02:49 PM   #19
Major Player

Join Date: Feb 2008
Location: Voorheesville, NY
Posts: 433
Re: Hyperdeck Shuttle

See here:

Cineform and Blackmagic Hyperdeck II

ffmbc now supports reading of the op-atom DNxHD MXF files from the Hyperdeck series.
Jay Bloomfield is offline   Reply With Quote
Old May 2nd, 2012, 02:08 PM   #20
Regular Crew

Join Date: Dec 2009
Location: Atlanta, USA
Posts: 53
Re: Hyperdeck Shuttle

Hi Guys

I have a Canon XLH1 and a Sony Ex1 (eraly firmware-1.02). The question is can I use this device for my cameras?

Much appreciated

Kent.
Kent Nguyen is offline   Reply With Quote
Old May 2nd, 2012, 05:56 PM   #21
Major Player

Join Date: Jul 2006
Location: Chicago, IL
Posts: 937
Re: Hyperdeck Shuttle

Kent Nguyen
They both have HD-SDI, so yes.
__________________
Nothing says you're a serious video maker like S-VHS
Zach Love is offline   Reply With Quote
Old May 3rd, 2012, 08:05 AM   #22
Regular Crew

Join Date: Dec 2009
Location: Atlanta, USA
Posts: 53
Re: Hyperdeck Shuttle

Dear Zach
for the EX1, The recording format is in MPEG4. For the Hyperdeck can only record uncompressed file which lasts only 12.5 minutes on 120Gbs. I just wonder if the Hyperdeck can do the compressed file as the SxS card?

Best
Kent Nguyen is offline   Reply With Quote
Old May 10th, 2012, 12:26 AM   #23
Regular Crew

Join Date: Feb 2010
Location: Drachten, Netherlands
Posts: 179
Re: Hyperdeck Shuttle

You can use DNxHD codec which is explained here:
DNxHD codec - Wikipedia, the free encyclopedia
it gives you about 4-5 times more recording time
Your editor must support this format natively, when you start converting (ffmpeg) you'll usually end up 8-bit
Ron Aerts is offline   Reply With Quote
Old May 14th, 2012, 10:07 AM   #24
Regular Crew

Join Date: Jul 2011
Location: Sydney Australia
Posts: 111
Re: Hyperdeck Shuttle

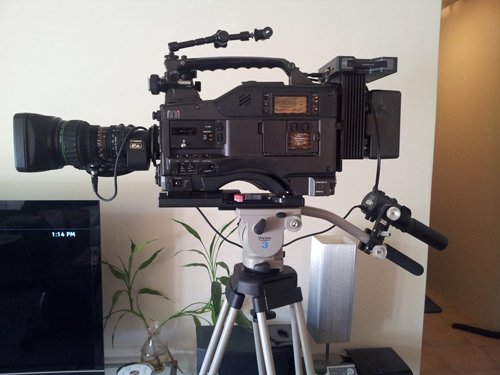

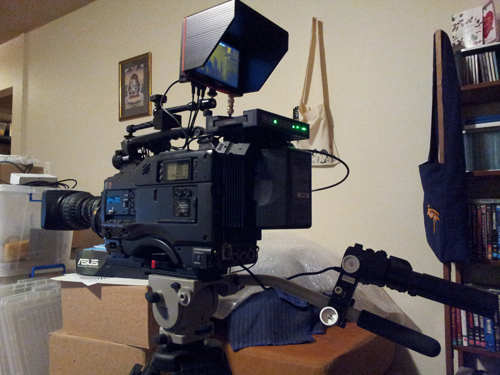

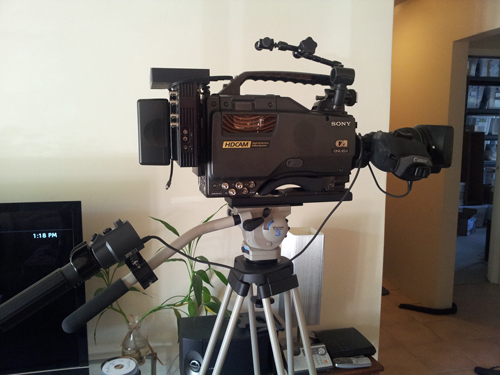

Shuttle on F900.
Attached Thumbnails
Hyperdeck Shuttle-shuttleonf900.jpg   Hyperdeck Shuttle-shuttleonf900-2.jpg

Hyperdeck Shuttle-shuttleonf900-3.jpg
Paul Kapp is offline   Reply With Quote
Old May 17th, 2012, 10:15 AM   #25
Regular Crew

Join Date: Apr 2010
Location: Singapore
Posts: 72
Re: Hyperdeck Shuttle

Hi guys,

I'm considering getting a Hyperdeck 2 for my work (recording in DNxHD), but I'm wondering whether you are actually seeing any significant differences in quality over the standard internal camera codecs? I know there must be some difference, but does it justify the massive hike in file sizes in your eyes?
__________________
16-Year-Old founder and owner of OverDrive Media Group, a production company focusing on creating pristine HD video for the action sports industry.
Felix van Oost is offline   Reply With Quote
Old May 17th, 2012, 11:15 AM   #26
Inner Circle

Join Date: Aug 2006
Location: Efland NC, USA
Posts: 2,315
Re: Hyperdeck Shuttle

Quote:
Originally Posted by Felix van Oost View Post
Hi guys,

I'm considering getting a Hyperdeck 2 for my work (recording in DNxHD), but I'm wondering whether you are actually seeing any significant differences in quality over the standard internal camera codecs? I know there must be some difference, but does it justify the massive hike in file sizes in your eyes?
If you are doing green-screen work or serious compositing then it can be truly beneficial. If you are shooting straight video and you are happy with the look of your current footage the improvement will not likely be noticed.
__________________
http://www.LandYachtMedia.com
Chris Medico is offline   Reply With Quote
Old November 8th, 2012, 08:15 PM   #27
Major Player

Join Date: Mar 2007
Location: california North and South
Posts: 635
Re: Hyperdeck Shuttle

Paul, How do you like the footage from your hyperdeck on your JVC bypassing the HDV compressor? I've got a JVC HD-110 that I could get a Component/SDI or Component/HDMI converter and use one myself. Would love to keep my camera and move away from HDV for better post work and final results.

Any practical testing have you done with some side by side footage for example?

thanks
Alex Humphrey is offline   Reply With Quote
Old December 5th, 2012, 07:42 AM   #28
Regular Crew

Join Date: Jul 2011
Location: Sydney Australia
Posts: 111
Re: Hyperdeck Shuttle

Hi Alex and sorry for the slow reply.
The picture from a JVC GYHM750 was quite noisy even from the HDSDI output.
There was not a great advantage over HDV.

I had the HD-111.
Once you converted 720p analogue to compressed 10bit digital I would imagine it would have a very noisy picture.
It may be better to stick with HDV.
Paul Kapp is offline   Reply With Quote
Old January 10th, 2013, 10:58 PM   #29
Major Player

Join Date: Dec 2008
Location: Berkeley, CA, USA
Posts: 227
Re: Hyperdeck Shuttle

Hi all,
Paul great post. I have just a few simple newbie questions about the BMD Hyperdesk Shuttle 2.
In my work I was using Adobe Premiere Pro 5 and switched to using Pinnacle Studio for the ipad. Currently My setup consists of the following...
Canon 60D camera
Hyperdrive UDMA2
Ipad3 using the Apps Pinacle Studio, Video Grade, Photofrge2, Artstudio and DispRecorder.
I already have a Sandisk Extreme 480GB SSD. I called BMD and that drive has been tested to work with the Hyperdesk Shuttle 2.
I also have the Sony FX-7 camera.
I wanted to turn this camera into a tapeless recording camera. I need a device that can record in the iPad h.264 MOV file format directly. I read many of the notes here and it looks like all formats are uncompressed file formats for the Hyperdesk Shuttle 2. Is this correct? Is any one of the formats comparable with the ipad?
I would like a device that could record 3-5 hours of video on a single 480GB SSD.
My Canon 60D can record 45 minutes on a 32GB SD memory card. I am using magic lantern version 2.3. I think the video quality is quite good. I have a consumer grade lens for the camera.

Thanks,
John Gerard
John Gerard is offline   Reply With Quote
Old January 19th, 2013, 08:03 PM   #30
Regular Crew

Join Date: Feb 2011
Location: Somerset, England
Posts: 147
Re: Hyperdeck Shuttle

Hyperdeck Shuttle 2 latest firmware supports two compressed file formats: DNxHD and Prores HQ, both 10bit 4:2:2. I've used both but latterly mostly Prores on a 128GB SSD and I get around 60 minutes of recording at 1080p 24fps, so your 480GB SSD should do around 4 hours of recording or so.

Hope that helps

Neil
Neil Richards is offline   Reply
