Old July 24th, 2012, 03:09 PM   #1
Regular Crew

Join Date: Dec 2009
Location: Atlanta, USA
Posts: 53
camera mounting for BMD Hyperdeck 2

I am really getting stuck from how to mount my Hyperdeck 2 to my XL H1 and EX1. Is there any customized or universal mounting for this device?

Much appreciated

Last edited by Kent Nguyen; July 24th, 2012 at 03:09 PM. Reason: spelling
Kent Nguyen is offline   Reply With Quote
Old July 24th, 2012, 03:52 PM   #2
Major Player

Join Date: Oct 2008
Location: Kanto Plain (関東平野), Japan
Posts: 805
Re: camera mounting for BMD Hyperdeck 2

Only one I've seen...

Blackmagic Design HyperDeck Shuttle Mounting HYPERD/PTMOUNTPL


Mark
Mark Watson is offline   Reply With Quote
Old July 27th, 2012, 03:15 PM   #3
Regular Crew

Join Date: Dec 2009
Location: Atlanta, USA
Posts: 53
Re: camera mounting for BMD Hyperdeck 2

Yeah I know there are plates. What I wonder is how to attach this plate to cameras. There must be the third party to mount them together.
Kent Nguyen is offline   Reply With Quote
Old September 5th, 2012, 02:03 PM   #4
Major Player

Join Date: Feb 2008
Location: Voorheesville, NY
Posts: 433
Re: camera mounting for BMD Hyperdeck 2

The Hyperdeck Shuttle mounting plate replaces the existing back plate, which is held on by screws. It takes all of a minute to make the change. After that, need either an articulating arm or or a tripod clamp to mount the Shuttle either to the tripod or to a clamp that attaches to the camera. The Hyperdeck Shuttle is smallish, but it is a bit heavy/ unwieldy to just attach to a camera for run and gun situations. Further, if you decide on an HDMI connection to the camera, HDMI connectors have a tendency to work themselves loose.
Jay Bloomfield is offline   Reply With Quote
Old March 18th, 2013, 09:11 AM   #5
Regular Crew

Join Date: Jul 2008
Location: Germany
Posts: 48
Re: camera mounting for BMD Hyperdeck 2

There is another one i know at least. Its by "Geardear.com" a German Manufacturer. Ive made good experiences. Their stuff is really lightweight. Bought the Mattebox and a Lens Support once.

http://geardear.com/Hyper/andere_5751_532.jpg
Matthias Sachal is offline   Reply With Quote
Old March 18th, 2013, 09:28 PM   #6
Inner Circle

Join Date: Nov 2005
Location: Elk Grove CA
Posts: 6,838
Re: camera mounting for BMD Hyperdeck 2

Don't overlook the simple.

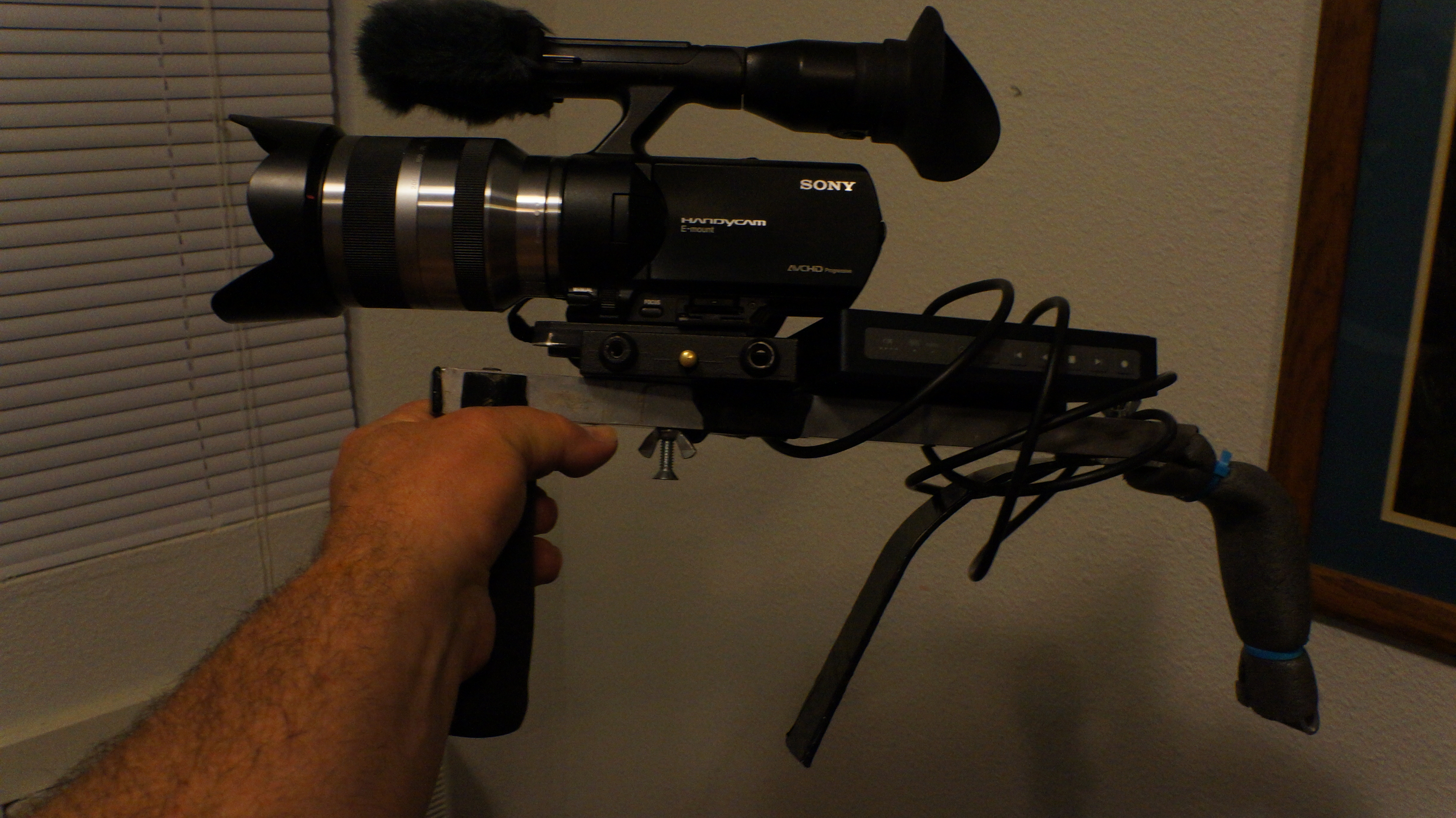

I build most of my own stuff anyway, and with my 'VG20 and or HV30, I actually have a shoulder mount that made. that I have just added a strip of Velcro to and to the back of Shuttle Hyperdeck. Ugly but it actually works quite well. See photo below.
Attached Thumbnails
camera mounting for BMD Hyperdeck 2-dsc00318.jpg
__________________
Chris J. Barcellos
Chris Barcellos is offline   Reply With Quote
Old April 30th, 2013, 11:00 AM   #8
Major Player

Join Date: Jul 2009
Location: California
Posts: 206
Re: camera mounting for BMD Hyperdeck 2

I bought the plate for the $100. It has several holes on the bottom that you can use to mount with. I have a DLSR rig from Lanparte that came with a few single rail mount screws, so I screw it on the bottom of the plate, then slide it over one of the rails and tighten it down. That works for rails setups. Without a rails setup, you'd need some sort of bracket with extra threaded slots and like some others said, some sort of arm or something to mount it. As the other poster showed, using it on a shoulder rig could help as well.

As for the HDMI issue, there is a way to solve that for most cameras, get one of those locking mechanisms, where you put a base plate that is L shaped that has a spot you insert an L hdmi connector, then you tighten the bracket down on the connector so it's in tight, then attach the cord to the L connector. Or you can do something similar where you make your own cheap bracket, plug your cable in, and tighten down around the cord so it doesn't come loose.

Solutions for everything and then some.
Kevin Duffey is offline   Reply With Quote
Old May 2nd, 2013, 05:36 AM   #9
Major Player

Join Date: Oct 2008
Location: Kanto Plain (関東平野), Japan
Posts: 805
Re: camera mounting for BMD Hyperdeck 2

Just came across this versatile mount...

Bracket 1: Video Camera Mounting Accessories
Mark Watson is offline   Reply With Quote
Old April 18th, 2014, 07:54 AM   #10
Regular Crew

Join Date: Mar 2004
Location: Dundee, United Kingdom
Posts: 42
Re: camera mounting for BMD Hyperdeck 2

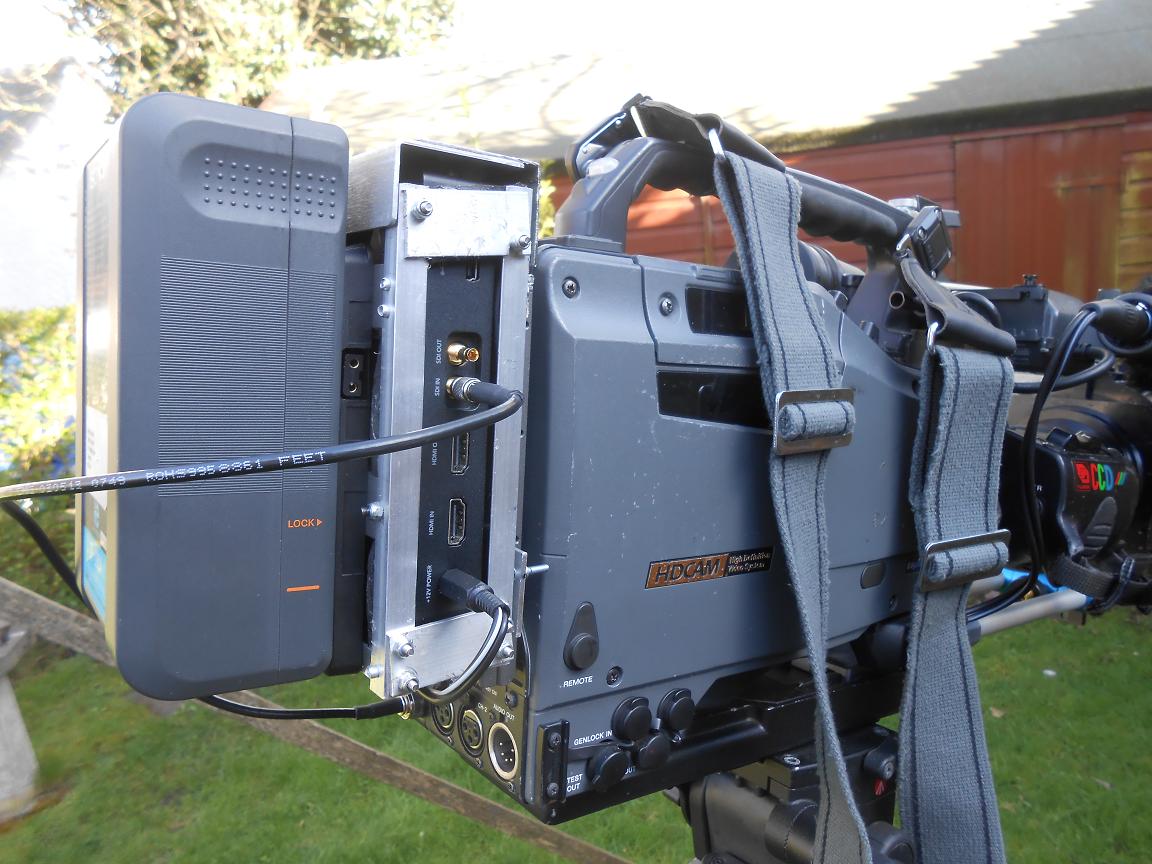

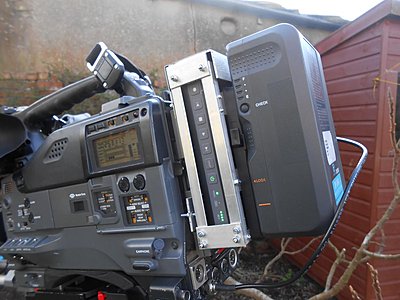

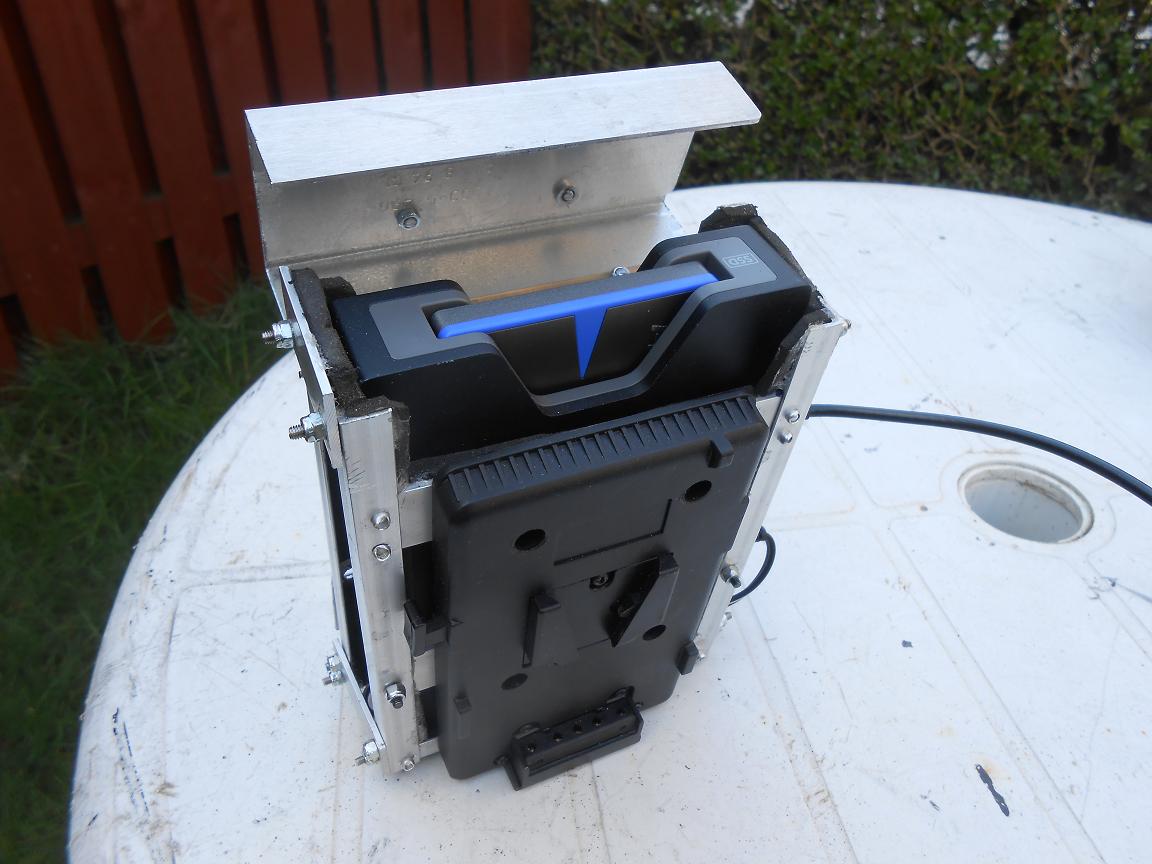

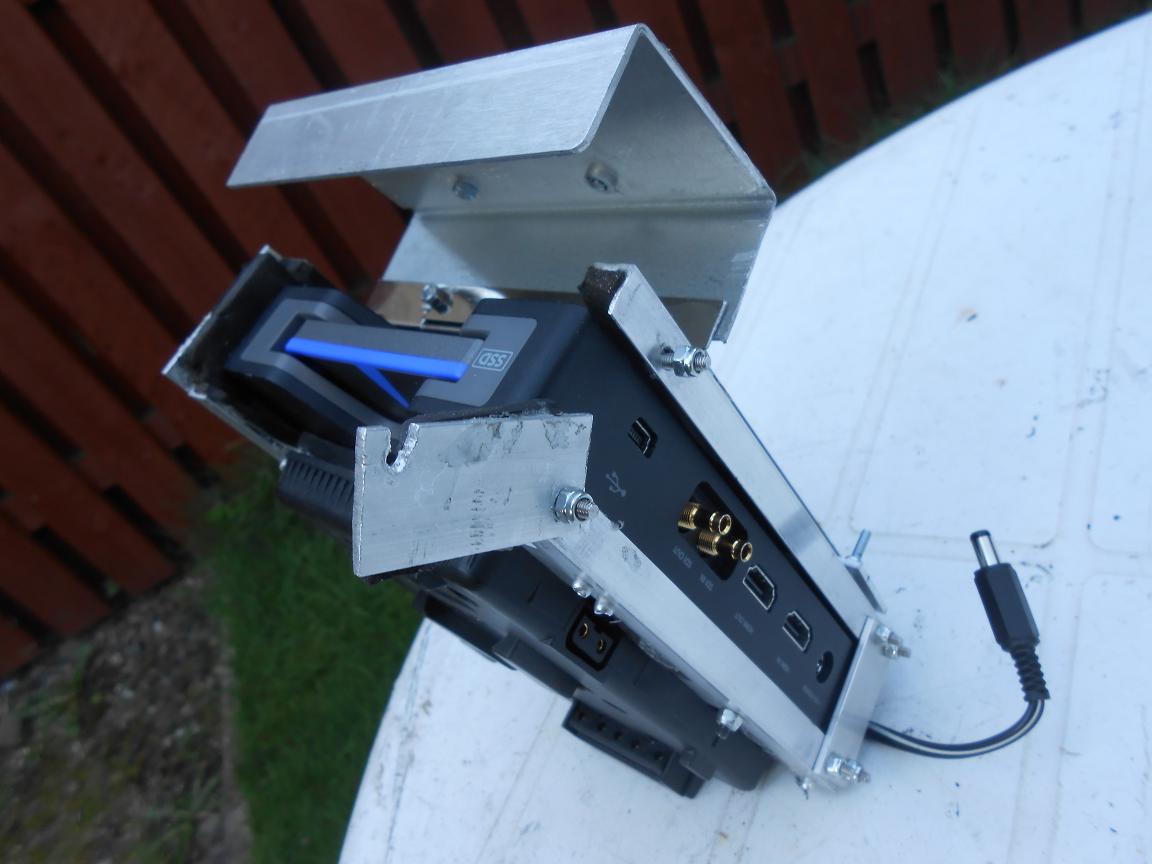

I have made this cradle for my HDW-750P, and it will fit any v-mount battery camera or accessory.
I lined it with some rubber matting I got as packing with a laptop lithium power supply so it is nicely shielded from vibration.
My one regret is that I have to unclip it from the camera to remove the SSD so if I was to make another I would hinge the lid on the other side. In a way it prevents anyone nicking the SSD I suppose.
If anyone has any questions I would be pleased to answer them.
Attached Thumbnails
camera mounting for BMD Hyperdeck 2-dscn1156-1-.jpg   camera mounting for BMD Hyperdeck 2-dscn1155-1-.jpg

camera mounting for BMD Hyperdeck 2-dscn1154-1-.jpg   camera mounting for BMD Hyperdeck 2-dscn1153-1-.jpg

Neil Goodwill is offline   Reply With Quote
Old April 18th, 2014, 03:18 PM   #11
Regular Crew

Join Date: Nov 2010
Location: Ferrisburgh, VT
Posts: 178
Re: camera mounting for BMD Hyperdeck 2

That's great, Neil!

There's a machined version of your creation for sale here: Bracket 1 Cradle Mount for Blackmagic HyperDeck Shuttle VISLBMSC

But I still had to tap my own holes in it to get it to fit the Zacuto Zwiss plate. So irritating how the have all those holes, yet none of them seem to fit anything.
Finn Yarbrough is offline   Reply
