Old July 3rd, 2013, 08:40 AM   #1
Regular Crew

Join Date: Jul 2005
Location: London, UK
Posts: 98
C100 + 17-55mm 2.8 EF-S Vignetting

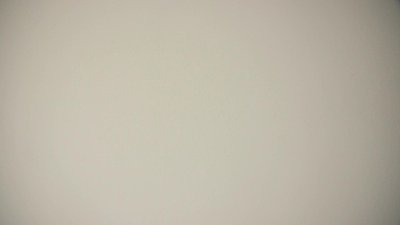

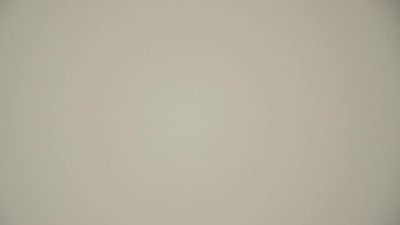

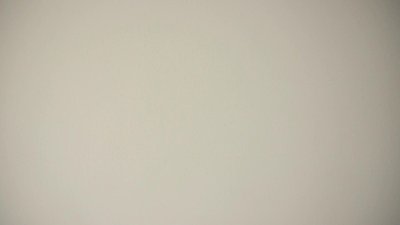

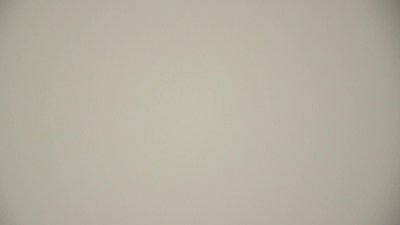

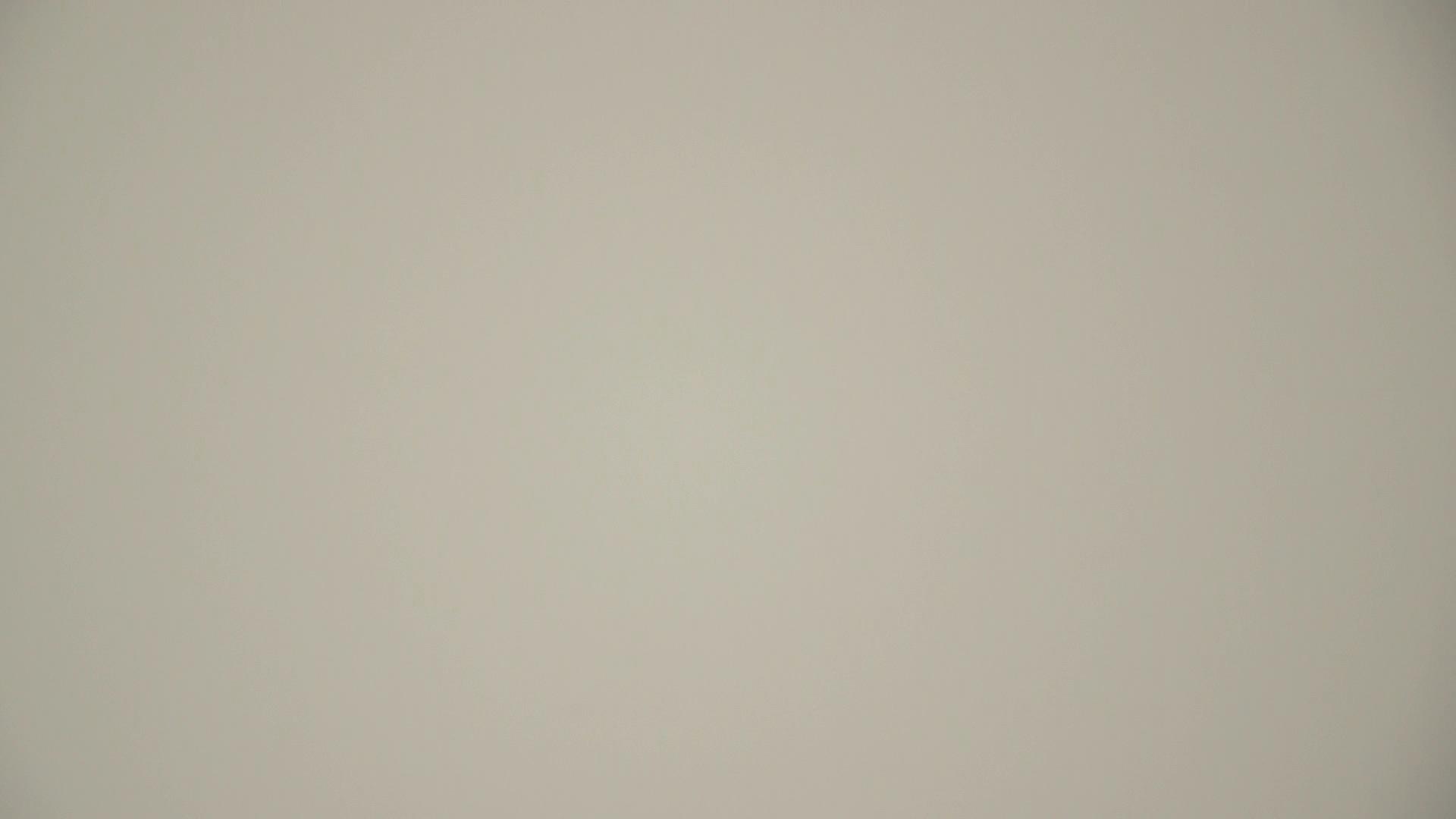

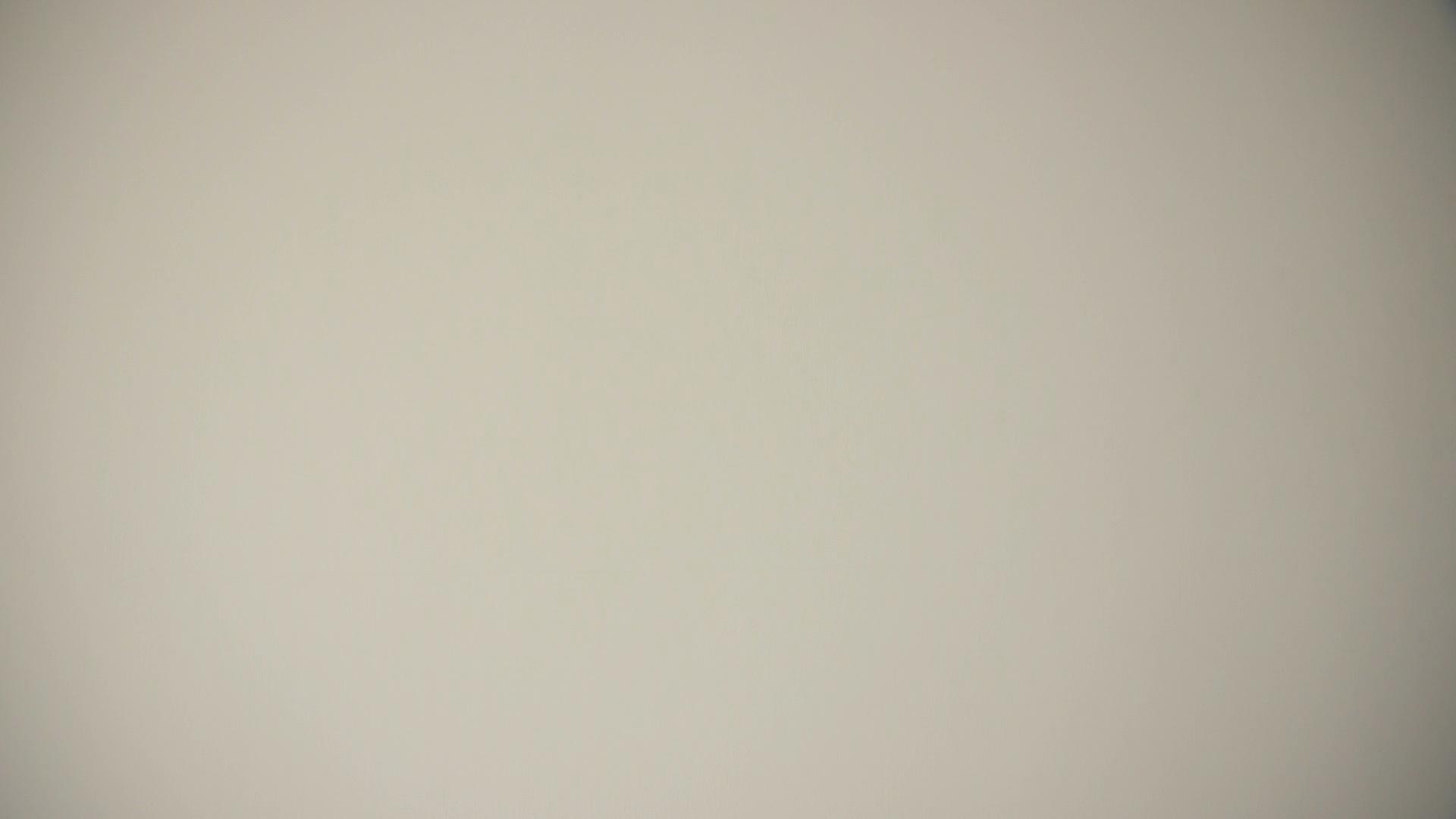

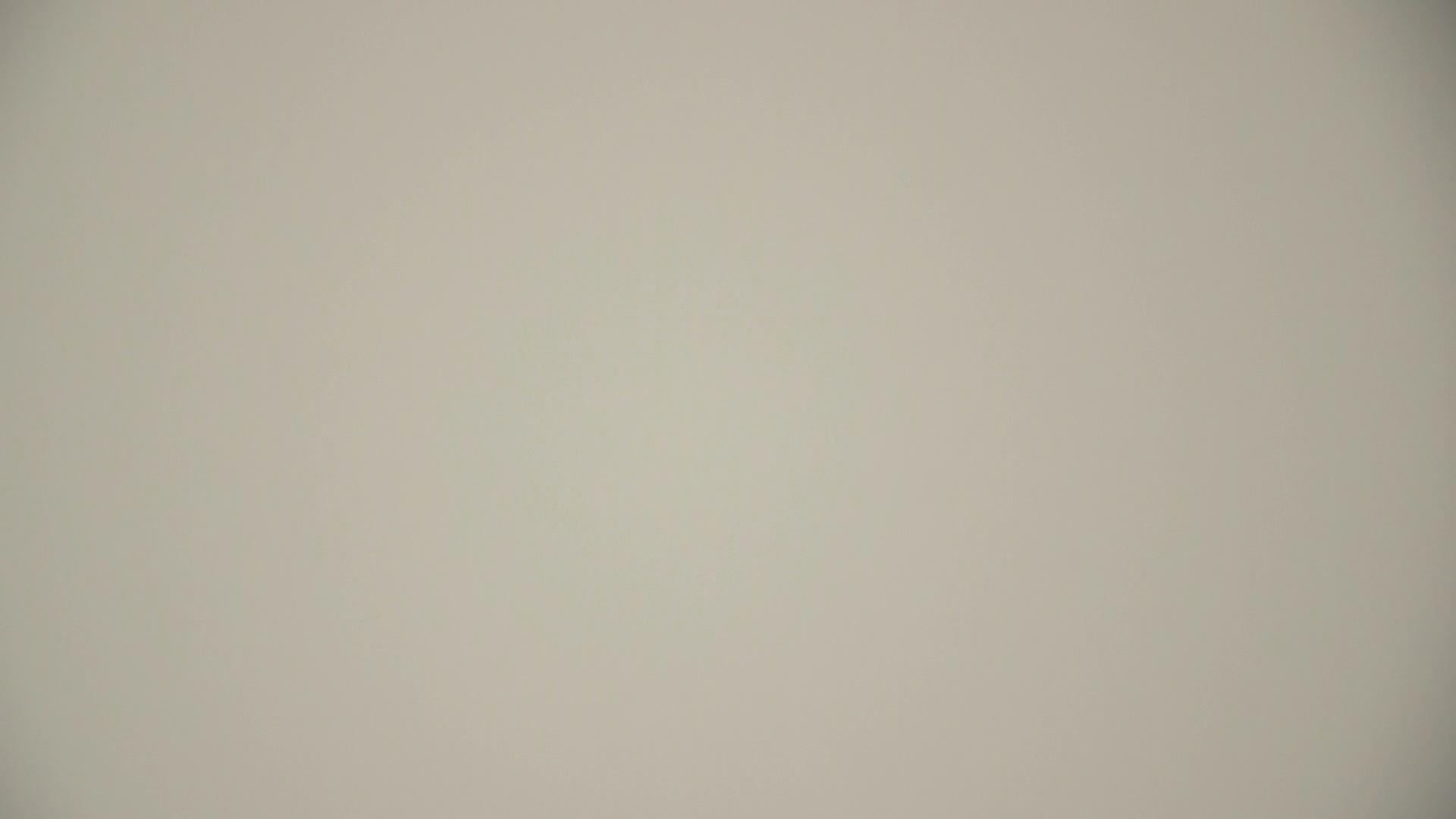

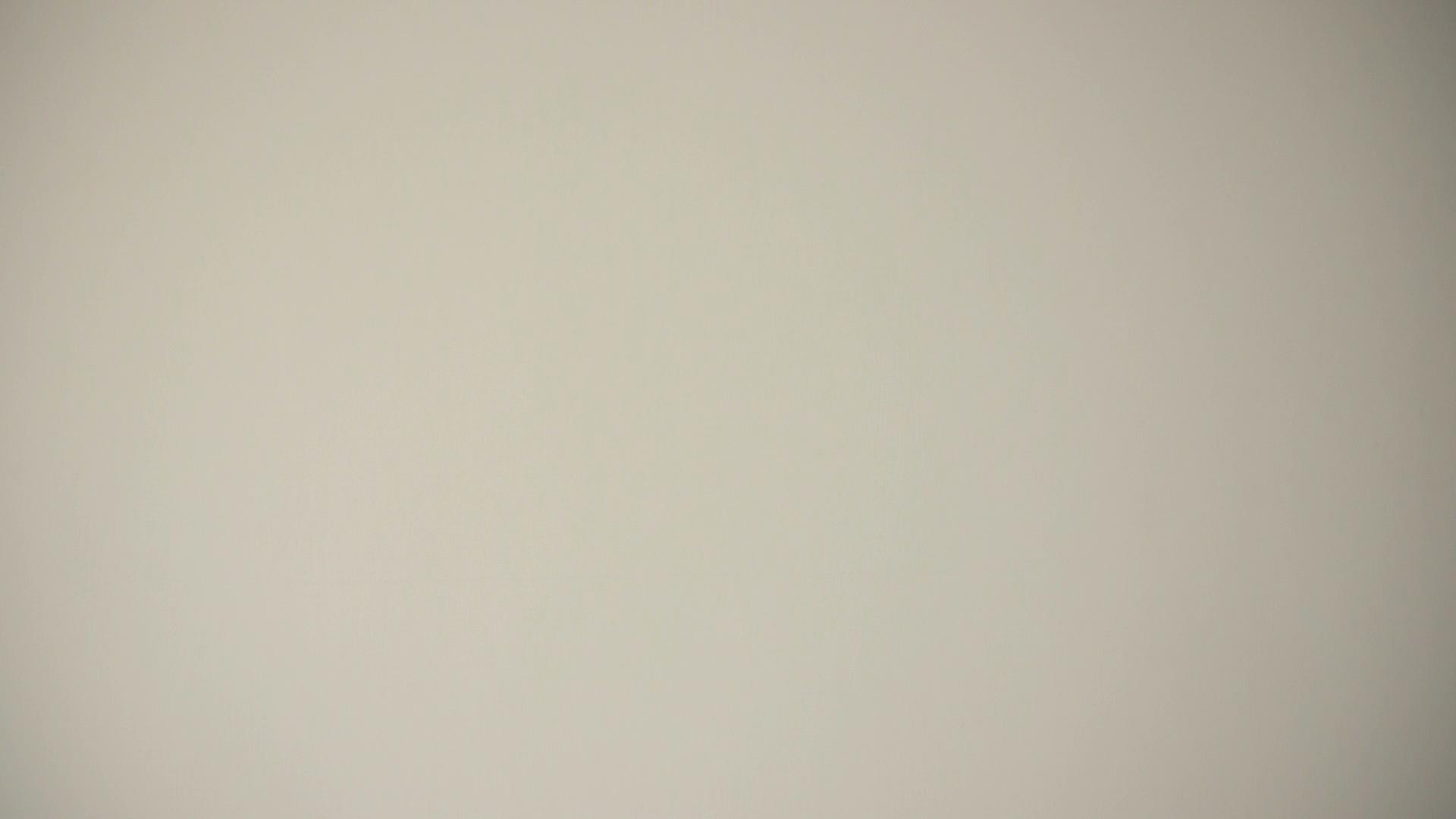

I'm seeing heavy vignetting with the 17-55mm 2.8 EF-S lens. It is very evident even with the EF-S setting on the camera activated and is noticeable even at 55mm. From other posts here it doesn't seem to be a problem for other users, so I'm wondering if I'm getting an abnormal amount for some reason. I've attached 4 very quick demonstration images against my white office wall at 17mm and 55mm both with and without the EF-S setting on the C100 activated. Is this more vignetting than other users are experiencing? I'm currently struggling to use some of the footage coming out of the camera because of the extreme vignetting. It's much stronger in the right hand corners of the image.
Attached Thumbnails
C100 + 17-55mm 2.8 EF-S Vignetting-17mm.jpg   C100 + 17-55mm 2.8 EF-S Vignetting-17mmef-s.jpg

C100 + 17-55mm 2.8 EF-S Vignetting-55mm.jpg   C100 + 17-55mm 2.8 EF-S Vignetting-55mmef-s.jpg

__________________
www.pfilm.co.uk
Mike Paterson is offline   Reply With Quote
Old July 3rd, 2013, 08:53 AM   #2
Inner Circle

Join Date: Sep 2007
Location: Cambridge UK
Posts: 2,835
Re: C100 + 17-55mm 2.8 EF-S Vignetting

Sorry if this is obvious but I assume you have PIC (peripheral illumination correction) enabled on your C100?
__________________
Andy K Wilkinson - http://www.shootingimage.co.uk
Cambridge (UK) Corporate Video Production
Andy Wilkinson is offline   Reply With Quote
Old July 3rd, 2013, 03:17 PM   #3
Regular Crew

Join Date: Jun 2013
Location: Santa Cruz, California
Posts: 33
Re: C100 + 17-55mm 2.8 EF-S Vignetting

Possibly paranormal activity in your house?
Bill Scherer is offline   Reply With Quote
Old July 4th, 2013, 03:57 AM   #4
Regular Crew

Join Date: Jul 2005
Location: London, UK
Posts: 98
Re: C100 + 17-55mm 2.8 EF-S Vignetting

Quote:
Originally Posted by Andy Wilkinson View Post
Sorry if this is obvious but I assume you have PIC (peripheral illumination correction) enabled on your C100?
Ah - not so obvious. I set PIC on when we first got the camera, forgot about it, and didn't see any vignetting in the first films we used the camera on. But checking now I see it's been turned off by someone. Thanks for the reminder!
__________________
www.pfilm.co.uk
Mike Paterson is offline   Reply With Quote
Old July 4th, 2013, 04:43 AM   #5
Inner Circle

Join Date: Sep 2007
Location: Cambridge UK
Posts: 2,835
Re: C100 + 17-55mm 2.8 EF-S Vignetting

Maybe that was the paranormal activity Bill mentioned!!!

;-)
__________________
Andy K Wilkinson - http://www.shootingimage.co.uk
Cambridge (UK) Corporate Video Production
Andy Wilkinson is offline   Reply With Quote
Old July 9th, 2013, 12:51 PM   #6
Tourist

Join Date: Jul 2013
Location: long beach, california
Posts: 1
Re: C100 + 17-55mm 2.8 EF-S Vignetting

I had the exact same issue with the 17-55 on my C300. Canon in Irvine said both lens and camera we're operating within specs and no repair was indicated. My solution was to return the lens and buy the 16-35. Alas, no image stabilization.
Mark Adams is offline   Reply
