Old July 20th, 2016, 04:51 PM   #1
Regular Crew

Join Date: Jul 2003
Location: Irvine, CA
Posts: 194
C300 mkII Frame Rates?

I've looked at the specs over and over and it's still a mess. Looking at the B&H specs page is confusing as there's a thousand rates, bitrates, sizes. Does anyone know of a good resource for C300 mkII frames rates that easy to read? Some type of spreadsheet would be great.
__________________
www.scott-gold.com
Scott Gold is offline   Reply With Quote
Old July 20th, 2016, 06:27 PM   #2
Trustee

Join Date: Jan 2013
Location: Austin, Texas
Posts: 1,491
Re: C300 mkII Frame Rates?

This is the list from B&H:

Frame Rate 59.94 Hz Mode
59.94i/p, 29.97p, 23.98p

50 Hz Mode
50i/p, 25p

24 Hz Mode
24p

Last edited by Pete Bauer; July 20th, 2016 at 06:48 PM. Reason: removed inflammatory statement
Gary Huff is offline   Reply With Quote
Old July 20th, 2016, 09:10 PM   #3
Regular Crew

Join Date: Jul 2003
Location: Irvine, CA
Posts: 194
Re: C300 mkII Frame Rates?

Perhaps I should have been more detailed.

I'm looking for a spreadsheet/matrix that shows all the different combinations of frame rates, resolutions and bit rates. Found what I needed on page 63 of the online user manual if anyone else ever needs it.
__________________
www.scott-gold.com

Last edited by Pete Bauer; July 21st, 2016 at 07:27 AM. Reason: Removed reference to inflammatory statement
Scott Gold is offline   Reply With Quote
Old July 20th, 2016, 09:12 PM   #4
Trustee

Join Date: Jan 2013
Location: Austin, Texas
Posts: 1,491
Re: C300 mkII Frame Rates?

Only 1080/2K can do 59.94i/p and 4K does all the rest.
Gary Huff is offline   Reply With Quote
Old July 22nd, 2016, 03:21 AM   #5
Regular Crew

Join Date: Jul 2008
Location: London UK
Posts: 50
Re: C300 mkII Frame Rates?

I wonder if there's any chance in the big firmware update that's due in a week's time they'll enable 4K 50/60P - apparently the camera's capable of it, they have just chosen not to enable it.
Mathew Williams is offline   Reply With Quote
Old July 29th, 2016, 09:04 AM   #6
Trustee

Join Date: Jan 2013
Location: Austin, Texas
Posts: 1,491
Re: C300 mkII Frame Rates?

Quote:
Originally Posted by Mathew Williams View Post
I wonder if there's any chance in the big firmware update that's due in a week's time they'll enable 4K 50/60P
Clearly the answer is "no". Canon is not in the habit of adding surprise features. They clearly announce their intentions. It was not intentionally crippled.
Gary Huff is offline   Reply With Quote
Old August 1st, 2016, 05:01 PM   #7
Regular Crew

Join Date: Jul 2003
Location: Irvine, CA
Posts: 194
Re: C300 mkII Frame Rates?

So for my next question...what about the crop at these frame rates?
Am I right to say that you can shoot any resolution up to a frame rate of 60p on the full sensor?
Once you go over 60p you have to crop? Is that right?
__________________
www.scott-gold.com
Scott Gold is offline   Reply With Quote
Old August 1st, 2016, 05:27 PM   #8
Regular Crew

Join Date: Jul 2003
Location: Irvine, CA
Posts: 194
Re: C300 mkII Frame Rates?

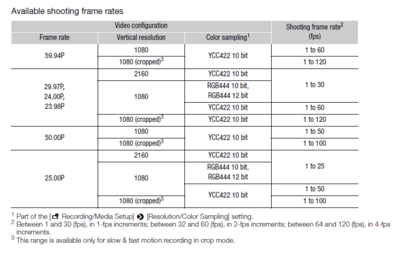

I've searched and only found the attached chart in the manual. Still, I don't see anything clearly defining the crop factors and frame rates. If a C300mkII owner could confirm that would be awesome. Thanks!
Attached Thumbnails
C300 mkII Frame Rates?-capture1.png
__________________
www.scott-gold.com

Last edited by Pete Bauer; August 2nd, 2016 at 07:41 PM. Reason: Pruned responses to OT post
Scott Gold is offline   Reply With Quote
Old August 2nd, 2016, 09:07 AM   #9
Inner Circle

Join Date: Jun 2007
Location: Belgium
Posts: 8,901
Re: C300 mkII Frame Rates?

Scott, a bit off topic but just checked out some of your work and that's an impressive portfolio you have got, I particularly liked January in Japan, makes me want to jump on a plane and fly there :)
Noa Put is offline   Reply With Quote
Old August 2nd, 2016, 10:41 AM   #10
Regular Crew

Join Date: Jul 2003
Location: Irvine, CA
Posts: 194
Re: C300 mkII Frame Rates?

Noa, thanks for the nice comment man, I appreciate it. :)
__________________
www.scott-gold.com

Last edited by Pete Bauer; August 2nd, 2016 at 07:42 PM. Reason: Pruned response to deleted OT posts
Scott Gold is offline   Reply
