C300 mark I I magnification not working while rolling

Did the firmware upgrade several weeks ago. C-log 3 and magnification while rolling worked fine. However, two months later, now magnification has decided not to work while rolling. Still works while not recording.

I checked the camera, I am in firmware update 1.04.100. I need to upgrade again to 1.05.100...

The other day, turned camera on and it did a reset on its own... where I had to reprogram the time and day. Could this have affected the camera? Am I missing a menu setting where you activate magnification? Sitting in long interview now and going thru menus, not seeing anything unusual.
Attached Thumbnails

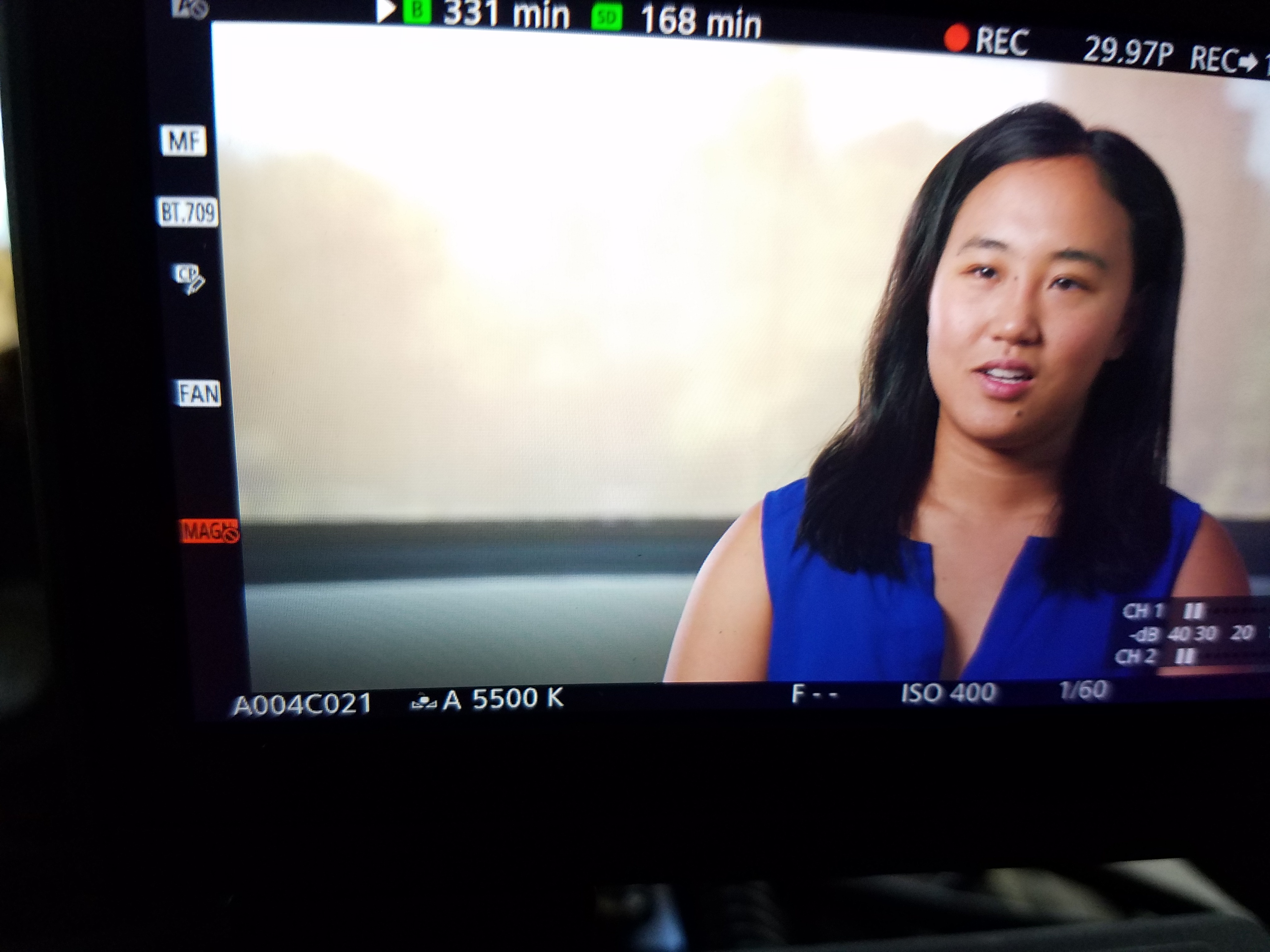

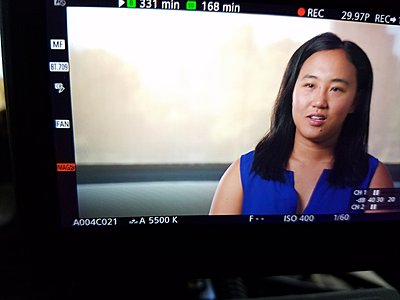

C300 mark I I magnification not working while rolling-20160927_101640_001.jpg
Scott Stoneback is offline   Reply With Quote
Old September 27th, 2016, 11:22 AM   #2
Regular Crew

Join Date: Mar 2010
Location: San Francisco, California
Posts: 150
Re: C300 mark I I magnification not working while rolling

Available while recording is greyed out, took photo but site isn't allowing photo upload.
Scott Stoneback is offline   Reply With Quote
Old September 27th, 2016, 11:31 AM   #3
Regular Crew

Join Date: Aug 2012
Location: Corvallis, OR
Posts: 64
Re: C300 mark I I magnification not working while rolling

Hmm, I just went through the menu and tried to replicate your issue. It says Magnification while Recording and AF Face Detection can't be used simultaneously, so when I turned on Magn it greyed out Face Detection in the menu. Maybe you hit a magical setting that did the opposite - keeps Face Detection but greys out Magn while Recording.
Slavik Boyechko is offline   Reply With Quote
Old September 27th, 2016, 11:40 AM   #4
Regular Crew

Join Date: Mar 2010
Location: San Francisco, California
Posts: 150
Re: C300 mark I I magnification not working while rolling

That's a good theory, but I'm using a 7x17 cinema lens that does not have it's firmware upgraded yet. (Lens firmware needs upgrade to use auto focus functions). All the AF settings areally greyed out, since they won't work with this lens and the "MF" (manual focus) setting is engaged.

I'm going to do a firmware update again today, once done with shoot. I'll test again after that.
Scott Stoneback is offline   Reply With Quote
Old December 1st, 2016, 02:07 AM   #5
Tourist

Join Date: Jul 2012
Location: London
Posts: 2
Re: C300 mark I I magnification not working while rolling

Hi Scott

I had the exact same issue. My camera reset itself, now the magnification won't work whilel recording.

Did you find a solution to this? Thinking about resetting again to. See if this helps.

Dan
Daniel Haggett is offline   Reply With Quote
Old December 1st, 2016, 07:29 AM   #6
Trustee

Join Date: Jan 2013
Location: Austin, Texas
Posts: 1,490
Re: C300 mark I I magnification not working while rolling

Quote:
Originally Posted by Scott Stoneback View Post
That's a good theory, but I'm using a 7x17 cinema lens that does not have it's firmware upgraded yet.
I am on the latest firmware and I can change that setting if I power up the camera with no lens attached.
Gary Huff is offline   Reply With Quote
Old April 25th, 2017, 03:46 AM   #7
Tourist

Join Date: Jul 2012
Location: London
Posts: 2
Re: C300 mark I I magnification not working while rolling

When the camera resets, the magnification while recording feature is turned off.

To turn it back on, go Menu>Assistance Functions>Magnification> Available While Recording>On
