Old September 3rd, 2009, 03:01 AM   #1
Major Player

Join Date: Mar 2007
Location: Sussex, UK
Posts: 317
Aliasing Artifacts

Reference beta footage from Anton Nelson on Vimeo:

Canon 720P 50FPS BETA FOOTAGE on Vimeo

Canon 7D 1080P 24FPS (beta footage) on Vimeo

Original 1080 & 720 files available to download for registered Vimeo users.

On download of the 720 50fps video, look at the jaggies around the edges of the metal sculpture, compared with the 1080 version.

The 1080 version looks very similar to the aliasing artifacts on the 5DMK2 around the edge highlights.

Of course this is a beta model.

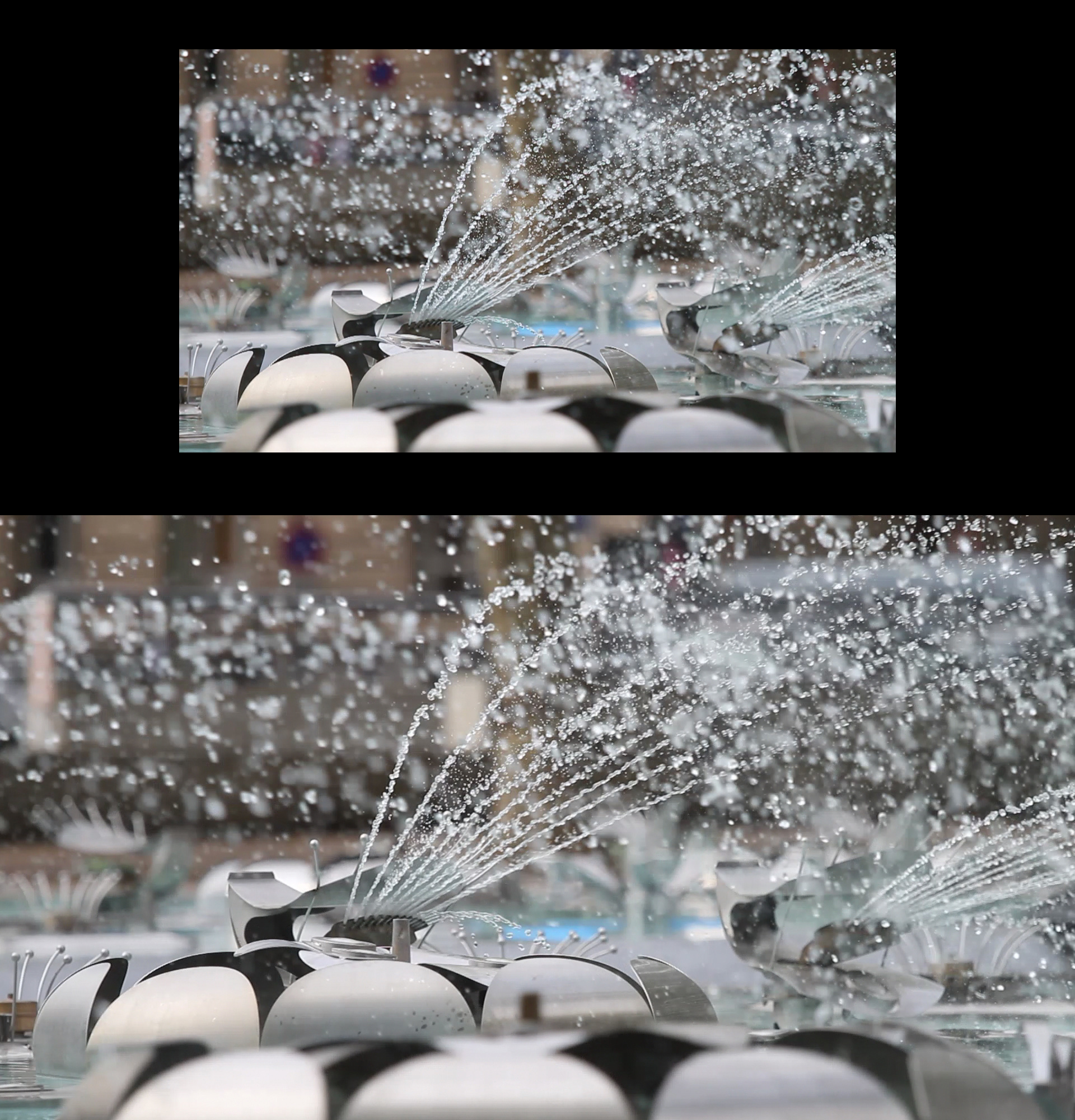

Full res grab attached:
Attached Thumbnails
Aliasing Artifacts-canon7d.jpg
James Miller is offline   Reply With Quote
Old September 3rd, 2009, 07:27 AM   #2
Regular Crew

Join Date: Mar 2009
Location: Rome, Italy
Posts: 90
Wow, I don't see the technical problems, I see wonderful images with very little artifacts. Moving water is pretty hard for AVCHD...
Xavier Plagaro is offline   Reply With Quote
Old September 3rd, 2009, 10:26 AM   #3
Major Player

Join Date: Mar 2007
Location: Sussex, UK
Posts: 317
Quote:
Originally Posted by Xavier Plagaro View Post
Wow, I don't see the technical problems, I see wonderful images with very little artifacts. Moving water is pretty hard for AVCHD...
Xavier it's not the codec or general compression but the in camera scaling.

see pic below.
Attached Thumbnails
Aliasing Artifacts-canon7dzoom.jpg
James Miller is offline   Reply With Quote
Old September 3rd, 2009, 07:42 PM   #4
Trustee

Join Date: Dec 2004
Location: Lipa City Batangas, Philippines
Posts: 1,110
Hi James. I can see the antialiasing scaling artifacts, but to me they are not as nasty as the blocking artifacts at the bottom right of the picture, in the out of focus area. It's not obvious in the stillshot, you need to look at the moving video. If this footage is really direct from the camera it doesn't look very good at all for anyone who is looking for shallow depth of field with attractive bokeh.

Richard
Richard Hunter is offline   Reply With Quote
Old September 3rd, 2009, 08:03 PM   #5
Trustee

Join Date: Oct 2001
Location: San Luis Obispo CA
Posts: 1,189
At first I was going to put this off to sharpening artifacts, as it does seem that these clips are at least moderately sharpened (probably in-camera). then I checked out some new clips rob galbraith posted today (the shots of the viewing platform engulfed by waves)

Rob Galbraith DPI: Autofocus, video and more

his 1080 clip appears to be completely without sharpening...yet the aliasing in the 720 clip is even more pronounced than those mentioned in this thread...to my eye, they look more like upscaled 16:9 480p clips than native 720 clips..

Lets hope this is a pre-production issue.
Barry Goyette is offline   Reply With Quote
Old September 3rd, 2009, 09:24 PM   #6
Major Player

Join Date: Nov 2004
Location: Dallas
Posts: 747
Yeah it is there on 720P footage, I don't see much on 1080P, hopefully it is not there.
__________________
Khoi Pham
www.proeditproductions.com
Khoi Pham is offline   Reply With Quote
Old September 4th, 2009, 01:37 AM   #7
Major Player

Join Date: Mar 2007
Location: Sussex, UK
Posts: 317
Quote:
Originally Posted by Barry Goyette View Post
his 1080 clip appears to be completely without sharpening...yet the aliasing in the 720 clip is even more pronounced than those mentioned in this thread...to my eye, they look more like upscaled 16:9 480p clips than native 720 clips..

Lets hope this is a pre-production issue.

Agree the 720p from Rob looks terrible.

I have just downloaded Philips 720p video from Vimeo. Looks good, blascks look a little hard and obviously the full frame and shallow DOF mask any perceptual resolution. But in shot 01:39:28 you can see a few jaggies on Philip's off cuts in the sink.

I wonder when changing from 1080p to 720p does the camera use the same picture profiles with custom settings?
James Miller is offline   Reply With Quote
Old September 6th, 2009, 01:41 AM   #8
Major Player

Join Date: Nov 2006
Location: Budapest, Hungary
Posts: 414
It seems Canon has left the known problems of 5DM2 unfixed in this model so I wonder whether 7D gonna pass BBC's test.
So far 5DM2 footage is not approved by BBC for serious TV production due to these issues:

http://thebrownings.name/WHP034/pdf/...on_5D_DSLR.pdf
__________________
Sony XDCAM EX1r, Canon 5DMkII, Røde NTG2, Røde NT1000, Røde Stereo Videomic, Sachtler DV6 SB on Gitzo 1325V, Steadicam Merlin, Omnitracker, Hackintosh 3.5Ghz Quad 8Gb RAM
Zsolt Gordos is offline   Reply With Quote
Old September 6th, 2009, 06:30 AM   #9
Major Player

Join Date: Apr 2006
Location: paris
Posts: 289
Quote:
Originally Posted by Zsolt Gordos View Post
It seems Canon has left the known problems of 5DM2 unfixed in this model so I wonder whether 7D gonna pass BBC's test.
So far 5DM2 footage is not approved by BBC for serious TV production due to these issues:

http://thebrownings.name/WHP034/pdf/...on_5D_DSLR.pdf
This is not accurate. A broadcaster can ban a camera from their own production. But how can a broadcaster ban footage from any capture device? How can even guess from where the footage has been produced?

This camera produces high quality professional footage to any broadcaster in the world if you know what you're doing. As matter of fact, as it happens with any digital camera since dv.
Mathieu Kassovitz is offline   Reply With Quote
Old September 6th, 2009, 11:28 AM   #10
Contributor

Join Date: Jan 2003
Location: Kansas City, MO
Posts: 4,449
And, the 5DMKII has been used as a second camera on at least one Hollywood production I know about, probably more. Networks only want good quality footage within broadcast tolerances (ie., exposure, etc.) on whatever formats meet their requirements.
Bill Pryor is offline   Reply With Quote
Old September 6th, 2009, 12:28 PM   #11
Major Player

Join Date: Mar 2006
Location: Dallas, TX
Posts: 346
Quote:
Originally Posted by James Miller View Post
Xavier it's not the codec or general compression but the in camera scaling.
Are we concluding that the 720p is scaled up and actually sampled smaller?

I have seen Philip's film many times now and don't see really anything I don't like. I know we see the post grading and recompression and I am curious to see his raw footage. I see slight blockiness in the out of focus regions, but doesn't seem any worse than HDV and the horrid chromatic aberration on my first HD100. I just don't want jagged lines!
__________________
David Chapman
www.davechapfilms.com
David Chapman is offline   Reply With Quote
Old September 6th, 2009, 03:03 PM   #12
Inner Circle

Join Date: Nov 2005
Location: Elk Grove CA
Posts: 6,838
I took the Galbraith footage, and converted it using Cineform's Neo Scene.

It looks like Cineform is changing the levels, as with the 5D footage, giving the footage more detail in highlights and in the shadows.

Second, there may be some improvement in both the 720 and 1080p material with respect to aliasing an moire. But I will let you judge for yourself. See the attached grabs.
Attached Thumbnails

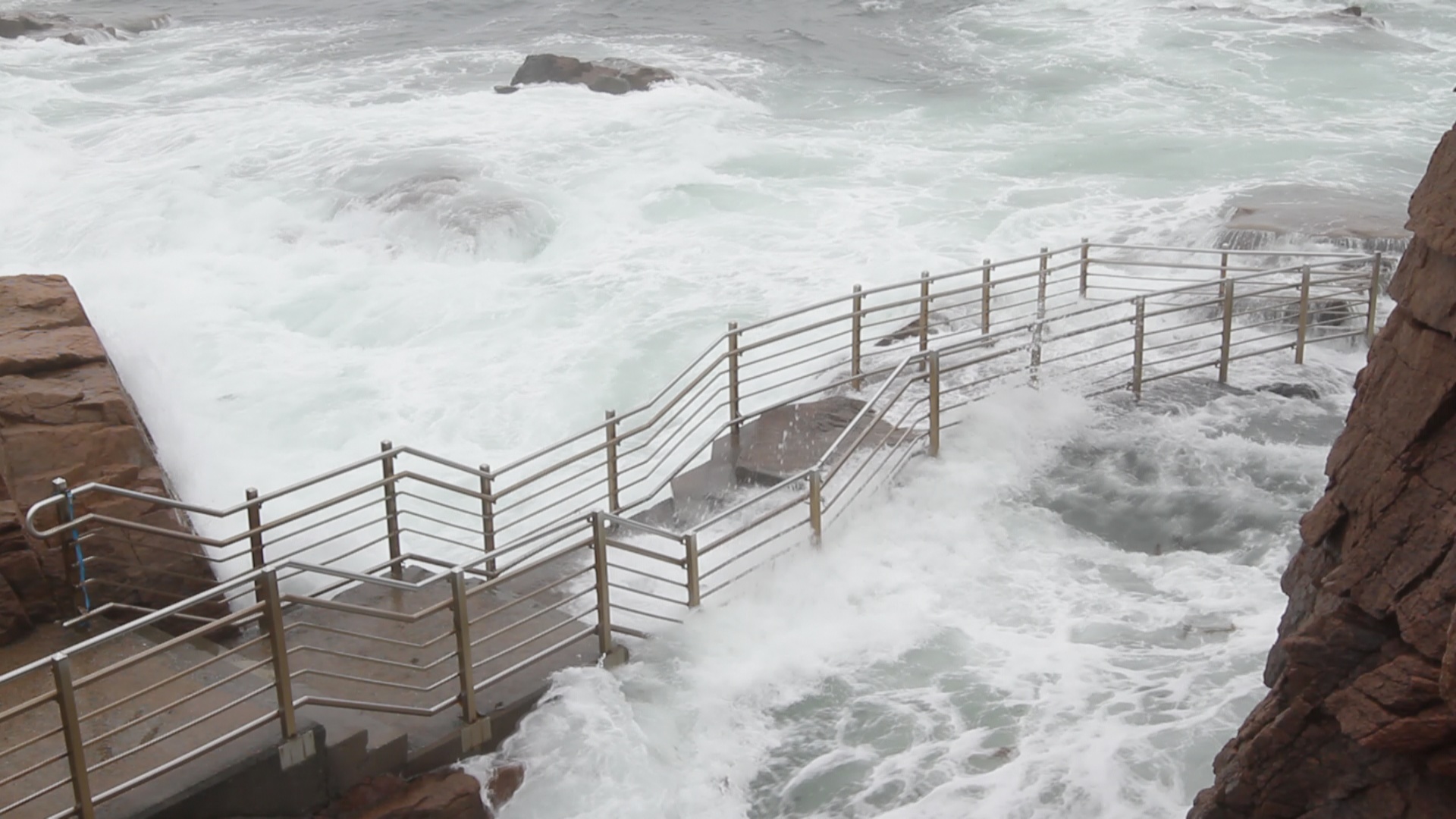

Aliasing Artifacts-thunder1080orig.jpg   Aliasing Artifacts-thunder1080cineform.jpg

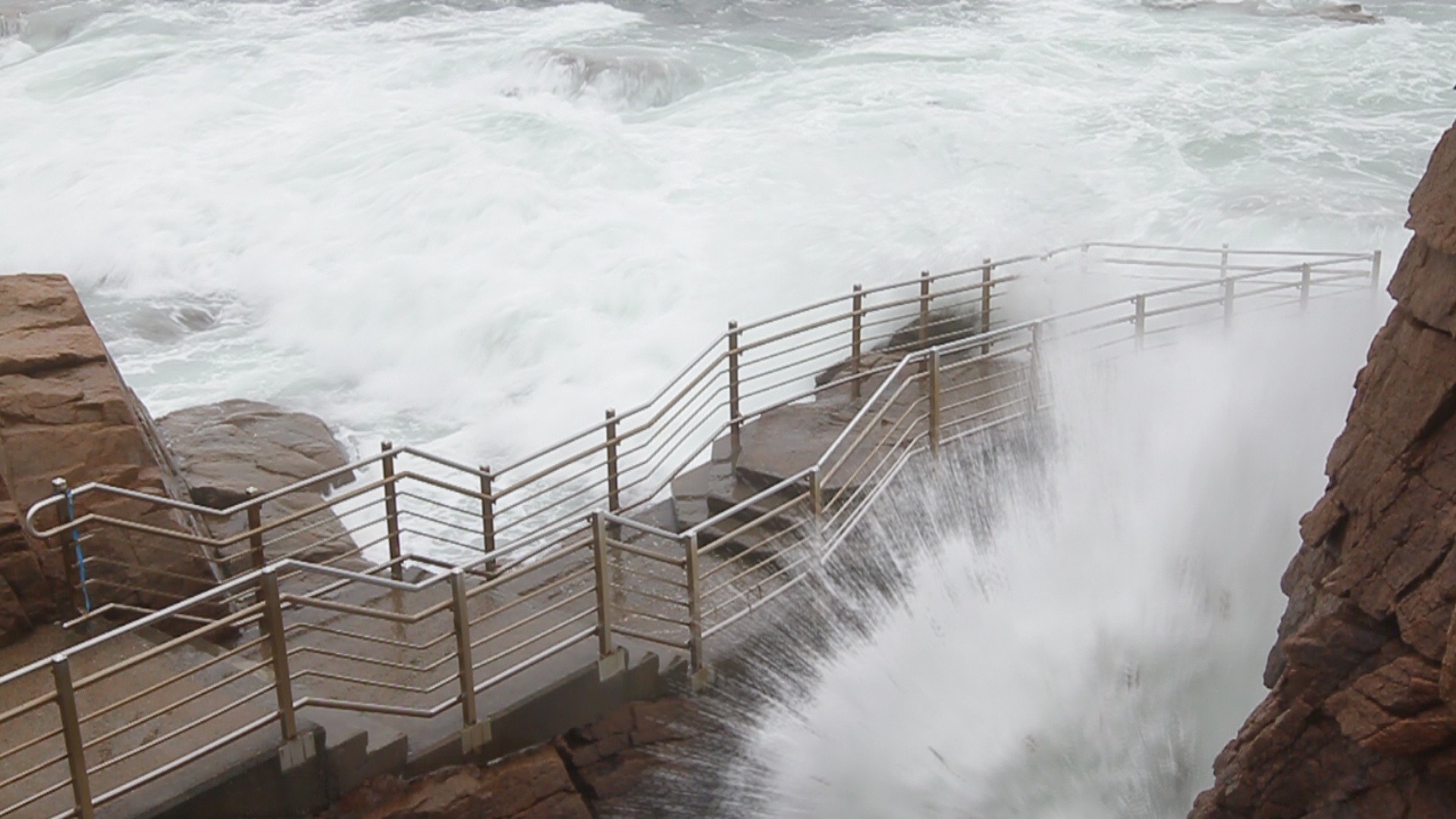

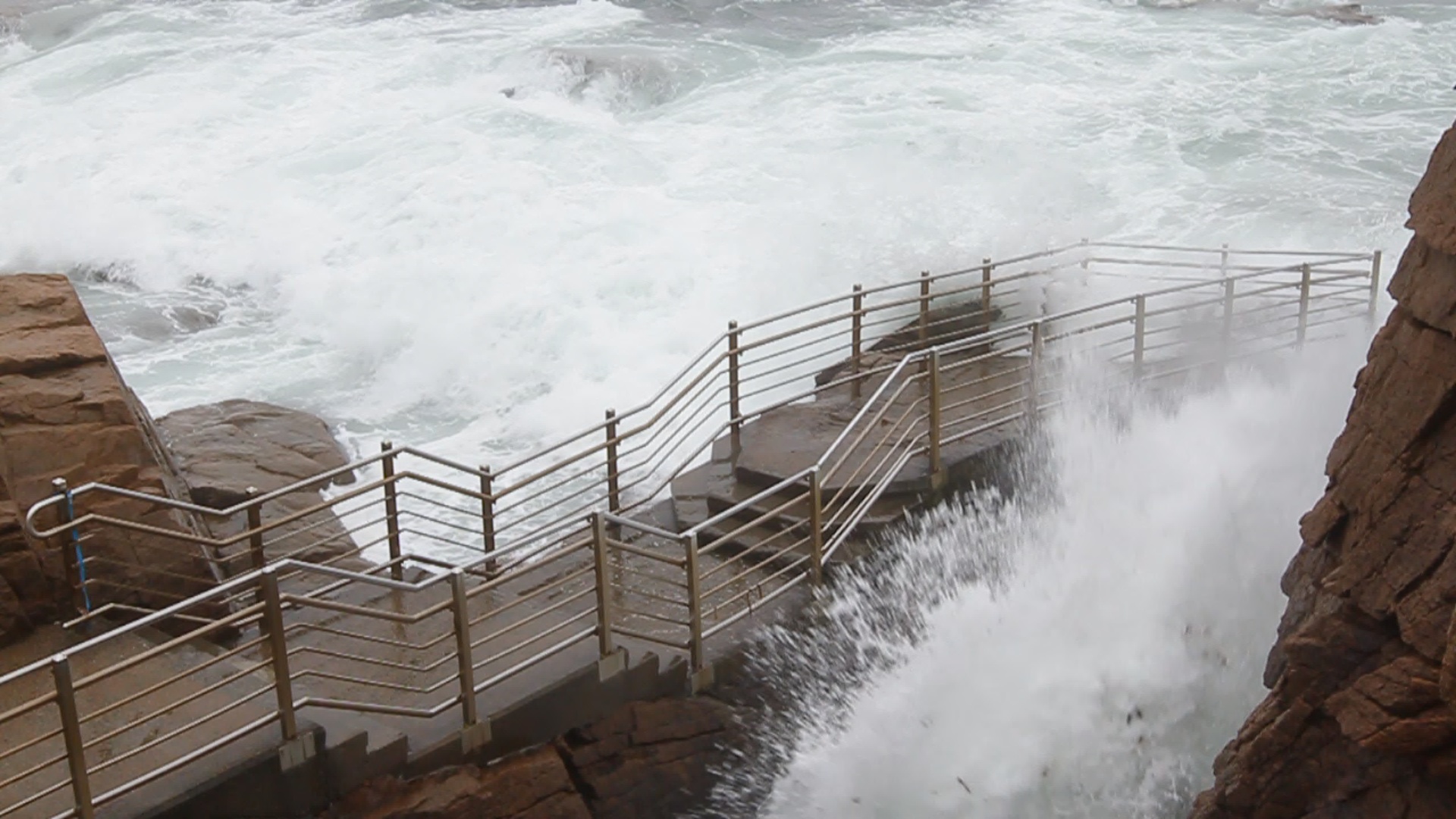

Aliasing Artifacts-thunder720orig.jpg   Aliasing Artifacts-thunder720cineform.jpg

__________________
Chris J. Barcellos
Chris Barcellos is offline   Reply With Quote
Old September 6th, 2009, 08:35 PM   #13
Inner Circle

Join Date: May 2006
Location: Camas, WA, USA
Posts: 5,513
Quote:
Originally Posted by Chris Barcellos View Post
It looks like Cineform is changing the levels, as with the 5D footage, giving the footage more detail in highlights and in the shadows.
Cineform is changing the levels as compared to what? From what I've seen, the older version of Quicktime clips the blacks. The newer version raises the gamma. Cineform, on my system decodes properly and sets the levels to 16-235. You can also get the correct levels by re-wrapping the MOV files in Quicktime to M4V (or is it MP4?) and applying the computer to studio filter in Vegas.

Take a look at the histograms and you should be able to see what's going on.
__________________
Jon Fairhurst
Jon Fairhurst is offline   Reply With Quote
Old September 7th, 2009, 03:12 AM   #14
Trustee

Join Date: May 2005
Location: Allen, Texas U.S.A
Posts: 1,117
Quote:
Originally Posted by Chris Barcellos View Post
I took the Galbraith footage, and converted it using Cineform's Neo Scene.

It looks like Cineform is changing the levels, as with the 5D footage, giving the footage more detail in highlights and in the shadows.

Second, there may be some improvement in both the 720 and 1080p material with respect to aliasing an moire. But I will let you judge for yourself. See the attached grabs.
Chris,

In your 720 orig and cineform grabs, are those from exactly the same frame? The water streaks from the splash look significantly different.
If they are then the recompression is doing a lot of changes.

Ted
Ted Ramasola is offline   Reply With Quote
Old September 7th, 2009, 04:43 AM   #15
Inner Circle

Join Date: Nov 2005
Location: Elk Grove CA
Posts: 6,838
Ted:
I forgot and pulled that frame from the end of the clips.. Cineform actually retimes, so I think that is why I was off. I will recheck.
__________________
Chris J. Barcellos
Chris Barcellos is offline   Reply
