7D/5D physical arrangement

Are there any photos around here of the 7D and 5D side by side, from the back? I'm thinking about the LCD viewfinder gadgets, like the Cavision and IDCPhotography, and Redrock, and wondering about whether their existing brackets work or if they'll have to make adjustments.
Bill Pryor is offline   Reply With Quote
Old September 28th, 2009, 04:16 PM   #2
Obstreperous Rex

Join Date: Jan 2001
Location: San Marcos, TX
Posts: 26,900
Images: 513

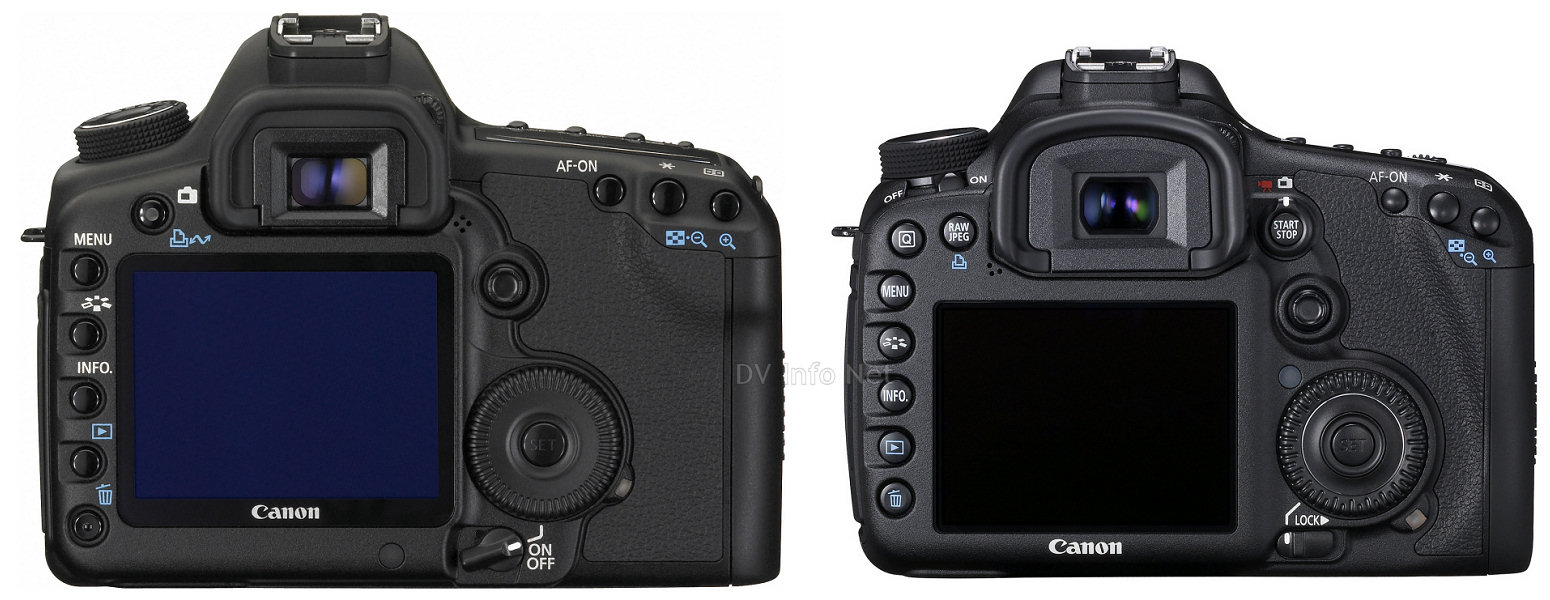

Not quite to scale but close enough.

Actual side by side photos coming soon...

Click the thumbnail image to see it big (1550 x 600).
Attached Thumbnails
7D/5D physical arrangement-back5d7d.jpg
__________________
CH

Search DV Info Net | DV Info Net Sponsors | A Decade (+5) of DVi | ...Tuesday is Soylent Green Day!
Chris Hurd is offline   Reply With Quote
Old September 28th, 2009, 04:40 PM   #3
Major Player

Join Date: May 2007
Location: Bakersfield, CA
Posts: 307

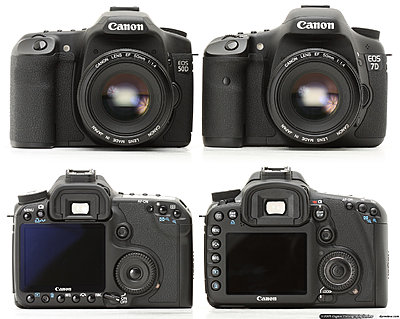

Here you go.

Canon EOS 7D Hands-on Preview: 1. Introduction: Digital Photography Review
Attached Thumbnails
7D/5D physical arrangement-sidebyside.jpg
__________________
http://www.higherdefinitionmedia.com
RED One #6135 "Spartacus"
Andrew Waite is offline   Reply With Quote
Old September 28th, 2009, 04:42 PM   #4
Major Player

Join Date: May 2007
Location: Bakersfield, CA
Posts: 307
oops... just realized that was the 50D/7D and not the 5D/7D.
__________________
http://www.higherdefinitionmedia.com
RED One #6135 "Spartacus"
Andrew Waite is offline   Reply With Quote
Old September 28th, 2009, 04:48 PM   #5
Contributor

Join Date: Jan 2003
Location: Kansas City, MO
Posts: 4,449
Heheh...yeah those buttons across the bottom confused me for a minute.

It's difficult to be really sure, but from Chris' photos it appears that the 7D has the LCD just a little bit lower, ie., closer to the bottom of the camera, than the 5D. That would affect the brackets the manufacturers produce, maybe.
Bill Pryor is offline   Reply With Quote
Old September 30th, 2009, 05:36 PM   #6
Obstreperous Rex

Join Date: Jan 2001
Location: San Marcos, TX
Posts: 26,900
Images: 513

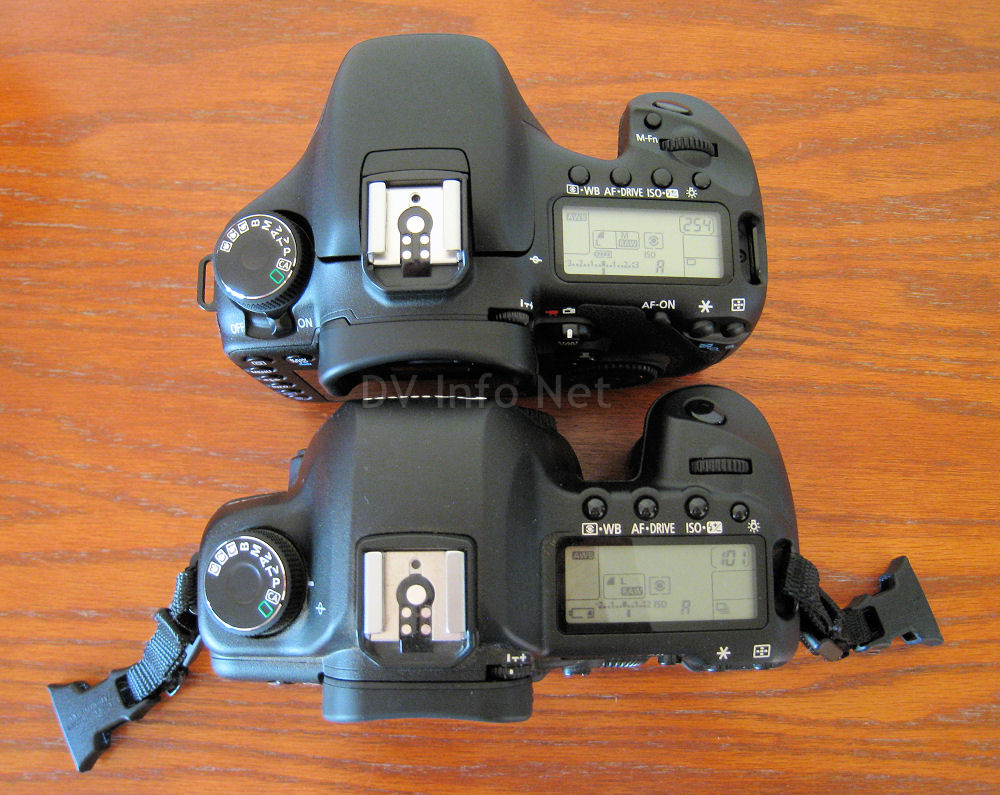

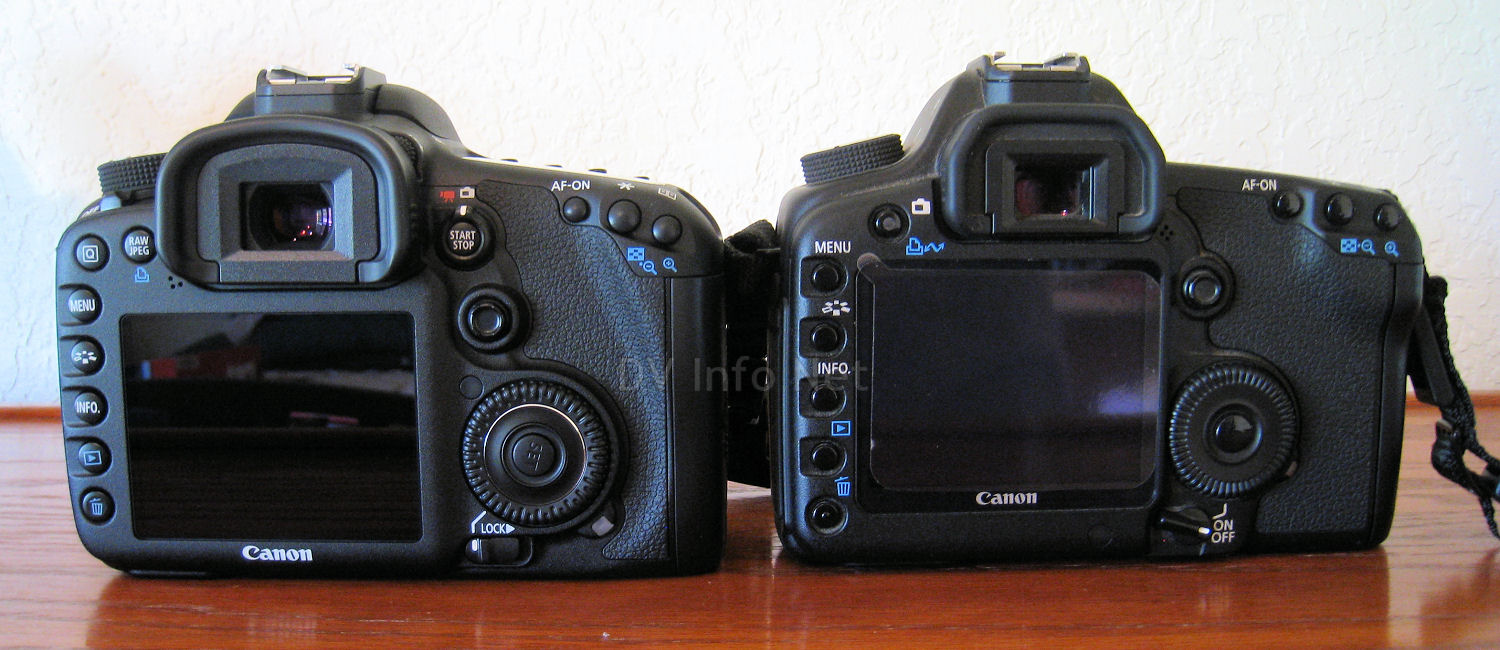

As promised, actual side-by-side pics of the real thing. Click to see 'em big.
Attached Thumbnails
7D/5D physical arrangement-5d7dbackview.jpg   7D/5D physical arrangement-5d7dtopview.jpg

__________________
CH

Search DV Info Net | DV Info Net Sponsors | A Decade (+5) of DVi | ...Tuesday is Soylent Green Day!
Chris Hurd is offline   Reply With Quote
Old September 30th, 2009, 10:27 PM   #7
Contributor

Join Date: Jan 2003
Location: Kansas City, MO
Posts: 4,449
Thanks! It does appear the screen is lower on the 7D.
