7D Plugin for final cut has been released at DVinfo.net

Go Back   DV Info Net > Canon EOS / MXF / AVCHD / HDV / DV Camera Systems > Canon EOS Crop Sensor for HD

Canon EOS Crop Sensor for HD
APS-C sensor cameras including the 80D, 70D, 7D Mk. II, 7D, EOS M and Rebel models for HD video recording.


Reply

Thread Tools Search this Thread
Old March 19th, 2010, 03:12 PM   #1
Regular Crew

Join Date: Aug 2004
Location: Gloucestershire, UK
Posts: 187
7D Plugin for final cut has been released

It's here

Canon EOS 7D Digital SLR
__________________
http://www.madpanic.tv
Declan Smith is offline   Reply With Quote
Old March 19th, 2010, 04:12 PM   #2
Major Player

Join Date: Mar 2006
Location: Dallas, TX
Posts: 346
And it came in time for my birthday! Thanks, Canon.

Now, if only I hadn't rented out my 7D kit today. Craaaaaaaap.
__________________
David Chapman
www.davechapfilms.com
David Chapman is offline   Reply With Quote
Old March 19th, 2010, 05:11 PM   #3
Inner Circle

Join Date: Sep 2007
Location: Cambridge UK
Posts: 2,835
Interesting. So, if I've read it correctly, this allows me to ingest 7D .mov files "at high speed" into FCP. Will this be any quicker than what I do now - copy onto a RAID and then convert to ProRes in Compressor on my Mac Pro?
__________________
Andy K Wilkinson - http://www.shootingimage.co.uk
Cambridge (UK) Corporate Video Production
Andy Wilkinson is offline   Reply With Quote
Old March 19th, 2010, 05:26 PM   #4
Major Player

Join Date: Mar 2006
Location: Dallas, TX
Posts: 346
It should be a lot quicker than Compressor since even MPEG Streamclip is faster. I'm going to test all 3 later on tonight.
__________________
David Chapman
www.davechapfilms.com
David Chapman is offline   Reply With Quote
Old March 19th, 2010, 05:31 PM   #5
Major Player

Join Date: Mar 2006
Location: Dallas, TX
Posts: 346
From the requirements, it looks like you have to have Snow Leopard 10.6.2 and later with either FCP 6.0.6 (last update in FCS2) or FCP 7.0.1.

I'm going to see if Leopard and FCP 6.0.6 get me anywhere. If not, Snow Leopard is only $30.
__________________
David Chapman
www.davechapfilms.com
David Chapman is offline   Reply With Quote
Old March 19th, 2010, 06:22 PM   #6
Regular Crew

Join Date: Aug 2004
Location: Gloucestershire, UK
Posts: 187
Some pitfalls ......

Initially I couldn't get this plugin to work as FCP kept telling me that there no files in the correct format or directory structure, even though there were. What I was trying to do was load in previously backed up 7D movie files that I had on my hard disk. However, I had deleted all those .THM files, which contain not only meta data, but a small jpg clip of each movie file. The plugin is expecting to find these as that's what it uses to build the thumbnails.

So, If like me you made the mistake of deleting all the .THM files, you will need to grab a valid .THM and copy it to the same filename (but with a .THM extension).

i.e. MOV_1234.MOV, then copy any valid .THM to MOV_1234.THM

Note that the thumbnail will be wrong but at least you will be able to ingest the file.

So now I will make disk images of my SD cards before I do anything else, and back those up.
__________________
http://www.madpanic.tv
Declan Smith is offline   Reply With Quote
Old March 19th, 2010, 09:58 PM   #7
Major Player

Join Date: Oct 2003
Location: Richardson, TX
Posts: 842
Interesting that this plugin doesn't support the T2i. I get the same directory structure error mentioned above.

I wonder if I used a thm file from a 7D and put it in my file structure if it would work. Anyone want to send me a thm file?
Bryan McCullough is offline   Reply With Quote
Old March 20th, 2010, 02:11 AM   #8
Major Player

Join Date: Mar 2007
Location: Sussex, UK
Posts: 317
Quote:
Originally Posted by Declan Smith View Post
Initially I couldn't get this plugin to work as FCP kept telling me that there no files in the correct format or directory structure, even though there were. What I was trying to do was load in previously backed up 7D movie files that I had on my hard disk. However, I had deleted all those .THM files, which contain not only meta data, but a small jpg clip of each movie file. The plugin is expecting to find these as that's what it uses to build the thumbnails.

So, If like me you made the mistake of deleting all the .THM files, you will need to grab a valid .THM and copy it to the same filename (but with a .THM extension).

i.e. MOV_1234.MOV, then copy any valid .THM to MOV_1234.THM

Note that the thumbnail will be wrong but at least you will be able to ingest the file.

So now I will make disk images of my SD cards before I do anything else, and back those up.
The time code data is set by the THM file, so whilst you can ingest and convert the clips the time code start point will be the same. Have a look on the 5Dmk2 thread.
James Miller is offline   Reply With Quote
Old March 20th, 2010, 03:21 AM   #9
Regular Crew

Join Date: Aug 2004
Location: Gloucestershire, UK
Posts: 187
7d ingest workflow tutorial

Ok, after realising my mistake of deleting the .thm files, and after some trial and error, I thought I would put together, what I think , is a useful workflow for backing up ad card captures in a similar way to tape, and capturing using the new plugin. (I think I had too much coffee last night)!

Anyway I hope this is of some use and interest to others
YouTube - Canon 7D Final cut pro EOS plugin Ingest Workflow
__________________
http://www.madpanic.tv
Declan Smith is offline   Reply With Quote
Old March 20th, 2010, 04:55 AM   #10
Major Player

Join Date: Mar 2007
Location: Sussex, UK
Posts: 317
Remember you don't have to make a disk image as Canon instruct, just create a folder called 'DCIM' you can put multiple sub folders in here as long as they contain .MOV and .THM files from the supported cameras. You just eject the folder from the transfer window when you are done.

As for support fro the 550D, would be nice is someone like 'Glue Tools' would produce a small app that would convert the .THM into the correct format. Shame that Canon have yet to support the plugin with a camera that supports the same video formats as the 7D. May be they will.

Extract taken from the .THM file below:
--------------------------------------------
ˇˇ6Exif
James Miller is offline   Reply With Quote
Old March 20th, 2010, 04:59 AM   #11
Major Player

Join Date: Mar 2007
Location: Sussex, UK
Posts: 317
My post above goes funny when I try and add the few lines of code.
Attached here is a txt file of the full post.
Attached Files
File Type: txt posttxt.txt (2.3 KB, 251 views)
James Miller is offline   Reply With Quote
Old March 20th, 2010, 05:23 AM   #12
Major Player

Join Date: Mar 2007
Location: Sussex, UK
Posts: 317

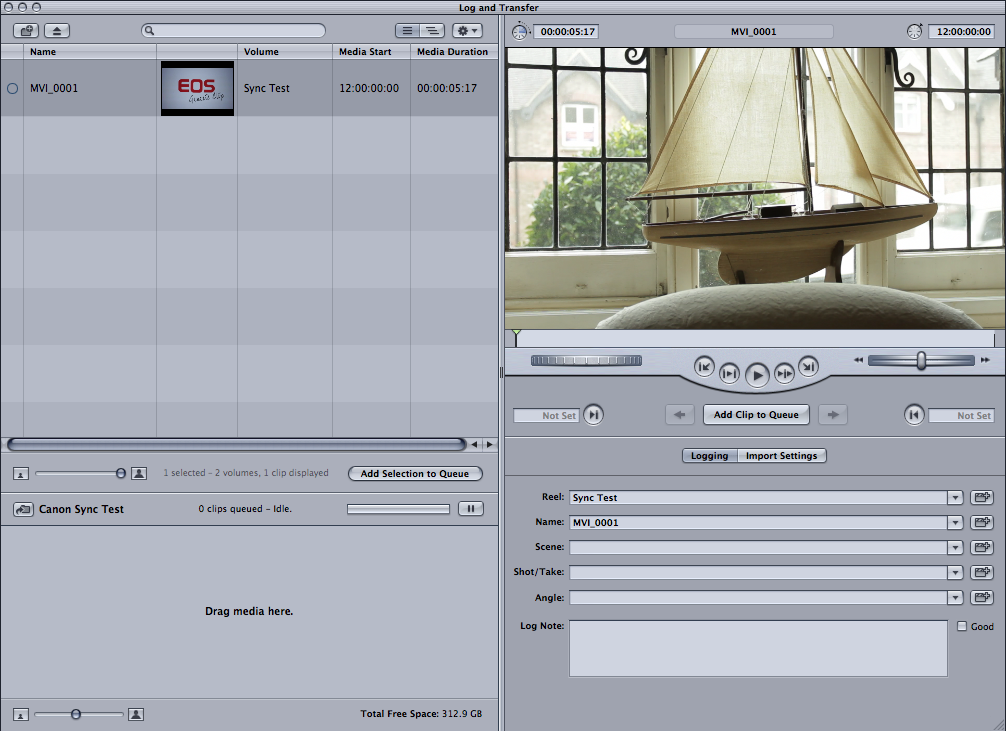

Here is a generic .THM if you want to test with your 550D. (zipped for integrity)

Date timecode set at 12:00:00
Attached Thumbnails
7D Plugin for final cut has been released-picture-40.png
Attached Files
File Type: zip MVI_0001.zip (14.2 KB, 229 views)
James Miller is offline   Reply With Quote
Old March 20th, 2010, 07:51 AM   #13
Regular Crew

Join Date: Jan 2010
Location: Manchester, UK
Posts: 26
I thought there was to be a way to read the 7D's clips extended metadata with this plugin, if so can't seem to find it...
Craig Campbell is offline   Reply With Quote
Old March 20th, 2010, 10:46 AM   #14
Regular Crew

Join Date: Aug 2004
Location: Gloucestershire, UK
Posts: 187
Quote:
Originally Posted by James Miller View Post
Remember you don't have to make a disk image as Canon instruct, just create a folder called 'DCIM' you can put multiple sub folders in here as long as they contain .MOV and .THM files from the supported cameras. You just eject the folder from the transfer window when you are done.
You are quite right, you can load from any folder if the .thm and .mov files are there. I describe a workflow that works for me and is simple to setup and use. I even copy over an empty dir, for no other reason than it's cheap to do so and makes the workflow simple.
I wanted a simple system to reference the original media in a similar way to a tape workflow and cataloging. Of course the important thing is to make sure you have a reliable backup of your original media. Single file dmg files are easy to copy around and when mounted, act much like the original sd card. Also not sure if you reset file numbering in camera and then had two files on the same drive with the same name, how fcp would deal with that, so I felt it would be safer to just backup the entire sd image.
__________________
http://www.madpanic.tv
Declan Smith is offline   Reply With Quote
Old March 20th, 2010, 02:47 PM   #15
Regular Crew

Join Date: Mar 2009
Location: Sweden
Posts: 30
Quote:
Originally Posted by Bryan McCullough View Post
Interesting that this plugin doesn't support the T2i. I get the same directory structure error mentioned above.

I wonder if I used a thm file from a 7D and put it in my file structure if it would work. Anyone want to send me a thm file?
I guess that is a way for Canon to limit the experience for T2i users, as you said.. The 7D and 550D seams to have the same video codec built so there should be no issue with the plugin..

The initative to use a 7D for holiday-pros becomes greater with a better workflow.. But on the other hand just use batch convert in compressor and set a smart folder and you get the same result ;)

(Still I want it to work with the plugin..)
__________________
SkullFilms Productions
www.skullfilms.se
Christofer Thelin is offline   Reply
