Old February 6th, 2014, 03:19 AM   #1
Trustee

Join Date: May 2005
Location: Allen, Texas U.S.A
Posts: 1,117
7D 2048 x 930 resolution chart. How good it really is

The Canon 7D with Magic Lantern raw video+sound is now maturing as a reliable raw camera, this is how good its 2048 x 930 crop mode video looks like. At 23.976fps with no VAF filter.
At this resolution, the 7D can record continuously at 23.976 to fill up a 1000x CF card.
Sound is sync with no drift. Just nudge it back 1-2 frames on the timeline.
Attached Thumbnails

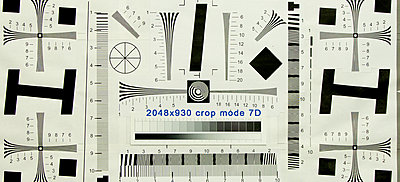

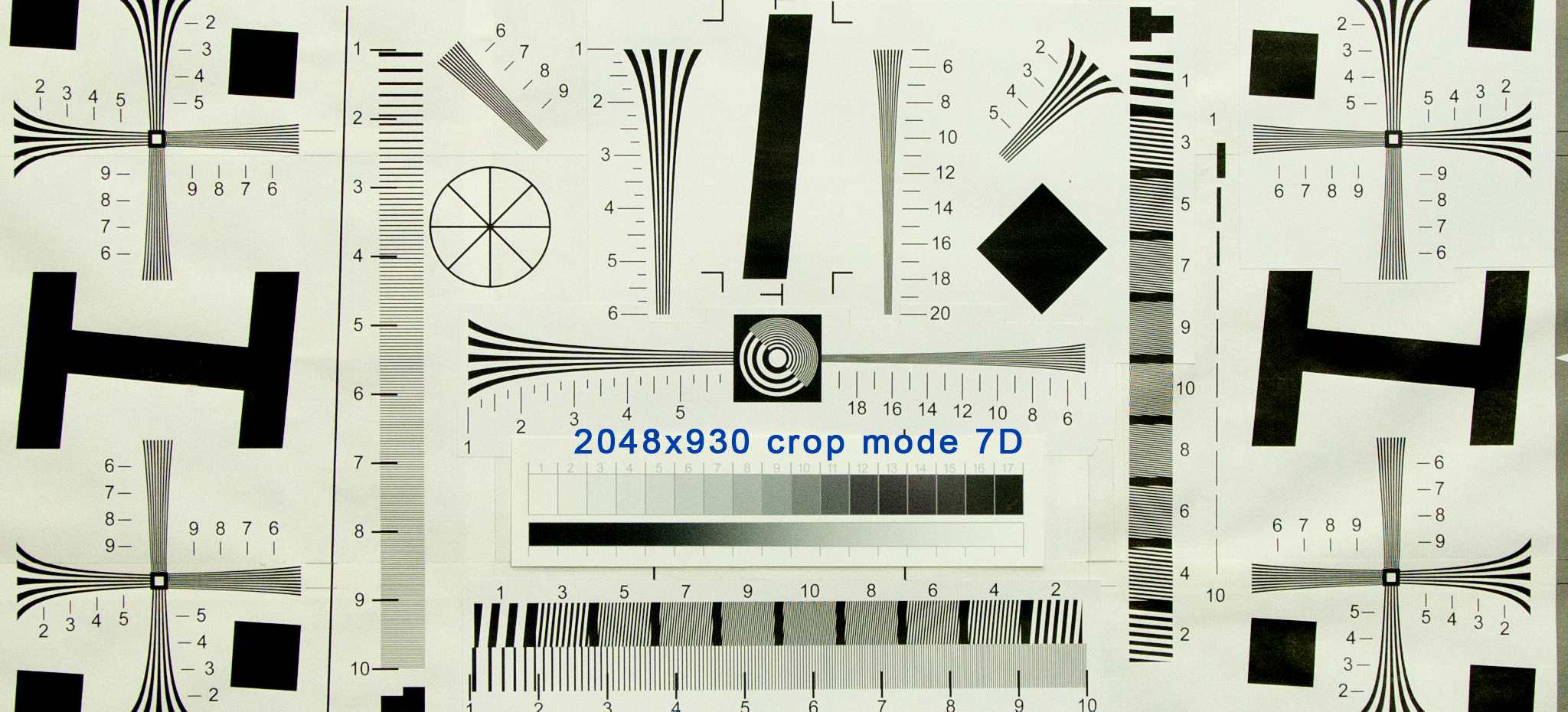

7D 2048 x 930 resolution chart. How good it really is-2048x930cropmodenovaf.jpg
__________________
Ted Ramasola
http://ramasolaproductions.com
Ted Ramasola is offline   Reply With Quote
Old February 6th, 2014, 11:38 PM   #2
Trustee

Join Date: May 2005
Location: Allen, Texas U.S.A
Posts: 1,117
Re: 7D 2048 x 930 resolution chart. How good it really is

Shot this with an 11-16mm Tokina this morning, since it was a snowy "light dusting" weather, decided to rush out grab some shots.

All in crop mode. 2048 x 930 and edited on a 1920 x 1080 timeline. Downscaled it 93.8 %.

The ambient sound is actual recorded sound via internal mic.

__________________
Ted Ramasola
http://ramasolaproductions.com
Ted Ramasola is offline   Reply With Quote
Old February 7th, 2014, 01:33 PM   #3
Inner Circle

Join Date: May 2006
Location: Camas, WA, USA
Posts: 5,513
Re: 7D 2048 x 930 resolution chart. How good it really is

Hi Ted,

Is there a similar resolution chart shot with the 5D2 or 5D3?

The main thing I notice with crop mode on the 5D2 compared to full frame is the noise. I have the EOS-M and it's crop sensor (for photos) is considerably noisier than similar photos from the 5D2. I'm curious to know more about the noise comparison from the 7D to the full frame cams when shooting RAW video.
__________________
Jon Fairhurst
Jon Fairhurst is offline   Reply With Quote
Old February 7th, 2014, 01:44 PM   #4
Trustee

Join Date: May 2005
Location: Allen, Texas U.S.A
Posts: 1,117
Re: 7D 2048 x 930 resolution chart. How good it really is

Hi Jon,

I'm currently running some tests on the nightlies for the 5d and 7d, I'll include that and give you the resulting frame.

I assume you don't want me to use the VAF on it right?
__________________
Ted Ramasola
http://ramasolaproductions.com
Ted Ramasola is offline   Reply With Quote
Old February 7th, 2014, 07:14 PM   #5
Inner Circle

Join Date: May 2006
Location: Camas, WA, USA
Posts: 5,513
Re: 7D 2048 x 930 resolution chart. How good it really is

Right. For crop mode, no VAF, though a full frame test with VAF could be interesting as well.

We definitely see higher noise with the crop modes in our tests. We also see higher noise with Cineform RAW than with more of a native approach. Cineform RAW sure makes the workflow easier though!

Thanks!
__________________
Jon Fairhurst
Jon Fairhurst is offline   Reply With Quote
Old February 7th, 2014, 07:19 PM   #6
Trustee

Join Date: May 2005
Location: Allen, Texas U.S.A
Posts: 1,117
Re: 7D 2048 x 930 resolution chart. How good it really is

do you have a preferred ISO you want me to use to campare subjectively with your tests?
__________________
Ted Ramasola
http://ramasolaproductions.com
Ted Ramasola is offline   Reply With Quote
Old February 7th, 2014, 11:38 PM   #7
Inner Circle

Join Date: May 2006
Location: Camas, WA, USA
Posts: 5,513
Re: 7D 2048 x 930 resolution chart. How good it really is

I was thinking you would match the ISO of the 7D test chart. It will be very interesting to compare the two cams.
__________________
Jon Fairhurst
Jon Fairhurst is offline   Reply With Quote
Old February 7th, 2014, 11:47 PM   #8
Major Player

Join Date: Jul 2010
Location: Montreal
Posts: 388
Re: 7D 2048 x 930 resolution chart. How good it really is

Quote:
Originally Posted by Jon Fairhurst View Post
Hi Ted,

Is there a similar resolution chart shot with the 5D2 or 5D3?

The main thing I notice with crop mode on the 5D2 compared to full frame is the noise. I have the EOS-M and it's crop sensor (for photos) is considerably noisier than similar photos from the 5D2. I'm curious to know more about the noise comparison from the 7D to the full frame cams when shooting RAW video.
7D for sure is a noisy camera in general compared to the true FF cameras. Then again, there are zooms faster than 2.8 out now which solve that issue ;)

I am looking to use this on my cam, however I do a lot of jib work and doing 1.5-2x bitrate hacks (not even raw), I get duplicated frames from maxing out the processor with an HDMI monitor. I wish there was a way to downsample on record to allow for raw rec with an HDMI monitor without duplicate frames in the files. 1000x cards should be here soon... Ill do a test regardless.
__________________
Automotive Multimedia
Justin Molush is offline   Reply With Quote
Old March 7th, 2014, 01:22 AM   #9
Trustee

Join Date: May 2005
Location: Allen, Texas U.S.A
Posts: 1,117
Re: 7D 2048 x 930 resolution chart. How good it really is

I realized how almost all clips from the sample I posted above were soft. This was due to the difficulty I had in getting proper focus using the crop mode. The LV is low resolution/pixelized and not in realtime.
I discovered later that cycling through the info button brings up a clean 5X magnify which I can now use to quickly check for focus.
Unlike the 5D2 that you can use the 10x magnify to confirm focus, in the 7D, pressing 10x magnify freezes the lv so I disabled 10x in zoom tweaks ML menu.

When another snow storm hit us in Dallas last week, I quickly went out and retook similar looking scenes and uploaded the clip, this time in 2K in YoutTube. I took down the previous video I posted.

__________________
Ted Ramasola
http://ramasolaproductions.com
Ted Ramasola is offline   Reply With Quote
Old March 7th, 2014, 01:58 PM   #10
Trustee

Join Date: Jan 2006
Location: New York, NY
Posts: 1,267
Re: 7D 2048 x 930 resolution chart. How good it really is

So how big are the file sizes coming out of the camera? If you use the regular recording you get about 12 minutes for 4gigs if I am remembering correctly.
Daniel Epstein is offline   Reply With Quote
Old March 7th, 2014, 02:23 PM   #11
Trustee

Join Date: May 2005
Location: Allen, Texas U.S.A
Posts: 1,117
Re: 7D 2048 x 930 resolution chart. How good it really is

approx 26'29" in a 128gig CF.
__________________
Ted Ramasola
http://ramasolaproductions.com
Ted Ramasola is offline   Reply With Quote
Old March 8th, 2014, 08:31 PM   #12
Trustee

Join Date: Jan 2006
Location: New York, NY
Posts: 1,267
Re: 7D 2048 x 930 resolution chart. How good it really is

Thanks Ted.
Daniel Epstein is offline   Reply
