Old September 16th, 2008, 11:04 PM   #1
Obstreperous Rex

Join Date: Jan 2001
Location: San Marcos, TX
Posts: 26,900
Images: 513
Full HD on Canon EOS 5D Mk. II -- officially announced

CANON U.S.A. INTRODUCES THE HIGHLY ANTICIPATED EOS 5D
MARK II DSLR CAMERA FEATURING FULL-FRAME HD VIDEO CAPTURE


The Canon EOS 5D Mark II Escalates Full-Frame Digital SLR Photography to the Next Level with
HD Movie Recording Capabilities, DIGIC 4 Imaging Processor, and 21.1 Megapixel Resolution


LAKE SUCCESS, N.Y., September 17, 2008 – Canon U.S.A., Inc., a leader in digital imaging, today introduced the EOS 5D Mark II Digital SLR camera, the long-awaited successor to Canon’s highly popular EOS 5D, introduced in 2005. Building upon the qualities that made the EOS 5D camera so successful, Canon has coupled the creative power of a full-frame CMOS sensor in a relatively compact and affordable camera body, together with groundbreaking HD video capture that opens the door to a much wider range of imaging possibilities for photographers. Along with the ability to capture full HD video clips at 1920 x 1080 resolution, Canon’s EOS 5D Mark II Digital SLR camera features a 21.1-megapixel full frame 24 x 36mm CMOS sensor, DIGIC 4 imaging processor and significantly lower noise, with an expanded sensitivity range from ISO 50 to ISO 25,600.

“The anticipation surrounding the launch of this camera model has exceeded our greatest expectations, and we believe our loyal customers will be awed by the level of innovation and features built into the new EOS 5D Mark II Digital SLR. Once they have the chance to experience the camera, we believe they will agree that it was worth the wait,” stated Yuichi Ishizuka, senior vice president and general manager, Consumer Imaging Group, Canon U.S.A.

Among the many advancements in Canon’s new EOS 5D Mark II camera is the Company’s proprietary DIGIC 4 Imaging Processor that powers the camera’s fast 14-bit analog-to-digital conversion for smooth color tones and exceptional gradation. The Canon EOS 5D Mark II Digital SLR offers a full-frame 24 x 36mm, 21.1 megapixel CMOS sensor and continuous shooting at 3.9 frames per second (fps) for an unlimited number of full-resolution JPEGs to the capacity of the memory card or up to 14 RAW images in a single burst when using a UDMA CF card. The camera includes a 15-point Autofocus (AF) sensor with nine selectable AF points plus six additional Assist AF points (three center AF points sensitive to f/2.8 lenses) with enhanced light source detection and AF microadjustment for greater autofocus performance. The EOS 5D Mark II camera also features a large, clear 3.0-inch Clear View LCD screen with 920,000 dot/VGA resolution, four times the pixel count of the EOS 5D camera’s 2.5-inch screen, for enhanced clarity and color when viewing images. The new camera is equipped with a high-performance, high-magnification optical viewfinder providing 98 percent coverage, giving a new dimension to the saying, “what you see is what you get.” Professional photographers will also appreciate the enhanced 150,000-cycle shutter durability of the EOS 5D Mark II camera.

Canon, the first company to introduce a full-frame digital camera, has improved the EOS 5D Mark II Digital SLR camera’s newly developed full-frame CMOS image sensor. Utilizing proprietary Canon technology, the Company has reduced noise and expanded the sensitivity of the CMOS sensor up to ISO 25600, which is three full stops higher than the ISO 3200 limit of the original EOS 5D camera. Although the individual pixel dimensions of the EOS 5D Mark II camera are the same as the 21.1-megapixel CMOS sensor used in the EOS-1Ds Mark III digital SLR, the new sensor incorporates an improved output amplifier and a more advanced color filter that improves light transmission while retaining excellent color reproduction. By applying the same kind of advancements in sensor design and image processing technology as the recently introduced EOS 50D camera, but at higher resolution and with larger pixels, the EOS 5D Mark II achieves the highest level of image quality of any EOS Digital SLR released to date.

With the combination of its improved CMOS image sensor and the powerful new DIGIC 4 image processor, the Canon EOS 5D Mark II camera provides ISO speeds from ISO 100 up to ISO 6400 in 1/3-stop increments, along with two high-speed settings – H1 and H2 – of ISO 12800 and ISO 25600, respectively, as well as a low-speed setting of ISO 50. The full-frame sensor maximizes the performance of Canon EF lenses, the world’s largest selection of autofocus lenses.

HD and SD Video Capture
Canon has taken its expertise in imaging, photography and video capture technology to a new level with the EOS 5D Mark II Digital SLR. Answering the question of where SLR technology is going next, the EOS 5D Mark II features 16:9 Full HD video capture at 1920 x 1080 pixels and 30 fps as well as 4:3 standard TV quality (SD) video capture at 640 x 480 pixels and 30 fps, both capabilities appearing for the first time in a Canon SLR camera. Video capture is part of the camera’s Live View function, using the Picture Style that has been set for Live View still image shooting. This allows skilled photographers and cinematographers to adjust image sharpness, contrast, color saturation and white balance, and have those settings apply to the movie image. When recording video, the camera’s rear LCD screen can be letter-boxed by a semi-transparent border to match the aspect ratio of the movie recording size. Moreover, the EOS 5D Mark II camera’s HD video capability enables new levels of creative expression through its unfettered access to the complete line of more than 60 Canon EF lenses, which provide an incredible variety of visual effects including everything from ultra-wide-angle and fish-eye to macro and super-telephoto, including many large-aperture L-series professional lenses that can keep the main subject in razor-sharp focus while blurring the background beyond recognition.

The EOS 5D Mark II will record video up to 4GB per clip or a maximum continuous movie capture time of 29 minutes and 59 seconds, whichever comes first. Depending on the level of detail in the scene, a 4GB memory card can record approximately 12 minutes of video at full HD resolution or approximately 24 minutes in standard definition[i]. Video clips are recorded in .MOV format using an MPEG-4 video compression and sound is recorded using linear PCM[ii] without compression. The new camera features an input terminal for external stereo microphones as well as a built-in monaural microphone for convenience. To help show off those fantastic movies as well as still photos, the EOS 5D Mark II camera includes an HDMI (High-Definition Multimedia Interface) output to display crisp, clear images on a High-Definition TV.

Live View Shooting
For both still images and video, the Canon EOS 5D Mark II camera features Live View, one of the most sought after features in digital SLRs today. The 5D Mark II features three Live View AF modes – Quick, Live and Face Detection Live mode – for capturing either still photos or video, each with its own attributes. Quick mode automatically sets One-Shot AF using the camera’s phase detection AF system. It also allows users to select the AF point, even while the Live View image is displayed. Although the camera’s reflex mirror must be lowered briefly to take an AF measurement in Quick mode, it is the fastest way to set focus automatically when the 5D Mark II camera is set for Live View.

Live mode uses contrast-detection AF with the image sensor and here, as with Quick mode, users can change the AF point using the Multi-controller. Face Detection Live mode uses contrast AF to recognize human faces. When multiple faces are detected, the largest face closest to the center of the frame is targeted as the AF point. While Live View is engaged users can still change settings including the AF mode (Quick, Live, Face Detection Live mode), drive mode, ISO speed, Picture style, White Balance, and more.

Peripheral Illumination Correction
The Canon EOS 5D Mark II Digital SLR camera automatically conducts peripheral illumination correction when shooting JPEG images, a function that previously could only be accomplished through post-image processing using software such as Canon’s Digital Photo Professional, which Canon supplies at no extra charge. Peripheral illumination correction evens brightness across the image field, making an image of a blue sky even toned throughout and reducing light fall-off at image edges. This new feature essentially eliminates one of the limitations of previous full-frame digital SLRs.

Auto Lighting Optimizer
Canon’s enhanced Auto Lighting Optimizer technology helps ensure each picture’s subject is clearly visible by analyzing image brightness and automatically adjusting dark areas in images so that they appear brighter. This function is ideal in high-contrast situations such as urban landscapes captured on sunny days, where the tops of buildings are brightly lit while street level details are obscured by heavy shadows. In this type of scene, the 5D Mark II camera’s Auto Lighting Optimizer technology preserves accurate exposure of the highlights while opening up the shadow areas for a more pleasing tonal rendition.

Canon’s New Creative Auto Mode
Recently introduced with the new EOS 50D, Canon’s “CA” Creative Full Auto setting can also be found on the EOS 5D Mark II Digital SLR camera’s mode dial. This setting allows users to make image adjustments such as aperture or shutter speed through an easy-to-understand navigation screen on the camera’s LCD menu, allowing them to “blur the background” or “lighten or darken the image.” These easy-to-understand image options allow photographers to experiment with image options while still shooting in an automatic mode.
__________________
CH

Search DV Info Net | DV Info Net Sponsors | A Decade (+5) of DVi | ...Tuesday is Soylent Green Day!
Chris Hurd is offline
Old September 16th, 2008, 11:06 PM   #2
Obstreperous Rex

Join Date: Jan 2001
Location: San Marcos, TX
Posts: 26,900
Images: 513
EOS 5D Mk. II press release, continued...

Two Small RAW Formats
For photographers seeking the flexibility and creative possibilities of shooting RAW format images, without the large file size, the Canon EOS 5D Mark II Digital SLR camera offers two more manageable file size options with sRAW1 and sRAW2 recording formats. At the sRAW1 setting, resolution is 10.0-megapixels with a file size that is approximately 25 percent smaller than a standard 21.1-megapixel RAW image. With the sRAW2 setting, resolution is 5.2 megapixels at less than half the file size of a standard RAW image, retaining all of the flexibility and creative possibilities associated with full-size, conventional RAW images. Wedding and portrait photographers, in particular, will appreciate the options of variable resolution and file size which allow them to fine-tune the 5D Mark II’s operation for their specific needs.

Silent Shooting in Live View
Canon has equipped the EOS 5D Mark II with two Silent Shooting modes in Live View which will prove particularly helpful to law enforcement officials, and for behind-the-scenes shooting on movie sets. In Mode 1, the camera will shoot with the mechanical shutter open at the beginning of the exposure, using the electronic 1st-curtain function of the CMOS sensor and a reduced shutter-cocking noise, allowing multiple shots to be taken with minimal noise. In Mode 2, to minimize shutter noise during single frame photography, shutter cocking does not occur until the shutter button returns to the half-way position after shooting.

EOS Integrated Cleaning System
With the introduction of the EOS 5D Mark II camera, the entire Canon EOS system is now equipped with the highly acclaimed EOS Integrated Cleaning System. The Self-Cleaning Sensor Unit for the Canon EOS 5D Mark II has been upgraded with a fluorine coating on the low-pass filter for better dust resistance.

Pricing and Availability
The Canon EOS 5D Mark II Digital SLR camera is compatible with Canon EF lenses and is scheduled for delivery by the end of November. The EOS 5D Mark II will be sold in a body-only configuration at an estimated retail price of $2,699[iii]. It will additionally be offered in a kit version with Canon’s EF 24-105mm f/4L IS USM zoom lens at an estimated retail price of $3,499[iv].

New EF 24mm f/1.4L II USM Lens
The new EF 24mm f/1.4L II USM lens is the successor to Canon’s EF 24mm f/1.4L USM professional wide-angle lens released in 1997. Targeting professional photographers, the new EF 24mm f/1.4L II USM lens has been introduced to address the advancements high-resolution digital SLR cameras with re-designed optics and use of a new anti-reflection lens coating called SWC (Sub-Wavelength Structure Coating) to minimize ghosting and flare. Features such as dustproof and waterproof construction that have been adopted make this a high-performance lens with specifications that respond to the demands of professional users. A welcome complement to the EOS 5D Mark II Digital SLR camera, the EF 24mm f/1.4L II USM lens is scheduled to be in stores this December at an estimated retail price of $1,699[v].

About Canon U.S.A., Inc.
Canon U.S.A., Inc. delivers consumer, business-to-business, and industrial imaging solutions. Its parent company, Canon Inc. (NYSE:CAJ), a top patent holder of technology, ranked third overall in the U.S. in 2007†, with global revenues of $39.3 billion, is listed as one of Fortune's Most Admired Companies in America and is on the 2007 BusinessWeek list of "Top 100 Brands."

# # #

†IFI Patent Intelligence Press Release, January 2008
All referenced product names, and other marks, are trademarks of their respective owners.

Specifications and availability are subject to change without notice.

[i] According to Canon’s standard test methods.
[ii] A method of converting audio and other analog signals
into digital data. It is recorded without any compression.
[iii], [iv], [v] Pricing subject to change at any time. Actual
prices are determined by individual dealers and may vary.

This press release is available at
About Canon: Press Room > Press Release
Attached Thumbnails

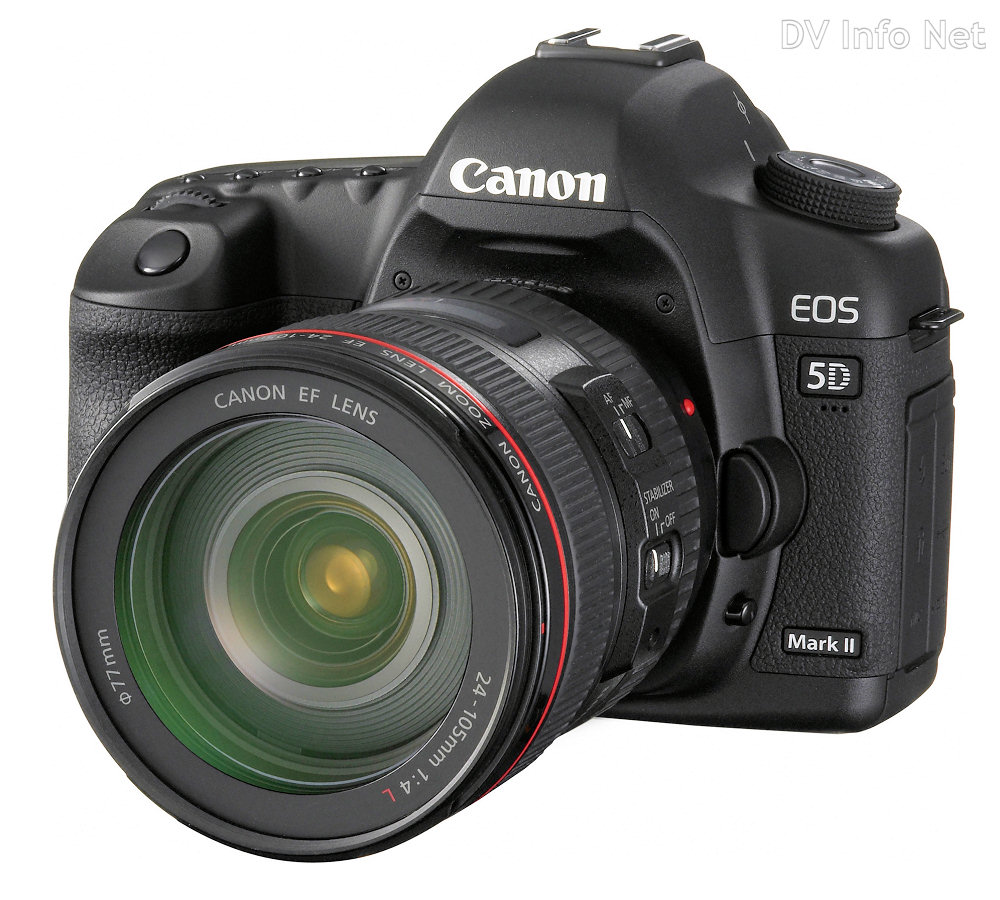

Full HD on Canon EOS 5D Mk. II -- officially announced-eos5dmkii-2.jpg   Full HD on Canon EOS 5D Mk. II -- officially announced-eos5dmkii-3.jpg

Full HD on Canon EOS 5D Mk. II -- officially announced-eos5dmkii-4.jpg
__________________
CH

Search DV Info Net | DV Info Net Sponsors | A Decade (+5) of DVi | ...Tuesday is Soylent Green Day!
Chris Hurd is offline
Old September 16th, 2008, 11:35 PM   #3
Obstreperous Rex

Join Date: Jan 2001
Location: San Marcos, TX
Posts: 26,900
Images: 513
Canon USA: http://www.usa.canon.com/consumer/co...&modelid=17662

Canon Japan: http://web.canon.jp/imaging/eosd/eos5dm2/index.html

Canon Japan Special Site: http://cweb.canon.jp/camera/5dmark2/

Sample video clips: http://web.canon.jp/imaging/eosd/eos5dm2/02.html#01

DP Review, Overview: http://www.dpreview.com/news/0809/08...n_5dmarkII.asp

DP Review, Hands-On: http://www.dpreview.com/previews/canoneos5dmarkII/

Rob Galbraith: http://www.robgalbraith.com/bins/con...id=7-9316-9603

So, to recap the video capabilities of the 5D Mk. II:

-- 21.1-megapixel full frame 24 x 36mm CMOS sensor
-- new DIGIC 4 imaging processor
-- full HD video at 1920x1080 over mini-HDMI or CF card
-- 30 frames per second (but no mention of 24p)
-- max. recording file size of 4GB per clip, or:
-- max. recording time of 29 min. 59 sec.
-- clips recorded in .MOV format using MPEG-4
-- audio recorded using linear uncompressed PCM
-- stereo-mini mic input jack and built-in mono mic
-- 3.0-inch Clear View LCD screen with 920,000 pixels
-- body-only: $2,700 or kit 24-105mm f/4L IS USM lens for $3,500
__________________
CH

Search DV Info Net | DV Info Net Sponsors | A Decade (+5) of DVi | ...Tuesday is Soylent Green Day!
Chris Hurd is offline
Old September 16th, 2008, 11:38 PM   #4
Inner Circle

Join Date: Jun 2003
Location: San Jose, CA
Posts: 2,222
Wow. Here is an excerpt of the movie mode specs:

Available optionally during Live view mode
• 1920 x 1080 (16:9) up to 12 mins (Quicktime 1080p H.264; 38.6 Mbits/sec)
• 640 x 480 (4:3) up to 24 mins (Quicktime 480p H.264; 17.3 Mbits/sec)
• Max file size 4 GB
• Quicktime MOV format (H.264 video, PCM sound)
• 30 fps
Gints Klimanis is offline
Old September 16th, 2008, 11:45 PM   #5
Trustee

Join Date: Jun 2004
Location: Denver, Colorado
Posts: 1,866
On the video side that's 40 mbps/mp4. All it needs (and probably lacks) is standard frame rates for 60i/24p. Consider also it's less expensive than the Letus Ultimate.

I already have the compliment of EF lenses for my current EOS 5D. This SLR is very interesting.
Tom Roper is offline
Old September 16th, 2008, 11:57 PM   #6
Trustee

Join Date: Jan 2002
Location: Pembroke Pines, Florida
Posts: 1,418
Canon does it again- trumps Nikon every-time (except for price-point!)
__________________
Steve Nunez-New York City
www.stevenunez.com
Steve Nunez is offline
Old September 17th, 2008, 12:22 AM   #7
Obstreperous Rex

Join Date: Jan 2001
Location: San Marcos, TX
Posts: 26,900
Images: 513
Quote:
Originally Posted by Steve Nunez View Post
trumps Nikon...
Not so sure I would say that... Nikon has a *huge* advantage in price. You could buy two D90 kits for the price of one 5D body. To me it seems as if the two companies agreed to split the market. If Canon were really competing with Nikon, they would have put HD video on their 50D, which is more evenly matched price-wise with the D90. Just my opinion though.

(so, what are we calling the new forum again?)
__________________
CH

Search DV Info Net | DV Info Net Sponsors | A Decade (+5) of DVi | ...Tuesday is Soylent Green Day!
Chris Hurd is offline
Old September 17th, 2008, 12:35 AM   #8
Major Player

Join Date: Sep 2004
Location: stately Eldora Road
Posts: 386
Quote:
Originally Posted by Chris Hurd View Post
(so, what are we calling the new forum again?)
I know—this is dizzying.

Over on another forum, they're complaining about the 30fps.

"Video motion = bad" (paraphrase)

Why is 30fps bad?
John Sandel is offline
Old September 17th, 2008, 12:39 AM   #9
Inner Circle

Join Date: Jun 2003
Location: San Jose, CA
Posts: 2,222
Quote:
Originally Posted by Steve Nunez View Post
Canon does it again- trumps Nikon every-time (except for price-point!)
The Canon 5D ($2700) trumped the D90 ($1000). I think we will be surprised by the D300s and D3s. The D3 has much more processing power and battery.
Gints Klimanis is offline
Old September 17th, 2008, 12:47 AM   #10
Obstreperous Rex

Join Date: Jan 2001
Location: San Marcos, TX
Posts: 26,900
Images: 513
Quote:
Originally Posted by John Sandel View Post
...they're complaining about the 30fps.
Well, I can certainly understand why *filmmakers* are complaining about its lack of 24p. However, photojournalists and bridal photographers will absolutely love the 30p capability for its ease in encoding video for web delivery.
__________________
CH

Search DV Info Net | DV Info Net Sponsors | A Decade (+5) of DVi | ...Tuesday is Soylent Green Day!
Chris Hurd is offline
Old September 17th, 2008, 12:51 AM   #11
Major Player

Join Date: Sep 2004
Location: stately Eldora Road
Posts: 386
Quote:
Originally Posted by Chris Hurd View Post
Well, I can certainly understand why *filmmakers* are complaining about its lack of 24p.
Why? Because they're aiming for output to film? Is that the only likely reason?
John Sandel is offline
Old September 17th, 2008, 12:53 AM   #12
Obstreperous Rex

Join Date: Jan 2001
Location: San Marcos, TX
Posts: 26,900
Images: 513
Nope, it's the distinctive motion signature of the 24p frame rate... which is *very* film-like in the hands of experienced masters (and completely unwatchable in the hands of incompetent others, such as myself).
__________________
CH

Search DV Info Net | DV Info Net Sponsors | A Decade (+5) of DVi | ...Tuesday is Soylent Green Day!
Chris Hurd is offline
Old September 17th, 2008, 01:01 AM   #13
Major Player

Join Date: Sep 2004
Location: stately Eldora Road
Posts: 386
Quote:
Originally Posted by Chris Hurd View Post
… the distinctive motion signature of the 24p frame rate … is *very* film-like in the hands of experienced masters
Thank you.

I'm not asking for details, here—just the gloss. 24fps is favored, then, principally as an aesthetic choice rather than a technical choice?

(I ask because I'm not headed to film; for the foreseeable future, my movies will be seen in digital formats: web, DVD, on HDTVs, digital projection, etc.)
John Sandel is offline
Old September 17th, 2008, 01:44 AM   #14
Major Player

Join Date: Sep 2005
Location: San Francisco, CA
Posts: 200
Is it possible/likely that a simple firmware update can add 24p (and perhaps slightly extend recording time at the same time)?
Min Lee is offline
Old September 17th, 2008, 02:06 AM   #15
Major Player

Join Date: Sep 2004
Location: stately Eldora Road
Posts: 386
Hmmm. Dunno if I absolutely must have 24p. Is it possible to convert 30p HD to 24p in post?

If so how?

See here: http://www.nattress.com/Products/sta...ilmConvert.htm

What are the general downsides to such a conversion?

Last edited by John Sandel; September 17th, 2008 at 02:16 AM. Reason: added a link
John Sandel is offline
