Magic Lantern Cropmark Files: Sharing Yours ?

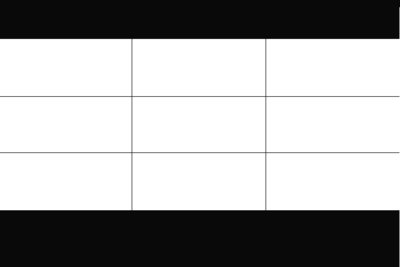

I am attaching a crop mark file I just made. It is a nominal 235 aperature, with a thirds grid. I am still futzing with it, as I am not sure if I have it aligned or sized right, but this file and the white in it, was generated using the original crop mark file provided with Magic Lantern. I edited it in Adobe Photoshop Elements, saving as an 8 bit bitmap file. According to Hudson, camera has to have that .bmp format.

The white area is transparent, under the set up. You can actually delete all the information I have on my version for instance, and make anything you want on it.
Hopefully other will post cropmark files here for our uses.

You can have multiple cropmarks on you CF card, but you will have to manually enter in the magiclantern.cfg config file, the name of the file you want to access as crop marks for your shoot, using a text editor, before you put the CF card in camera. A list access is planned for next version, according to Trammel Hudson.
Attached Thumbnails
Magic Lantern Cropmark Files: Sharing Yours ?-cropmarks235.bmp
__________________
Chris J. Barcellos
Chris Barcellos is offline   Reply With Quote
Old August 14th, 2009, 02:15 PM   #2
Regular Crew

Join Date: Mar 2009
Location: Portland, OR
Posts: 39
here's my 16x9 cropmarks - for action and title safe.
. be sure to change the name as per the instructions.

reference links:
Adobe After Effects CS4 * Safe zones, grids, guides, and rulers

http://www.motionworks.com.au/wp-con...guides_lrg.png
Attached Files
File Type: zip cropmarks-16-9_only.bmp.zip (11.1 KB, 551 views)
Andy Batt is offline   Reply With Quote
Old August 15th, 2009, 11:22 AM   #3
Major Player

Join Date: Mar 2007
Location: Sussex, UK
Posts: 317

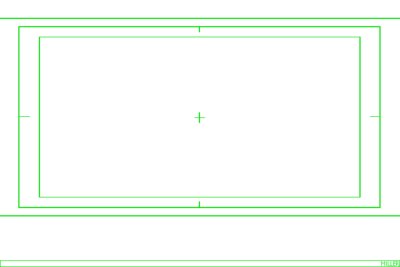

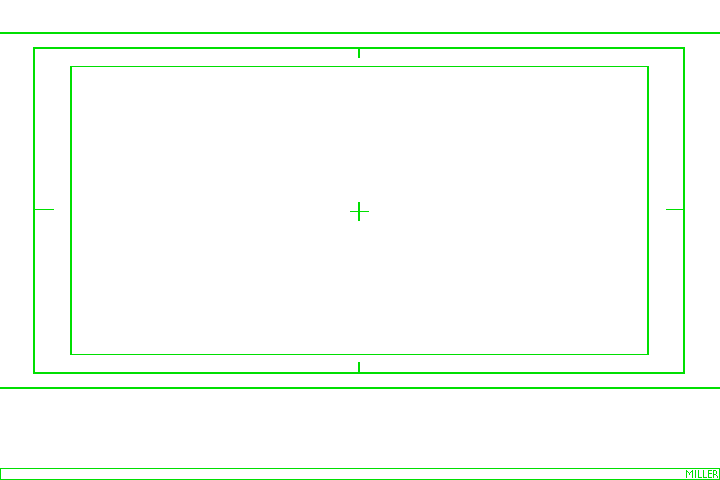

Here is my take on the crop marks.

I used the presets in Photoshop to get the TV/Title safe markers.

Bright green lines, because.
Attached Thumbnails
Magic Lantern Cropmark Files: Sharing Yours ?-cropmarks.bmp
James Miller is offline   Reply With Quote
Old August 15th, 2009, 12:29 PM   #4
Wizard Status

Join Date: Jun 2005
Location: New York, NY
Posts: 239
Quote:
Originally Posted by Chris Barcellos View Post
I edited it in Adobe Photoshop Elements, saving as an 8 bit bitmap file. According to Hudson, camera has to have that .bmp format.
The reason for that restriction is that I wrote a very simple BMP parser for the firmware bmp_load() that only understands the simplest of formats. Canon's firmware has a full SVG parser, but I haven't figured out how to get it to draw my own vector images yet. Maybe the next version of Magic Lantern will have a better image loader based on jpeglib or libgd.

Quote:
Hopefully other will post cropmark files here for our uses.
I've started a wiki page for collecting cropmark images as well. There you can see the sample palette of colors to choose from and some discussion of the BMP format.
Tramm Hudson is offline   Reply
