Old October 15th, 2009, 12:51 PM   #1
Regular Crew

Join Date: Jul 2008
Location: Pensacola, FL
Posts: 94
5D MK II | Lock Up Issue

Hey everyone:

I thought I'd share an update. I had complained about our 5D MK II locking up during filming a while back. Some folks suggested a UDMA card. Turns out, we had a faulty PCB assembly in the camera. Canon service replaced it free of charge under warranty. I just got it back today, so I have not tested it yet, but hopefully all is well.

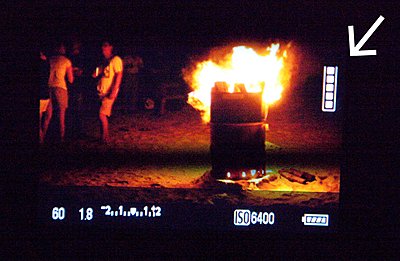

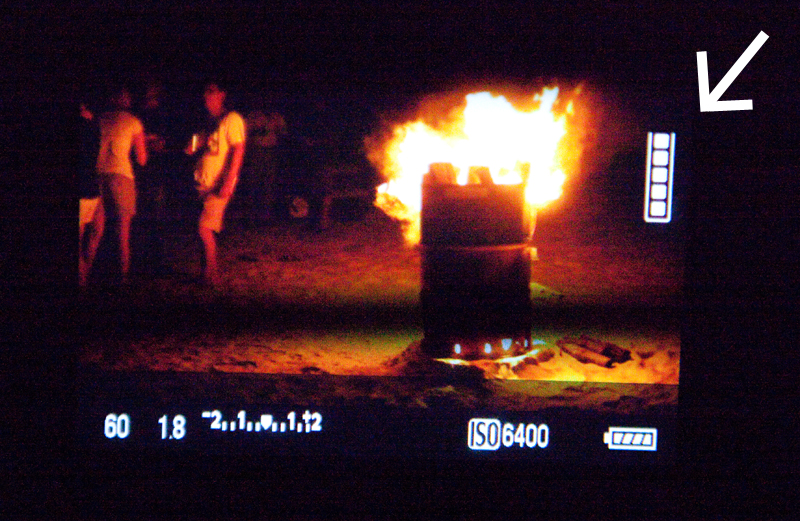

I also thought I'd share an image in case anyone out there is having similar issues:
http://www.dvinfo.net/forum/attachme...1&d=1255628909

When this has happened, we lose whatever shot we were working on completely. The camera becomes completely non-responsive, and locks up completely. The power switch doesn't work, the live view button doesn't work, the shutter release doesn't work, the set button doesn't work...nothing works. You have to physically remove the batteries to get it to turn off.

The little set of white blocks on the right side of the screen is the only indicator that we ever had.

Hopefully this helps someone!
~ Charles
Attached Thumbnails
5D MK II | Lock Up Issue-smaller.jpg
__________________
charles baisden | paper pusher & owner
http://www.fusionphotovideo.com
Charles Baisden is offline   Reply With Quote
Old October 15th, 2009, 02:54 PM   #2
Obstreperous Rex

Join Date: Jan 2001
Location: San Marcos, TX
Posts: 26,900
Images: 513
Thanks Charles; moved from Weddings / Events to Canon EOS 5D Mk. II.
__________________
CH

Search DV Info Net | DV Info Net Sponsors | A Decade (+5) of DVi | ...Tuesday is Soylent Green Day!
Chris Hurd is offline   Reply With Quote
Old October 16th, 2009, 08:09 AM   #3
Wizard Status

Join Date: Jun 2005
Location: New York, NY
Posts: 239
Quote:
Originally Posted by Charles Baisden View Post
I thought I'd share an update. I had complained about our 5D MK II locking up during filming a while back. Some folks suggested a UDMA card. Turns out, we had a faulty PCB assembly in the camera. Canon service replaced it free of charge under warranty. I just got it back today, so I have not tested it yet, but hopefully all is well.
Very interesting! I've had problems with a certain Sandisk Extreme III 8GB card for the past few months, and on another forum about a dozen other people chimed in with the exact same failure with cards of a similar date range. The symptom was exactly as you described, requiring the battery to be removed to recover from it.

The same card causes a similar problem in my 7D, so I have been assuming it was a card manufacturing defect rather than a camera problem.
Tramm Hudson is offline   Reply With Quote
Old October 16th, 2009, 11:08 AM   #4
Regular Crew

Join Date: Jul 2008
Location: Pensacola, FL
Posts: 94
That's what I thought too, until I finally called. Now -- they did recommend upgrading my card to the UDMA version, but I sent it in anyways, and I'm glad I did.

I post my results back here once we test it at a few shoots.

~ Charles
__________________
charles baisden | paper pusher & owner
http://www.fusionphotovideo.com
Charles Baisden is offline   Reply With Quote
Old October 17th, 2009, 12:44 PM   #5
Major Player

Join Date: Aug 2002
Location: Bethel, VT
Posts: 824
Quote:
Originally Posted by Tramm Hudson View Post
Very interesting! I've had problems with a certain Sandisk Extreme III 8GB card for the past few months, and on another forum about a dozen other people chimed in with the exact same failure with cards of a similar date range. The symptom was exactly as you described, requiring the battery to be removed to recover from it.

The same card causes a similar problem in my 7D, so I have been assuming it was a card manufacturing defect rather than a camera problem.
I've had the same isue on a couple of shoots recently and I'm using the 8GB Sandisk Extreme III as well. So it looks like I have to isolate the card that's causing the issue.

By the way Tramm, thanks again for your incredible work on Magic Lantern!
Jim Giberti is offline   Reply With Quote
Old October 22nd, 2009, 02:02 PM   #6
Major Player

Join Date: May 2003
Location: Chicago, IL
Posts: 991
Charles, how often did this occur for you? I've experienced this probably 5 times in the past 6 months.

I didn't get the white blocks indicator. That would seem to suggest that the card is not fast enough for the data stream?
Yang Wen is offline   Reply With Quote
Old October 22nd, 2009, 04:17 PM   #7
Regular Crew

Join Date: Jul 2008
Location: Pensacola, FL
Posts: 94
Since we've had the camera, I would say its probably happened approximately 10 times.

~ Charles
__________________
charles baisden | paper pusher & owner
http://www.fusionphotovideo.com
Charles Baisden is offline   Reply With Quote
Old October 22nd, 2009, 05:11 PM   #8
Major Player

Join Date: Jun 2005
Location: San Francisco
Posts: 542
I think this is a card by card thing. I've been using a 32 gig Kingston 133x card without incident for months now.

One thing you defintely want to do is format the card in camera prior to use. But I'm assuming you already were doing that. Magic Lantern creates a slight incentive to not do that (so as to not have to move the FW back onto the card after each format), but it's still a best practice in my book. Writing to a fragmented card can only slow things down, and that buffer indicator is telling you the card can't keep up for some reason.

But my guess is that it's the specific card you are using...
Bill Binder is offline   Reply With Quote
Old October 24th, 2009, 12:34 PM   #9
Major Player

Join Date: Aug 2002
Location: Bethel, VT
Posts: 824
I reformat every card before use and have had the freeze up with the "White film strip" sporadically. In fact it didn't happen all summer that I can remember and we were shooting a ton of stuff. It did lock up a couple of times on the last month or so.
Jim Giberti is offline   Reply With Quote
Old December 17th, 2009, 11:24 PM   #10
Regular Crew

Join Date: Jul 2008
Location: Pensacola, FL
Posts: 94
Update: no lock-ups since repair.

But to be fair, we changed to the new Extreme Pro 16GB UDMA cards. :-(

We'll never know...
~ Charles
__________________
charles baisden | paper pusher & owner
http://www.fusionphotovideo.com
Charles Baisden is offline   Reply
