5dMk3 Pixelation - Corrupt Files?

I've shot a few projects on the MkIII that I rented twice from two different rental outlets, so I know it was not the specific camera. On some shots during certain frames I get some pretty bad video pixelation/distortion. Attachment below.

Any idea what caused this? I'm using the same high speed cards I use on my 7D and 60D with no problems.
Attached Thumbnails

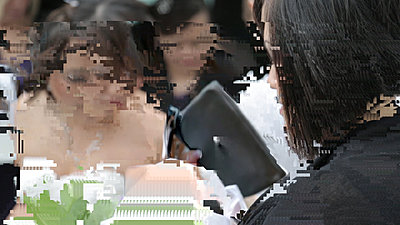

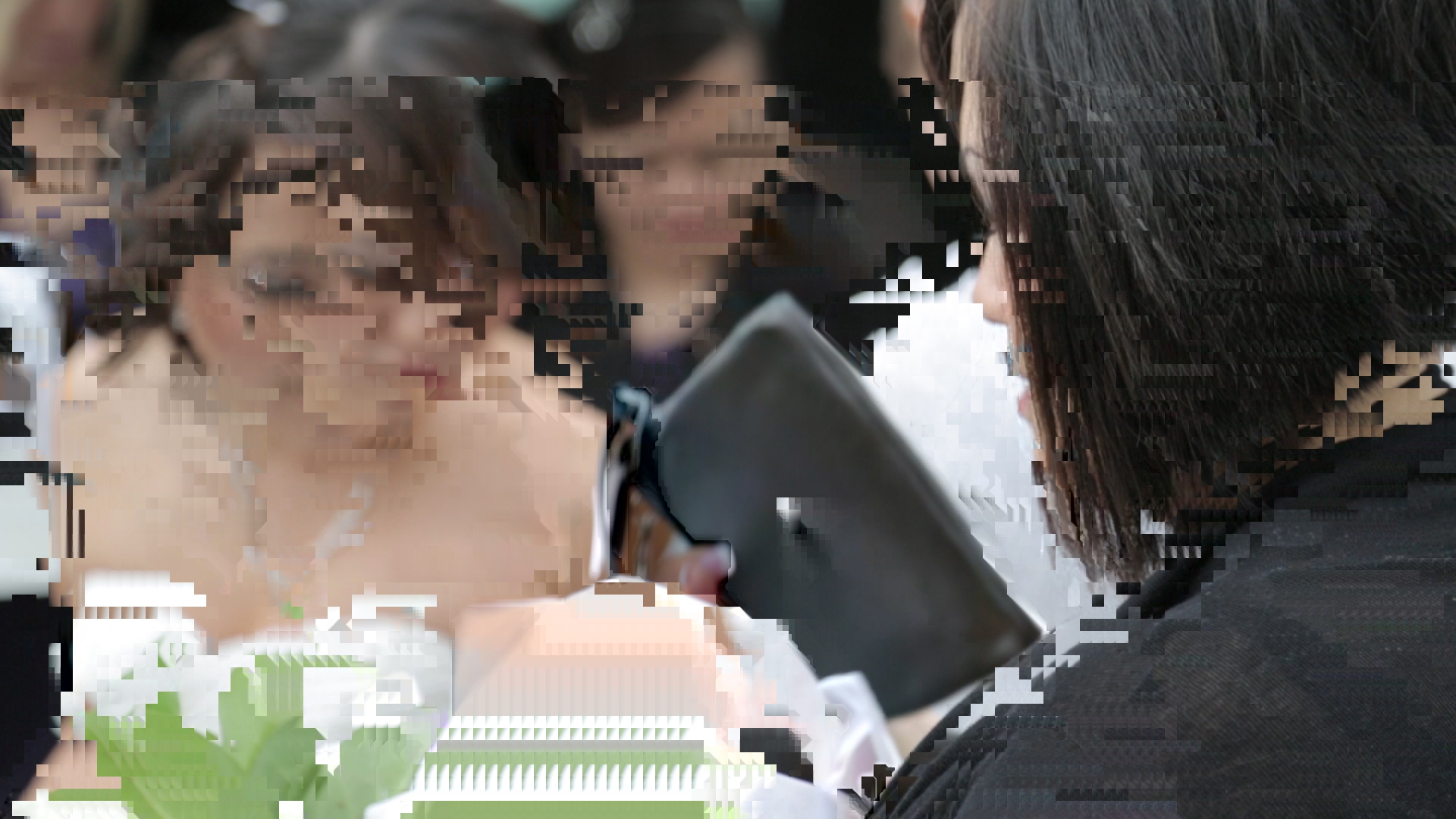

5dMk3 Pixelation - Corrupt Files?-398c0972.mpg.still001.jpg
Paul Hildebrandt is offline   Reply With Quote
Old April 25th, 2012, 01:01 AM   #2
Regular Crew

Join Date: Apr 2010
Location: Zutphen, NL
Posts: 47
Re: 5dMk3 Pixelation - Corrupt Files?

Could be a number of things

- The CF cards you used to shoot with are corrupted, hence the files are damaged - might want to give those CF cards a complete check-up just to be sure!
- Something went wrong when copying the files from the CF to your editset
- You editset's codec is broken, try re-installing it

And it could probably be something completely different - but these are the most likely culprits in my mind. Hope you can fix the problem!
Ruben Kremer is offline   Reply With Quote
Old April 26th, 2012, 11:38 PM   #3
Regular Crew

Join Date: Apr 2011
Location: Frisco, TX
Posts: 65
Re: 5dMk3 Pixelation - Corrupt Files?

For a single frame I had this happen in one of my clips directly from the camera. This is how it was recorded. Hasn't happened before or since.
Attached Thumbnails

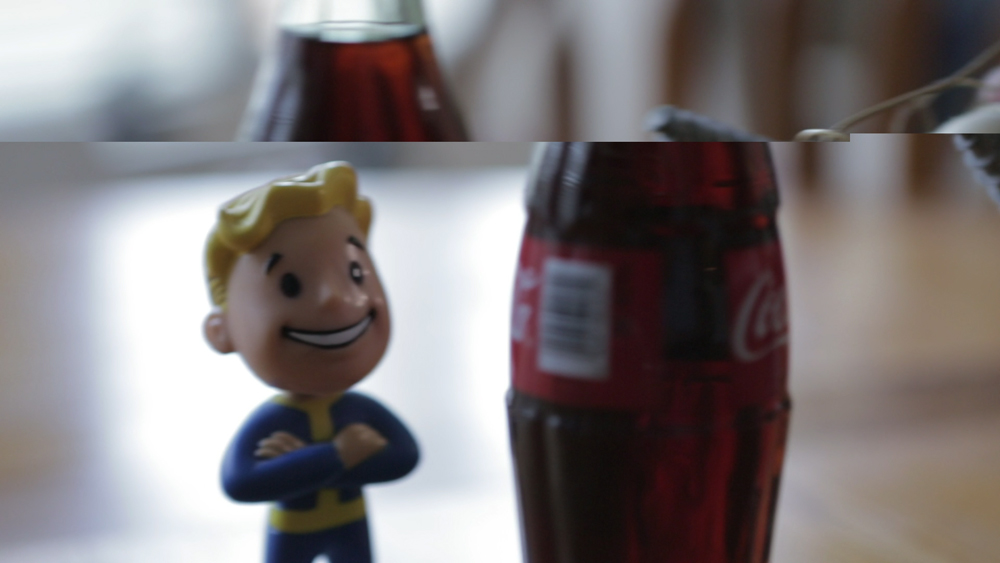

5dMk3 Pixelation - Corrupt Files?-video-distortion-5d-mk-iii.jpg
Brad Ballew is offline   Reply With Quote
Old June 17th, 2012, 10:57 AM   #4
New Boot

Join Date: Apr 2009
Location: Barcelona (Spain)
Posts: 18
Re: 5dMk3 Pixelation - Corrupt Files?

The failure mode seen on the pictures posted above corresponds to a bitstream defect inside a frame.
Picture is cut in two because QuickTime H.264 decoder stops working when it finds a defect.

The bottom half of the picture corresponds to the previous frame (not refreshed).

We have seen that also on Canon Mk II, and we were able to fix it in a few occasions:
Not a complete failure Blog Archive The Everest of movie repairs

But it's a very complex repair, if ever it's possible.

Advice: Try a different card. Try a different camera with the card. Figure out whether camera or card is causing the problem, and replace it.

-- Benoīt
Benoit Joossen is offline   Reply With Quote
Old June 17th, 2012, 11:36 AM   #5
Major Player

Join Date: May 2005
Location: Boston, MA
Posts: 688
Re: 5dMk3 Pixelation - Corrupt Files?

Quote:
Originally Posted by Paul Hildebrandt View Post
I've shot a few projects on the MkIII that I rented twice from two different rental outlets, so I know it was not the specific camera. On some shots during certain frames I get some pretty bad video pixelation/distortion. Attachment below.

Any idea what caused this? I'm using the same high speed cards I use on my 7D and 60D with no problems.
I had the same thing happen. Then I remembered how busy I was with other programs (taxing my computer/drive) during the file transfers. So I imported the files a second time, this time not using the computer for other things and making the file transfer the only task. Everything then transferred fine.
Craig Terott is offline   Reply With Quote
Old June 18th, 2012, 08:41 PM   #6
Regular Crew

Join Date: Nov 2010
Location: Chico, CA
Posts: 83
Re: 5dMk3 Pixelation - Corrupt Files?

I've had this problem several times now, all with the same cards and also showing up on my 7D now. I've got a high profile shoot coming up this weekend and I need to make sure I have good data. Is there anyway to test the CF cards to make sure they are good? Thanks.
Paul Hildebrandt is offline   Reply With Quote
Old June 21st, 2012, 06:07 PM   #7
Major Player

Join Date: May 2005
Location: Boston, MA
Posts: 688
Re: 5dMk3 Pixelation - Corrupt Files?

If the file plays back like that in-camera ...eeek. I wouldn't use that card again. Bad CF cards have destroyed so many shots I can't count them all, and no longer use them.

Of course there are memory types of errors but I think CF card's reliability problem is likely related to it's massive 50 pin design which means there's a lot that can go wrong on the device side as well. The SD card is a much more reliable design - that is not opinion, it's a fact.

I talked to more than one person over at Sandisk and they had no answer for my question about being able to test a CF card. I asked because like you, I thought it would practical to load a card and run some sort of scan on it, even if it was a lengthy test, it would be awesomely reassuring. Maybe they are afraid of all the cards that would end up in there return department?
Craig Terott is offline   Reply With Quote
Old June 22nd, 2012, 10:19 AM   #8
Regular Crew

Join Date: Nov 2010
Location: Chico, CA
Posts: 83
Re: 5dMk3 Pixelation - Corrupt Files?

Yeah, my problem is I don't know which card it is!
