Canon GL1 Battery Release Repair at DVinfo.net

Dylan Tucker · October 14th, 2009, 11:40 AM

Hey Everyone,

I've had my GL1 for a while now, and recently the little triangular clip that snaps out and holds the battery in place broke off. The camera still works, but the battery will randomly come out of place and shut the camera down, so it isn't very useful. I called canon and found out that the replacement part will cost $1.37+tax and shipping. I could be wrong, but I'm guessing that it would cost at least $100 to have canon even look at the camera, not to mention labor. I'm not sure I want to spend a couple hundred dollars on a camera that old, but would like to get it in working order. Is this something that any of you have done yourselves or had repaired? Any suggestions would be appreciated.

Thanks,
-Dylan

Don Palomaki · October 15th, 2009, 08:01 PM

Triangular clip? Not sure I recognize the piece. Can you post a photo?

Is it part of the plastic battery eject level thing that releases the battery at the top left of the battery compartment that prevents the battery form rising up and out, or one of the four guides at the side of the compartment?

The functionality battery eject level (Canon part #DA1-9569-000 000) could be probably emulated by using a bit of plastic about 1/4 " thick to to hold the battery in place. Just hold it in place with some masking tape on the battery.

Dylan Tucker · October 18th, 2009, 08:34 AM

"Is it part of the plastic battery eject level thing that releases the battery at the top left of the battery compartment that prevents the battery form rising up and out."

That is exactly what I am talking about. I talked to a couple repair shops and 250-300 seems to be the going rate to have that piece replaced.Definitely not spending that much on a camera as old as the gl1. I'll figure something out.

Don Palomaki · October 19th, 2009, 03:38 AM

Getting to the bhe battery eject piece is fairly deep into the disassembley process; i.e.:
1 - Bottom cover
2 - left cover
3 - "U" cover
4 - top cover
5 - handle
6 - right cover
7 - rear cover (with the battery eject piece)

Working our an alternative way of retaining the battery is a reasonable approach.

Dylan Tucker · October 19th, 2009, 12:30 PM

Don, thanks for the input. I'll see what I can come up with to hold the battery in place. I don't think i really want to chance taking the camera that far apart.

Don Palomaki · October 19th, 2009, 05:11 PM

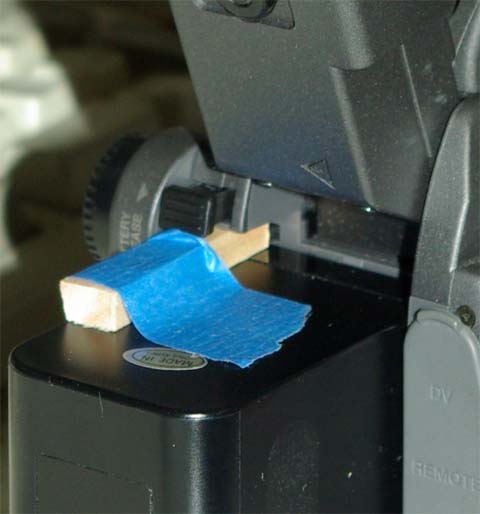

If you are not worried about camcorder beauty contests the attachd picture might work to keep the battery in place.

Abit if masking tape (or tape and color of your choosing).
(Might even be able to do it with bits of velcro.)
A piece of wood about 1/4" thick and wide (measure to fit).
Be sure the viewfinder can pivot fully.
It will prevent the battery form sliding up and off the camcorder.
