Red channel artifacts?

I'm loving my HV20, but I'm noticing quite a lot of jagged artifacts in the red channel. Anybody else getting this? Is it just part of HDV, or is it worse in this particular camera? Any advice on how to clean it up a little without destroying the rest of the picture?

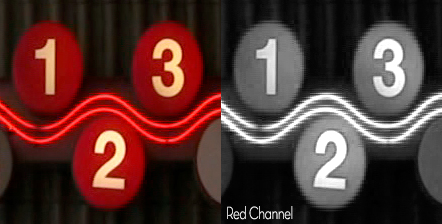

I've attached a sample detail at 100% to illustrate the problem. This was shot 24p, and is from one of the full, non-interlaced frames.
Attached Thumbnails
Red channel artifacts?-hv20-red.jpg
Hal Snook is offline   Reply With Quote
Old April 26th, 2007, 12:24 PM   #2
Wrangler

Join Date: Oct 2003
Location: DFW area, TX
Posts: 6,108
Images: 1
Red never seems to do well with MPEG compression. It really stands out on my Dish Network channels. This has been an ongoing problem for years now.

-gb-
Greg Boston is offline   Reply With Quote
Old April 26th, 2007, 12:52 PM   #3
Regular Crew

Join Date: Apr 2007
Location: San Francisco, CA
Posts: 38
So hypothetically, would cooler colors yield a better picture?
Steve Royer is offline   Reply With Quote
Old April 26th, 2007, 01:21 PM   #4
Major Player

Join Date: Jan 2006
Posts: 440
Red is a huge no no in any video, especially DV and HDV. You can actually "clean" the red and blue color channels in HDV using filters in your NLE, After Effects or various plug-ins and it works quite well. Though if you re-export it back to DV or HDV you'll get the compression artifacts again. I usually capture my HDV from the HV20 and convert it to another codec/format as soon as possible and never look back.

Here's an example of how much of a difference cleaning just the Red channel can make...
Clean red channel
__________________
Clips | Stills
Wes Vasher is offline   Reply With Quote
Old April 26th, 2007, 01:42 PM   #5
Trustee

Join Date: Mar 2004
Location: Milwaukee, WI
Posts: 1,719
That is the Chroma upsampling error or CUE. This is due to how interlaced images are compressed with 4:2:0 color space. With 4:2:0 the color samples alternate every other line but so do fields in an interlaced image to the encoders split the chroma even more so that the chroma smaples alternate every other line in each field and not the whole image.

Reds are easier to notice the one line offset of the chroma samples. That is just the way 4:2:0 interlaced encoding works. I notice the same thing on PAL DV cameras because PAL also uses 4:2:0.

You really notice it on your computer screen because the video isn't playing back at one field at a time but showing you the whole frame all at once.
Thomas Smet is offline   Reply With Quote
Old April 26th, 2007, 04:27 PM   #6
Regular Crew

Join Date: Feb 2007
Location: New York, NY
Posts: 41
Ah, that makes sense. It never seemed quite so ugly when I was using DV. Wes, do you have any suggestions for filters I could use within FCP to achieve what you did in that screenshot? Thanks.
Hal Snook is offline   Reply With Quote
Old April 26th, 2007, 04:48 PM   #7
Major Player

Join Date: Nov 2006
Location: London, UK
Posts: 321
Quote:
Originally Posted by Wes Vasher View Post
Red is a huge no no in any video, especially DV and HDV. You can actually "clean" the red and blue color channels in HDV using filters in your NLE, After Effects or various plug-ins and it works quite well. Though if you re-export it back to DV or HDV you'll get the compression artifacts again. I usually capture my HDV from the HV20 and convert it to another codec/format as soon as possible and never look back.

Here's an example of how much of a difference cleaning just the Red channel can make...
Clean red channel
Thanks for this Wes - do you know if the Magic bullet de-artifactor would accomplish the same thing?
Fergus Anderson is offline   Reply With Quote
Old April 26th, 2007, 05:07 PM   #8
Major Player

Join Date: Jan 2006
Posts: 440
Fergus, you probably won't find a better HDV chroma cleaner than Magic Bullet Deartifactor IMHO... Nattress is supposed to work quite well also. The DV Rebel Guide details how to clean your chroma manually also.
__________________
Clips | Stills
Wes Vasher is offline   Reply
