Old June 7th, 2009, 06:03 AM   #91
Regular Crew

Join Date: Sep 2007
Location: Poland
Posts: 141
No. Its a car PC thing with 640x480 resolution, but its a piece of...
Ivan Mosny is offline   Reply With Quote
Old September 30th, 2009, 04:05 AM   #92
Regular Crew

Join Date: Sep 2009
Location: Ieper, Belgium
Posts: 75
Some really nice setups here.

You can see my setup on: Picasa Web Albums - Gerdy - Gear

http://www.dvinfo.net/forum/members/...canon-xha1.jpg

Greetings
G

Last edited by Gerdy Vandermeersch; September 30th, 2009 at 07:28 AM.
Gerdy Vandermeersch is offline   Reply With Quote
Old October 16th, 2009, 10:38 AM   #93
New Boot

Join Date: Jul 2009
Location: Nashville TN
Posts: 21
Quote:
Originally Posted by Ivan Mosny View Post
So guys - this is my brand new slider. Its made of aluminium profile and 12 plastic wheels on plastic fences. It is absolutelly precise an it work smoooooth. Middle wheels are adjustable - so i can self adjust amount of "brake" feeling.

wow....diy?


where to buy ?
Jonas Marlowe is offline   Reply With Quote
Old October 16th, 2009, 11:08 AM   #94
Trustee

Join Date: May 2007
Location: Minneapolis, MN
Posts: 1,241

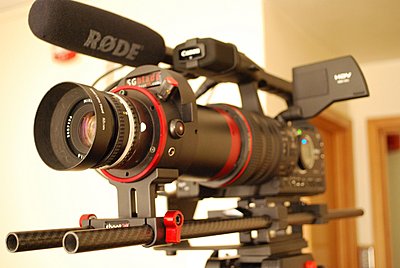

The latest:

Really loving the SGblade.
Attached Thumbnails
xh a1 setup pictures-dsc_0061.jpg
__________________
Nate Haustein PXW-FS5 / iMac i7 / FCPX
www.flightcreativemedia.com
Nate Haustein is offline   Reply With Quote
Old October 20th, 2009, 12:30 AM   #95
Major Player

Join Date: Nov 2007
Location: Sydney
Posts: 552
Is it me or does that adapter look about a foot long! Do you loose much light through it?
Jonathan Shaw is offline   Reply With Quote
Old October 20th, 2009, 12:56 AM   #96
Trustee

Join Date: May 2007
Location: Minneapolis, MN
Posts: 1,241
I think it's just the perspective-it's the amazing SGblade. Loses less than half a stop.
__________________
Nate Haustein PXW-FS5 / iMac i7 / FCPX
www.flightcreativemedia.com
Nate Haustein is offline   Reply With Quote
Old October 30th, 2009, 03:43 PM   #97
Regular Crew

Join Date: Sep 2007
Location: Poland
Posts: 141
Quote:
Originally Posted by Jonas Marlowe View Post
wow....diy?
where to buy ?
Its one of the prototypes made aby an polish company. Cost ~300USD.
If you wanna buy similar - contact me under ivamos@wp.pl and i give you contact to the company.
Ivan Mosny is offline   Reply With Quote
Old December 29th, 2016, 04:46 PM   #98
New Boot

Join Date: Oct 2015
Location: Glasgow, Scotland
Posts: 16
Re: xh a1 setup pictures

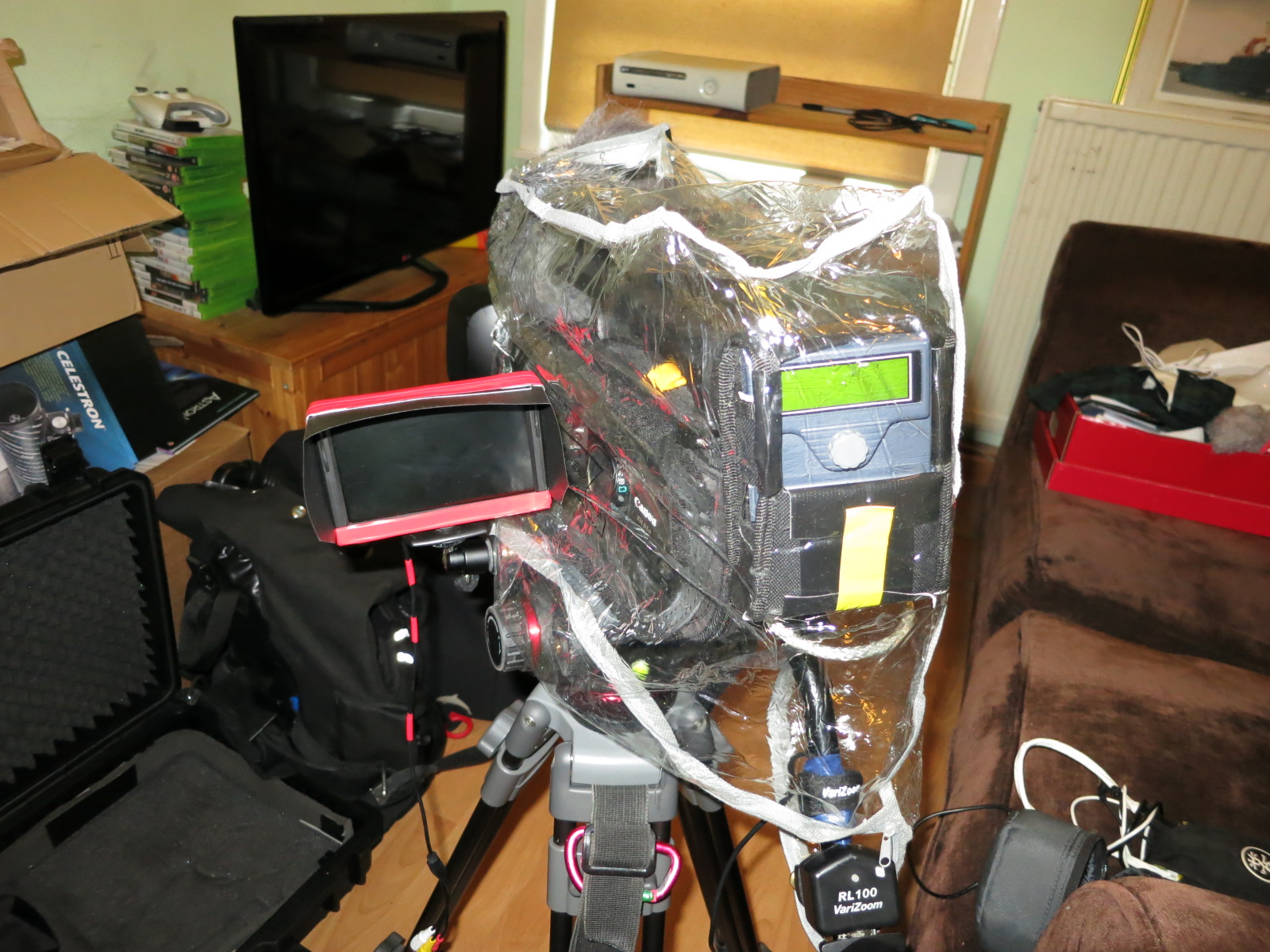

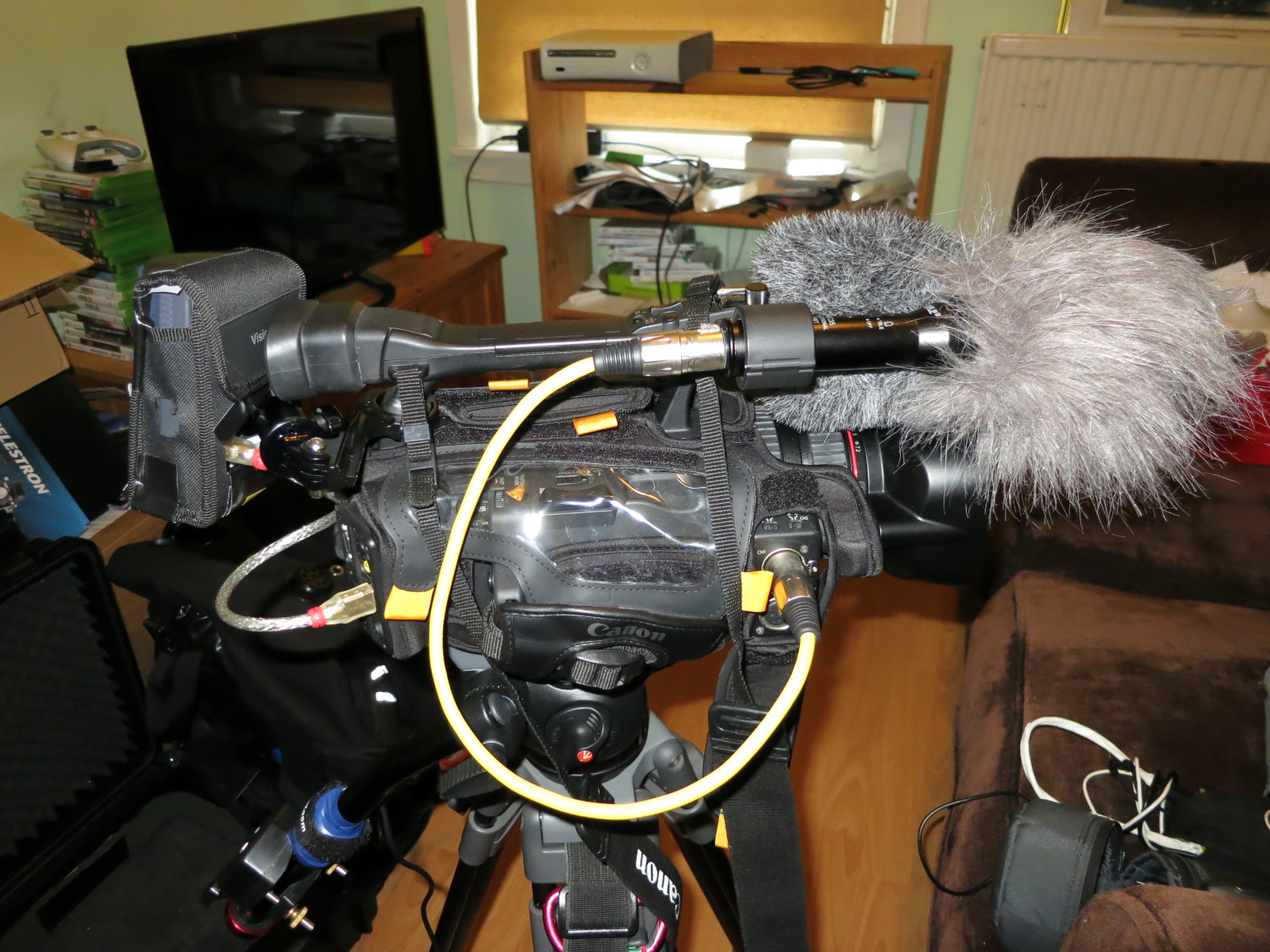

Resurrecting an ancient thread, I thought I'd show you my setup of the XH A1S that I use to shoot professional football in the Scottish Professional Football League (SPFL) for Dumbarton FC.

I don't get paid (although have benefitted from a little bit of sponsorship) so everything is as low budget as possible.

The camera is the XH A1S, recently serviced, and I shoot both tape and to Compact Flash cards using a Datavideo DN60. I bodged together a mount for the DN60 on the rear of the handle, which swings the DN60 out of the way if I need the viewfinder. Because the camera's onboard monitor is small, and shooting through the viewfinder is difficult when following the sometimes fast action, usually shooting from relatively cramped areas, I use a car reversing monitor (which I "weatherized") mounted either on top of the camera's handle, or else on a mount on the side of the tripod (which is Libec T68 legs, and the Manfrotto 502A head). The monitor image obviously isn't HD, but it is in general good enough to help me keep the ball in the frame. Both the monitor and the DN60 are powered using a battery bank which outputs 5V. I use a small shunt between the battery and the monitor to push the voltage up to 12V. The Dn60 works fine with 5V, which means I don't have to worry about power, since the battery life of the XH A1S is incredible, easily a full 90 mins, plus post match interviews etc. and still half full at the end of the day. The rain cape is a plastic bag that a pillow came in which I altered a bit to fit the camera! I also have a fitted cover mostly to protect the controls.
Attached Thumbnails
xh a1 setup pictures-img_1814.jpg   xh a1 setup pictures-img_1810.jpg

David Jenkinson is offline   Reply With Quote
Old January 1st, 2017, 09:44 AM   #99
Wrangler

Join Date: Sep 2001
Location: Northern VA
Posts: 4,293
Re: xh a1 setup pictures

Good to see an older tool still in use!
__________________
dpalomaki@dspalomaki.com
Don Palomaki is offline   Reply With Quote
Old March 28th, 2017, 10:06 AM   #100
New Boot

Join Date: Oct 2013
Location: Greece
Posts: 6
Re: xh a1 setup pictures

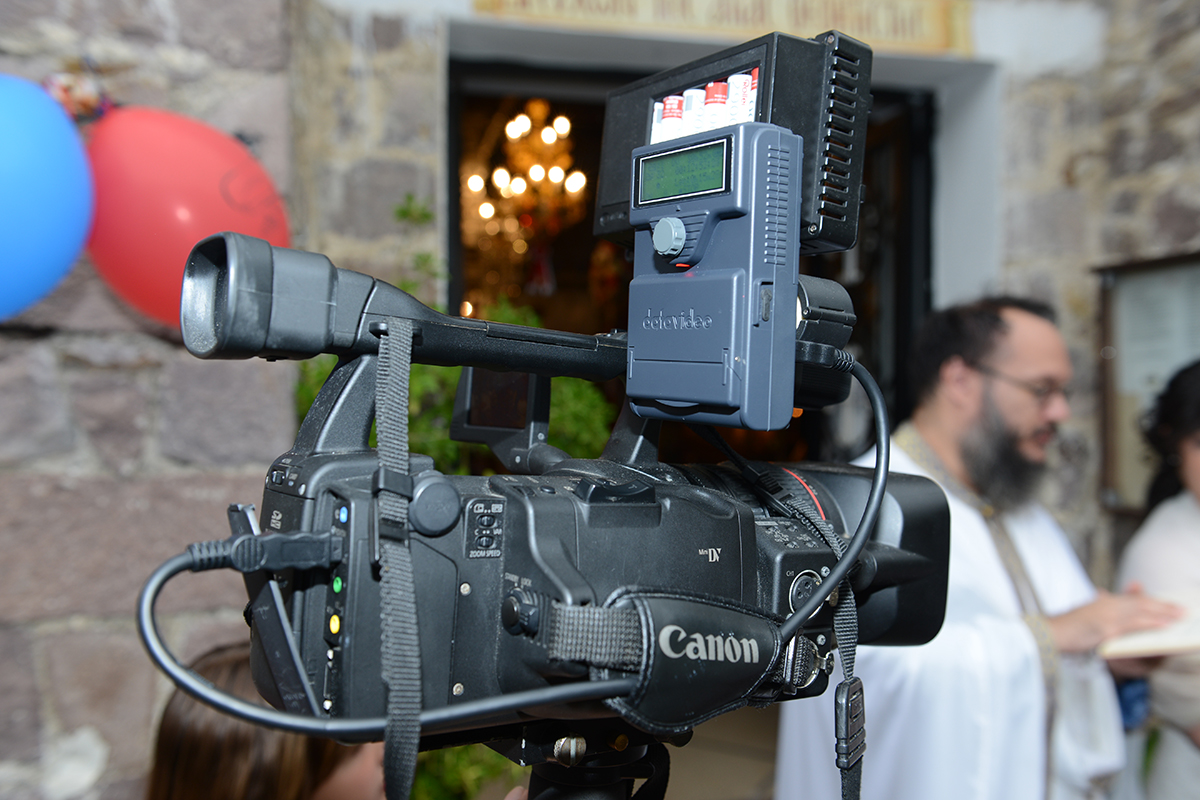

Canon XH A1 and Datavideo dn60a placed in microphone's position
Attached Thumbnails
xh a1 setup pictures-canon-datavideo.jpg
Antonis Doumouzis is offline   Reply
