xh a1 setup pictures

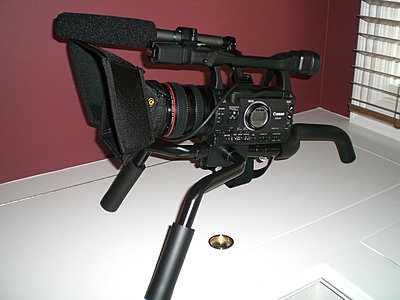

I thought I would start a thread....I looked for previous threads but didnt see any. Anyway I am a new user to the xh a1 as many of us here are so post your xh a1 and show your setup. Ill start it. Thanks to everyone who supports this part of the forum.

Trent


http://farm2.static.flickr.com/1268/...2705ce28_b.jpg

mind my ignorance on how to attach pictures. :)
Attached Thumbnails
xh a1 setup pictures-xha1trenth.jpg
Trent Humphrey is offline   Reply With Quote
Old September 5th, 2007, 11:16 PM   #2
Obstreperous Rex

Join Date: Jan 2001
Location: San Marcos, TX
Posts: 26,900
Images: 513
I attached it for you Trent,
__________________
CH

Search DV Info Net | DV Info Net Sponsors | A Decade (+5) of DVi | ...Tuesday is Soylent Green Day!
Chris Hurd is offline   Reply With Quote
Old September 6th, 2007, 02:52 AM   #3
New Boot

Join Date: Mar 2006
Location: Newbury, UK
Posts: 12
Good Idea Trent, heres mine...
Attached Thumbnails

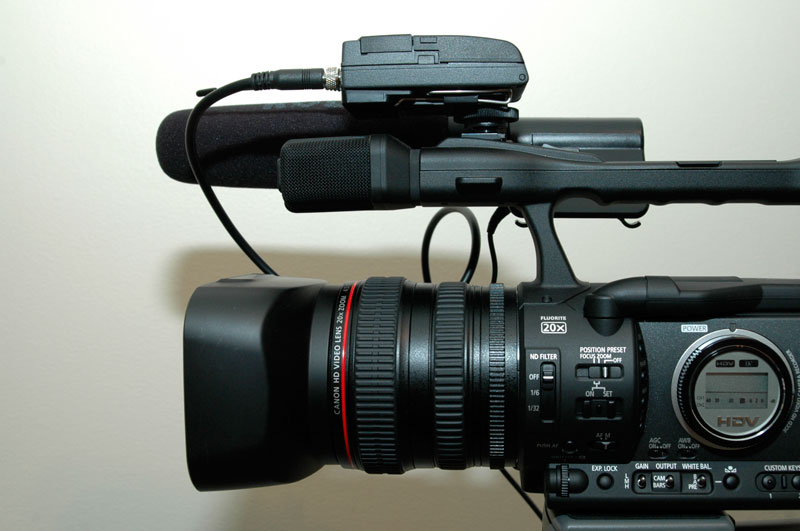

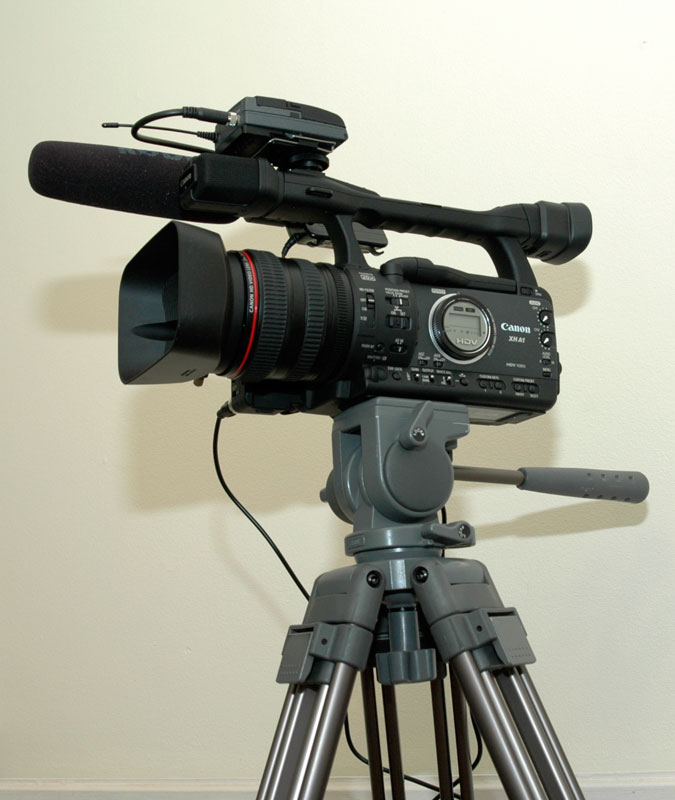

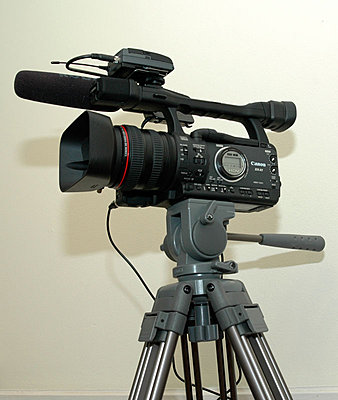

xh a1 setup pictures-xha1-low-shot-.jpg   xh a1 setup pictures-xha1-side-view-.jpg

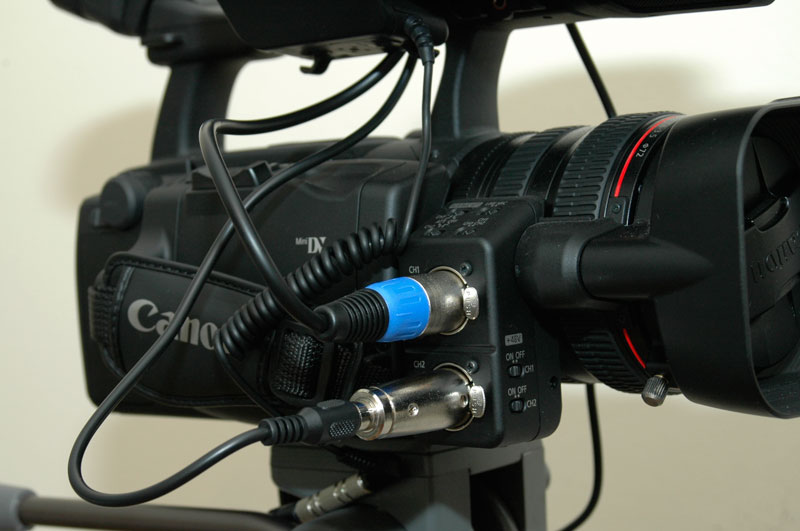

xh a1 setup pictures-xha1-xlr-shot-.jpg
__________________
Nikon D200 + 18-200mm VR Lens / Canon XH-A1 / HV20/ FCS2 / MacBook Pro 2.4
Sean Paterson is offline   Reply With Quote
Old September 6th, 2007, 12:55 PM   #4
Trustee

Join Date: Jun 2006
Location: Burbank
Posts: 1,811
Quote:
Originally Posted by Trent Humphrey View Post
What is the lens shade you have? I haven't seen that before as far I know. Thanks!
Jack Walker is offline   Reply With Quote
Old September 6th, 2007, 01:35 PM   #5
Regular Crew

Join Date: Aug 2007
Location: Louisville KY
Posts: 41
Quote:
Originally Posted by Jack Walker View Post
What is the lens shade you have? I haven't seen that before as far I know. Thanks!
that is from www.cinetactics.com , go there and look at the dv mattlebox. It is made for dv cameras but is suggested for the xha1 over their hd mattlebox. Plus the hd is larger and more expensive. It only barely vignettes at full wide, like a wide angle lens ....but you barely have to zoom in a little to get rid of it, not a problem at all...works great. Plus it might be the fact that I have a UV filter on for protection then the extension ring from cinetactics to mount the soft matte box to. Its a really nice product and great because its soft and easy to transport and setup quickly. I have had it on since I got it unless I need a ton of light.
Trent Humphrey is offline   Reply With Quote
Old September 6th, 2007, 02:43 PM   #6
Major Player

Join Date: Dec 2006
Location: Birmingham Alabama
Posts: 259
What shotgun mics are you guys using?
__________________
"The only thing the camera sees is light..."
http://www.GoWildOlive.com
Doug Davis is offline   Reply With Quote
Old September 6th, 2007, 03:23 PM   #7
Regular Crew

Join Date: Aug 2007
Location: Louisville KY
Posts: 41
audio technica 897 or more refered to as at897. I use it with the lightwave mini mount that connects to my hotshoe. The mount on the xh a1 gives noise when you zoom so I dont like it much. Most likely will remove it before I break it on accident. The shotgun is a very good mic for the price. I would highly recomend it.
Trent Humphrey is offline   Reply With Quote
Old September 6th, 2007, 07:12 PM   #8
Major Player

Join Date: Nov 2002
Posts: 408
Quote:
Originally Posted by Trent Humphrey View Post
audio technica 897 or more refered to as at897. I use it with the lightwave mini mount that connects to my hotshoe. The mount on the xh a1 gives noise when you zoom so I dont like it much. Most likely will remove it before I break it on accident. The shotgun is a very good mic for the price. I would highly recomend it.
If I used a Rode SM-5 shockmount to attach a shotgun to the mic mount, do you think the mic would pick up noise when zooming?
Stephen Sobel is offline   Reply With Quote
Old September 6th, 2007, 09:48 PM   #9
Regular Crew

Join Date: Aug 2007
Location: Louisville KY
Posts: 41
hmm im not sure...it should get rid of it. I think you would be fine. Test it and let us know. Also post your setups people!!!
Trent Humphrey is offline   Reply With Quote
Old September 7th, 2007, 05:13 AM   #10
New Boot

Join Date: Mar 2006
Location: Newbury, UK
Posts: 12
Quote:
Originally Posted by Doug Davis View Post
What shotgun mics are you guys using?
I use Rode VideoMic, detached the rode hotshoe setup and clamped straight onto the XHA1.
Not worried about zoom motor noise, I dont zoom in and out or mess about with the camera setup while filming static shots or interviews etc.
__________________
Nikon D200 + 18-200mm VR Lens / Canon XH-A1 / HV20/ FCS2 / MacBook Pro 2.4
Sean Paterson is offline   Reply With Quote
Old September 7th, 2007, 07:07 AM   #11
Regular Crew

Join Date: Apr 2007
Location: Amersfoort, Netherlands
Posts: 85
I use the Rode SM-5 shock mount, it removed any zoom noise and more important, sounds of my hand touching the camera. That's with the Rode NTG-2.
Winfried Dobbe is offline   Reply With Quote
Old September 7th, 2007, 07:28 AM   #12
Major Player

Join Date: Nov 2004
Location: Winter Park, FL
Posts: 978

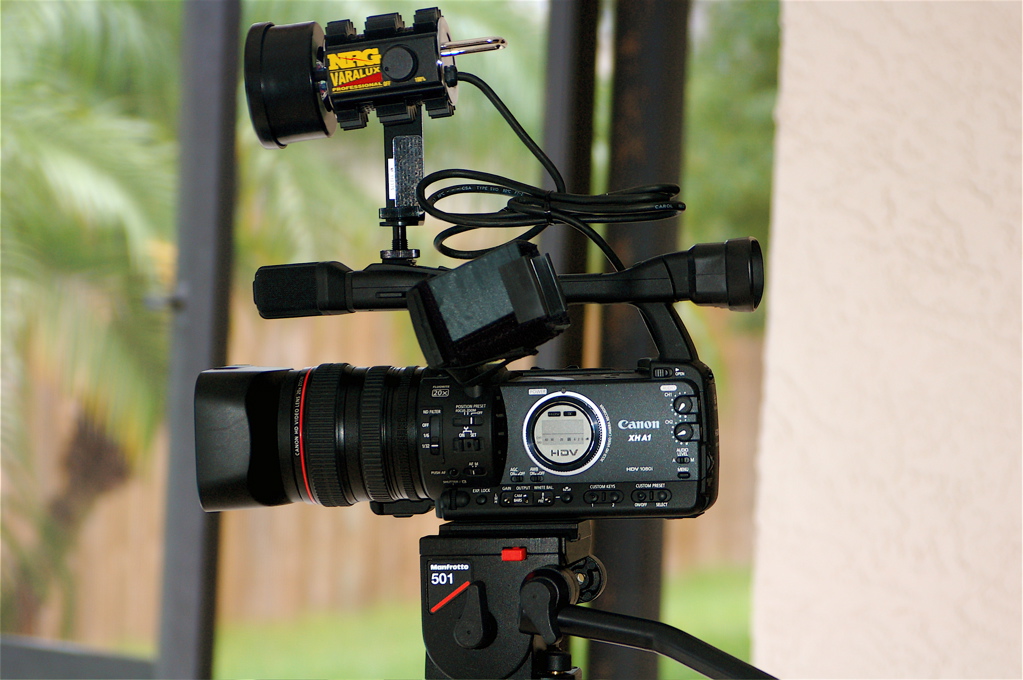

One of my setups when I was going out to film later at night. Ill have to post one from tonight of when I am streaming a soccer game which is pretty fun.
Attached Thumbnails
xh a1 setup pictures-a1_setup.jpg
__________________
Simple Thought Productions - Life @ 30,000 Words per second
Josh Chesarek is offline   Reply With Quote
Old September 8th, 2007, 02:44 AM   #13
Major Player

Join Date: Jul 2007
Location: Gainesville, VA, USA
Posts: 327
It would be nice if you guys mentioned at the other gizmos visible in your photos and whys, so us newbees can understand.

I for one use just the camera, along with an Audio-Technica AT831B Lavaliere Condenser Microphone when I need audio.
Shiv Kumar is offline   Reply With Quote
Old September 13th, 2007, 07:09 AM   #14
Regular Crew

Join Date: May 2007
Location: New York, NY
Posts: 30

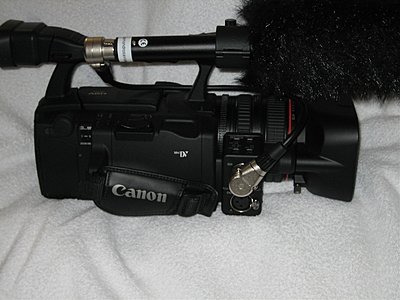

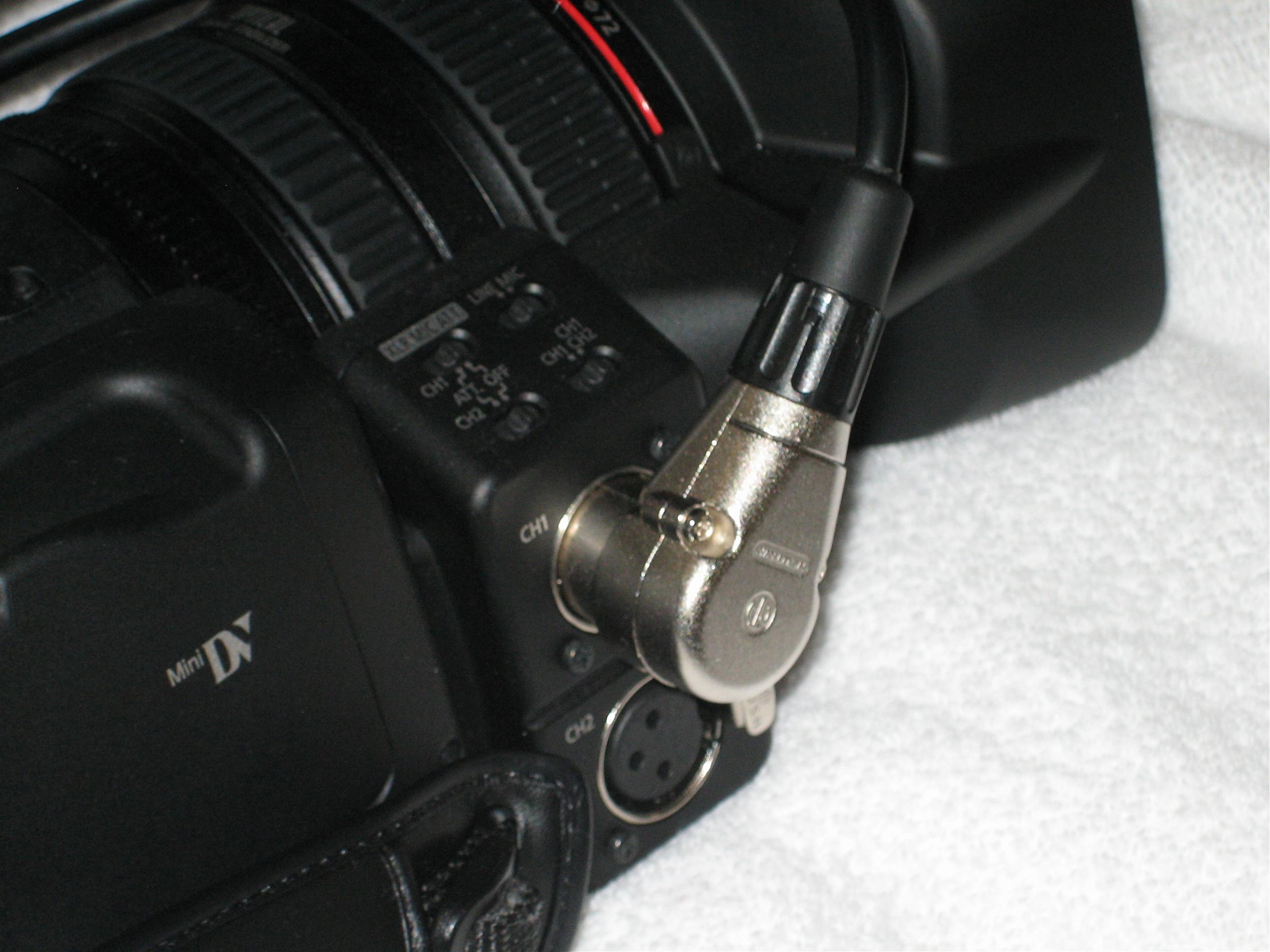

I soldered up this right angle-right angle cable to make my life easier. I no longer need to disconnect the shotgun mic (ME66/Windcutter) to put the cam in the bag. It saves wear and tear on the CH-1 XLR connector as well.
Attached Thumbnails
xh a1 setup pictures-img_1889.jpg   xh a1 setup pictures-img_1890.jpg

__________________
Glen Johnstone
Glen Johnstone is offline   Reply With Quote
Old September 17th, 2007, 04:03 PM   #15
Regular Crew

Join Date: Feb 2007
Location: Portland, Oregon
Posts: 37
Does the Cinetactics Matteblox block out the auto focus assist sensor on the A1? Looks like it would.
