Old April 17th, 2008, 01:07 PM   #1
Regular Crew

Join Date: Mar 2008
Location: Vancouver Canada
Posts: 28
Still photos?

Forgive me ahead of time for asking this, but how the heck do I grab a still from a video I shot in HD, and keep it in high resolution as a jpeg? Whenever I save the snapshot to my directory, it gives me a 480x270 jpeg image, and nothing better than that. I hope I'm missing something obvious.

Thanks.
Brett Daly is offline   Reply With Quote
Old April 17th, 2008, 01:49 PM   #2
Obstreperous Rex

Join Date: Jan 2001
Location: San Marcos, TX
Posts: 26,900
Images: 513
See page 113 of the operator's manual, under "Capturing a still image from a tape." See page 110 for instructions on setting the size of the recorded still image.
__________________
CH

Search DV Info Net | DV Info Net Sponsors | A Decade (+5) of DVi | ...Tuesday is Soylent Green Day!
Chris Hurd is offline   Reply With Quote
Old April 17th, 2008, 02:19 PM   #3
Regular Crew

Join Date: Mar 2008
Location: Vancouver Canada
Posts: 28
Hi Chris,

I did read through these pages originally, and I've got the still photos on my memory card in 1920x1080 resolution, but when I capture into Sony Vegas and save the picture, it saves it as a 480x270 jpeg. I'm new to all of this capturing stuff, and I just can't figure out how to save the photo simply as a jpeg in my computer at that resolution. Do I even need to go through the Vegas software?

Thanks.
Brett Daly is offline   Reply With Quote
Old April 17th, 2008, 02:40 PM   #4
Obstreperous Rex

Join Date: Jan 2001
Location: San Marcos, TX
Posts: 26,900
Images: 513
Hi Brett, if you know that you have 1920x1080 still images recorded to the memory card, take the memory card out of the camcorder and insert it into an SD memory card reader (widely available at your local electronics store for $10 to $20). Connect the card reader to your computer via USB cable (some of the more expensive card readers are FireWire, but USB is all you need). Copy the photo files to an image folder on your computer and open in your image viewing / image editing program.

If Vegas isn't importing these images at full size, then that's a configuration question for our Vegas forum. Try asking there if you need further assistance: http://www.dvinfo.net/conf/forumdisplay.php?f=54
__________________
CH

Search DV Info Net | DV Info Net Sponsors | A Decade (+5) of DVi | ...Tuesday is Soylent Green Day!
Chris Hurd is offline   Reply With Quote
Old April 17th, 2008, 02:54 PM   #5
Regular Crew

Join Date: Mar 2008
Location: Vancouver Canada
Posts: 28
Thanks a lot for the card reader information Chris, as it will probably solve my issue. But I'll also ask in the Vegas forum just to find out if there is a way to do it through that software as well.

Thanks for your help.
Brett Daly is offline   Reply With Quote
Old April 17th, 2008, 04:14 PM   #6
Major Player

Join Date: Oct 2007
Location: Rotterdam, Netherlands
Posts: 246

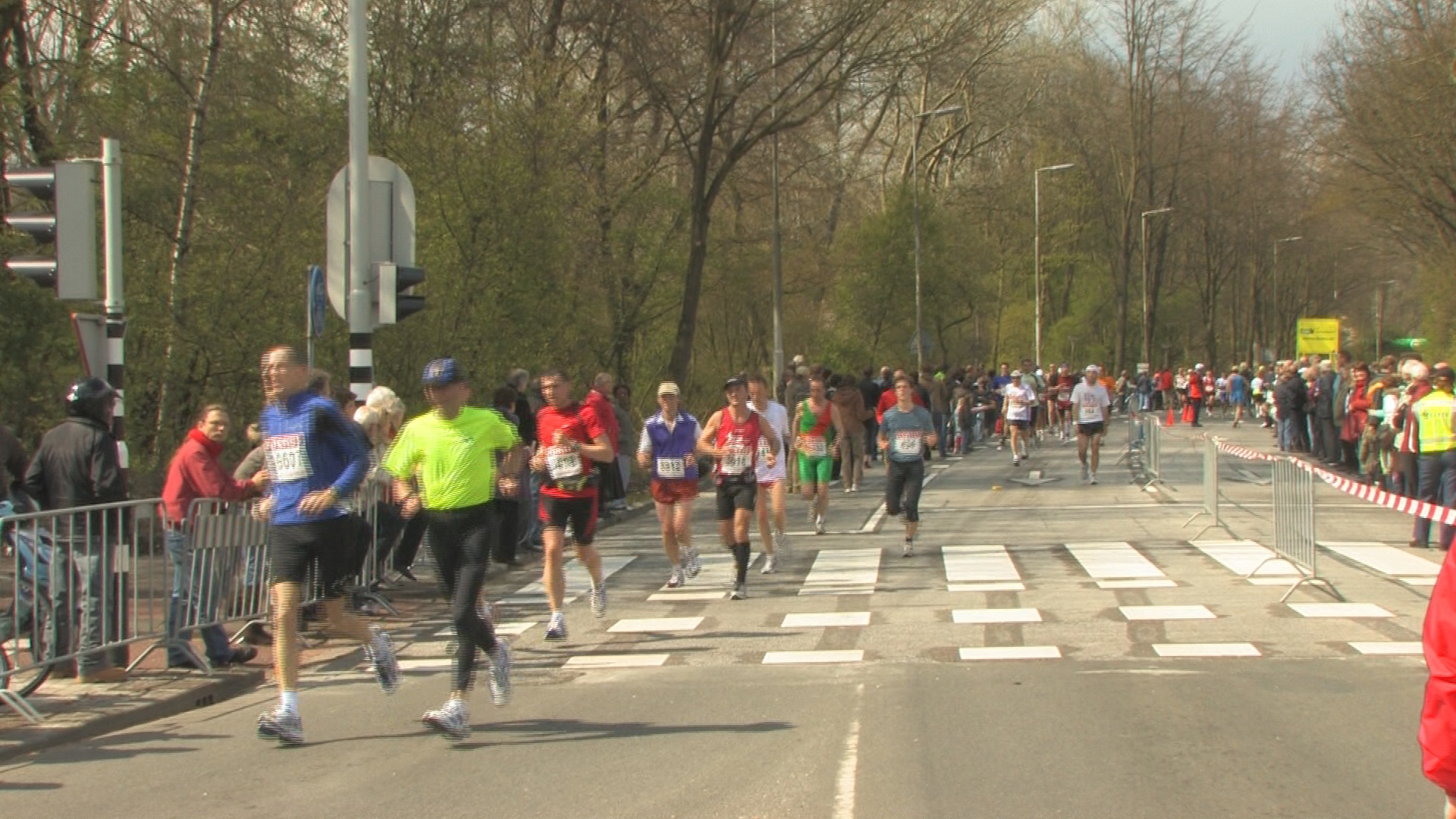

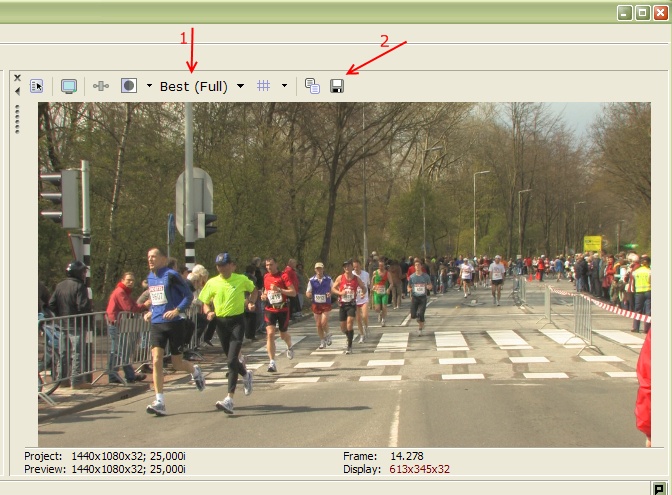

When you capture your HD video in Vegas you can grab a still with the disk button that's above your preview screen. First set the preview resolution to Best - Full then click the disk button and save the still as .jpg. In the accompagnying example I took a still from the footage I shot last weekend of the Marathon in Rotterdam. As you can see the image is 1920 x 1080.
Attached Thumbnails
Still photos?-vegas-still.jpg   Still photos?-marathon-hd-still.jpg

__________________
www.cvd-video.nl
Kees van Duijvenbode is offline   Reply With Quote
Old April 17th, 2008, 05:04 PM   #7
Regular Crew

Join Date: Mar 2008
Location: Vancouver Canada
Posts: 28
Thanks Kees. I posted my question in the Vegas forum as well and that's exactly what it was. I just had to change the preview screen to best (full) before taking the snapshot.

This is a great site, with lots of helpful advice. :)
Brett Daly is offline   Reply
