Short, double right angled XLR

Hi there.

I can't seem to find a super short right angled (both ends) 3 pin XLR cable. Is it a figment of my imagination?

And by super short I was thinking a 30 cm one would be fine for the A1 to mic? Is that appropriate?

I'm happy to "make my own" if that's the only option. Although wil have to scavenge the tinternet for direction on that. Surely it's as easy as changing a plug... *she hopes*

And... although it almost deserves it's own thread: TAH DAH: I got my A1s today. Yes. Yes. I am very proud. Thank you all. Just need to wait for all the bits and bobs to arrive!
Ayesha Khan is offline   Reply With Quote
Old March 28th, 2009, 11:52 AM   #2
Regular Crew

Join Date: Oct 2006
Location: Netherlands
Posts: 177
Just like i have, search for a mic-cable seller in your city, or do it yourself.

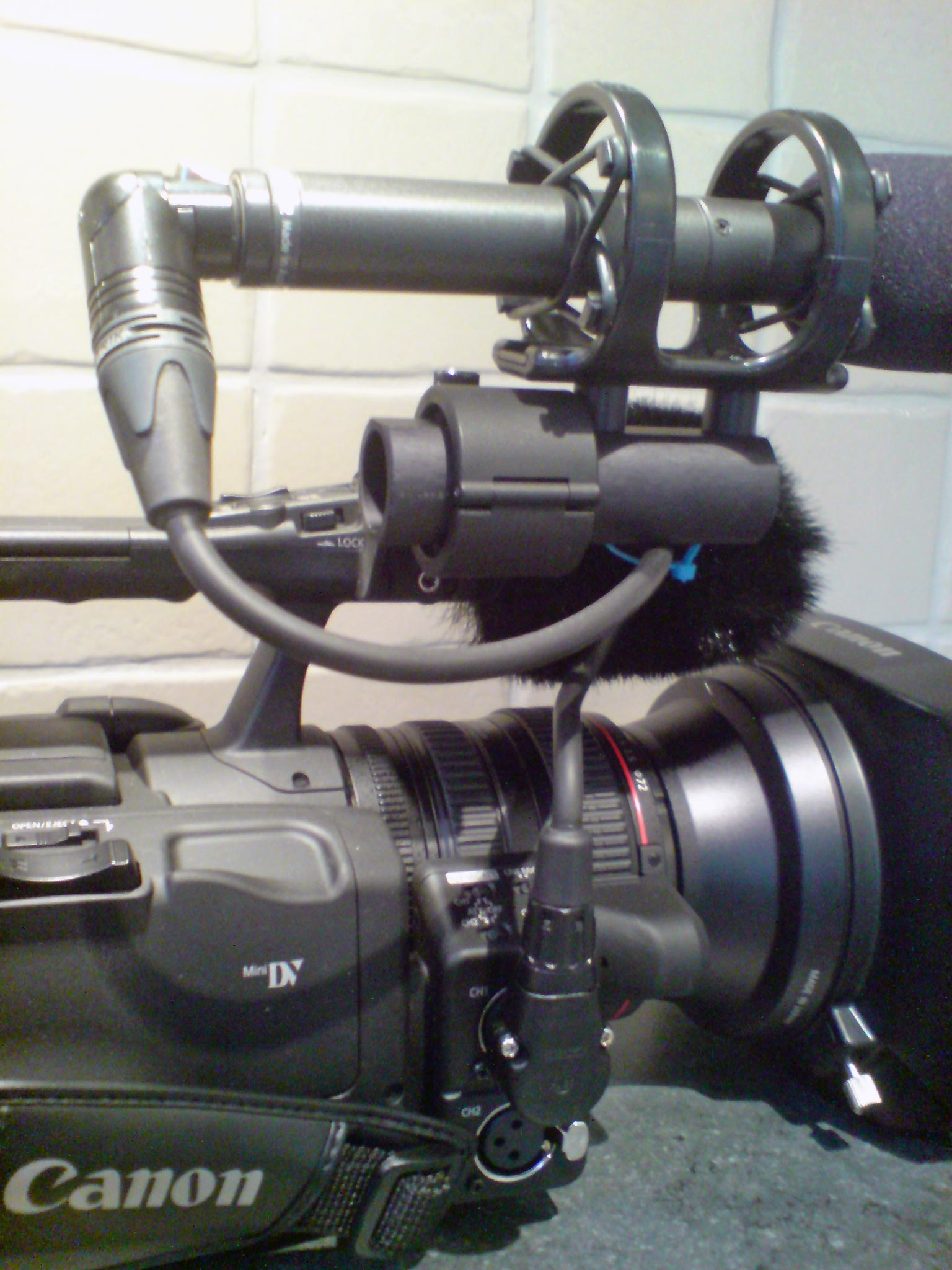

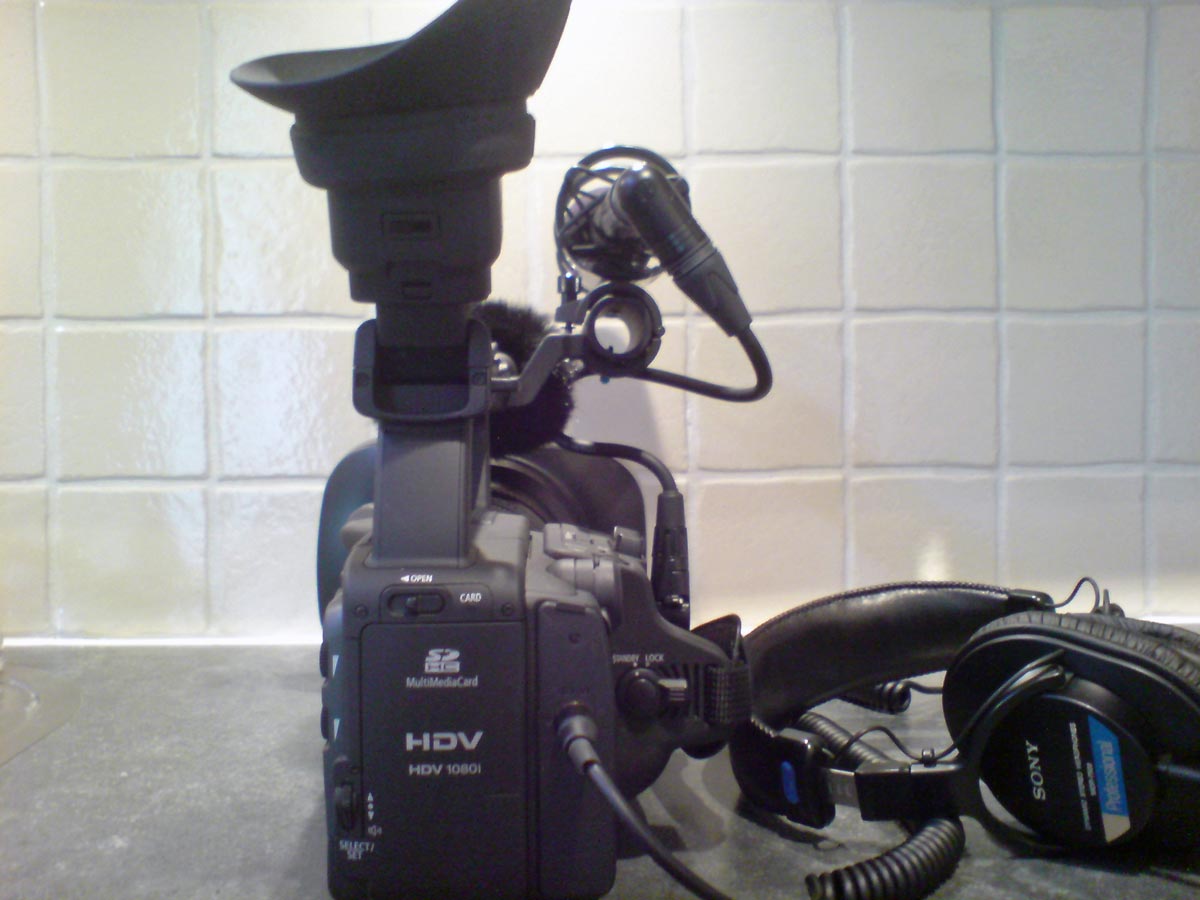

I'm not good at it, so the seller did it for me. 2 neutrik right-angle connectors and 30cm cable.
Perfect!
This is with a Rode SM5/NTG-2
Attached Thumbnails
Short, double right angled XLR-xlr1.jpg   Short, double right angled XLR-xlr2.jpg

Hubert Duijzer is offline   Reply With Quote
Old March 28th, 2009, 02:32 PM   #3
Contributor

Join Date: Jan 2003
Location: Kansas City, MO
Posts: 4,449
Does that connector rotate so it goes up instead of out to the right on the camera end?
Bill Pryor is offline   Reply With Quote
Old March 28th, 2009, 02:38 PM   #4
Regular Crew

Join Date: Oct 2006
Location: Netherlands
Posts: 177
You can turn the right angle connectors 90 degrees to the left or 90 degrees to the right. Or up and down in this case.
Actually the guy who made the cable for me misunderstood me and put that connector down, but it is easy to turn by yourself. You can find the instructions in the pdf.
Attached Files
File Type: pdf XLR_Cable_Connector_-_RX_Serie.pdf (355.9 KB, 224 views)
Hubert Duijzer is offline   Reply With Quote
Old March 28th, 2009, 05:17 PM   #5
Major Player

Join Date: Dec 2006
Location: Los Angeles, CA
Posts: 959
I just gotta get me a couple of those.
Bill Busby is offline   Reply With Quote
Old March 28th, 2009, 08:34 PM   #6
Major Player

Join Date: Jun 2007
Location: Hamilton Ontario
Posts: 769
Hubert........
What the???

Did you drill a hole through your cover plate??

I didn't realize that you headphones could connect without removing the protector???
Great idea..
Peter Manojlovic is offline   Reply With Quote
Old March 28th, 2009, 09:35 PM   #7
Wrangler

Join Date: Jul 2002
Location: Makati, Metro Manila
Posts: 2,706
Images: 32
Quote:
Originally Posted by Ayesha Khan View Post
I can't seem to find a super short right angled (both ends) 3 pin XLR cable. Is it a figment of my imagination?
It seems like such a simple thing, but I had to custom order it. Congrats on the new cam.
__________________
"Ultimately, the most extraordinary thing, in a frame, is a human being." - Martin Scorsese
Michael Wisniewski is offline   Reply With Quote
Old March 28th, 2009, 09:44 PM   #8
Inner Circle

Join Date: Sep 2002
Location: San Mateo, CA
Posts: 3,840
"Search" is your friend.

http://www.dvinfo.net/conf/all-thing...lr-cables.html

Some good links in that thread.
Richard Alvarez is offline   Reply With Quote
Old March 29th, 2009, 01:56 PM   #9
Major Player

Join Date: Nov 2006
Location: Northern New Jersey
Posts: 391
Remote Audio | 3-Pin XLR Angled Male to XLR | REM CAXJ12RTMF

?
Dave Stern is offline   Reply With Quote
Old March 30th, 2009, 04:13 AM   #10
Regular Crew

Join Date: Oct 2006
Location: Netherlands
Posts: 177
That's the one Dave, only in europe i couldn't find one.

@Peter, yes i did drill a 10mm hole. I didn't like the cover hanging around when using headphones. It isn't my idea, as almost everything, i learned it from someone here.

@Richard, i see i did upload a picture in that thread too, totally forgot about that... I was thinking, hmm looks exactly likes mine, until i saw my name. I have really spend too much time around the internet.
Hubert Duijzer is offline   Reply With Quote
Old March 30th, 2009, 06:18 AM   #11
Major Player

Join Date: May 2006
Location: Nashville, TN
Posts: 253
A company called Redco in the States does great with custom cables and will let you pick everything. A friend of mine just ordered from Israel and is very pleased.
__________________
Jon Bufkin
focalpointcinematic.com
Jonathan Bufkin is offline   Reply With Quote
Old March 31st, 2009, 11:30 AM   #12
Trustee

Join Date: Nov 2008
Location: Miami, FL USA
Posts: 1,483
Quote:
Originally Posted by Peter Manojlovic View Post
Hubert........
What the???

Did you drill a hole through your cover plate??

I didn't realize that you headphones could connect without removing the protector???
Great idea..
I did the job on my cam with an Exacto knife in about two minutes..../Battle Vaughan/Miamiherald.com video team
Battle Vaughan is offline   Reply With Quote
Old April 7th, 2009, 09:42 AM   #13
Regular Crew

Join Date: Mar 2009
Location: london, england
Posts: 50
Just wanted to add that I managed to get a cable made up EXACTLY how I wanted for 12 quid from Sound & Lighting Hire in Edinburgh Glasgow Scotland The Warehouse with 3.50 postage plus VAT coming to just under 18 quid.

The guy was really helpful and he said it may take up to four or five days but managed to get it delivered NEXT DAY when I ordered quite late in the working day yesterday. I was really quite surprised when it showed up.

I have no affiliation with the company and may have paid more than making it myself but I thought I should mention it as its a UK based company (in Glasgow) and I'm sure people will need it in the future. Speedy friendly service and all that.

Also Cadence Cable Systems - Pro Audio Cables called me back but I had already ordered. I think they also may make cables up too. Don't know though.

Thanks for your replies. I had gone through search but obviously either with the wrong phrase or not checking all the threads properly. Thanks for the link though!
