LCD Screen Shade

Can anyone recommend one that fits well? I've tried a bellows type of screen shade that attaches with a velcro strip. However, this is placed right in the middle, just where the A1 LCD goes into it's funny shape so it ends up not fitting tight unless you fit it slightly off centre but then you dont see all the screen.

Gareth
Gareth Trezise is offline   Reply With Quote
Old January 30th, 2007, 02:23 AM   #2
Old Boot

Join Date: Aug 2002
Location: London UK
Posts: 3,528
Quote:
Originally Posted by Gareth Trezise
However, this is placed right in the middle, just where the A1 LCD goes into it's funny shape so it ends up not fitting tight unless you fit it slightly off centre but then you dont see all the screen.

Gareth

Gareth, I saw this issue coming up from the outset. I don't own the camera, but would dearly love to. Oh yes! And yes, interesting to hear how other users have clobbered this one.
Graham Bernard is offline   Reply With Quote
Old January 30th, 2007, 05:49 AM   #3
Major Player

Join Date: Aug 2004
Location: Snellville, Georgia
Posts: 614
I've got this and it works pretty well:
http://www.bhphotovideo.com/bnh/cont...ughType=search

A couple of bucks cheaper without the glass:
http://www.bhphotovideo.com/bnh/cont...ughType=search

The design only uses one strap across the back of the LCD housing, so the non-standard shape on the left of the housing doesn't interact with the device at all.

I wouldn't jump out of a plane with it, but it fits fairly snuggly (did I just say "snuggly"?).
__________________
www.philipwilliams.com
Philip Williams is offline   Reply With Quote
Old January 30th, 2007, 06:15 AM   #4
Regular Crew

Join Date: Feb 2003
Location: UK
Posts: 83
LCD Screen Shade for XH-A1

Hi Philip,

So the velcro strap goes accross the back of the LCD? Any photos I can find of this Hoodman suggests it goes down the middle of the screenshade.

Great if it does go accross the back. Could you post a picture of your setup please?

Gareth
Gareth Trezise is offline   Reply With Quote
Old January 30th, 2007, 06:20 AM   #5
Major Player

Join Date: Aug 2004
Location: Snellville, Georgia
Posts: 614
Quote:
Originally Posted by Gareth Trezise
Hi Philip,

So the velcro strap goes accross the back of the LCD? Any photos I can find of this Hoodman suggests it goes down the middle of the screenshade.

Great if it does go accross the back. Could you post a picture of your setup please?

Gareth
I don't have a picture of my rig but I could probably whip something up tomorrow night if it would help.

In the meantime, check out the second B&H link I provided. That's got a pretty good image of how it works. Its literally a square hood that sits on the LCD frame and has a single strap that gets stretched over the backside of the LCD housing. It looks like it wouldn't hold very well with just the one strap, but its not too bad. You can definitely move the camera around and not have to worry about it.
__________________
www.philipwilliams.com
Philip Williams is offline   Reply With Quote
Old January 30th, 2007, 06:48 AM   #6
Regular Crew

Join Date: Feb 2003
Location: UK
Posts: 83
With the one you have got you can see the whole LCD screen? No gaps for light to get through? Not wonky? Sounds good.

Yes please, look forward to seeing some pictures. Much appreciated.

Gareth
Gareth Trezise is offline   Reply With Quote
Old January 30th, 2007, 12:24 PM   #7
Old Boot

Join Date: Aug 2002
Location: London UK
Posts: 3,528
OK, I've got one for my XM2. BUT, the lens, which gives it rigidity, also gives me internal reflections. which if used where there is lots of bouncing light, is very distracting.
Graham Bernard is offline   Reply With Quote
Old January 30th, 2007, 01:11 PM   #8
Regular Crew

Join Date: Feb 2003
Location: UK
Posts: 83
Quote:
Originally Posted by Graham Bernard
OK, I've got one for my XM2. BUT, the lens, which gives it rigidity, also gives me internal reflections. which if used where there is lots of bouncing light, is very distracting.
Yeah, the lens thing woudn't interest me much. I just want something that will tightly fit the weird shape of the A1 LCD and enable you still to see all of it. Looking forward to seeing Philip's pictures. If it works I shall buy one.

Gareth
Gareth Trezise is offline   Reply With Quote
Old January 30th, 2007, 03:44 PM   #9
Regular Crew

Join Date: Apr 2006
Location: New York, NY, United States
Posts: 30
Philip, do you find the lense useful at all?
Richard Adams is offline   Reply With Quote
Old January 30th, 2007, 08:51 PM   #10
Major Player

Join Date: Aug 2004
Location: Snellville, Georgia
Posts: 614
I'm not sure about the lens yet, haven't used it for any real shooting yet.

I'd recommend maybe searching the forum or hitting one of the more general video forums here and asking for feedback. I'm sure there's got to be some users at dvinfo that have used a hoodman with and without the lens.
__________________
www.philipwilliams.com
Philip Williams is offline   Reply With Quote
Old January 30th, 2007, 10:19 PM   #11
Major Player

Join Date: Jul 2006
Location: Olathe, Kansas
Posts: 309
Hi Gareth,

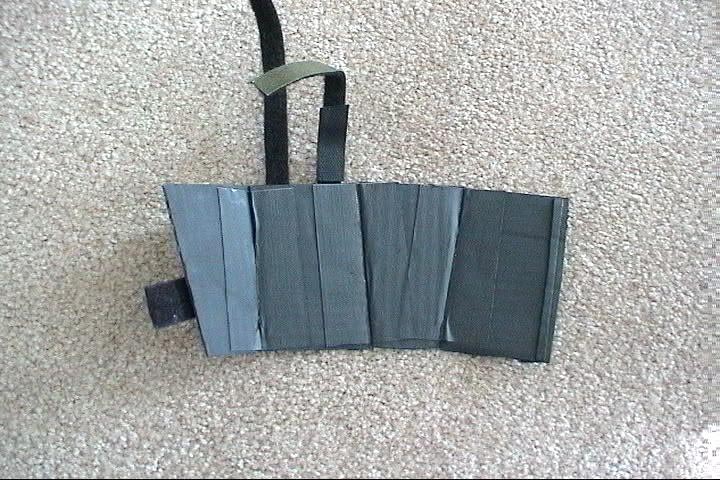

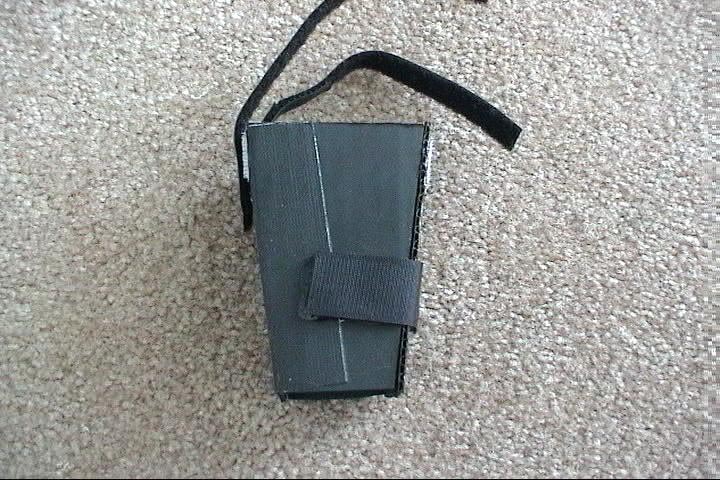

I've made my own LCD Hoods for each of my 4 Cams and my 4 LCD Monitors too.

Even have one made with the Magnifier Lens.

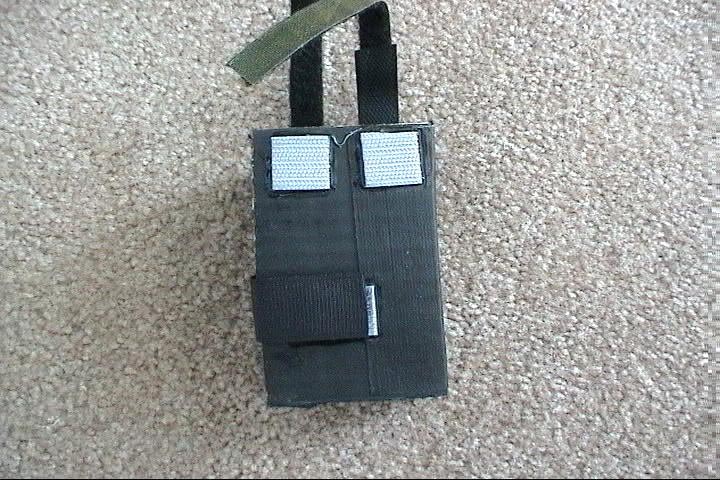

Some plastic from a VHS Hard case or stiff thin cardboard, Duct Tape, glue or silicone, Flat black paint, and some Velcro - Wa-La DIY LCD Hood.

Here is a sample of one of them.

Harold
Attached Thumbnails
LCD Screen Shade-foldinghood.jpg   LCD Screen Shade-foldinghood2.jpg

LCD Screen Shade-foldinghood3.jpg
Harold Schreiber is offline   Reply With Quote
Old January 31st, 2007, 06:03 AM   #12
Major Player

Join Date: Aug 2004
Location: Snellville, Georgia
Posts: 614
That's pretty slick Harold.

But what's this "VHS" thing you're talking about? :)
__________________
www.philipwilliams.com
Philip Williams is offline   Reply With Quote
Old January 31st, 2007, 12:14 PM   #13
Major Player

Join Date: Jul 2006
Location: Olathe, Kansas
Posts: 309
Hi Philip,

I've got a ton of VHS/SVHS Hard Plastic type cases and some softer black opaque plastic Covers. These plastic types are pliable enough to be used for many uses.

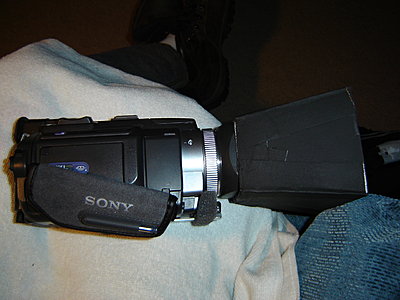

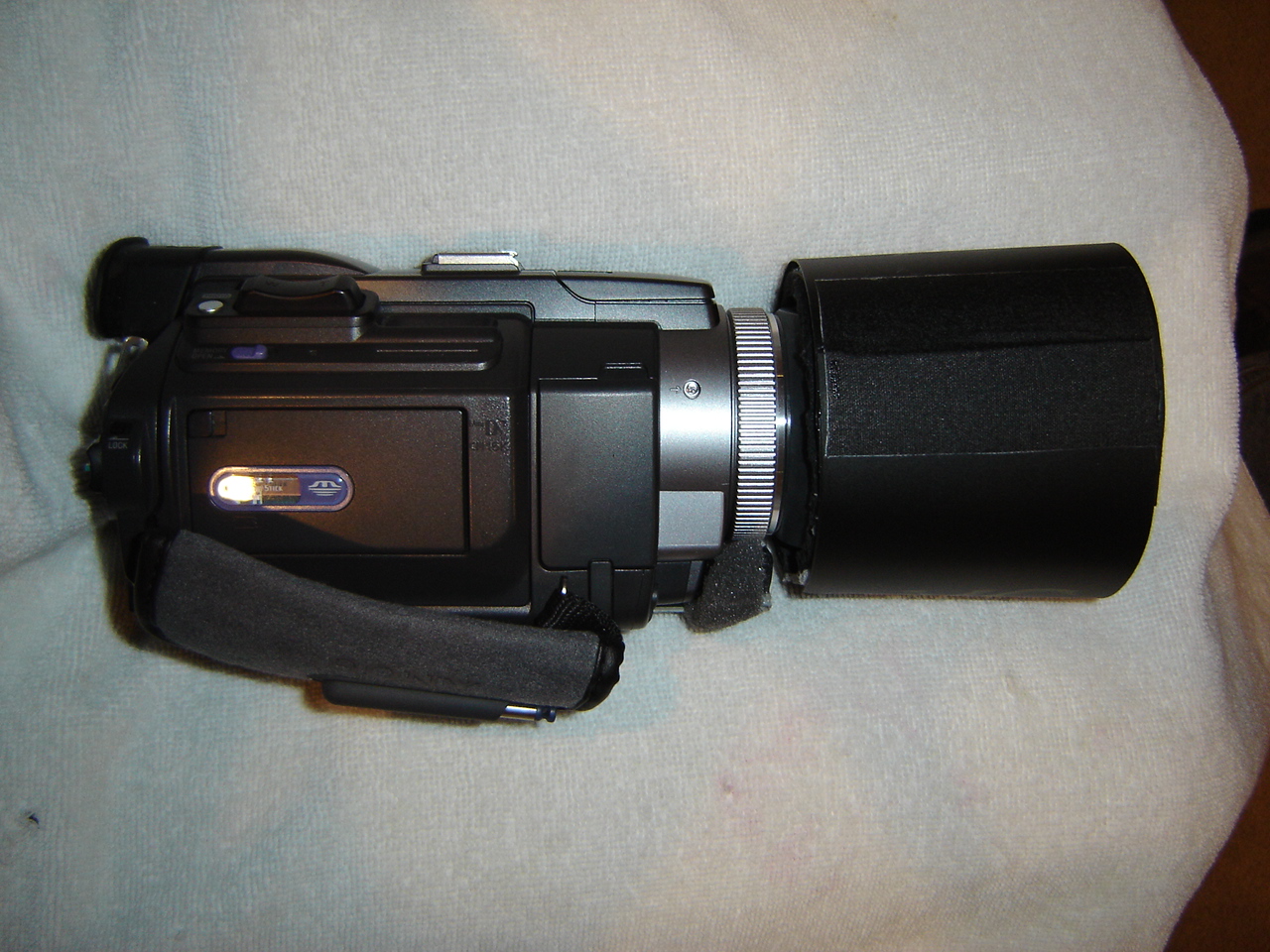

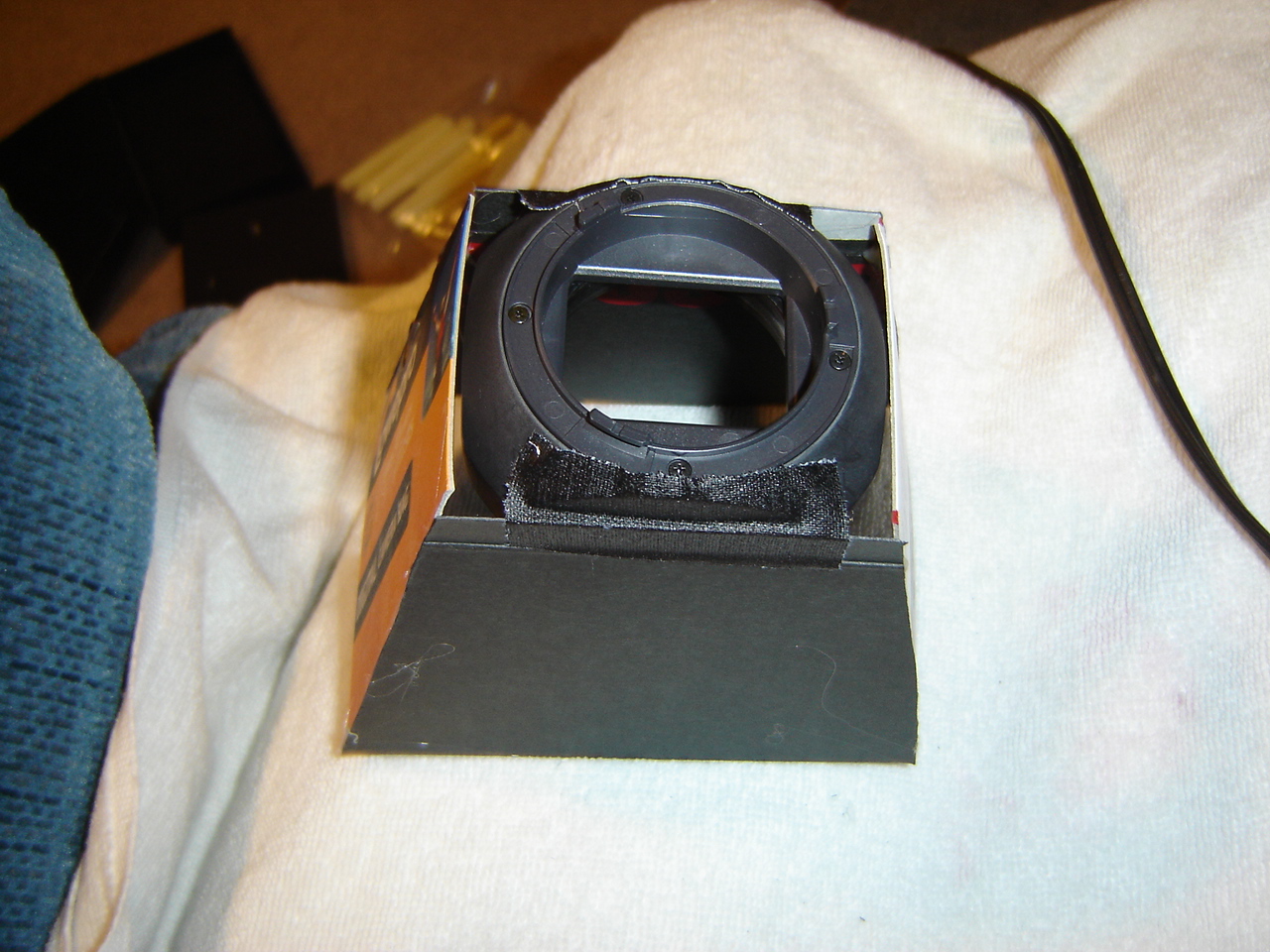

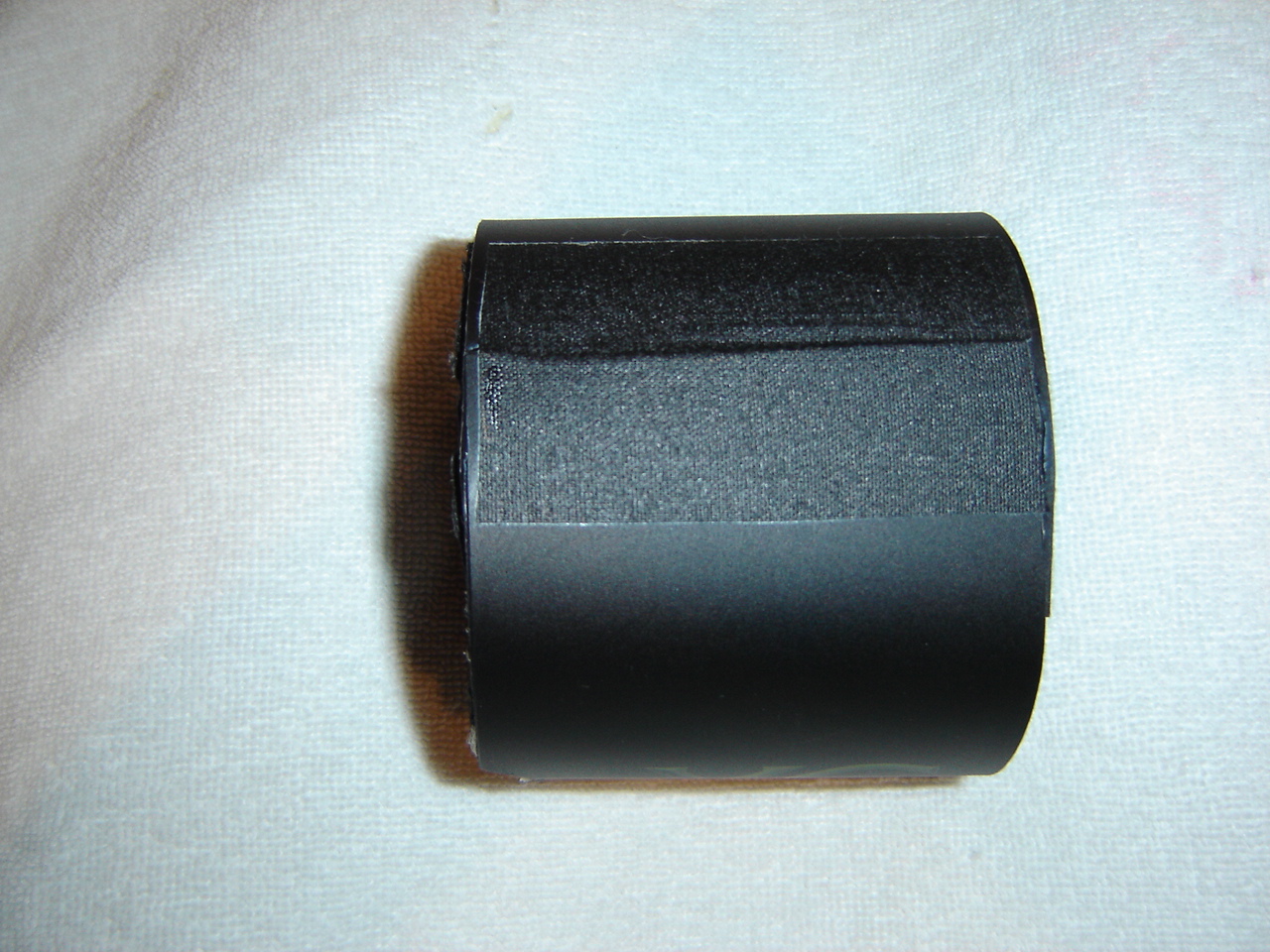

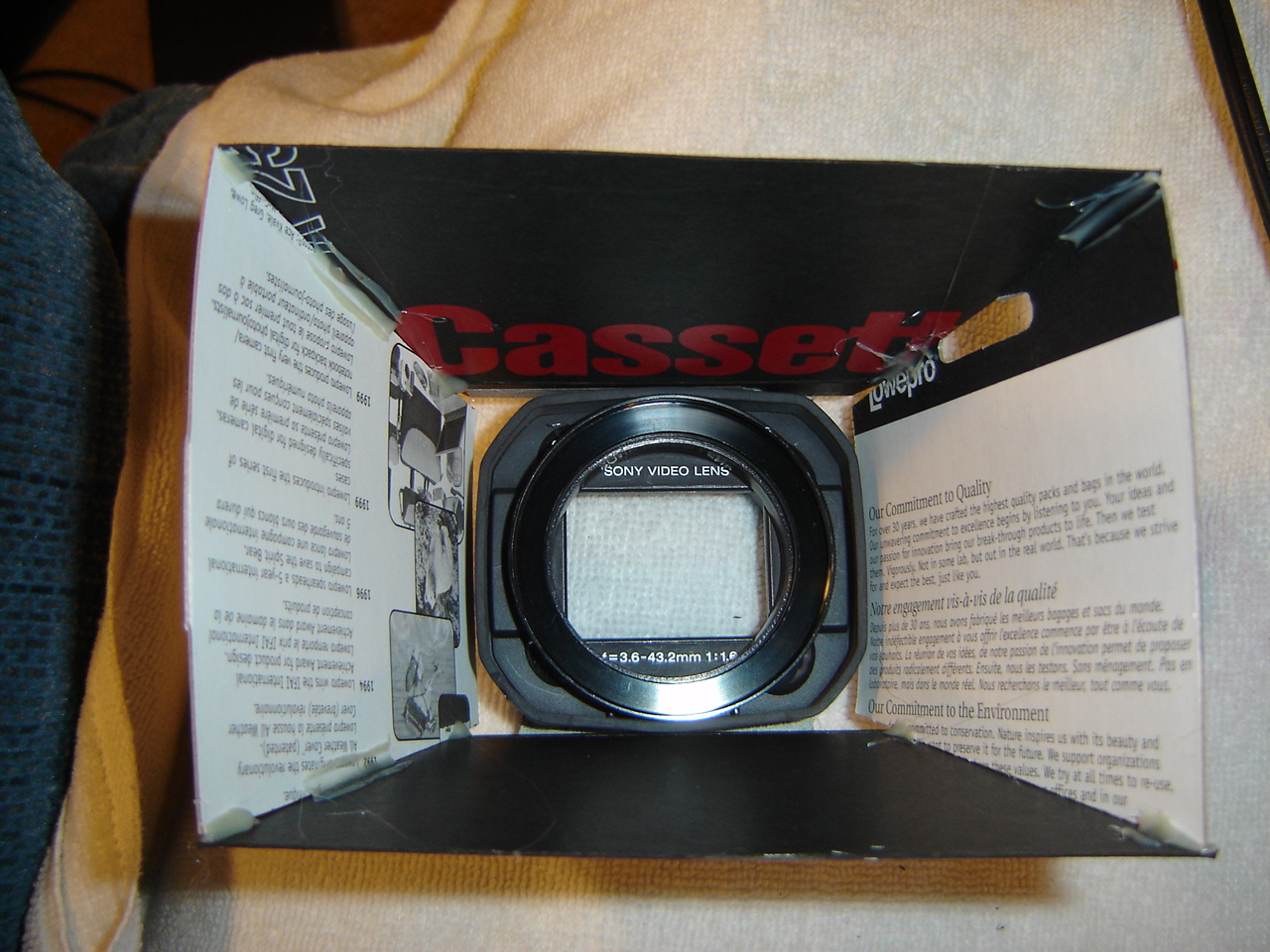

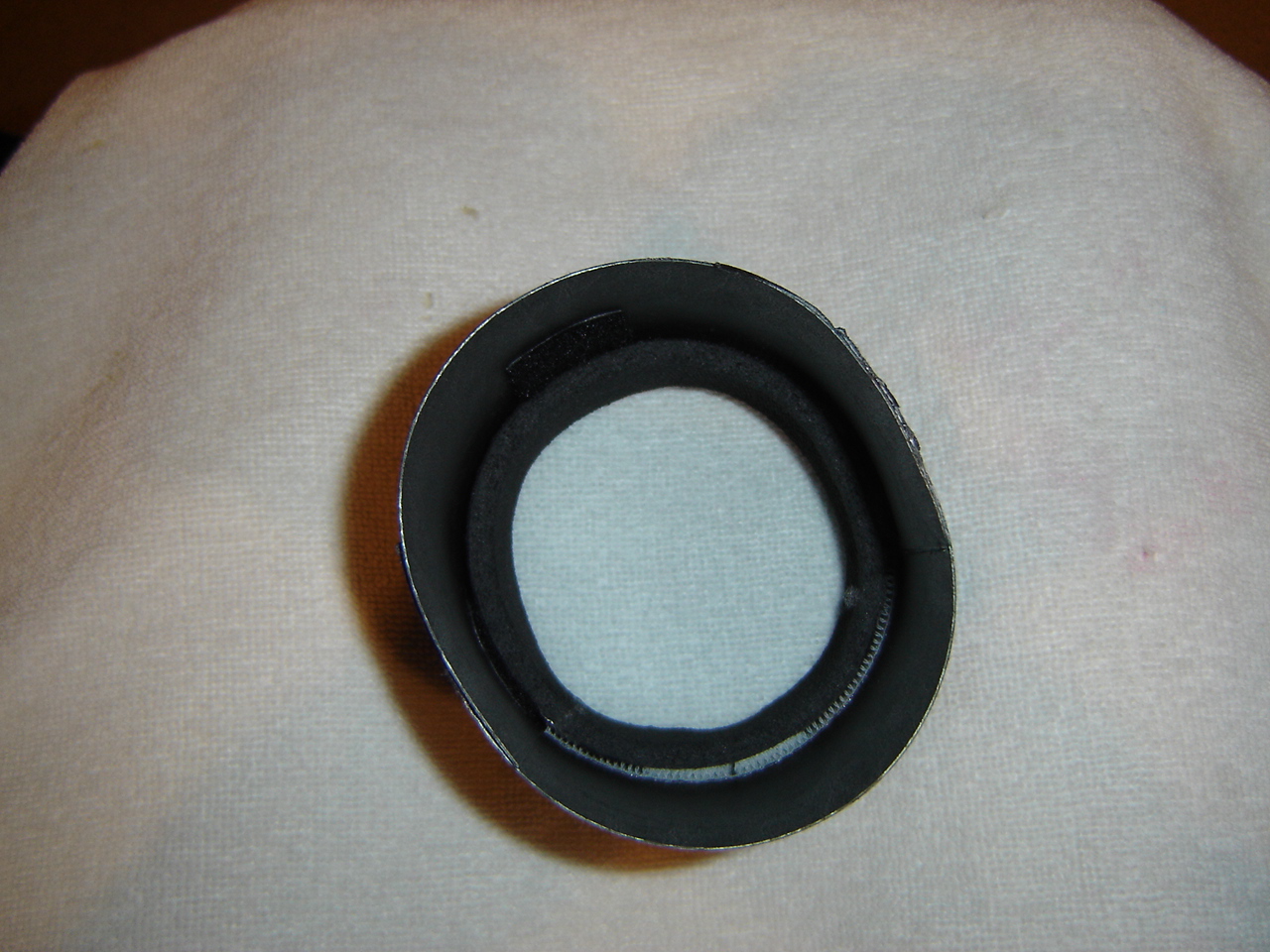

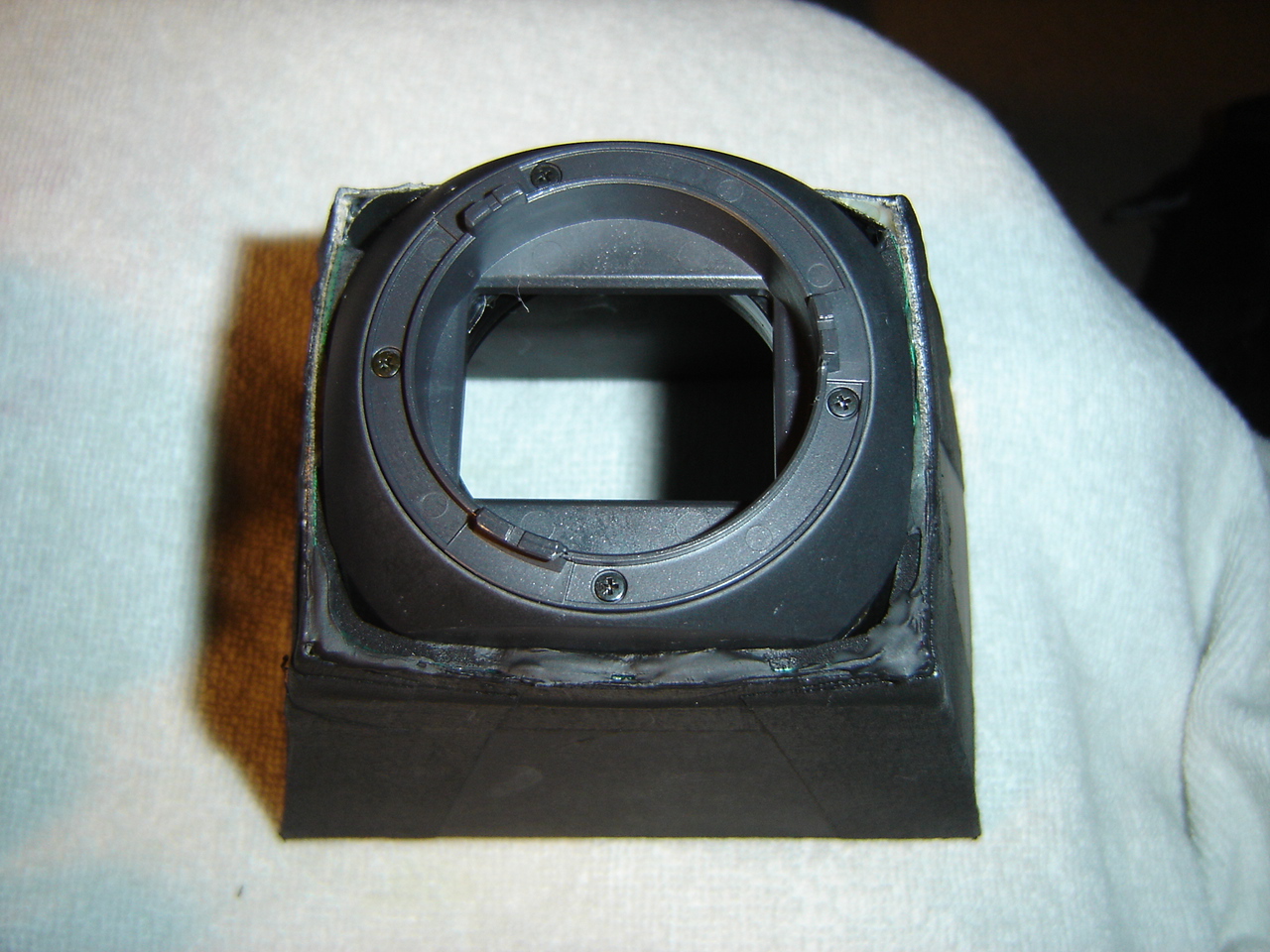

Here's a couple of Lens Hoods I've made for my Sony 950. Have made one for each of my other 3 cams too, a long with the LCD Hoods.

Harold
Attached Thumbnails
LCD Screen Shade-lens-hood-001.jpg   LCD Screen Shade-lens-hood-002.jpg

LCD Screen Shade-lens-hood-004.jpg   LCD Screen Shade-lens-hood-010.jpg

LCD Screen Shade-lens-hood-011.jpg   LCD Screen Shade-lens-hood-019.jpg

LCD Screen Shade-lens-hood-021.jpg
Harold Schreiber is offline   Reply With Quote
Old January 31st, 2007, 12:25 PM   #14
Major Player

Join Date: Aug 2004
Location: Snellville, Georgia
Posts: 614
Quote:
Originally Posted by Harold Schreiber
Hi Philip,

I've got a ton of VHS/SVHS Hard Plastic type cases and some softer black opaque plastic Covers. These plastic types are pliable enough to be used for many uses.

Here's a couple of Lens Hoods I've made for my Sony 950. Have made one for each of my other 3 cams too, a long with the LCD Hoods.

Harold
Hey, the TRV900! A real classic.

Anyway, those hoods look pretty functional. And here I thought there was no more use for VHS :)
__________________
www.philipwilliams.com
Philip Williams is offline   Reply With Quote
Old January 31st, 2007, 05:11 PM   #15
Major Player

Join Date: Jul 2006
Location: Olathe, Kansas
Posts: 309
Hi Philip,

Hey, that's a 950, I got to the store late.

And yes, everything I've created has been very usefull.

Harold

PS: Go find my other posts to read about and see some of my other creations.
