The handle flap fell off!

Yes - it just happened, without any special reason. I felt from the very beginning it's not very sturdy. The flap has a pin at the front and a hole at the back; there's also a tiny spring that has fallen off. Could someone check whether there's anything else at the back, apart from the spring? I can't seem to be able to put it back together... Perhaps some photo, a close-up of how it should look when assembled? But first off all: is there any more part that could fall off that I should be looking for somewhere on the floor?

Please help!
__________________
Sony PXW-FS7 | DaVinci Resolve Studio; Magix Vegas Pro; i7-5960X CPU; 64 GB RAM; 2x GTX 1080 8GB GPU; Decklink 4K Extreme 12G; 4x 3TB WD Black in RAID 0; 1TB M.2 NVMe cache drive

Last edited by Piotr Wozniacki; February 10th, 2007 at 07:44 AM.
Piotr Wozniacki is offline   Reply With Quote
Old February 9th, 2007, 05:00 PM   #2
Major Player

Join Date: Nov 2004
Location: Winter Park, FL
Posts: 978
Pics

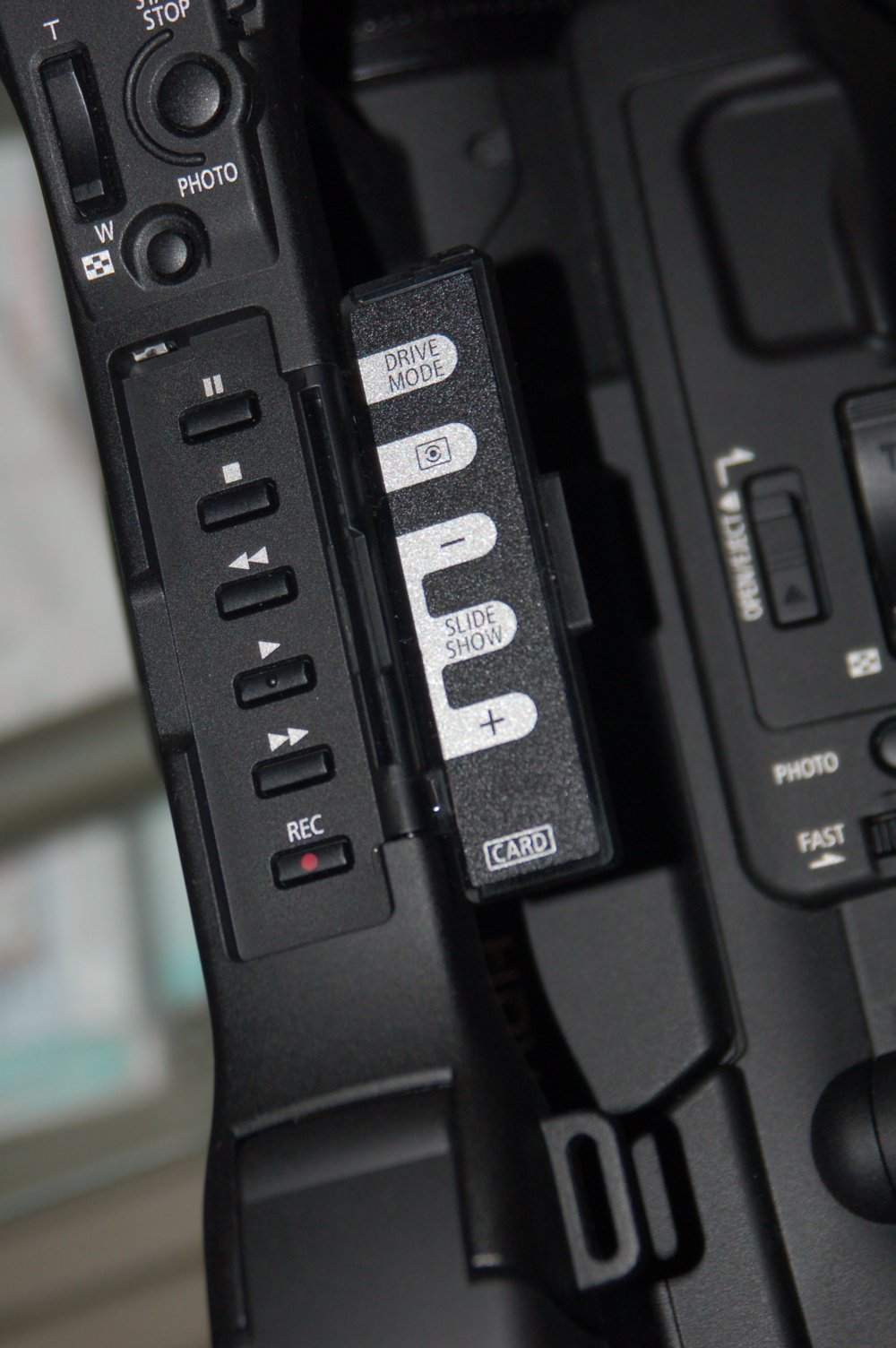

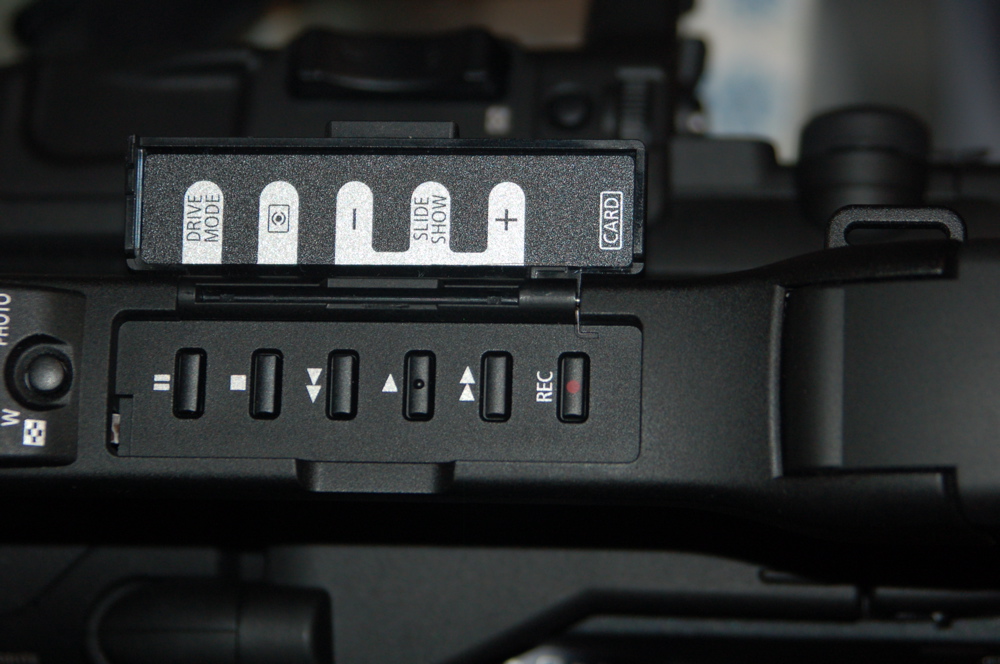

Hope these help. I do not see anything other than the 2 pins and a spring that goes from the body to the flap.
Attached Thumbnails
The handle flap fell off!-a1.jpg   The handle flap fell off!-a2.jpg

__________________
Simple Thought Productions - Life @ 30,000 Words per second
Josh Chesarek is offline   Reply With Quote
Old February 9th, 2007, 05:07 PM   #3
Inner Circle

Join Date: Aug 2006
Location: Poland
Posts: 4,086
Thanks Josh; but as far as I can tell from your pics, there IS a pin at the back, where the spring comes? It must have fallen off and got lost! Is it a metal one? How big can it be?
__________________
Sony PXW-FS7 | DaVinci Resolve Studio; Magix Vegas Pro; i7-5960X CPU; 64 GB RAM; 2x GTX 1080 8GB GPU; Decklink 4K Extreme 12G; 4x 3TB WD Black in RAID 0; 1TB M.2 NVMe cache drive
Piotr Wozniacki is offline   Reply With Quote
Old February 9th, 2007, 05:25 PM   #4
Major Player

Join Date: Nov 2004
Location: Winter Park, FL
Posts: 978
Ohh. as I said in the post 2 pins (at each end) and a spring. I thought you had 2 pins... sorry.
__________________
Simple Thought Productions - Life @ 30,000 Words per second
Josh Chesarek is offline   Reply With Quote
Old February 9th, 2007, 05:27 PM   #5
Inner Circle

Join Date: Aug 2006
Location: Poland
Posts: 4,086
So, am I to look for a separate, metal pin, right? Such a thing would be a logical element of the assembly, but I lost it!
__________________
Sony PXW-FS7 | DaVinci Resolve Studio; Magix Vegas Pro; i7-5960X CPU; 64 GB RAM; 2x GTX 1080 8GB GPU; Decklink 4K Extreme 12G; 4x 3TB WD Black in RAID 0; 1TB M.2 NVMe cache drive
Piotr Wozniacki is offline   Reply With Quote
Old February 9th, 2007, 05:51 PM   #6
Major Player

Join Date: Jan 2006
Location: Birmingham, AL USA
Posts: 722
I has a similar problem with an old 35mm FE2 photo camera... the wind arm for the film broke off and I lost the pin, but I managed to cut a small piece of a small paperclip to use as a straight metal pin. I've had it this way for months and never had a problem. I'm not near the A1 right now, but if its a straight pin, it should work fine.

Also fixed my wristwatch with a paperclip when the original pin broke... the watch has been using a paperclip for over a year no problems

Call me lazy, but the paperclip has worked for me :)
Nick Weeks is offline   Reply With Quote
Old February 9th, 2007, 06:13 PM   #7
Inner Circle

Join Date: Aug 2006
Location: Poland
Posts: 4,086
Arghh...! I just can't believe it; I didn't find a pin but, when I shake the camera, something is rattling in the handle! Could it actually fall into it? I never supposed I will have to send my brand new Canon to the servicing for such a silly reason. Should I simply lost it, I'd think of trying to repair it (perhaps even using a paperclip as per Nick's suggestion), but I cannot leave a metal part inside the handle, which is packed with electronics!

Any idea on what else could produce rattling like this? It sounds like a very lightweight, metalic object bumping against the plastic...
__________________
Sony PXW-FS7 | DaVinci Resolve Studio; Magix Vegas Pro; i7-5960X CPU; 64 GB RAM; 2x GTX 1080 8GB GPU; Decklink 4K Extreme 12G; 4x 3TB WD Black in RAID 0; 1TB M.2 NVMe cache drive

Last edited by Piotr Wozniacki; February 10th, 2007 at 07:46 AM.
Piotr Wozniacki is offline   Reply With Quote
Old February 10th, 2007, 03:02 AM   #8
Inner Circle

Join Date: Aug 2006
Location: Poland
Posts: 4,086
I've heard the local Canon service sucks, so if anybody is in a position to contact a service he is in good relations with, and just ask what could happen and what should/colud be done about the missing pin for the handle flap, I'd own him lots of beers!

As a side note: I only hope this is *not* an indicator for the overall A1's build quality. A flap in the handle should be as sturdy as... the handle itself, it's that simple!
__________________
Sony PXW-FS7 | DaVinci Resolve Studio; Magix Vegas Pro; i7-5960X CPU; 64 GB RAM; 2x GTX 1080 8GB GPU; Decklink 4K Extreme 12G; 4x 3TB WD Black in RAID 0; 1TB M.2 NVMe cache drive
Piotr Wozniacki is offline   Reply With Quote
Old February 10th, 2007, 06:05 AM   #9
Inner Circle

Join Date: Aug 2006
Location: Poland
Posts: 4,086
All,

I'd appreciate if someone takes a closer inspection on how the flap is assembled at the rear end, where the spring comes. Is there a pin inside the coil spring? Is it a metal pin, or a plastic one? Is it fixed to the handle, or does it turn freely?

The answers to the above questions are very important to me, because I don't know what I should be looking for in case it fell outside, or - in case in actually fell into the handle (and something is definitely rattling inside), and if it's a metal part - I can't power up my camera because it could short it out and cause further damage!

Thanks in advance.
__________________
Sony PXW-FS7 | DaVinci Resolve Studio; Magix Vegas Pro; i7-5960X CPU; 64 GB RAM; 2x GTX 1080 8GB GPU; Decklink 4K Extreme 12G; 4x 3TB WD Black in RAID 0; 1TB M.2 NVMe cache drive
Piotr Wozniacki is offline   Reply With Quote
Old February 10th, 2007, 06:44 AM   #10
Regular Crew

Join Date: Jan 2007
Location: Austin, TX
Posts: 157
hey Piotr, it does look like there is a metal pin inside the coil of the spring to me. If you hear something rattling around in the handle it must be the pin. Sorry bro, that sounds pretty frustrating....
Cal Bickford is offline   Reply With Quote
Old February 10th, 2007, 11:17 AM   #11
Trustee

Join Date: Jun 2004
Location: Denver, Colorado
Posts: 1,866
Does appear to me that there is a metal pin inside the spring at the rear, but I can just barely see it within the gap. I can't tell if it turns freely or is fixed to the handle or flap.
Tom Roper is offline   Reply With Quote
Old February 11th, 2007, 03:30 PM   #12
Regular Crew

Join Date: Oct 2006
Location: Brooklyn
Posts: 161
Piotr -

I suggest contacting Canon Service. Maybe they are not as bad as you heard. Maybe it could be fixed while you wait, if it's in your city and you don't have to send it.

Since it's on warranty, fixing it at any local service is not a good idea even though it's very likely it could be fixed easily.

Problems like that are not so rare. I saw at least a few camcorders with missing flaps, covers, plugs etc. Sony cams were among them also.
Bogdan Tyburczy is offline   Reply With Quote
Old February 11th, 2007, 03:47 PM   #13
Inner Circle

Join Date: Aug 2006
Location: Poland
Posts: 4,086
Bogdan,

Yes, I'll have to send it to a service in Warsaw taht does warranty repairs for Canon. You're right any camera could break, but it's normal under heavy use, lots of operation hours etc. The flap on the Canon is simply too delicate and I can bet it will be troublesome for most users; just a matter of time.
__________________
Sony PXW-FS7 | DaVinci Resolve Studio; Magix Vegas Pro; i7-5960X CPU; 64 GB RAM; 2x GTX 1080 8GB GPU; Decklink 4K Extreme 12G; 4x 3TB WD Black in RAID 0; 1TB M.2 NVMe cache drive
Piotr Wozniacki is offline   Reply With Quote
Old February 11th, 2007, 04:19 PM   #14
Regular Crew

Join Date: Oct 2006
Location: Brooklyn
Posts: 161
Sorry to hear about the problem, but the fact is flaps and similar small elements are never as sturdy as the whole camera body and we are the users of the first series on XH cams. Since November 2006 it looks like problems users report are not general in nature which is a good thing. Other brands also suffer from annoying imperfections. This is just another sign of times we live in, but from the other side today's products are much more complex than 20 years ago for example. Obtaining warranty service is the best idea if some metal part is still inside.
Bogdan Tyburczy is offline   Reply With Quote
Old February 12th, 2007, 09:45 AM   #15
Major Player

Join Date: May 2004
Location: Oxford, UK
Posts: 422
Also, this basic design has been standard on XM, GL and XL cams for quite a few years now, so it ought not to be a general problem, though that's small comfort for Piotr...
