Ever wondered what's inside...

... an XL2 battery? I had one of my after-market BP930-equivalent XL2 batteries finally quit taking a charge after about a years' use, so being the inquiring sort of fellow, I decided to open it up and do a post-mortem.

DISCLAIMER: before any of you have a apoplexy, understand that I do similar work in my paying job, and am used to dealing with small, complex structures that contain potentially dangerous electrical charges and hazardous materials. I don't recommend people cracking open their batteries if they don't know what they're doing.

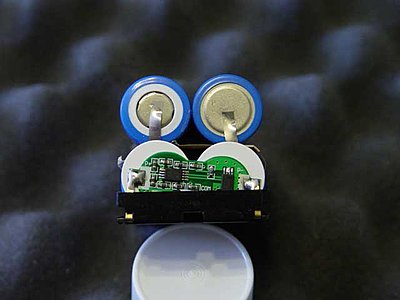

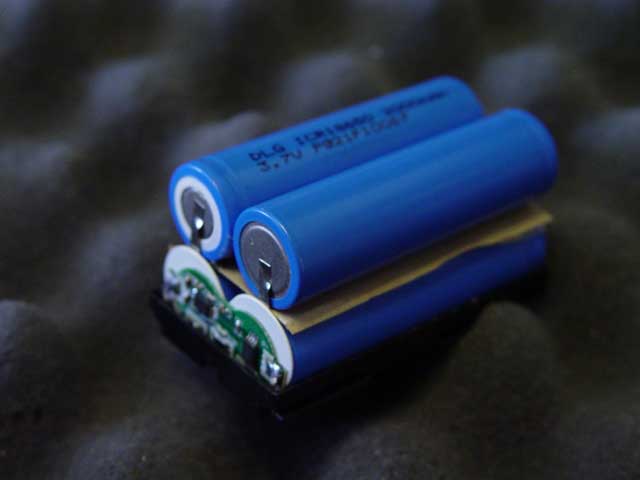

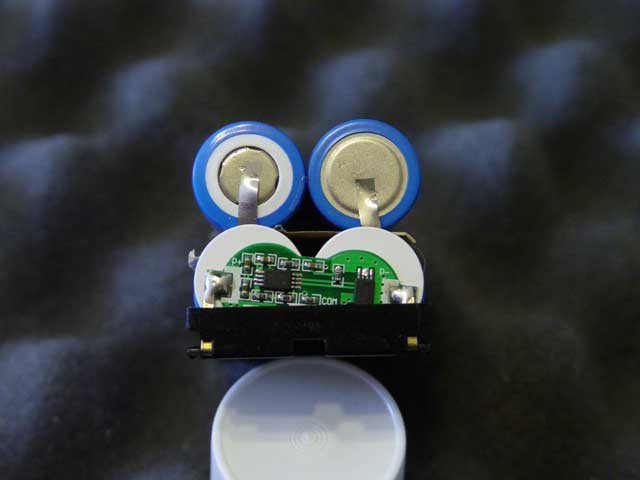

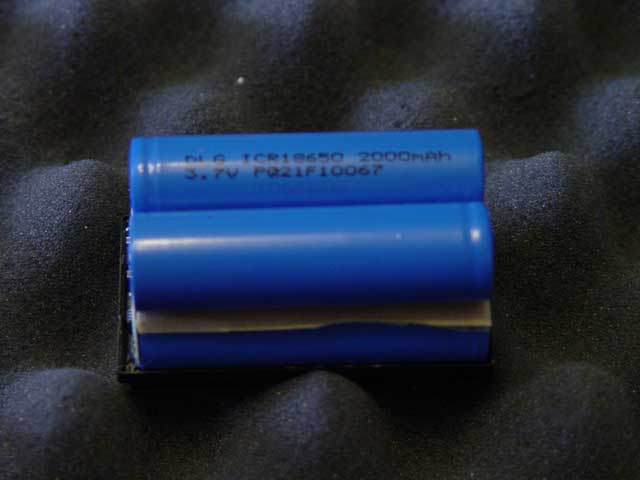

There were no real surprises. I used diagonal cutters to clip through the corners of the thin plastic cover. Inside are four 3.7 volt, 2000 mAh lithium cells, wired together in a series/parallel configuration to provide 7.4 volts at a listed 3600 mAh (don't ask me where the extra 400 mAh went to). Photo 2 shows the end view, where a small surface-mount PC board has two integrated circuits, plus four chip capacitors and four resistors. Based on the connections to the board, I'd guess they are part of the charging and charge-monitoring circuit. The remaining photos show different angles, plus the circuit board and paper insulator removed and next to a dime for scale. The whole assembly was held together with double-sided tape, which is actually just fine, considering how snugly everything fit inside the plastic case with nearly zero clearance.

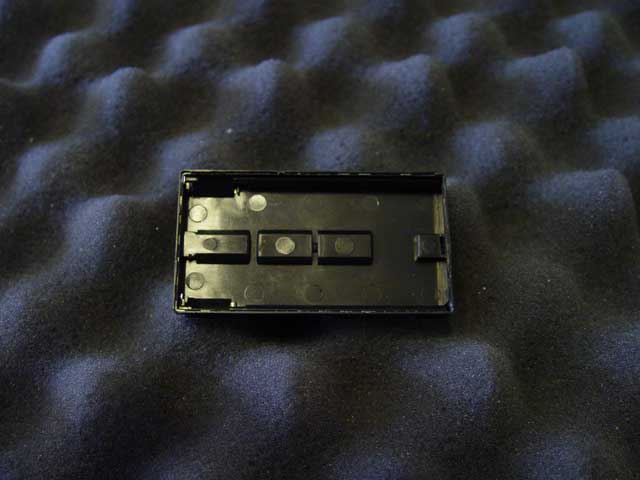

The last photo shows the real prize: the bottom plate with the mounting lugs and power contacts. This is what I really wanted, so I can build a regulated adapter to convert 12 volts down to 7.4 volts to run the XL2 off a belt of lead/acid gel cells. I already made one that uses the AC adapter plate plugged into an external box, but the intention is to build the entire regulator circuit on the salvaged plate and run the unregulated 12 volts to the new adapter.

As for the cause of death, I found a small piece of metallic trash wedged between two pins on one of the integrated circuits, obviously debris that got sealed inside the housing when the unit was assembled.

Hope you enjoyed the tour. BTW, the old cells are going off to a recycle center.

Regards;
Martin
Attached Thumbnails
Ever wondered what's inside...-b1.jpg   Ever wondered what's inside...-b2.jpg

Ever wondered what's inside...-b3.jpg   Ever wondered what's inside...-b4.jpg

Ever wondered what's inside...-b5.jpg
__________________
Canon XF300, Canon 5DMkII, Canon XL2, Rolls MX422 mixer, Zoom H4N, AT899 lavs, AT2020's, Azden SGM 1X shotgun, Manfrotto 501 head on 351 tripod
Martin Catt is offline   Reply With Quote
Old April 19th, 2008, 01:13 PM   #2
Inner Circle

Join Date: Dec 2003
Location: Hampshire, UK
Posts: 2,205
Ha! One of the most interesting posts I've read for ages! No idea why, just a bit different I guess. Nice one Martin.
Ian Stark is offline   Reply With Quote
Old April 19th, 2008, 02:42 PM   #3
Trustee

Join Date: Sep 2004
Location: Bristol, CT (Home of EPSN)
Posts: 1,182
Martin that was really cool. Now, can you show us what's inside the XL2? :)
__________________
Paul Cascio
www.pictureframingschool.com
Paul Cascio is offline   Reply With Quote
Old April 19th, 2008, 03:23 PM   #4
Major Player

Join Date: Jun 2007
Location: The Colony TX
Posts: 327
Don't think I haven't been tempted.

Martin
__________________
Canon XF300, Canon 5DMkII, Canon XL2, Rolls MX422 mixer, Zoom H4N, AT899 lavs, AT2020's, Azden SGM 1X shotgun, Manfrotto 501 head on 351 tripod
Martin Catt is offline   Reply With Quote
Old April 19th, 2008, 03:56 PM   #5
Major Player

Join Date: Dec 2003
Location: warsaw, poland
Posts: 440
x rays maybe?



filip
__________________
in kino (sic!) veritas
Filip Kovcin is offline   Reply With Quote
Old April 19th, 2008, 06:47 PM   #6
Major Player

Join Date: Jun 2007
Location: The Colony TX
Posts: 327
Nope. A set of watchmakers' screwdrivers, 4x loupe, and the hope I can get it back together in functioning order. I'd like to put in a hard-wired jack to run the push autofocus button on the lens (which has been done on the XL1, I see), the record stop/start button, and the upper fixed-rate zoom toggle. However, it's my only decent camcorder right now, so I only play around with the accessories.

Martin
__________________
Canon XF300, Canon 5DMkII, Canon XL2, Rolls MX422 mixer, Zoom H4N, AT899 lavs, AT2020's, Azden SGM 1X shotgun, Manfrotto 501 head on 351 tripod
Martin Catt is offline   Reply With Quote
Old April 19th, 2008, 06:59 PM   #7
Wrangler

Join Date: Oct 2003
Location: DFW area, TX
Posts: 6,108
Images: 1
Quote:
Originally Posted by Filip Kovcin View Post
x rays maybe?
No Filip, it's a small puff of white smoke that lives inside most modern electronic devices. It's what makes these amazing devices work. We know this to be true because every time that white puff of smoke gets out of the device, it ceases to function any more. (big grin)

-gb-
Greg Boston is offline   Reply With Quote
Old April 20th, 2008, 07:08 AM   #8
Major Player

Join Date: Apr 2004
Location: Ann Arbor, MI
Posts: 342
Hey Martin - Thanks for the change-up. I'm so glad to see that there are still some old school inquiring minds around.
Jack Barker is offline   Reply With Quote
Old April 20th, 2008, 07:41 AM   #9
Regular Crew

Join Date: May 2007
Location: South Bend, IN
Posts: 179
Cool.

I always perform an autopsy on my "deceased" electronic items. You never know what sort of useful stuff you may find inside. One of these days, I will use all those parts to make FRANKEN-GADGET!!!
<cue evil laughter>
Bwa-ha-ha-ha-ha-ha!!!
__________________
Woz

Last edited by Ken Wozniak; April 20th, 2008 at 07:41 AM. Reason: I have fat fingers, and lost my typing wand.
Ken Wozniak is offline   Reply With Quote
Old April 25th, 2008, 10:09 AM   #10
Regular Crew

Join Date: Mar 2007
Location: Atlanta, GA
Posts: 107
I would really want to see an XL2 gutted. Any volunteers?
Tony Nguyen is offline   Reply With Quote
Old April 25th, 2008, 10:11 AM   #11
New Boot

Join Date: Jan 2008
Location: Brisbane Australia
Posts: 9
Quote:
Originally Posted by Tony Nguyen View Post
I would really want to see an XL2 gutted. Any volunteers?
The thought has come across my mind very many times, but I just got my cam a few months ago, so I am not up for it just yet. Maybe when I get the XLh2
Steven Dunn is offline   Reply With Quote
Old April 25th, 2008, 10:29 AM   #12
Inner Circle

Join Date: Jun 2004
Location: Richmond, VA
Posts: 2,966
What an excellent thread. Makes me want to take stuff apart. Thanks for the 411.
__________________
What happens if I push the 'Red' button?
Steven Davis is offline   Reply With Quote
Old August 20th, 2008, 12:38 AM   #13
Regular Crew

Join Date: Aug 2008
Location: Namibia
Posts: 82
I had no choice but to take apart one of my XL2. The firewirewire connector came loose. I have some photos of the "gutted" cam but I haven't figured out yet how to attach (or post) them in here.


http://www.dvinfo.net/conf/members/b...2-inside-2.jpg

Last edited by Björn Rehder; August 20th, 2008 at 01:10 AM. Reason: I think I figured it out!
Björn Rehder is offline   Reply With Quote
Old August 20th, 2008, 04:07 AM   #14
Regular Crew

Join Date: Jan 2005
Location: Québec, Canada
Posts: 177
Very good Martin,

Unfortunately, I dropped one of my batteries after filming a show which on the positive side allowed me to see what you've posted. I was expecting to see a lot more but in the meantime very please to see that it was that simple.

The electronic is not my strenght but I always been interested in knowing how things work. You've got a very good idea in using the bottom plate.

You got me very interested in knowing more, especially where you've said "This is what I really wanted, so I can build a regulated adapter to convert 12 volts down to 7.4 volts to run the XL2 off a belt of lead/acid gel cells."

Would it be possible to see the "belt of lead/acid gel cells" you've builted?



Very interesting Björn,

WOW, you do have a lot of guts to open your XL2. Going back to the reason you've done it, have you been able to fix firewire becoming loose problem and how?



Regards!
__________________
Daniel Paquin
Production ZoOM vidéo
Daniel Paquin is offline   Reply With Quote
Old August 20th, 2008, 10:42 PM   #15
Regular Crew

Join Date: Aug 2008
Location: Namibia
Posts: 82
The firewire connector PC board is secured with 2 small screws. One screw was loose and the other was lying insinde the housing somewhere. Luckily the screw did not wedge itself between the other PC board and cause a short circuit.

Nowhere on the internet could I find instructions on how to disassemble and sending it across the border to the Canon agent was not an option.

To strip the cam you need:
1 x phillips screwdriver (small)
1 x Allenkey
1 x case beer (24x)
4 x back-up cameras (in case you have to throw it in the dustbin if the operation fails)

here's another photo: http://www.dvinfo.net/conf/members/b...2-inside-1.jpg
Björn Rehder is offline   Reply
