Old July 7th, 2008, 08:07 AM   #1
Regular Crew

Join Date: Jun 2008
Location: NY, NY
Posts: 138
need two UHF mics for XL2

i am conducting some inteviews with Canon xl2 using my wireless mic Sony UWPC2 , my problem is the person taking interviews swtiches mics alot between himself and the person he is interviewing , which make most of the sentences record incomplete.

I was thinking if i can have another mic attached (colar or tie not handheld) to the person we are interviewing so that i wont miss any thing he says ... i need to have that mic wireless as well because this is all done outdoor (we interview Djs and night club owners outside differnet clubs).

What are my options? if i get some thing like Sony UWP-C1 , would it work ? do i need to have two recievers ? also ... how would i attach two recievers on the XL2 of some one have done this .... i am new to this world ! ...

Thank you
Wajahat Abbasi is offline   Reply With Quote
Old July 7th, 2008, 09:05 AM   #2
Inner Circle

Join Date: Oct 2004
Location: Port St. Lucie, Florida
Posts: 2,614
Wajahat,

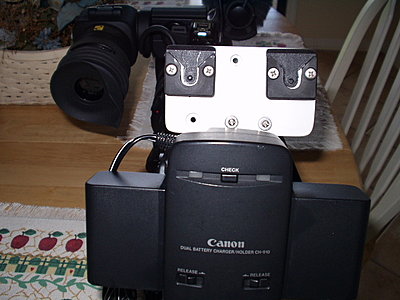

You need two receivers for two transmitters, unless you buy one that has dual channels. The UWP-C1's are very nice and work great. I mount two on my cameras with a simple bracket made from a piece of plastic and two CB Mic-holder brackets. See the picture.

The mic-holders are very inexpensive and are easily clearanced to hold the receivers. That is depending on the ones you find, some need no modification at all.

Good luck and I love my UWP-C1's by the way. On the second picture, of my old XL2, the rubber bands are because of the UWP-C1's wire brackets, not the mic-holders. I was banging around Disney World for five days following a family and I did not want to knock them off. They are not needed generally.

Mike
Attached Thumbnails
need two UHF mics for XL2-bracket.jpg   need two UHF mics for XL2-camera.jpg

__________________
Chapter one, line one. The BH.

Last edited by Mike Teutsch; July 7th, 2008 at 09:06 AM. Reason: spelling---ERRR
Mike Teutsch is offline   Reply With Quote
Old July 7th, 2008, 09:17 AM   #3
Regular Crew

Join Date: Jun 2008
Location: NY, NY
Posts: 138
Quote:
Originally Posted by Mike Teutsch View Post
Wajahat,

You need two receivers for two transmitters, unless you buy one that has dual channels. The UWP-C1's are very nice and work great. I mount two on my cameras with a simple bracket made from a piece of plastic and two CB Mic-holder brackets. See the picture.

The mic-holders are very inexpensive and are easily clearanced to hold the receivers. That is depending on the ones you find, some need no modification at all.

Good luck and I love my UWP-C1's by the way. On the second picture, of my old XL2, the rubber bands are because of the UWP-C1's wire brackets, not the mic-holders. I was banging around Disney World for five days following a family and I did not want to knock them off. They are not needed generally.

Mike

thanks for quick reply, so Sony UWPC2 would work in the presence UWP-C1's without a problem ? .. how do you set it up ? also did you built that two receiver holder or bought it from some place? i need to get this too !
i have never seen UWP-C1's so i need to ask a silly question.. how do they work ? just like we see people on TV mic goes around Tie area and a transmitter on the belt clip ... correct? mic os wired with the transmitter ?
thanks
Wajahat Abbasi is offline   Reply With Quote
Old July 7th, 2008, 09:51 AM   #4
Inner Circle

Join Date: Oct 2004
Location: Port St. Lucie, Florida
Posts: 2,614
Quote:
Originally Posted by Wajahat Abbasi View Post
thanks for quick reply, so Sony UWPC2 would work in the presence UWP-C1's without a problem ? .. how do you set it up ? also did you built that two receiver holder or bought it from some place? i need to get this too !
i have never seen UWP-C1's so i need to ask a silly question.. how do they work ? just like we see people on TV mic goes around Tie area and a transmitter on the belt clip ... correct? mic os wired with the transmitter ?
thanks
Yes, the UWPC1's are the same unit as the UWPC2's, only with the body-pack and lav. Best to get to different frequency ranges. I have 62's and 66's.

Yes, lavs are the small mic that goes on your tie, collar, etc..

I built the holder, as previously mentioned. Just two Citizens Band or Marine radio hand-held mic holders. I think they were two for $5.00. Attach them to anything, even a small piece of thin plywood. I used a piece of plastic.

Mike
__________________
Chapter one, line one. The BH.
Mike Teutsch is offline   Reply With Quote
Old July 7th, 2008, 10:58 AM   #5
Regular Crew

Join Date: Jun 2008
Location: NY, NY
Posts: 138
Thank you i just order one for my self !!!!
Wajahat Abbasi is offline   Reply With Quote
Old July 12th, 2008, 06:15 PM   #6
Inner Circle

Join Date: Jul 2002
Location: Albany, NY 12210
Posts: 2,650
Hey, you might want to check out the AT1800 system. It has a dual receiver that mounts really easily on the back of the stock bracket plate.

http://www.bhphotovideo.com/c/produc..._Wireless.html
Marco Leavitt is offline   Reply With Quote
Old July 14th, 2008, 12:14 PM   #7
Regular Crew

Join Date: Jun 2008
Location: NY, NY
Posts: 138
Quote:
Originally Posted by Marco Leavitt View Post
Hey, you might want to check out the AT1800 system. It has a dual receiver that mounts really easily on the back of the stock bracket plate.

http://www.bhphotovideo.com/c/produc..._Wireless.html


thanks for the suggestion .. i already bought Sony UWPC2 , and now i am trying to figure out how it mount it as not i have 2 Exect same recievers ... any suggestions?

thanks
Wajahat Abbasi is offline   Reply With Quote
Old July 14th, 2008, 12:51 PM   #8
Inner Circle

Join Date: Jul 2002
Location: Albany, NY 12210
Posts: 2,650
Yeah, I can see that. The Sony is supposed to be pretty good system. Still, the AT dual receiver is such an elegant solution for the XL2. It helps balance the camera nicely for one thing, and you don't have to jerry rig it on there either. Just a bit a velcro on the mounting plate and it's on there solidly. Plus with AT you have access to their excellent line of lavs, and other accessories such as a boundary mic, headset mic, etc. which are all made for their wireless system. Also, you can mix between the channels easily, such as putting both wireless on one channel (with individual volume controls) and the camera mic or some other wired mic on the remaining channel. If it were me, I'd sell the Sony for the AT, or just keep it and have three wireless units, which to me is the magic number anyway. Of course, you'd need a mixer to take advantage of all three of them together. Or you could velcro the Sony to the back of the AT receiver and connect to the second track, with the AT mixed down to one track (it has separate gain knobs for each track). That would give you three wireless units. The extra weight is actually helpful with the XL2, which is very nose heavy. Sorry to be so relentless in advocating the AT, but it really is a great low-cost system. If you do it, be sure to upgrade the mics to at least the AT899cw. Sounds much better and is significantly smaller than the stock lavs, and a great deal at about $170 each.

Last edited by Marco Leavitt; July 14th, 2008 at 01:49 PM.
Marco Leavitt is offline   Reply With Quote
Old July 15th, 2008, 07:46 AM   #9
Regular Crew

Join Date: Jun 2008
Location: NY, NY
Posts: 138
thats a pretty good detailed explanation ... thanks a lot .. i will be looking into it !
Wajahat Abbasi is offline   Reply With Quote
Old July 26th, 2008, 09:16 AM   #10
Regular Crew

Join Date: Jun 2008
Location: NY, NY
Posts: 138
i am trying to set these mics... i am connecting both to the rare XLR connectors (both mics) ,i can hear them both but only one channel on each mic ... that means i get one mic on channel one and other one channel 2 ? it that ok ???? i hear one mic on my right ear and other on my left ear wearing headphones it that nomal? if i shoot like this would i only get sound in in only one speaker later in the post?
__________________
Canon XL2, 20X zoom and 3X wide-angle, , Sony Wireless UHFs UWP-C1 and UWP-C2 , Manfrotto 503 head on 351 tripod , Glidecam 4000 Pro w/Glidecam Smooth Shooter
Wajahat Abbasi is offline   Reply With Quote
Old July 27th, 2008, 09:13 AM   #11
Inner Circle

Join Date: Jul 2002
Location: Albany, NY 12210
Posts: 2,650
Uh, I'm assuming you're talking about the Sony? Yeah with two receivers you record each to the left and the right channels. No way to mix down to one without a mixer.
Marco Leavitt is offline   Reply With Quote
Old July 28th, 2008, 05:16 PM   #12
Regular Crew

Join Date: Jun 2008
Location: NY, NY
Posts: 138
Quote:
Originally Posted by Marco Leavitt View Post
Uh, I'm assuming you're talking about the Sony? Yeah with two receivers you record each to the left and the right channels. No way to mix down to one without a mixer.


Thanks for your reply marco .... i am actaully from Albany too !! (small world) i will be going to NYC to shoot a live band on 48th St tommorrow .. ill let you guys how it went later!

thanks
__________________
Canon XL2, 20X zoom and 3X wide-angle, , Sony Wireless UHFs UWP-C1 and UWP-C2 , Manfrotto 503 head on 351 tripod , Glidecam 4000 Pro w/Glidecam Smooth Shooter
