EVF Technical question

Hi all,

Does anyone knows the pinout of the EVF connector on the XL-H1 body ?

thanks !
Yalon Benhabib is offline   Reply With Quote
Old April 1st, 2010, 04:51 PM   #2
Regular Crew

Join Date: Apr 2007
Location: France
Posts: 152
Hi

The CRT or the LCD ?
__________________
Gilles Debord
http://www.wwvideo.tv
Gilles Debord is offline   Reply With Quote
Old April 19th, 2010, 11:39 AM   #3
Regular Crew

Join Date: Dec 2007
Location: Nes-Ziona Israel
Posts: 26
hi, sorry, what do you mean by CRT or LCD ?
Yalon Benhabib is offline   Reply With Quote
Old April 19th, 2010, 11:42 AM   #4
Inner Circle

Join Date: Apr 2006
Location: Wales
Posts: 2,130
Gilles must be thinking about a different camera - no LCD on the XL-H1.
Steve
Steve Phillipps is offline   Reply With Quote
Old April 20th, 2010, 09:02 PM   #5
Trustee

Join Date: Jul 2004
Location: Canton, Ohio
Posts: 1,770
Or Giles is talking about the fact that the H1 has an output for the LCD/Viewfinder and one for the CRT viewfinder add-on. I've always wanted the pinout information myself but apparently Canon keeps this well guarded.
Marty Hudzik is offline   Reply With Quote
Old April 21st, 2010, 01:50 PM   #6
Regular Crew

Join Date: Dec 2007
Location: Nes-Ziona Israel
Posts: 26

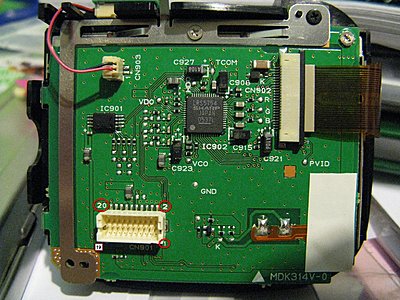

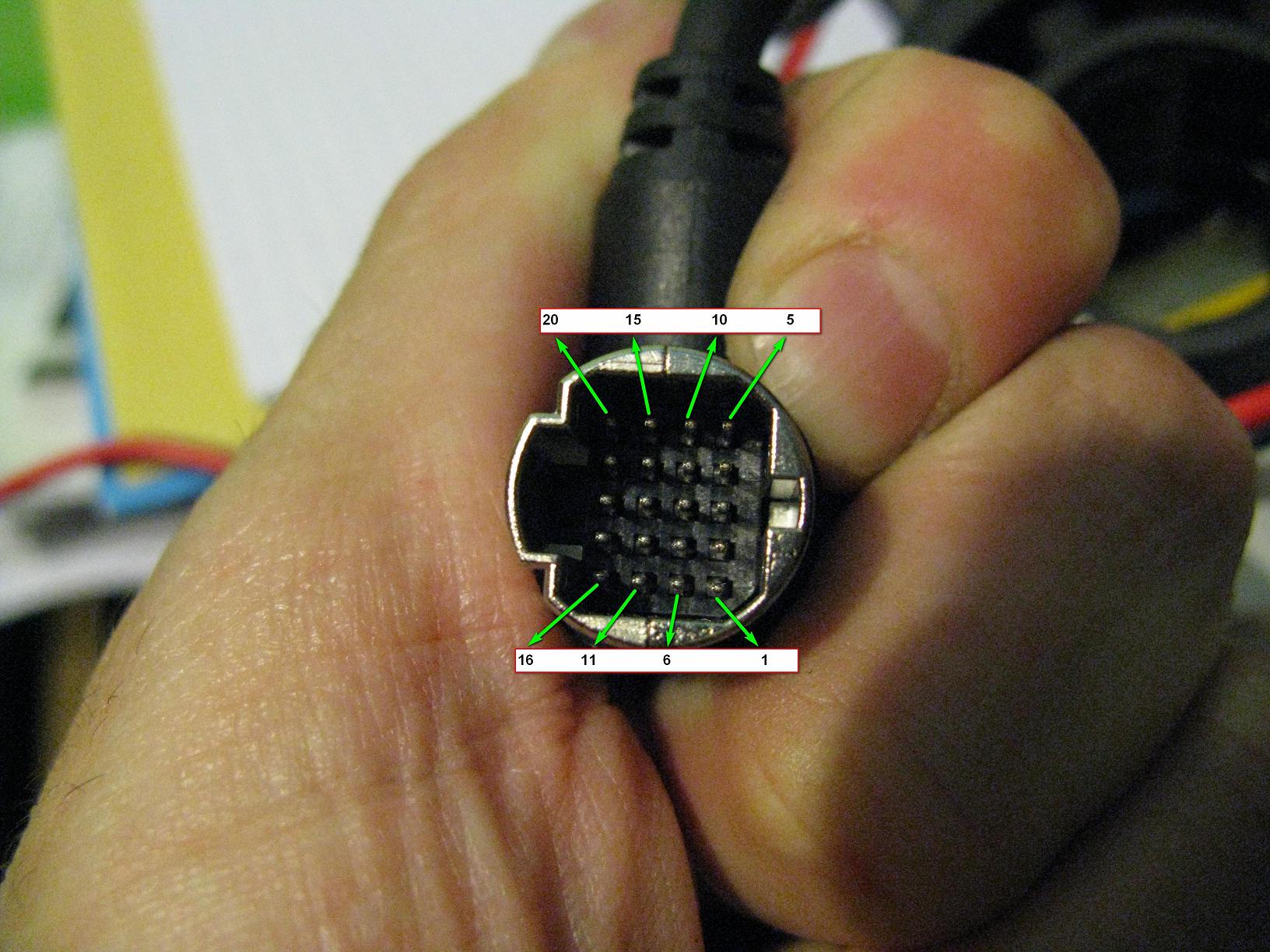

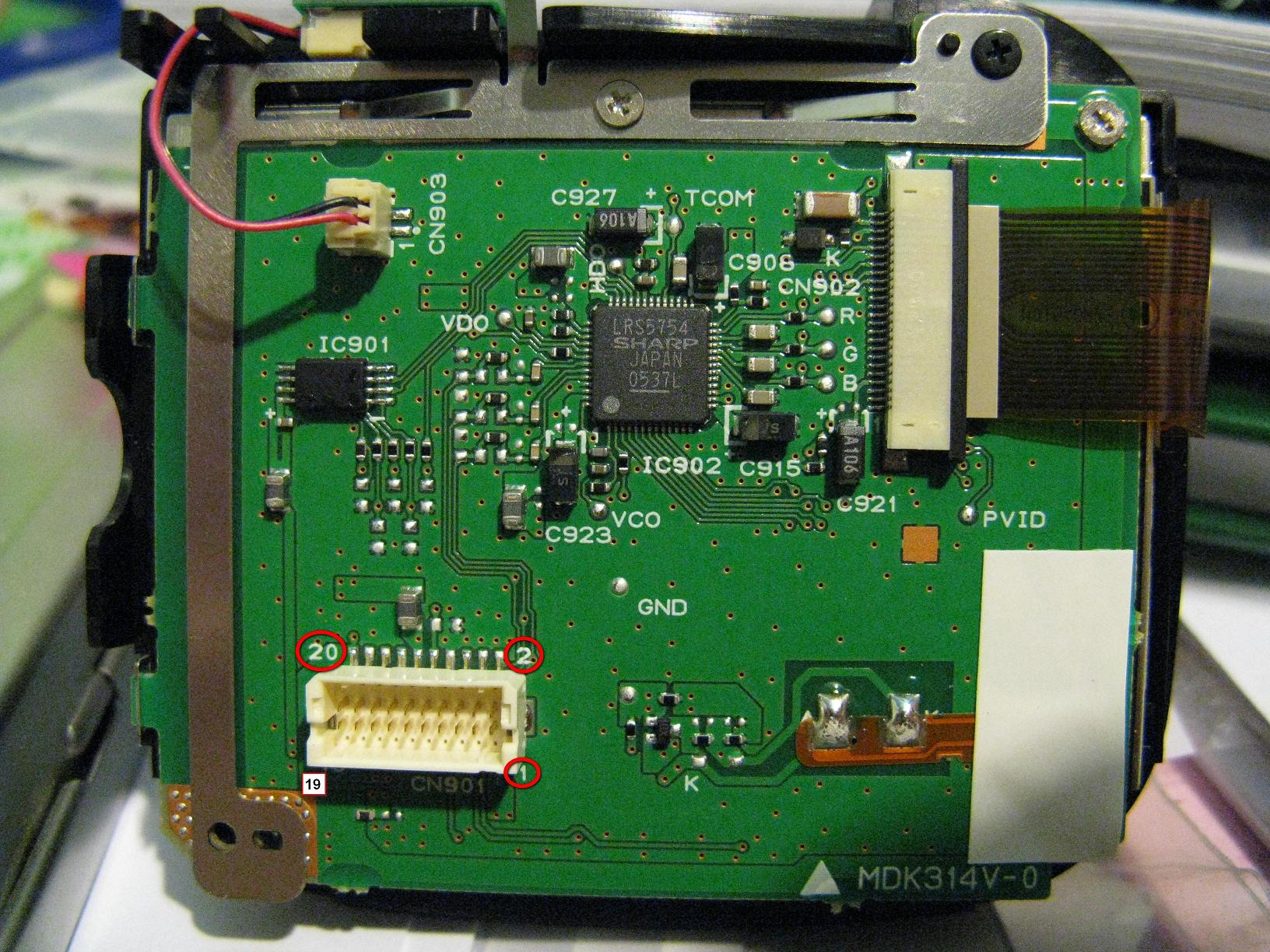

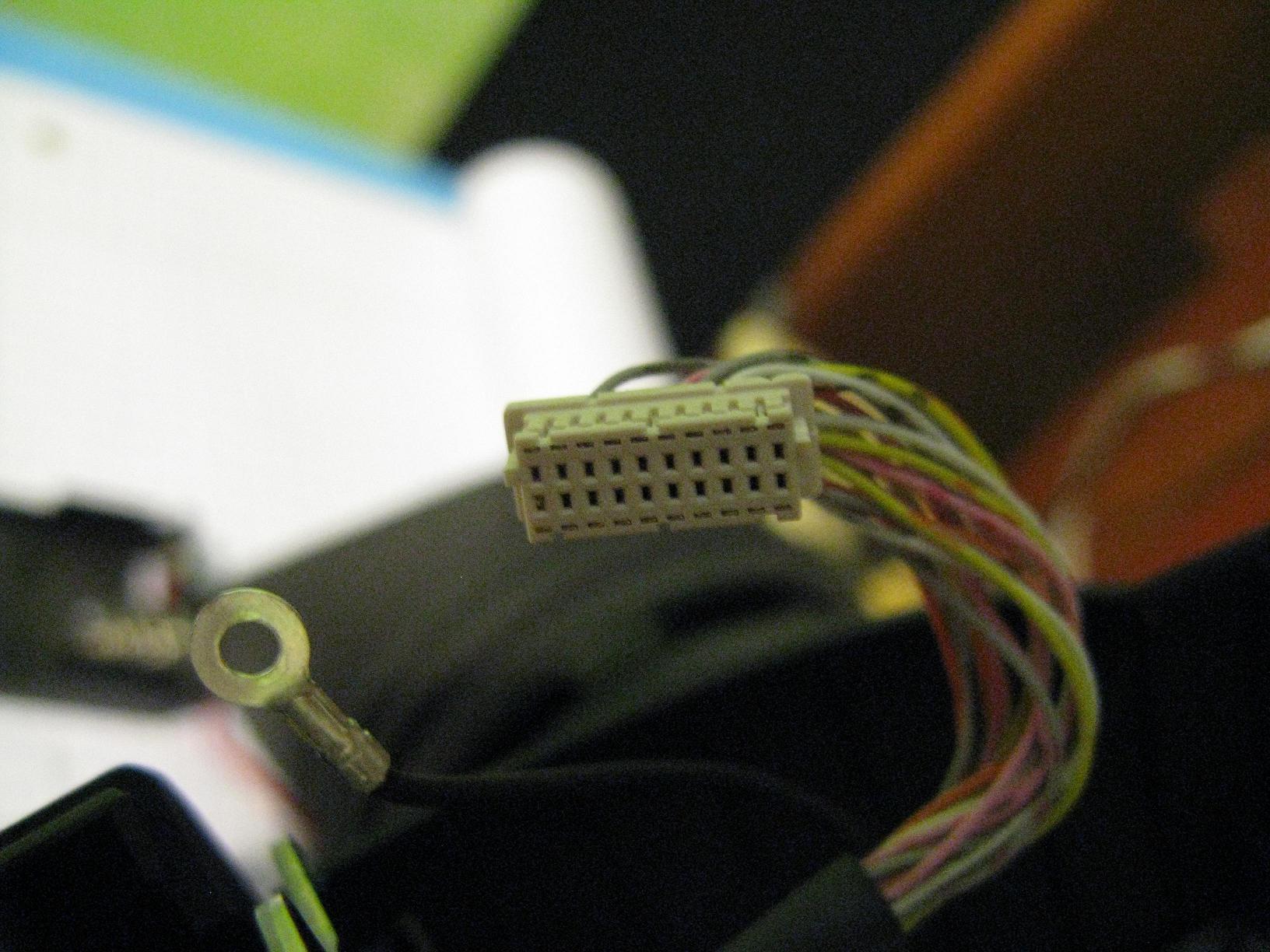

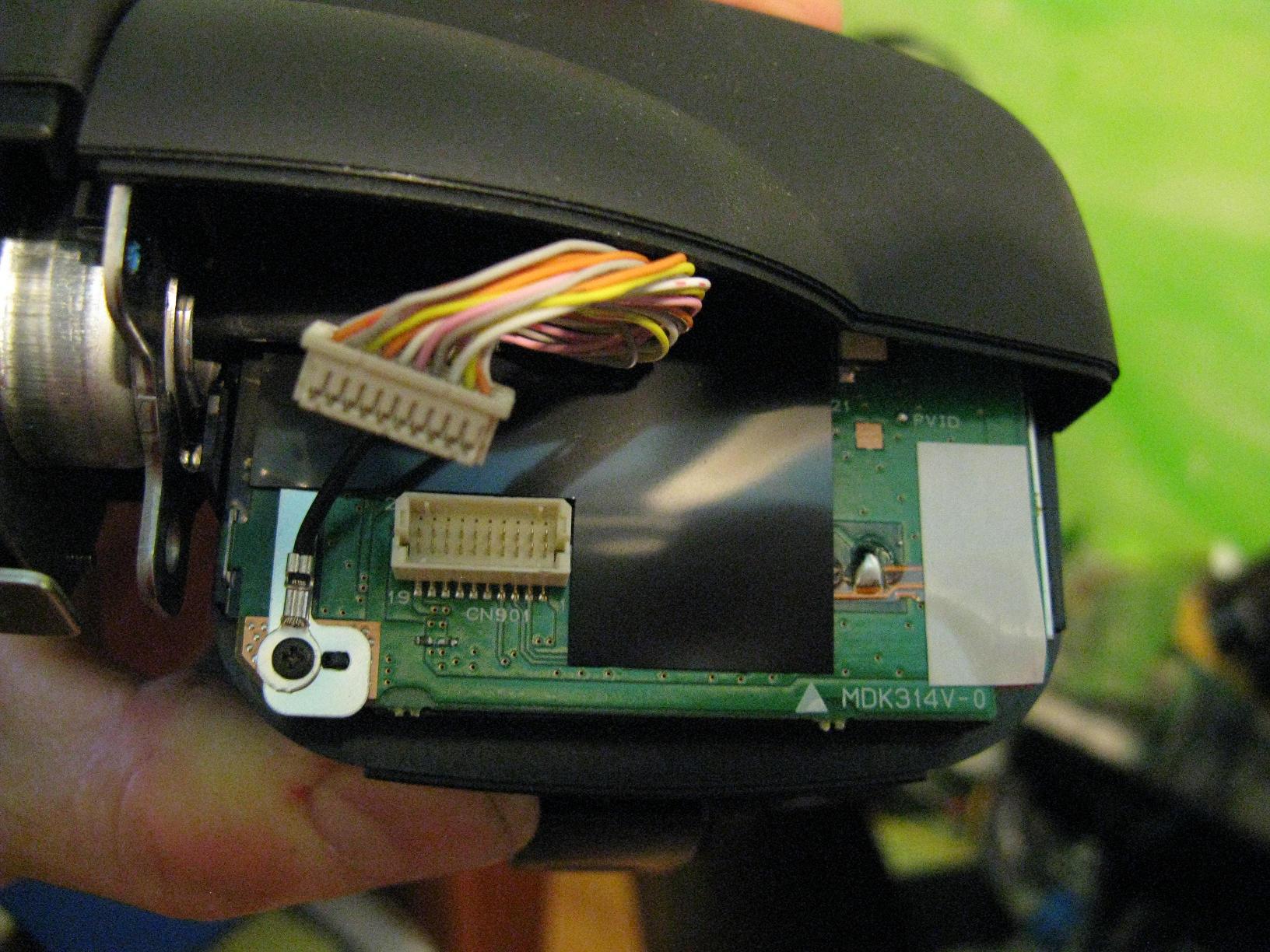

i started investigating the EVF to determine its pinout so here is my current status in the attached pictures.
I still have to find out about the Sharp ic which seemd like some kind of LVDS receiver ?

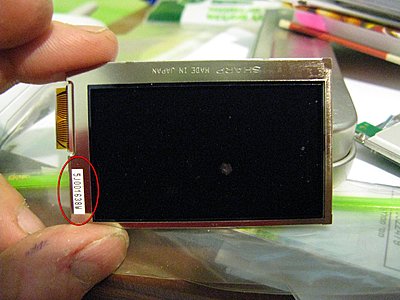

also maybe th LCD panel itself - 5J001638W ?
if any one has some info ... please add your comments.
if i find anything furher, i will post.
Attached Thumbnails
EVF Technical question-img_1939a.jpg   EVF Technical question-img_1936a.jpg

EVF Technical question-img_1933a.jpg   EVF Technical question-img_1940a.jpg

EVF Technical question-img_1942a.jpg
Yalon Benhabib is offline   Reply With Quote
Old April 22nd, 2010, 02:59 AM   #7
New Boot

Join Date: Sep 2004
Location: Germany
Posts: 23
Hi Yalon,
I have attached a document which seems to be a parts list and diagram of the b&w viewfinder. Don't know where I found it but maybe it is of some help to your work.
Wolfgang
Attached Files
File Type: pdf VF15_45_46_schematic.pdf (293.6 KB, 599 views)
Wolfgang Neun is offline   Reply With Quote
Old April 22nd, 2010, 11:47 AM   #8
Regular Crew

Join Date: Dec 2007
Location: Nes-Ziona Israel
Posts: 26
hi Wolfgang,

thanks for the schematics - it is for a CRT type EVF, i do not know it but it seems an old type. do you know if it is compatible with the XLH1 ? does it have the same connector (it does have 20 pins on its connector but i dont know its shape and compatibility)?
to my understanding of the schematics of the circuit board ( page 13 ) and the technology of the XLH1's EVF , it will not suit the signals coming from the XLH1... so i dont think i can make something that may helo us understand the XLH1 output...
Yalon Benhabib is offline   Reply With Quote
Old April 25th, 2010, 12:23 AM   #9
Major Player

Join Date: Sep 2004
Location: New York, NY
Posts: 775
Hi Yalon,

Is there any particular reason in looking into the viewfinder like this?

Are you trying to find a way to install a higher resolution screen or something along those lines?

I'd be VERY interested in that.
Michael Galvan is offline   Reply With Quote
Old April 25th, 2010, 10:07 AM   #10
Regular Crew

Join Date: Dec 2007
Location: Nes-Ziona Israel
Posts: 26
Michael,
exactly !
Yalon Benhabib is offline   Reply With Quote
Old April 25th, 2010, 07:35 PM   #11
Major Player

Join Date: Sep 2004
Location: New York, NY
Posts: 775
I wish you well!

I will keep my eye on this thread!

I dearly love my XL H1S ... only thing killing me about it is the LCD/Viewfinder. Wish it was up to par with what's out there these days.

Only hope I have left is whatever LCD/Viewfinder they come out with on the XL successor will also be compatible with the H1(s).
Michael Galvan is offline   Reply With Quote
Old April 26th, 2010, 08:08 AM   #12
Major Player

Join Date: Sep 2004
Location: New York, NY
Posts: 775
Now that I think about this, this should really help those with the original H1.

Focusing on the H1S is much easier than the original H1, due to the ability to set 2 levels of variable peaking in the viewfinder. I set mine to a really fine line that shows on the focused area. But a higher res viewfinder is always better!

I forgot that the original H1 only has a peaking option, and it was fairly thick.
Michael Galvan is offline   Reply With Quote
Old April 30th, 2010, 04:16 PM   #13
Regular Crew

Join Date: Jun 2007
Location: Forest Ranch, CA
Posts: 106
wow

I'm always amazed at the technical skills some of members of this site have. Does anything go unanswered? (rhetorical)
Joe Batt is offline   Reply With Quote
Old April 30th, 2010, 08:38 PM   #14
Major Player

Join Date: Mar 2007
Location: Lancaster, PA
Posts: 249
I'd be interested to.....with an original XL-H1...the viewfinder was certainly one of the WEAKEST links of the camera.
Wow...to think of being able to replace that LCD viewfinder with a new...sharper version....OH LA LA !!
__________________
Shooting Video since 1/2" EIAJ reel to reel and editing on 2" QUAD machines.
http://www.takeoneprod.com
Kevin Martorana is offline   Reply With Quote
Old December 4th, 2010, 01:47 PM   #15
Major Player

Join Date: Sep 2004
Location: New York, NY
Posts: 775
How is this coming along? Has there been any progress in finding a way to replace the LCD in the viewfinder?
Michael Galvan is offline   Reply
