Old January 20th, 2011, 11:40 AM   #1
Major Player

Join Date: Dec 2001
Location: Tavares Fla
Posts: 541
Help with XLH1S, attatching nano and reciever

Can someone tell me how they have both the nano and a wireless reciever mounted to their XLH1S. Is their an accessory plate ? The Xl1S had an MA 100 that could be modified for stuff but I dont see an accessory plate with the XLH1S.

Thanks
Don Parrish is offline   Reply With Quote
Old January 20th, 2011, 12:51 PM   #2
Trustee

Join Date: Sep 2003
Location: Saguenay, Québec, Canada
Posts: 1,051
The XLH1S come stock with an accessory plate pretty similar to the one on the MA100 (but better).

Look at this picture: http://www.digicambuyer.co.uk/shots/...%20s%20kit.jpg
__________________
Jean-Philippe Archibald
http://www.jparchibald.com - http://www.vimeo.com/jparchib
Jean-Philippe Archibald is offline   Reply With Quote
Old January 20th, 2011, 01:43 PM   #3
Major Player

Join Date: Dec 2001
Location: Tavares Fla
Posts: 541
Thanks Jean-Philippe
Don Parrish is offline   Reply With Quote
Old January 20th, 2011, 02:35 PM   #4
Major Player

Join Date: Sep 2004
Location: New York, NY
Posts: 775

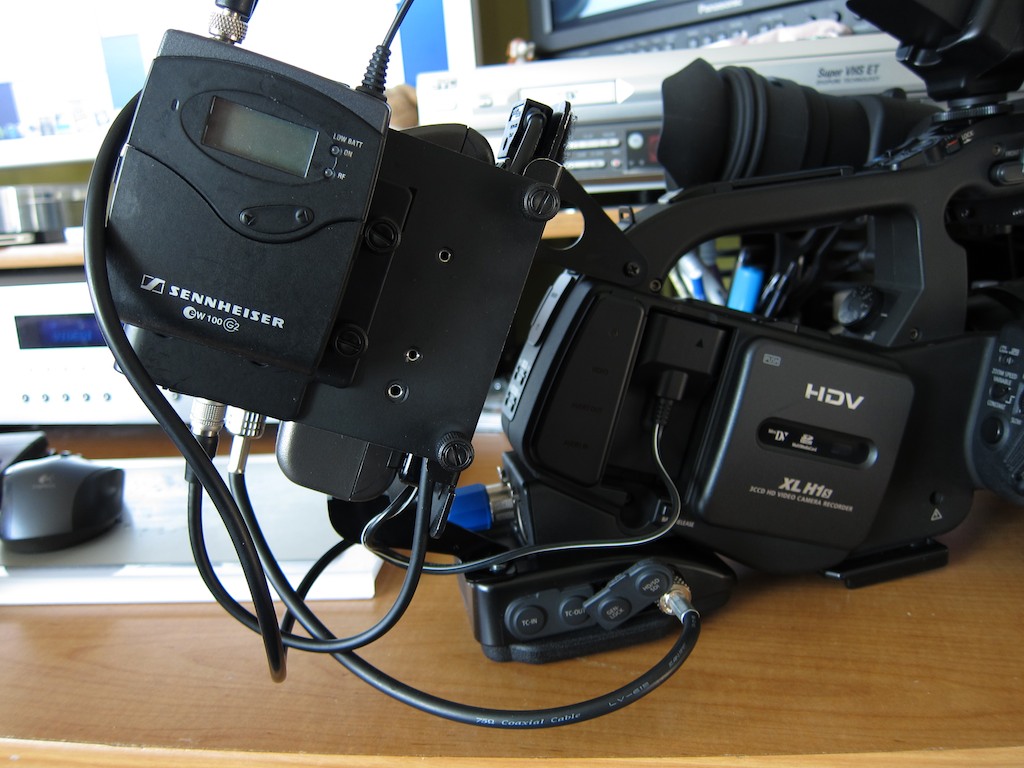

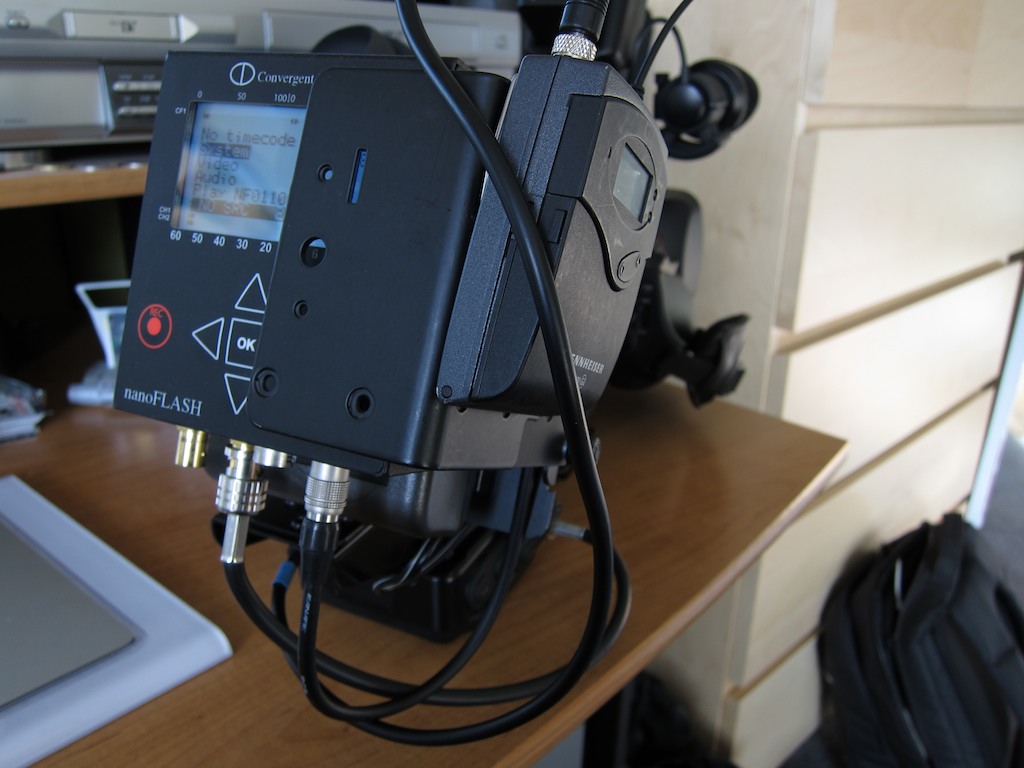

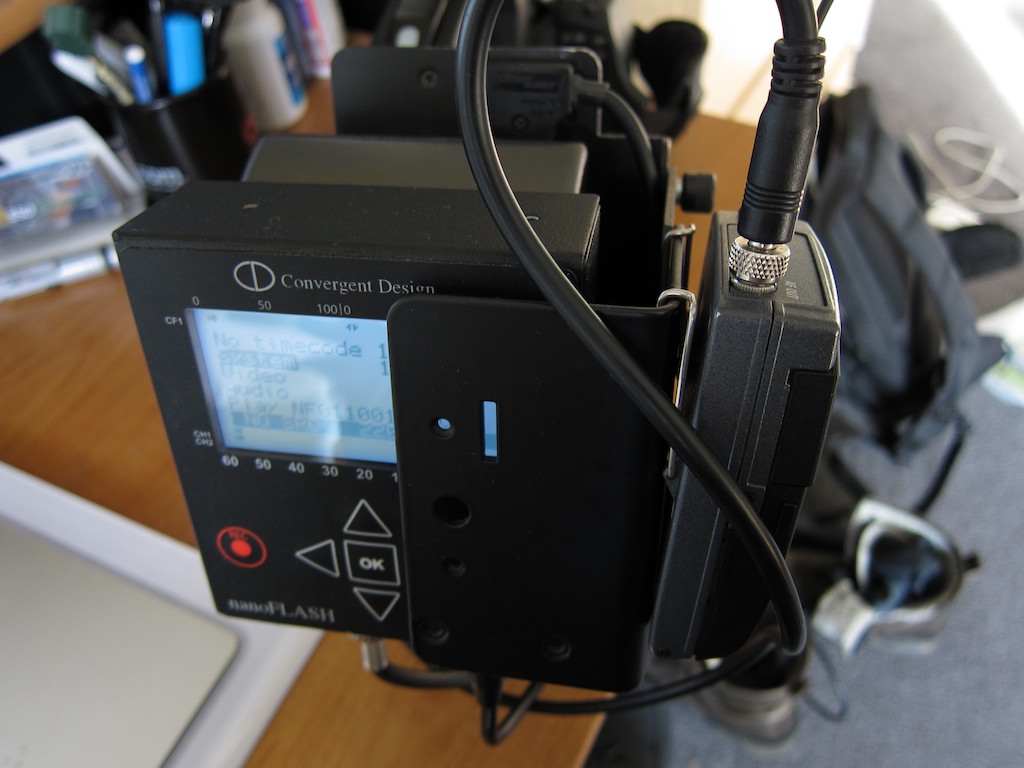

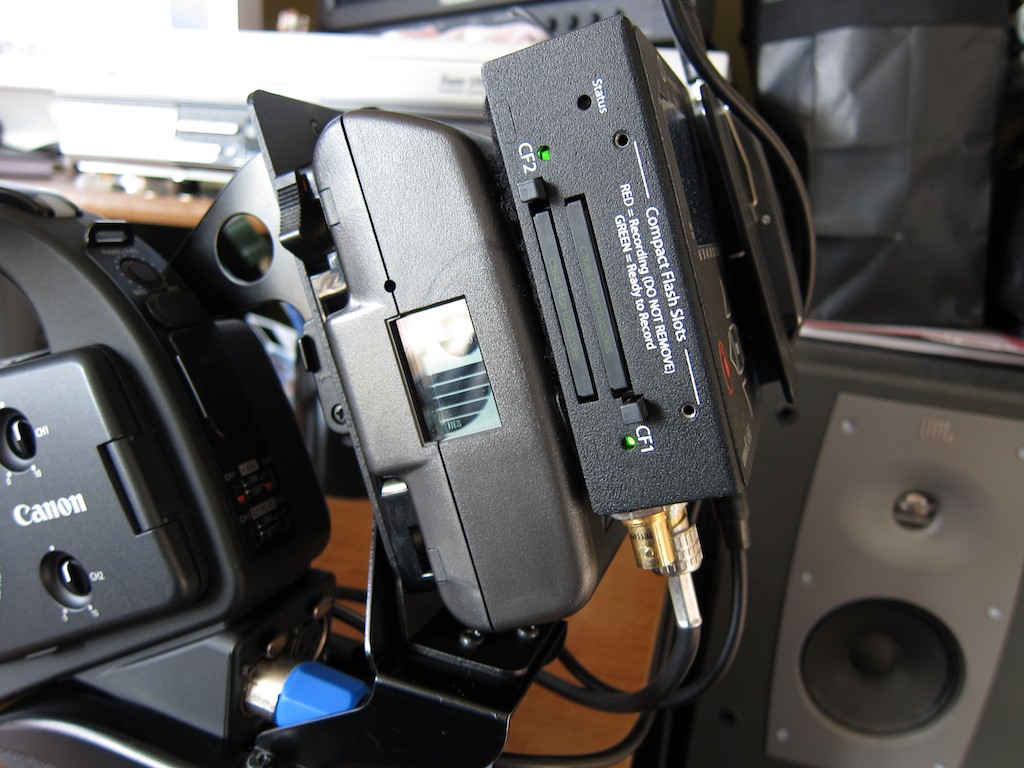

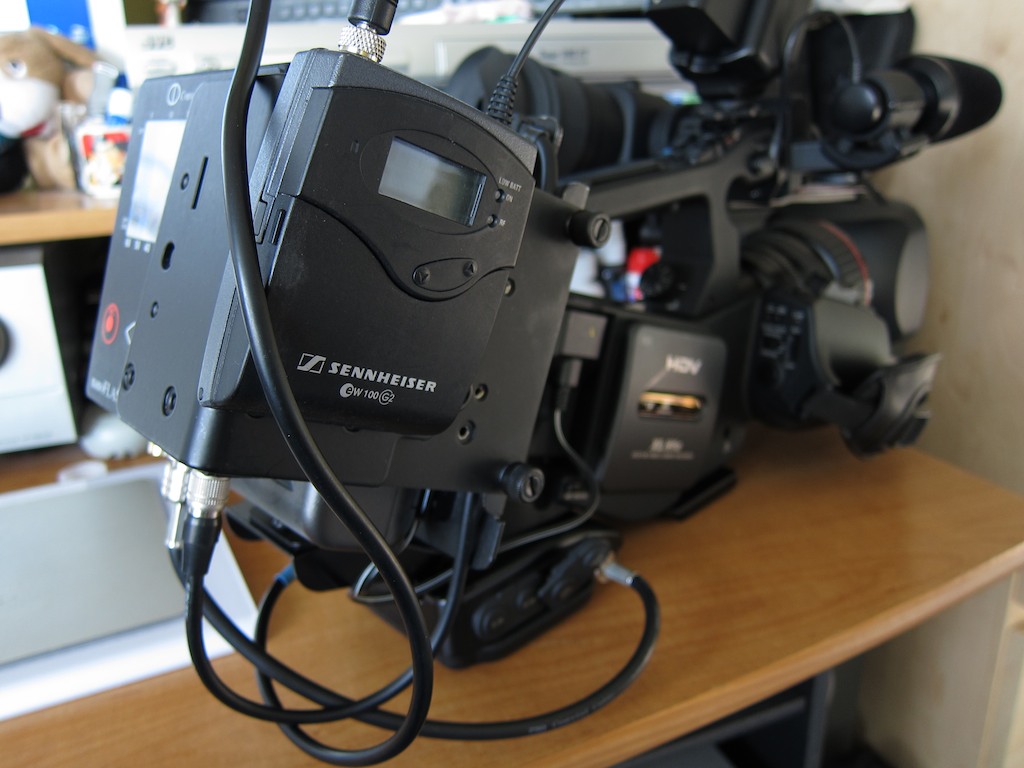

Here's how I mount mine.
Attached Thumbnails
Help with XLH1S, attatching nano and reciever-img_0923.jpg   Help with XLH1S, attatching nano and reciever-img_0924.jpg

Help with XLH1S, attatching nano and reciever-img_0925.jpg   Help with XLH1S, attatching nano and reciever-img_0926.jpg

Help with XLH1S, attatching nano and reciever-img_0927.jpg
Michael Galvan is offline   Reply With Quote
Old January 20th, 2011, 02:56 PM   #5
Major Player

Join Date: Dec 2001
Location: Tavares Fla
Posts: 541
I almost included an "antention MIchael Galvan" in the title. I had searched through the post looking for "bracket" threads and had seen one talking about special brackets.

Thanks for the pictures, couldn't get any better, well, you could have lived one town over,
(and it would be a tad warmer :)

Thanks.


P.S. if the nano is on the very back and the reciever is on the outside what is between the nano and the bracket ??
Don Parrish is offline   Reply With Quote
Old January 20th, 2011, 03:12 PM   #6
Trustee

Join Date: Sep 2003
Location: Saguenay, Québec, Canada
Posts: 1,051
Michael,

The bracket attached 90 degree from the gold mount plate... What is it? Was it custommade for you?
__________________
Jean-Philippe Archibald
http://www.jparchibald.com - http://www.vimeo.com/jparchib
Jean-Philippe Archibald is offline   Reply With Quote
Old January 20th, 2011, 03:12 PM   #7
Major Player

Join Date: Sep 2004
Location: New York, NY
Posts: 775
LOL. I try to help when I can...

I have the Nano piggyback off of an Anton Bauer Dionic 90, which I use to power both the Nano and the camera at the same time. Nice setup for me as it minimizes cables and such.
Michael Galvan is offline   Reply With Quote
Old January 20th, 2011, 03:14 PM   #8
Major Player

Join Date: Sep 2004
Location: New York, NY
Posts: 775
Quote:
Originally Posted by Jean-Philippe Archibald View Post
Michael,

The bracket attached 90 degree from the gold mount plate... What is it? Was it custommade for you?
No, its just a standard Anton Bauer bracket plate.

Anton Bauer ABWM-KIT Universal Wireless Mounting ABWMK-KIT B&H
Michael Galvan is offline   Reply
