Mobile Uncompressed HD/SDI Capture Setup

I'm so excited! All of the pieces for our mobile uncompressed HD work station are coming together. Pictures will be posted in the coming week and footage soon after that.

I have to first give credit to DVInfo sponsor Zotz Digital and Brian Longley and Jason Warren. They recommended the parts and helped us get it together. Their service is great and their depth of knowledge is too.

Here's the breakdown:

- Canon XL H1
- MacPro 2.66 Quad Xeon w/ 7 gigs RAM, 250 gig system drive and 500 gig internal storage drive
- 2.5 terrabyte Ciprico (formerly Huge) 4210 Dual Channel 4Gb fibre channel media drive
- ATTO dual 4 gig fibre channel host
- Kona LHe and breakout box
- Blackmagic HDLink
- Samsung 244T 24" 1920x1200 LCD (for use with HDLink as field monitor)
- Sharp Aquos 26" HDTV (for use as production playback monitor)

About half of the stuff has arrived and for the first time since we've had the H1 I've finally been able to see what true pixel for pixel uncompressed HD looks like and I must say it is phenominal!

I tried the camera first connected to the Aquos HDTV from the component out on the H1 and it was fantastic. I then tried the same with the Samsung and it was great but the image was stretched to fill the 16:10 screen. Next I tried the Samsung using the Blackmagic HDLink for true 16:9 1920x1080 from the HD/SDI out of the H1 and I was blown away!

Now I know you are saying to your self "How is this stuff mobile?" Well, mobile is a relative term. Obviously this is not a run and gun type setup. HDV will be fine for that, but we are rack mounting all of the hardware in a TOV road case. It's a DJ style case that has 16 spaces vertically and on top has 11 spaces for mounting a mixer or other processing gear. I'm goin to use that space to mount a left over LCD screen from an older work station, and a keyboard. This will be used to log and capture with FCP. The Samsung will be placed where ever the DP needs it.

This coming week will be setup and testing time for me then the following week we are on a week long shoot in Atlanta using this new rig.

If any of you will be in the Atlanta area the week of Nov 12-17, let me know and we can hook up. I'd love to meet some DVInfo members.

I'll post pictures of the rig before I leave and post footage from the shoot when we get to HOT LANTA!

Can't wait!
__________________
Dave Perry Cinematographer LLC
Director of Photography Editor Digital Film Production 540.915.2752 daveperry.net
Dave Perry is offline   Reply With Quote
Old November 4th, 2006, 10:15 AM   #2
Obstreperous Rex

Join Date: Jan 2001
Location: San Marcos, TX
Posts: 26,900
Images: 513
Thanks Dave -- looking forward to the pics! Can't wait to see this set-up. Glad to hear that Brian took care of you guys so well... that's business as usual at Zotz.
__________________
CH

Search DV Info Net | DV Info Net Sponsors | A Decade (+5) of DVi | ...Tuesday is Soylent Green Day!
Chris Hurd is offline   Reply With Quote
Old November 5th, 2006, 12:58 AM   #3
Major Player

Join Date: Oct 2005
Location: NYC
Posts: 658
I thought...when I read the Title you were attempting a way to stream the HD wirelessly.
Sounds great though,
yes please Dave, Pix
John Benton is offline   Reply With Quote
Old November 5th, 2006, 09:43 PM   #4
Trustee

Join Date: May 2003
Location: Atlanta GA
Posts: 1,427
I knew there must have been some reason to move to atlanta. I'm in, and pretty free those days please let me know when a good time to come by would be I'd love to check out the rig. (am considering doing something very similar)
__________________
I have a dream that one day canon will release a 35mm ef to xl adapter and I'll have iris control and a 35mm dof of all my ef lenses, and it will be awesome...
Nick Hiltgen is offline   Reply With Quote
Old November 6th, 2006, 06:28 AM   #5
Major Player

Join Date: Mar 2004
Location: Roanoke, VA
Posts: 796
Hi Nick,

We will be shooting the 13th through the 17th at a hospital. I'm not sure which one but it's pretty much a closed set. I'm not even sure what hotel we'll be at yet but I'll let you know and we can hook up one evening. Maybe I can show you the rig before we shoot one morning.
__________________
Dave Perry Cinematographer LLC
Director of Photography Editor Digital Film Production 540.915.2752 daveperry.net
Dave Perry is offline   Reply With Quote
Old November 6th, 2006, 08:25 AM   #6
Trustee

Join Date: May 2003
Location: Atlanta GA
Posts: 1,427
I've got a few shoots that week I think the mornign would be great, really just want to see the work flow and rack setup ya know?

thanks
nick
__________________
I have a dream that one day canon will release a 35mm ef to xl adapter and I'll have iris control and a 35mm dof of all my ef lenses, and it will be awesome...
Nick Hiltgen is offline   Reply With Quote
Old November 7th, 2006, 07:52 PM   #7
Major Player

Join Date: Mar 2004
Location: Roanoke, VA
Posts: 796
A Few Pics While Waiting for Rest of Gear

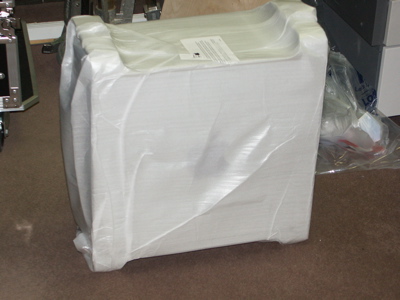

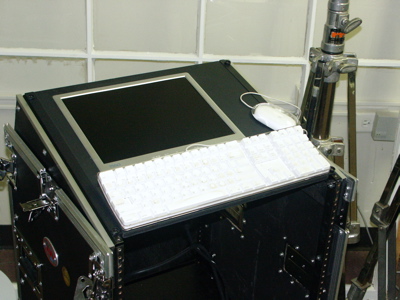

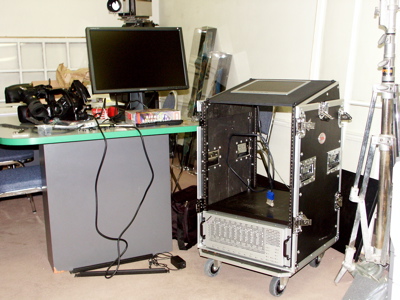

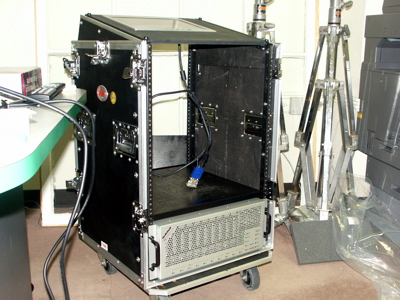

Here are a couple of pictures of the project in progress. The Ciprico RAID and MacPro came yesterday. The Kona LHe and breakout box will be here tomorrow anf the Redrockmicro M2 on thursday.
Attached Images

__________________
Dave Perry Cinematographer LLC
Director of Photography Editor Digital Film Production 540.915.2752 daveperry.net
Dave Perry is offline   Reply With Quote
Old November 8th, 2006, 07:28 PM   #8
Major Player

Join Date: Mar 2004
Location: Roanoke, VA
Posts: 796

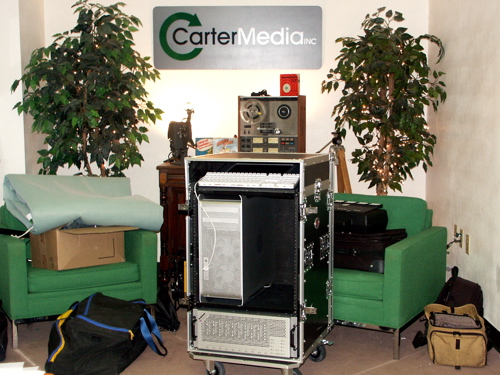

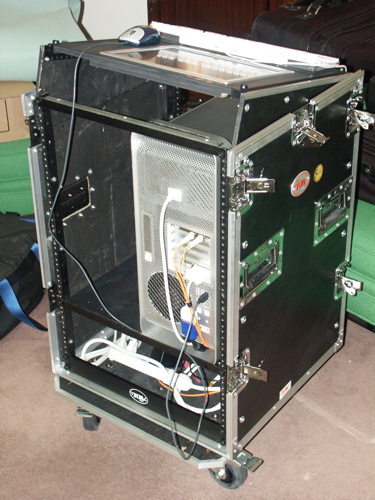

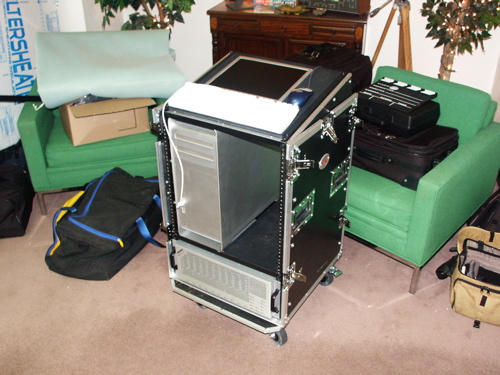

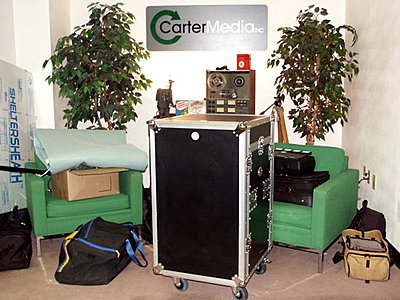

Here are a few more pictures of the box. Almost everything is in. All cables fit with doors on front and back.

The Fedex man has been late 2 days in a row so we don't have the Kona card and breakout box yet. When we do, I'll post footage.
Attached Thumbnails

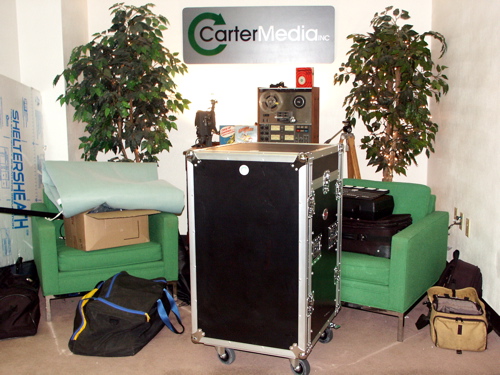

Mobile Uncompressed HD/SDI Capture Setup-pict0003.jpg   Mobile Uncompressed HD/SDI Capture Setup-pict0004.jpg

Mobile Uncompressed HD/SDI Capture Setup-pict0005.jpg   Mobile Uncompressed HD/SDI Capture Setup-pict0009.jpg

__________________
Dave Perry Cinematographer LLC
Director of Photography Editor Digital Film Production 540.915.2752 daveperry.net
Dave Perry is offline   Reply With Quote
Old November 9th, 2006, 06:32 AM   #9
Major Player

Join Date: Mar 2004
Location: Roanoke, VA
Posts: 796
New Discovery

After setting up the RAID, I've learned that the ATTO dual fibre channel host card does NOT support MacPros with more than 2 gigs of RAM. In order to properly stripe the RAID I had to remove 5 of 7 gigs of RAM to get it to work properly. Ciprico (Huge) says updated ATTO drivers are to be release any day now. I hope it's before Monday so I can reinstall the RAM before our Atlanta shoot.
__________________
Dave Perry Cinematographer LLC
Director of Photography Editor Digital Film Production 540.915.2752 daveperry.net
Dave Perry is offline   Reply With Quote
Old November 9th, 2006, 10:25 AM   #10
Trustee

Join Date: May 2003
Location: Atlanta GA
Posts: 1,427
Wow, that sucks! I hope they get that fixed soon, I wonder why that would be an issue?
__________________
I have a dream that one day canon will release a 35mm ef to xl adapter and I'll have iris control and a 35mm dof of all my ef lenses, and it will be awesome...
Nick Hiltgen is offline   Reply With Quote
Old November 12th, 2006, 09:35 AM   #11
Major Player

Join Date: Sep 2004
Location: New York, NY
Posts: 775
Hey, this is a very interesting setup. What brand is the cart you are using?

Also, are you installing some sort a field battery system to poert this whole thing without haveing to connect power elsewahere? Nice job with this setup!
Michael Galvan is offline   Reply With Quote
Old November 12th, 2006, 03:05 PM   #12
Major Player

Join Date: Mar 2004
Location: Roanoke, VA
Posts: 796
It's mobile but not self powered. The rack is a standard road case made by TOV. 16 spaces vertical and 11 on top.

I just arrived in GA so tomorrow I'll have some more stuff to post.
__________________
Dave Perry Cinematographer LLC
Director of Photography Editor Digital Film Production 540.915.2752 daveperry.net
Dave Perry is offline   Reply With Quote
Old November 21st, 2006, 01:22 AM   #13
Major Player

Join Date: Sep 2004
Location: New York, NY
Posts: 775
Can you give the exact case model number? I'm very interested in your setup and may want to try doing the exact same thing. Did you have to do anything custom to the case to make everything fit?

Mike
Michael Galvan is offline   Reply With Quote
Old November 21st, 2006, 06:29 AM   #14
Major Player

Join Date: Mar 2004
Location: Roanoke, VA
Posts: 796
Michael,

Go to www.tovcases.com and look at the "Combo Cases". Yes, I had to do some custom bracket fabrication to get the MacPro to fit. As soon as I can, I plan to post some more in depth info on the setup and its use. We had our first shoot with it last week and it worked flawlessly.
__________________
Dave Perry Cinematographer LLC
Director of Photography Editor Digital Film Production 540.915.2752 daveperry.net
Dave Perry is offline   Reply With Quote
Old November 22nd, 2006, 06:57 AM   #15
Major Player

Join Date: Mar 2004
Location: Roanoke, VA
Posts: 796
Update

I just wanted to say that our shoot in Atlanta went well. The client was very pleased and our system worked flawlessly. I haven't had time to post any footage or more stills from the shoot but will be doing so shortly.
__________________
Dave Perry Cinematographer LLC
Director of Photography Editor Digital Film Production 540.915.2752 daveperry.net
Dave Perry is offline   Reply
