Old December 5th, 2006, 10:36 AM   #16
Major Player

Join Date: Jan 2006
Location: Göteborg, Sweden
Posts: 306
OK. Here it is. I've done the back focus, pictures is frame grabs.

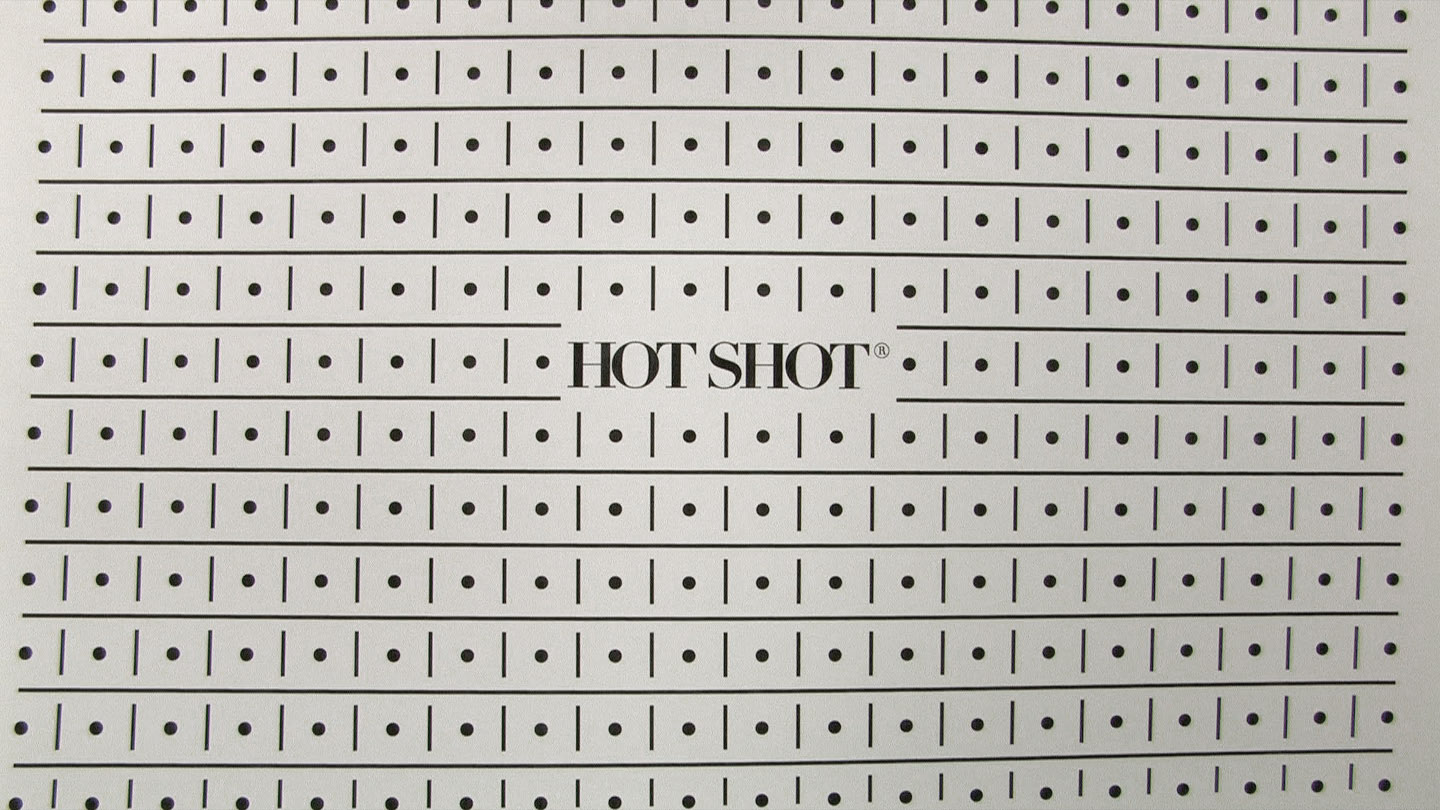

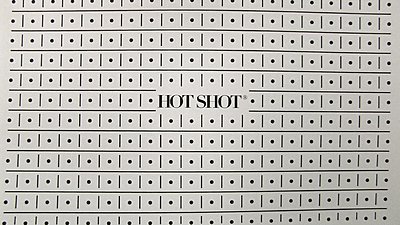

Barrel distorion; Chart and some shots done at my studio.

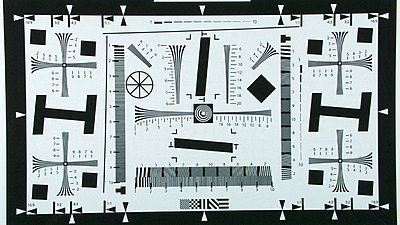

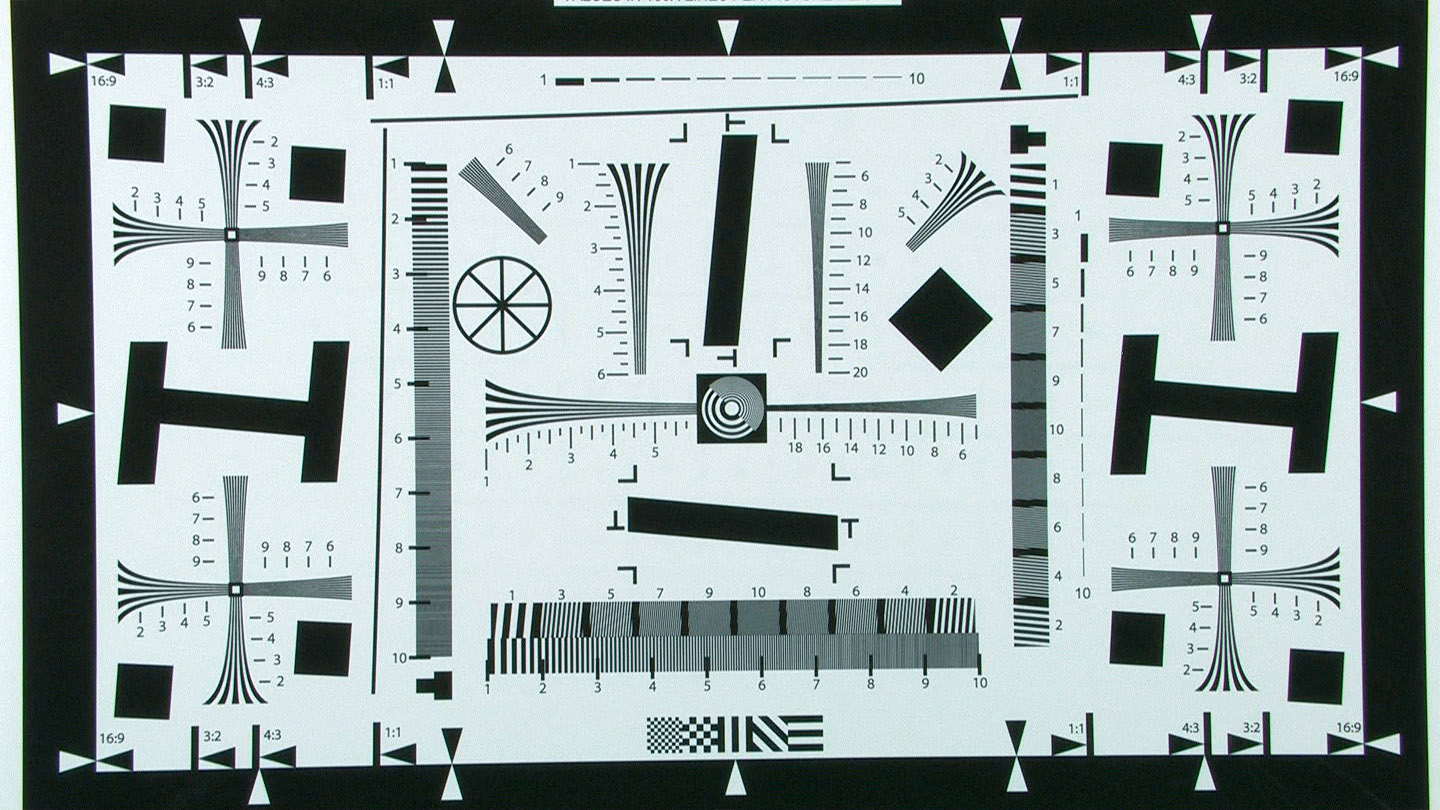

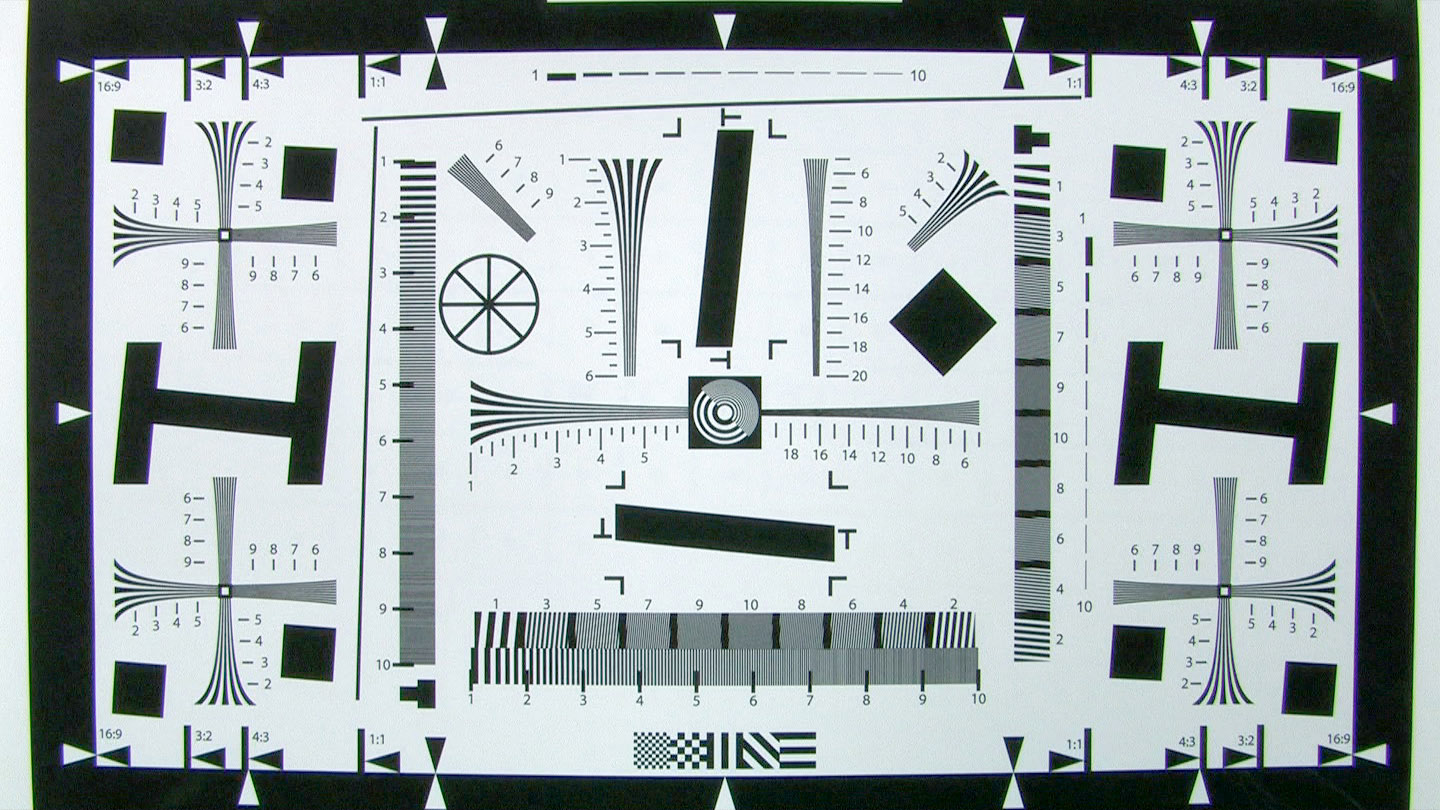

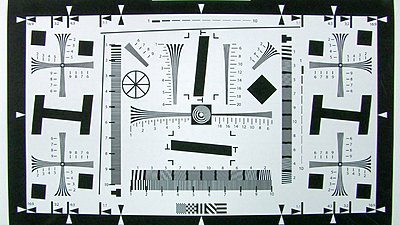

Resolution Charts; at full wide and full tele.

Depth of field; with help from my assistent Linda, one at full wide and one at full tele (shot with Schneider Black Frost 1/2).
Attached Thumbnails
6x Wide Angle Shipping-barrel-chart-full-wide.jpg   6x Wide Angle Shipping-res-chart-full-tele.jpg

6x Wide Angle Shipping-res-chart-full-wide.jpg   6x Wide Angle Shipping-dof-full-tele.jpg

6x Wide Angle Shipping-dof-full-wide.jpg   6x Wide Angle Shipping-barrel-dist-full-wide-1.jpg

6x Wide Angle Shipping-barrel-dist-full-wide-2.jpg   6x Wide Angle Shipping-barrel-dist-full-wide-4.jpg

__________________
Jonas Nyström, DoP :: HOT SHOT® SWEDEN :: www.hotshot.nu :: RED #1567, RED 18-50mm T3 :: XL A1, Letus Extreme :: XL H1, 20X & 6X lens (for sale) :: www.vimeo.com/nystrom
Jonas Nystrom is offline   Reply With Quote
Old December 5th, 2006, 10:47 AM   #17
Major Player

Join Date: Jan 2006
Location: Göteborg, Sweden
Posts: 306

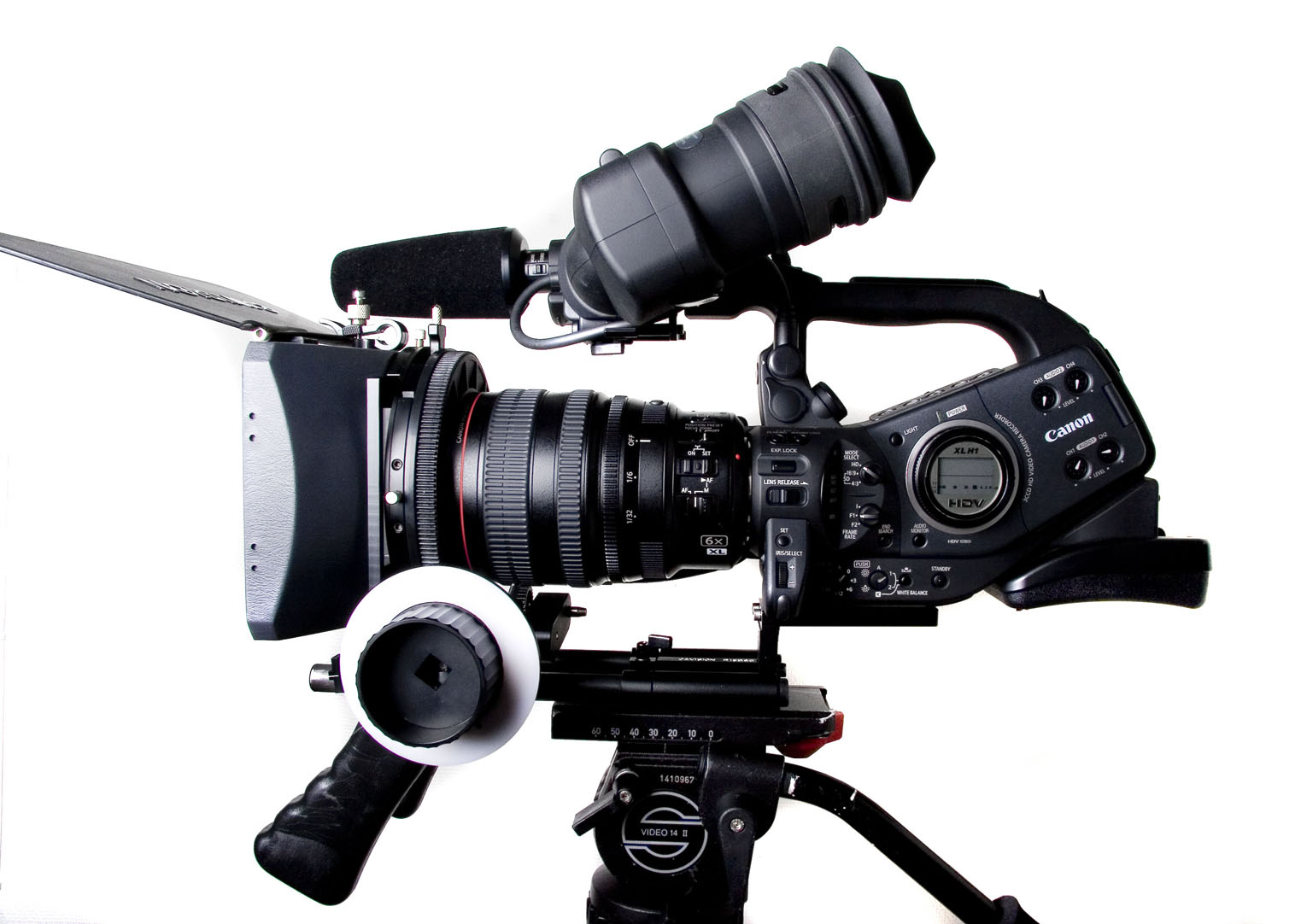

And here is one more on barrel distortion and one pic on the 6X mounted on the H1 with rod system. For gear ring (follow focus) we will need a gear ring with 34 cm circumference.
Attached Thumbnails
6x Wide Angle Shipping-barrel-dist-full-wide-3.jpg   6x Wide Angle Shipping-xl-h1-6x-zoom.jpg

__________________
Jonas Nyström, DoP :: HOT SHOT® SWEDEN :: www.hotshot.nu :: RED #1567, RED 18-50mm T3 :: XL A1, Letus Extreme :: XL H1, 20X & 6X lens (for sale) :: www.vimeo.com/nystrom
Jonas Nystrom is offline   Reply With Quote
Old December 5th, 2006, 02:33 PM   #18
Trustee

Join Date: Feb 2005
Location: Worldwide
Posts: 1,589
Thanks for the shots and info, Jonas. If you could possibly do a small selection of test photos at outdoor locations sometime in the future, it would also provide much-needed added information on this interesting lens.
__________________
www.WILDCARP.com
www.NIKON.me.uk
Tony Davies-Patrick is offline   Reply With Quote
Old December 6th, 2006, 07:26 AM   #19
Major Player

Join Date: Jan 2006
Location: Göteborg, Sweden
Posts: 306
Some exteriors shot with the new wide (stills). All shot at full wide. Have a look at the low barrel distortion, extreme long DOF and the angles.

I love the manual iris ring!
Attached Thumbnails
6x Wide Angle Shipping-img_0305.jpg   6x Wide Angle Shipping-img_0309.jpg

6x Wide Angle Shipping-img_0316.jpg   6x Wide Angle Shipping-img_0319.jpg

6x Wide Angle Shipping-img_0321.jpg   6x Wide Angle Shipping-img_0323.jpg

__________________
Jonas Nyström, DoP :: HOT SHOT® SWEDEN :: www.hotshot.nu :: RED #1567, RED 18-50mm T3 :: XL A1, Letus Extreme :: XL H1, 20X & 6X lens (for sale) :: www.vimeo.com/nystrom
Jonas Nystrom is offline   Reply With Quote
Old December 6th, 2006, 07:40 AM   #20
Regular Crew

Join Date: Apr 2003
Location: Tennessee
Posts: 164
Quote:
Originally Posted by Jonas Nystrom
I love the manual iris ring!
I think i have a defective lens. When I have it in Manual mode
and push exposure lock like it says to do the iris ring still does
nothing. Am I missing something?

thanks
__________________
will griffith
producer/editor
Will Griffith is offline   Reply With Quote
Old December 6th, 2006, 08:20 AM   #21
Trustee

Join Date: Jul 2004
Location: Canton, Ohio
Posts: 1,770
Quote:
Originally Posted by Will Griffith
I think i have a defective lens. When I have it in Manual mode
and push exposure lock like it says to do the iris ring still does
nothing. Am I missing something?

thanks

I donot have lens but I have ask if you flashed the bios on your camera when you got the lens? I do not think the iris ring will work unless you do this first.

Good Luck. I sure hope it is something like this and not a defect.
Marty Hudzik is offline   Reply With Quote
Old December 6th, 2006, 08:41 AM   #22
Major Player

Join Date: Jan 2006
Location: Göteborg, Sweden
Posts: 306
Exactly, you must update your camera firmware (included).
__________________
Jonas Nyström, DoP :: HOT SHOT® SWEDEN :: www.hotshot.nu :: RED #1567, RED 18-50mm T3 :: XL A1, Letus Extreme :: XL H1, 20X & 6X lens (for sale) :: www.vimeo.com/nystrom
Jonas Nystrom is offline   Reply With Quote
Old December 6th, 2006, 08:47 AM   #23
Regular Crew

Join Date: Apr 2003
Location: Tennessee
Posts: 164
Hmmmmm....
It is already at 1.0.3.0 (new body only kit).

I will email Canon and see what hey say.

thanks
__________________
will griffith
producer/editor
Will Griffith is offline   Reply With Quote
Old December 6th, 2006, 09:06 AM   #24
Regular Crew

Join Date: Apr 2003
Location: Tennessee
Posts: 164
BTW....

Here is an uncompressed 10bit 1080p frame grab w/6x lens.

I like this camera. :) I will post a :60 spot we shot on monday
sometime this week.
Attached Thumbnails
6x Wide Angle Shipping-uc1080p.jpg
__________________
will griffith
producer/editor
Will Griffith is offline   Reply With Quote
Old December 6th, 2006, 09:16 AM   #25
Trustee

Join Date: Feb 2005
Location: Worldwide
Posts: 1,589
Thanks for the exteriors Jonas.

There seems to be slight colour fringing/chromatic aberrations in places, although probably not so noticeable in a moving image.

Can you remember the f/stop settings for each of the exterior shots shown?

It would be nice to view a side-by-side test between the XL 3XSD and 6XHD lenses to see how much of an improvement has been made with new lens - in both perfomance and handling.
__________________
www.WILDCARP.com
www.NIKON.me.uk
Tony Davies-Patrick is offline   Reply With Quote
Old December 6th, 2006, 09:23 AM   #26
Major Player

Join Date: Jan 2006
Location: Göteborg, Sweden
Posts: 306
Quote:
Originally Posted by Tony Davies-Patrick
Thanks for the exteriors Jonas.

There seems to be slight colour fringing/chromatic aberrations in places, although probably not so noticeable in a moving image.

Can you remember the f/stop settings for each of the exterior shots shown?
I think the fringing is far less then in the 20x lens!

Sorry, I did the exteriors in a rush, and did not make notes of the f-stops!
__________________
Jonas Nyström, DoP :: HOT SHOT® SWEDEN :: www.hotshot.nu :: RED #1567, RED 18-50mm T3 :: XL A1, Letus Extreme :: XL H1, 20X & 6X lens (for sale) :: www.vimeo.com/nystrom
Jonas Nystrom is offline   Reply With Quote
Old December 6th, 2006, 09:25 AM   #27
Major Player

Join Date: Jan 2006
Location: Göteborg, Sweden
Posts: 306
Quote:
Originally Posted by Will Griffith
Hmmmmm....
It is already at 1.0.3.0 (new body only kit).

I will email Canon and see what hey say.

thanks
And it should be 1.0.4.0!
__________________
Jonas Nyström, DoP :: HOT SHOT® SWEDEN :: www.hotshot.nu :: RED #1567, RED 18-50mm T3 :: XL A1, Letus Extreme :: XL H1, 20X & 6X lens (for sale) :: www.vimeo.com/nystrom
Jonas Nystrom is offline   Reply With Quote
Old December 6th, 2006, 09:55 AM   #28
Major Player

Join Date: May 2006
Location: Incline Village, Nevada
Posts: 604
Quote:
Originally Posted by Will Griffith
Hmmmmm....
It is already at 1.0.3.0 (new body only kit).

I will email Canon and see what hey say.

thanks
Will, as posted earlier, the 6X ships with an SD Card with the firmware upgrade needed for it to communicate with camera. Be careful you don't throw it away with packaging. Don't have our 6X yet (coming from Zotz Digital) - could someone describe the packaging of the SD card so others don't lose it.
John Richard is offline   Reply With Quote
Old December 6th, 2006, 09:59 AM   #29
Regular Crew

Join Date: Apr 2003
Location: Tennessee
Posts: 164
Found it. :) didn't see it when I first opened the box.

That's what happens when you can't wait to play with a new toy.

thanks
__________________
will griffith
producer/editor
Will Griffith is offline   Reply With Quote
Old December 6th, 2006, 10:04 AM   #30
Regular Crew

Join Date: Apr 2003
Location: Tennessee
Posts: 164
It's easy to miss...especially if you are tossing things out quickly to get to the lens :)

It is with a 3" by 4" folded piece of paper in a plastic sleeve.

-will
__________________
will griffith
producer/editor
Will Griffith is offline   Reply
