Data to Film with Cineform RAW and Prospect 2k

Hi:

I`ve shoot some material with the SI2K camera, and im doing some tests for a feature film.
All the workflow has been based on the Cineform codec. Everything has gone well, except some early problems solved with the software upgrades from Cineform.

I`ve rendered the master of a short film im planning to output to film as well as the camera tests for the film.

I have a couple of questions about the codec:

1) How can I know if the AVI files rendered in Premiere or After Effects are Linear or Log. This is important because i`ve been having problems with the VFX guys, they say all the material im giving them, is linear I`ve been comparing the Cineon files i gave them with the original RAW`s and the image looks very different, color has a lot of saturation and the dinamic range is lost.

This is an important issue for us because we are replacing the face of an actor and the VFX guys dont have the Cineform License and we dont want to get lost in translation.

2) Whats the bitdepth of the Cineform Quicktime files. When I compare it with the original RAW or with the exported Cineform AVI Filmscan 444, the quicktime has more detail and contrast than the original.

Im going to finish in Combustion, because the color managment in AE is very tricky, and the Cineon files im exporting dont look as the CineformAVI`s i feel im loosing color.

What do you recommend me to do

Thank you
Sergio Sanchez is offline   Reply With Quote
Old May 21st, 2007, 07:42 PM   #2
CTO, CineForm Inc.

Join Date: Jul 2003
Location: Cardiff-by-the-Sea, California
Posts: 8,090
Firstly, your effects guys are welcome to NEO Player, which provides a free decoder license that works with CineForm RAW and CineForm 444. If they are Adobe/PC based this might be what they need. Although without a CineForm encoding license they would need to return uncompressed file to you.

1) When you are generating Cineon files you have several options, log or linear or your own black and white points. Note: remember there is a terminlogy issue that some mistaking call 2.2 video gamma, linear -- is it not. Note 2: avoid true linear for exports, it is great for VFX work, not great in a 10-bit file, log is best for dynamic range, even 2.2 gamma is better than linear.

If you want you exports for VFW work with your look active, you want to make sure you don't clip highlights, as the look file can generate an HDR image. As the SI-2K image have there own curve, and the 3DLUT maybe another you what to normallize this for your VFX exports. Place your AE composite in 32-bit mode, and the CineForm importer will convert the image to a try linear 32-bit float, this image may have white levels greater than 1.0. When you export to Cineon/DPX you want to preserve you dynamic range by using a log curve, while you can customize your own white & black points, for convience just select "Standard" from the Cineon file "Format Options..." The "Logarithmic Conversion" should be set to convert 32-bit linear to 10-bit Cineon log. At VFX end these exported files will look flat, with a grey level for black, you Cineon Convert should be applied to convert log but to linear for processing.

If you disable the camera's look, the RAW image will not clip highlights, in this senario you would be best to export the 10-bit data directly without any curves applied. Note: you can use the above method for a standard Cineon deliverable, there will be slightly more tonal information in the RAW 10-bit export. To do this you want to use the 16-bit mode in After Effects, this way the cameras curves are not reversed. Then export to Cineon with the preset set to "Full range", with sets the point at 0 and black at 1023 with no gamma or log curve applied. Will the Cineon file will be flagged as linear the data within is camera log. This is a robust way of more data between tools.

2) The bitdepth of CineForm 444 is 12 whether you use MOV or QT wrappers, however there should not be any visible difference in detail or contrast -- I just did a test and all is fine. Make sure you set 444 and trillions of colors, allow in you are in 32-bit linear mode, you will what to apply a curve, just as you would in the Cineon export, you can use the Cineon Convertor filter to apply a standard cineon curve to your CineForm 444 exports.
__________________
David Newman -- web: www.gopro.com
blog: cineform.blogspot.com -- twitter: twitter.com/David_Newman
David Newman is offline   Reply With Quote
Old May 21st, 2007, 07:55 PM   #3
Major Player

Join Date: Jan 2007
Location: Patterson La.
Posts: 207
I hope this is going in the new manual :D
Salah Baker is offline   Reply With Quote
Old May 21st, 2007, 10:10 PM   #4
CTO, CineForm Inc.

Join Date: Jul 2003
Location: Cardiff-by-the-Sea, California
Posts: 8,090
It take less time for be to write my part of software and respond to questions online, then for me to write a manual. The whole of log vs linear processing is a book, not a manual entry, or read the entire http://prolost.blogspot.com.
__________________
David Newman -- web: www.gopro.com
blog: cineform.blogspot.com -- twitter: twitter.com/David_Newman
David Newman is offline   Reply With Quote
Old May 22nd, 2007, 05:41 PM   #5
Regular Crew

Join Date: Feb 2007
Location: Mexico
Posts: 176
Thanks for the advice David, i`m rendering files, lets see how they look.

I was thinking, if there is any possibility of keeping the files in RAW format, for the final correction in its native format. I`ve heard from someone that you are working with the Assimilate Inc. crew to support the Cineform RAW codec natively on the system.

If one could export somehow the project edited on PPro into a Scratch and finish the DI in that system in RAW it would be great.

Is that possible? For a not so distant future?
Sergio Sanchez is offline   Reply With Quote
Old May 22nd, 2007, 06:05 PM   #6
CTO, CineForm Inc.

Join Date: Jul 2003
Location: Cardiff-by-the-Sea, California
Posts: 8,090
All possible but we are announce partners for CineForm RAW processing yet.
__________________
David Newman -- web: www.gopro.com
blog: cineform.blogspot.com -- twitter: twitter.com/David_Newman
David Newman is offline   Reply With Quote
Old June 20th, 2007, 02:26 PM   #7
Regular Crew

Join Date: Feb 2007
Location: Mexico
Posts: 176
Ok, i did that and this is what happened.

Im doing the data to film in a Baselight with direct feedback from a Barco 2k projector, i`ve exported in 16bit mode, with no look applied, and as you said the Cineons exported are flagged as linear. The problem i have is that the footage is reacting as linear too. The highlights are clipping and i dont have room in the midtones.
In fact i`ve delivered different exports cineform filmscan2 444, cineform quicktime 444, Cineon sequence, and Quicktime h264.

In therms of detail all the files looked great, the problem is that if i try to push the midtones say 2stops some horrible signal noise apears on the shadows and mid areas of the shot, I dont believe this is a codec issue, i think is a sensor issue. So i have no way to get more detail, what is worse is that the curve breaks apart, and looks more like a waveform due all the cliping in the signal.

The surprise was that in terms of latitude the quicktime showed a better range in the vectorscope, it had more dinamic range, the noise is there if i pushed up the midtones, but i had more space to work since i was like 2 stops up.

Right now i believe that all the workflow is planned on using Adobe tools in the entire post workflow, but what happens if someone wants to finish in a more sophisticated DI enviroment? I`ve been doing the testing on the color finesse, but the real thing will be done in a Scratch and the final adjusments in the baselight.

I believe that the need to render out the material is limiting the capacity of the footage. What i mean is that you`re giving me a negative to work but i can manipulate the material only in a filmprint, thats what i think is happening, because when i color corrected in After Effects i had much more room in the RAW than in the Cineon used in the baselight.

My question would be... How can i mantain the footage integrity, during the post workflow if im not finishing the DI process in Adobe tools?
Sergio Sanchez is offline   Reply With Quote
Old June 20th, 2007, 03:23 PM   #8
Trustee

Join Date: Mar 2003
Location: Virginia Beach, VA
Posts: 1,095
Hi,

Expect an online video tutorial on this topic to help clear up some of the confusion. There are a couple other more basic ones I would like to get through first, but this is definitely a must-do topic that I plan on covering.

You are not locked into using Adobe tools. I think the only limitation right now is that one requires Adobe tools in order to change the metadata settings, but that will be changing soon as well.

Thanks,

Jason
Jason Rodriguez is offline   Reply With Quote
Old June 20th, 2007, 04:33 PM   #9
CTO, CineForm Inc.

Join Date: Jul 2003
Location: Cardiff-by-the-Sea, California
Posts: 8,090
Thanks Jason.

Sergio,

Somehow this seems more complex than is actually is. If in doubt use 32-bit linear and export to TIFF 16-bit per channel, that will represerve all you tonal range if you have the metadata switch off. In your DI suite, white-balance the clip(s), then reapply the look. You can do the same with Cineon you just need to be careful with the controls -- never encode linear as linear in a 10-bit Cineon file as there is not enough precision. With AE in 32-bit mode (photometerically linear), export to Cineon with "standard" and logarithm mapping, this will reserve the dynamic range and easily handle by any DI system. This is very like working with Viper Filmstream data.

Jason -- Can you use the in-built speed grade to remap the look to linear? Current look file are typically SI-Log mapping 2.2 display gamma. It would be nice to remap the same look to linear to linear and linear to display gamma. For this would be no issue for SpeedGrade DI. What we need a simple LUT remapper for DI suite that use linear or cineon curves, etc.
__________________
David Newman -- web: www.gopro.com
blog: cineform.blogspot.com -- twitter: twitter.com/David_Newman
David Newman is offline   Reply With Quote
Old June 20th, 2007, 04:55 PM   #10
Regular Crew

Join Date: Feb 2007
Location: Mexico
Posts: 176
"- never encode linear as linear in a 10-bit Cineon file as there is not enough precision. "

This is what i dont get, how could i be encoding linear to linear data if it is supposed that the RAW files are logarithmic?

I always disable the lookS for me they serve for preview puposes only.
Sergio Sanchez is offline   Reply With Quote
Old June 20th, 2007, 05:28 PM   #11
CTO, CineForm Inc.

Join Date: Jul 2003
Location: Cardiff-by-the-Sea, California
Posts: 8,090
OK.

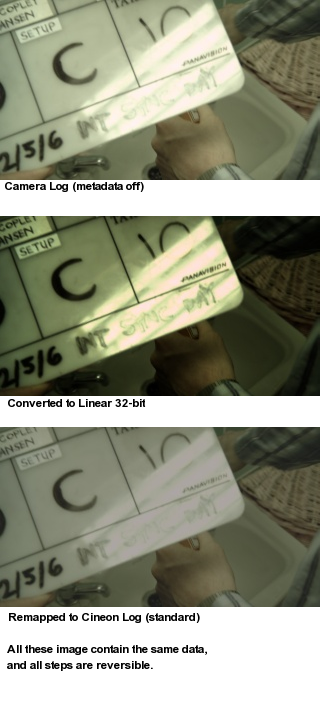

1) Camera has a custom log curve design optimium shadow detail through compression. See image Camera Log image.
2) Your DI suite doesn't know this curve.
3) You need to remap to a curve you DI suite knows.
4) With RAW metadata off in AE 32-bit mode, the output is photometerically linear, the SI curve has been removed for you. See image Converted to Linear.
5) Add the "Cineon Converter" filter in AE, and use the Linear to Log preset. The could also be done with the Cineon export, with the "standard" setting. One or the other not both.
6) Export to Cineon with the "Full Range". See image Remapped to Cineon Log.
7) In your DI, tell the software that you are using standard Cineon LOG 10-bit.

That is it.
Attached Thumbnails
Data to Film with Cineform RAW and Prospect 2k-cameralog2linear2cineon.png
__________________
David Newman -- web: www.gopro.com
blog: cineform.blogspot.com -- twitter: twitter.com/David_Newman
David Newman is offline   Reply With Quote
Old June 20th, 2007, 06:21 PM   #12
Regular Crew

Join Date: Feb 2007
Location: Mexico
Posts: 176
Thats what i did, but in my case the source RAW looks exacly the same as the Cineon exported files.

The same happened to the guys at Ollin the exported some material to cineon and it looked exactly the same as the source files.
Sergio Sanchez is offline   Reply With Quote
Old June 20th, 2007, 06:25 PM   #13
CTO, CineForm Inc.

Join Date: Jul 2003
Location: Cardiff-by-the-Sea, California
Posts: 8,090
You made an error in not using the 32-bit mode to linearize the source data. If you missed this step you will be carrying the camera curve into your DI. Try again making sure your images look like those above at each step.
__________________
David Newman -- web: www.gopro.com
blog: cineform.blogspot.com -- twitter: twitter.com/David_Newman
David Newman is offline   Reply With Quote
Old June 20th, 2007, 07:29 PM   #14
Regular Crew

Join Date: Feb 2007
Location: Mexico
Posts: 176
[QUOTE=Jason Rodriguez;699879]Hi,

Expect an online video tutorial on this topic to help clear up some of the confusion. There are a couple other more basic ones I would like to get through first, but this is definitely a must-do topic that I plan on covering.

Jason:
When do you think you`ll have the tutorial ready...Because Ari is sending almost every latino interested in the SI2K with us and they are only interested in watching the data to film. The interface and operability of the camera and workflows are interesting to them only after looking the results.
And right now im having little trouble with the results.

I`m going to try the exports again, and ask the guys at Ollin to see how they made the exports, i dont think they didnt know the precise steps to export to Cineon. they do some major DI and VFX works for the big guys here and in the US as well.
Sergio Sanchez is offline   Reply With Quote
Old June 20th, 2007, 10:29 PM   #15
Trustee

Join Date: Mar 2003
Location: Virginia Beach, VA
Posts: 1,095
Hi Sergio,

As David noted, you messed up the 32-bit export process . . . I've been though this step many times before, and I know that it does work correctly.

I understand your need for tutorial information, but I can only do these at a certain pace, and they are being done in addition to the other tasks on-hand to get the camera shipped. Additionally there are other pressing topics to be done as well. So please be patient, but I definitely understand the need and will be making tutorial information available as soon as possible.

In the meantime, please look over David's steps, as this is where the mess-up is happening. If you did the 32-bit approach that David described, you have most likely accidentally exported photometrically linear data, not Cineon log data, and then the film calibration curve in the Baselight is being applied to the linear data, which will of course make the footage very contrasty and massively compress the dynamic range of the perceived image.

Last edited by Jason Rodriguez; June 21st, 2007 at 07:41 AM.
