Old January 31st, 2010, 03:12 PM   #1
Major Player

Join Date: Apr 2005
Location: New Orleans, LA
Posts: 218
Nanoflash Remote and Tally devices -- just built.

Hello Group-

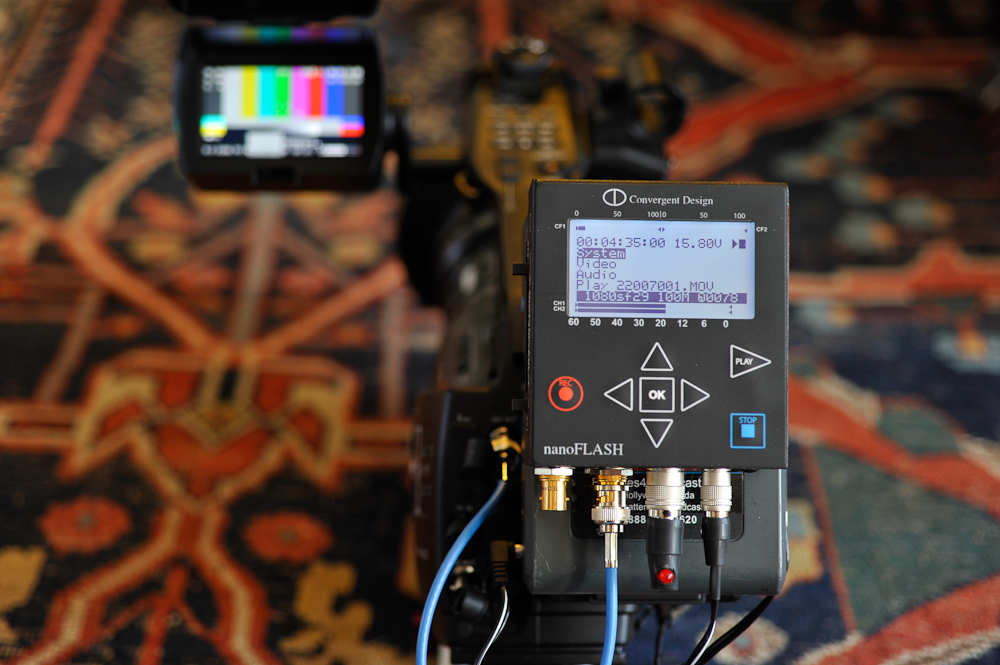

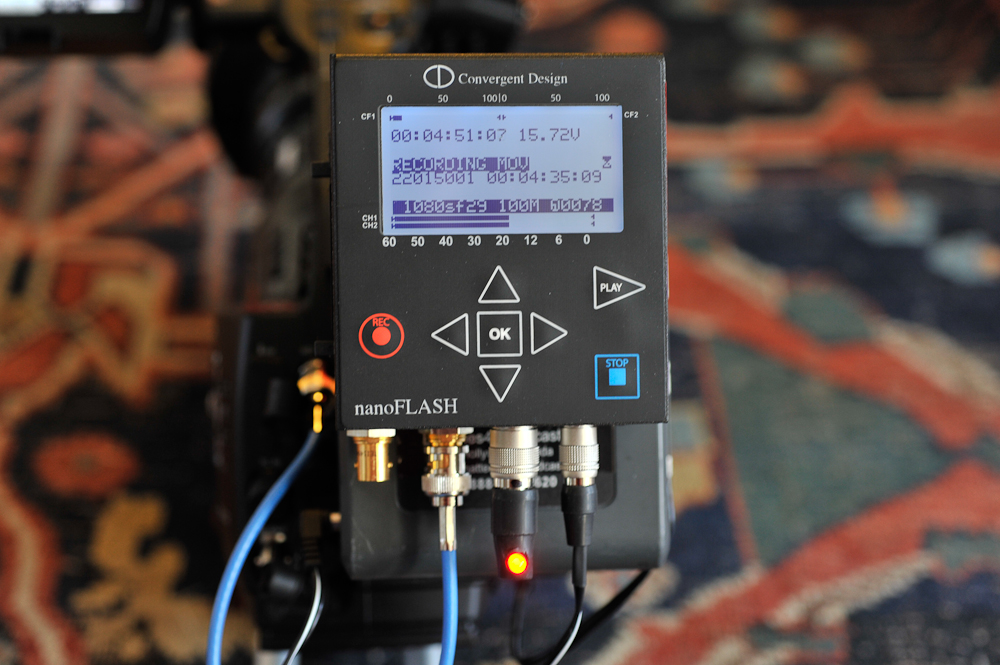

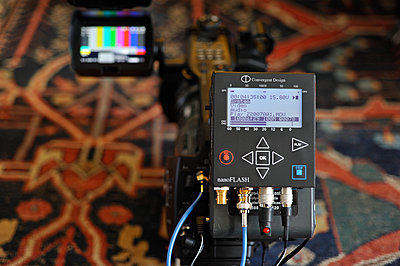

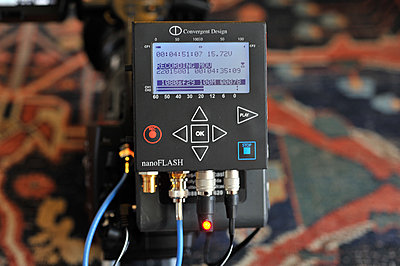

I cooked up a few gizmos for my new Nano yesterday. First is a simple LED tally that plugs into the 10 pin jack... no wires, but the LED is built into the rubber strain relief of the Hirose plug (at a 90 degree angle) and the end sealed with a clean dab of glue gun goodness. Small and Handy.

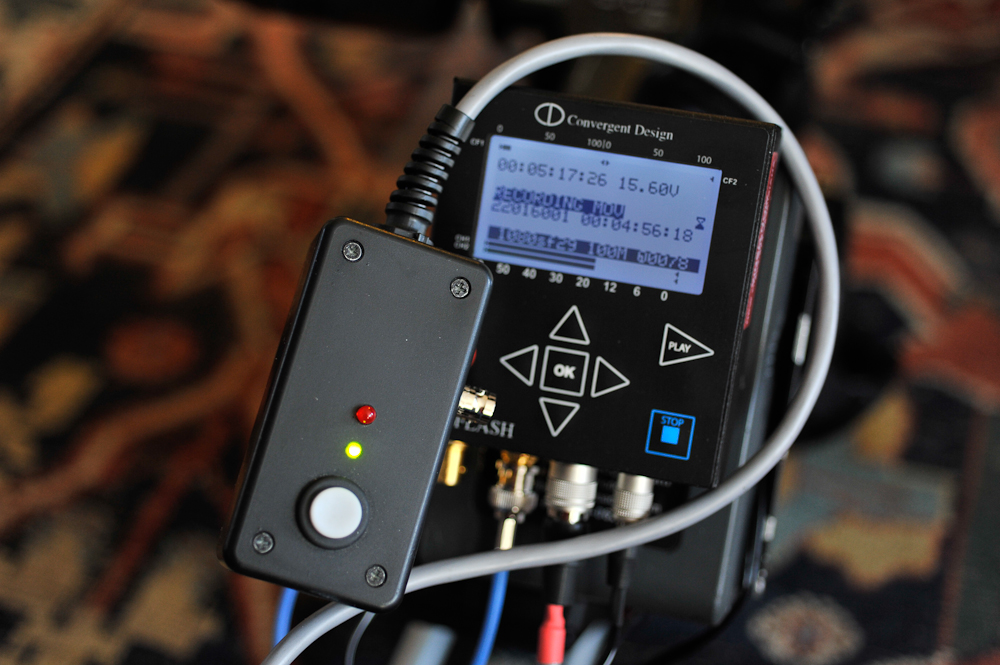

Second, a remote on 18" cord for a few different uses. Has green LED to show when the Nano is powered up. Large white push button is for start/stop and a red LED for tally. Also BNC spigot for external TC input on right side of box. If I need a longer run I will make an extension cable.
Attached Thumbnails
Nanoflash Remote and Tally devices -- just built.-nano100.jpg   Nanoflash Remote and Tally devices -- just built.-nano101.jpg

Nanoflash Remote and Tally devices -- just built.-nano102.jpg
__________________
George T. Griswold, Jr.
www.videonow.info New Orleans

Last edited by George Griswold; January 31st, 2010 at 03:19 PM. Reason: innacurate title
George Griswold is offline   Reply With Quote
Old January 31st, 2010, 05:55 PM   #2
Inner Circle

Join Date: Dec 2002
Location: Augusta Georgia
Posts: 5,413
Dear George,

Nice Work!

Both items look very nice.
__________________
Dan Keaton
Augusta Georgia
Dan Keaton is offline   Reply With Quote
Old February 1st, 2010, 11:48 AM   #3
Regular Crew

Join Date: Jan 2008
Location: Brooklyn, NY
Posts: 119
i would love to buy 2 of these from you. any interest in building and selling these?
Ed David is offline   Reply With Quote
Old February 1st, 2010, 01:52 PM   #4
Regular Crew

Join Date: Nov 2009
Location: Wilmington, NC
Posts: 31
Hey George:

I know how I would use it, but just curious as to your plans for using the external TC input you installed on the Nano.

Thanks,

Dusty
Dusty Powers is offline   Reply With Quote
Old February 1st, 2010, 02:52 PM   #5
Major Player

Join Date: Sep 2008
Location: Vancouver, Canada
Posts: 975
Tally light is a nice piece of work George. Really useful if you have your nanoFlash mounted with the display pointing away from the operator.
Andrew Stone is offline   Reply With Quote
Old February 1st, 2010, 06:08 PM   #6
Regular Crew

Join Date: Jan 2009
Location: Honolulu Hawaii
Posts: 76
Must the Tally light blink?

Hey Georgeó

Nice work! Lookout, here come the orders...

Question: I have the Tally/TC cable from Convergent. After using it a few times, I'm not liking the blinking tally light. At times, when I glance over at it (I mount it just above the magnifying/peaking buttons on my Canon XLH1) I catch it when it is off. I wish it would just stay on. How does yours work; blink, or solid 'on?'

Jeff
Jeff DePonte is offline   Reply With Quote
Old February 1st, 2010, 07:01 PM   #7
Major Player

Join Date: Apr 2005
Location: New Orleans, LA
Posts: 218
Blinking Tally

I agree that the blinking light can throw you off... it would be better as a solid on. Maybe an offering to the firmware Gods could resolve this?

Thank you for all the complimentary emails-- I like building things that are helpful and efficient. That is why I put the TC tap on the side of the box-- jam sync and then you don't have a pigtail floating around (scratching something). The push button is large enough to see and in the next model I will find a button with a LED built into it... help you find it in the dark and smaller box maybe.

As far as building these for people I would be game, but let's watch the Saints win the Superbowl first. I had shoots booked all week and now I have a 101 fever and am scrambling to get the shoots staffed. If you are interested, the question is at what price? Let me know by email to george--at--videonow--dot--info I don't want to break forum rules but this seems reasonable.

Thanks,
George
__________________
George T. Griswold, Jr.
www.videonow.info New Orleans
George Griswold is offline   Reply With Quote
Old February 1st, 2010, 07:34 PM   #8
Inner Circle

Join Date: Dec 2002
Location: Augusta Georgia
Posts: 5,413
Dear Jeff,

We are changing the Tally light.

(It currently blinks for a reason: to provide positive proof that the unit is actually recording.)

(Technically, it is possible to set a light on, then a computer could hang up, leaving the light on. Thus we wanted to prove that we were actually recording by blinking the light.)

We came up with (I think), 1 second on, 1 second off.

We are now experimenting with this. We may go to 95% on, 5% off, or 99% on, 1% off.

Our goal is to make it appear to be on, almost all of the time, but still see a very slight blink to provide proof that it is actually recording.
__________________
Dan Keaton
Augusta Georgia
Dan Keaton is offline   Reply With Quote
Old February 1st, 2010, 08:47 PM   #9
Major Player

Join Date: Jan 2010
Location: Abita Springs, LA
Posts: 230
Quote:
Originally Posted by George Griswold View Post
...As far as building these for people I would be game, but let's watch the Saints win the Superbowl first...
I am very interested in the nanoFlash and any accessories available. Very cool build, George! And I agree... first, let the Saints win on Sunday!! Feel better!
Bob Krieger is offline   Reply With Quote
Old February 1st, 2010, 11:29 PM   #10
Regular Crew

Join Date: Jan 2009
Location: Honolulu Hawaii
Posts: 76
Quote:
Originally Posted by Dan Keaton View Post

We are now experimenting with this. We may go to 95% on, 5% off, or 99% on, 1% off.

Our goal is to make it appear to be on, almost all of the time, but still see a very slight blink to provide proof that it is actually recording.
Thanks, Dan, I would very much appreciate this change. It's amazing how long that 1 second 'off' can be when you're in the middle of an important interview!

I wish I could be of help in designing the ratio of on to off time, but that seems outside the realm of my understanding. The 95/5 sounds good, though.

Thanks!

Jeff
Jeff DePonte is offline   Reply
