Old December 10th, 2011, 08:11 AM   #16
Inner Circle

Join Date: Dec 2002
Location: Augusta Georgia
Posts: 5,413
Re: prob with nano

Dear Cees,

If you can post the manufacturer and part number of the BNC connector, then I will be happy to research it.

While I am confident that the "whte ring" means that it is not true 75 ohms, we have a way to actually prove it.

We have a very expensive test instrument in our lab. We could, with one of the cables, send a proper HD-SDI through it, then analyze the quality of the signal coming out of the other end.

Of course, I realize that it is not practical for you to send a cable to us.
__________________
Dan Keaton
Augusta Georgia
Dan Keaton is offline   Reply With Quote
Old December 17th, 2011, 02:52 PM   #17
Major Player

Join Date: Sep 2004
Location: York, North Yorkshire, England.
Posts: 466
Re: prob with nano

Just to let Dan and everybody know i got 2 new cables and got to try one out today on a football match and had no problems so it seems it was the cable

many thanks to all
__________________
Ian Thomas.
Thomas Video Productions
Ian Thomas is offline   Reply With Quote
Old December 17th, 2011, 08:53 PM   #18
Inner Circle

Join Date: Dec 2002
Location: Augusta Georgia
Posts: 5,413
Re: prob with nano

Dear Ian,

This is great news.

Thank you for taking the time to report the solution to the problem.
__________________
Dan Keaton
Augusta Georgia
Dan Keaton is offline   Reply With Quote
Old December 18th, 2011, 08:46 AM   #19
Major Player

Join Date: Oct 2008
Location: Northern Ireland
Posts: 904
Re: prob with nano

Quote:
Originally Posted by Dan Keaton View Post
Dear Alister,

I have asked our team to update our manuals.

The first image is of a 50 Ohm BNC connector.

Please note the white ring that is on this connector.

The other two images are 75 Ohm connectors, they do not have this white ring.

50 Ohm connectors and cables have the potential to cause problems.

We advise against using them.
Hi Dan,

What about these, if you google B37P28J999X99 37528

Thanks.
Anthony McErlean is offline   Reply With Quote
Old December 18th, 2011, 09:05 AM   #20
Inner Circle

Join Date: Dec 2002
Location: Augusta Georgia
Posts: 5,413
Re: prob with nano

Dear Anthony,

These items are listed as 75 Ohm, but they have the white plastic collar that is typical of 50 Ohm in the illustration.

The wording could be wrong, the illustration could be wrong, or, of course, I could be wrong.

nanoFlash.net sells 90 Degree True 75 Ohm BNC adapters. I know that these are 75 Ohms, and they do not have the white plastic collar.

nanoFlash.net - HD-SDI Cables and Adapaters
__________________
Dan Keaton
Augusta Georgia
Dan Keaton is offline   Reply With Quote
Old December 18th, 2011, 06:09 PM   #21
Major Player

Join Date: Jan 2010
Location: Tokyo
Posts: 590
Re: prob with nano

Dan wrong... ? I think not.. this is an impossible scenario ..
Robin Probyn is offline   Reply With Quote
Old December 19th, 2011, 10:51 AM   #22
Major Player

Join Date: Oct 2008
Location: Northern Ireland
Posts: 904
Re: prob with nano

Quote:
Originally Posted by Robin Probyn View Post
Dan wrong... ? I think not.. this is an impossible scenario ..
I have to agree, cant see Dan in the wrong.

Thanks Dan.
Anthony McErlean is offline   Reply With Quote
Old December 19th, 2011, 11:08 AM   #23
Major Player

Join Date: Oct 2008
Location: Northern Ireland
Posts: 904
Re: prob with nano

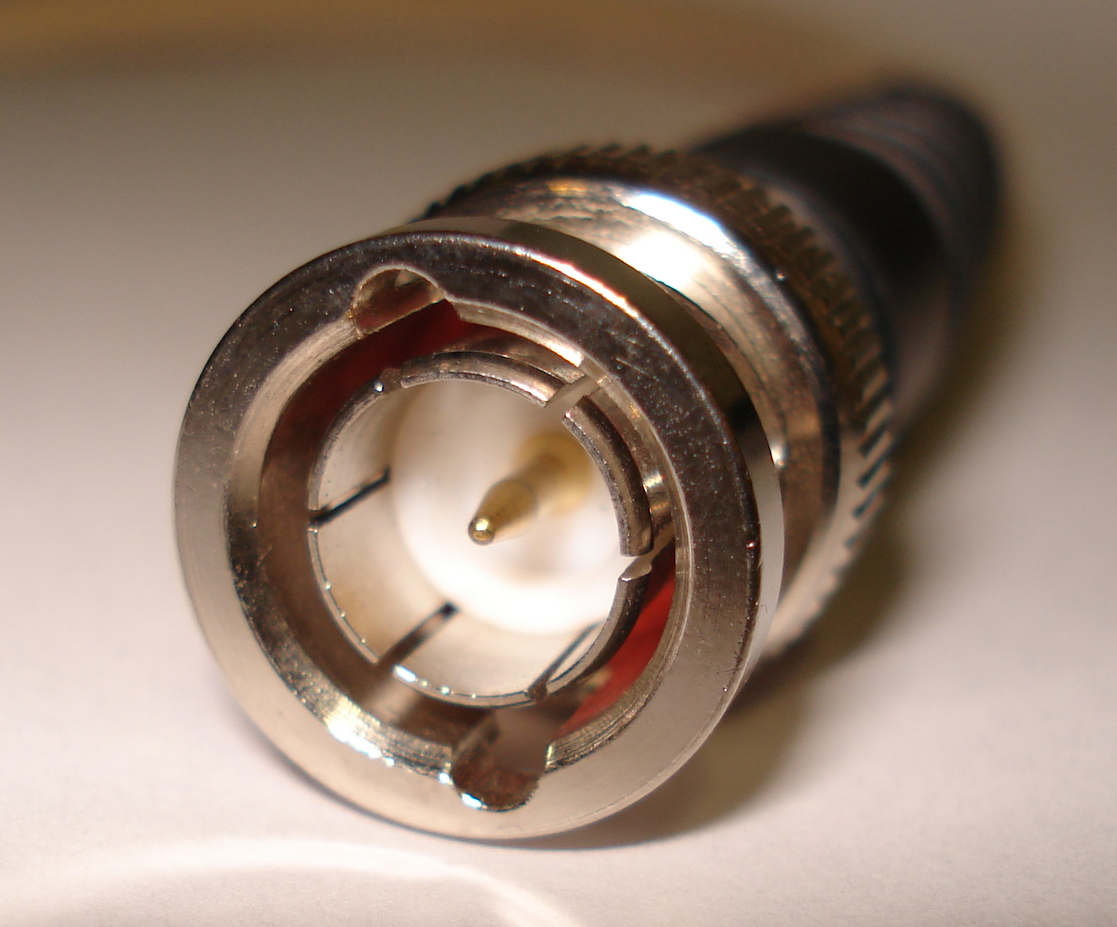

I have this HD-SDI cable Dan, is it a 50 Ohm cable?
Attached Thumbnails
prob with nano-hd-sdi.jpg
Anthony McErlean is offline   Reply With Quote
Old December 19th, 2011, 12:06 PM   #24
Regular Crew

Join Date: Nov 2008
Location: NYC
Posts: 121
Re: prob with nano

Don't know about the cable :), but the connector is the correct 75 ohm type.

Billy
Billy Steinberg is offline   Reply With Quote
Old December 19th, 2011, 01:03 PM   #25
Major Player

Join Date: Oct 2008
Location: Northern Ireland
Posts: 904
Re: prob with nano

Quote:
Originally Posted by Billy Steinberg View Post
Don't know about the cable :), but the connector is the correct 75 ohm type.

Billy
:) Thanks Billy, thats what I should have said.

Thank you.
Anthony McErlean is offline   Reply With Quote
Old December 20th, 2011, 07:41 AM   #26
Inner Circle

Join Date: Dec 2002
Location: Augusta Georgia
Posts: 5,413
Re: prob with nano

Dear Anthony,

Yes, that is a nice image of a 75 Ohm BNC connector.
__________________
Dan Keaton
Augusta Georgia
Dan Keaton is offline   Reply With Quote
Old December 20th, 2011, 05:15 PM   #27
Major Player

Join Date: Oct 2008
Location: Northern Ireland
Posts: 904
Re: prob with nano

Thanks Dan.
Anthony McErlean is offline   Reply
