Power Connector Pinout

Greetings,

When looking at the 7Q power connector CABLE, pin 1 is on the bottom, pin 2 upper left and pin 3 is upper right.

Which pin is hot (+) and which is ground (-)??

Thanks!
Brian
__________________
Brian Young - Los Angeles - www.FlacaProductions.com
F800, F5, FS7, A7s
Brian T. Young is offline   Reply With Quote
Old February 19th, 2014, 02:05 AM   #2
Regular Crew

Join Date: Nov 2003
Location: Los Angeles, CA
Posts: 137
Re: Power Connector Pinout

Got it - when holding the power cable and looking into the female pins - HOT (+) is upper left (#2) GROUND (-) is upper right (#3)
__________________
Brian Young - Los Angeles - www.FlacaProductions.com
F800, F5, FS7, A7s
Brian T. Young is offline   Reply With Quote
Old February 19th, 2014, 07:49 AM   #3
Sponsor: Westside AV

Join Date: Dec 2008
Location: Mount Washington Valley, NH, USA
Posts: 1,365
Re: Power Connector Pinout

To be clear:

Looking at the connector on the wire that plugs into the O7Q.

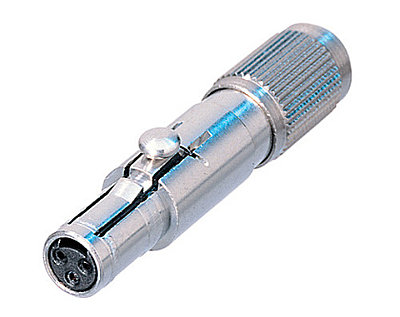

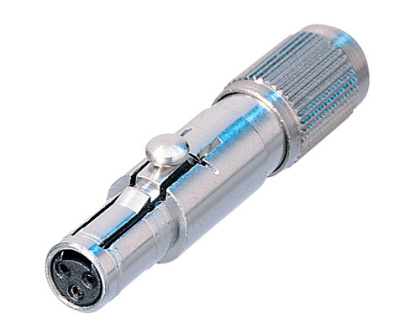

It is a Neutrik Nano nsc3f.
NSC3F - Neutrik

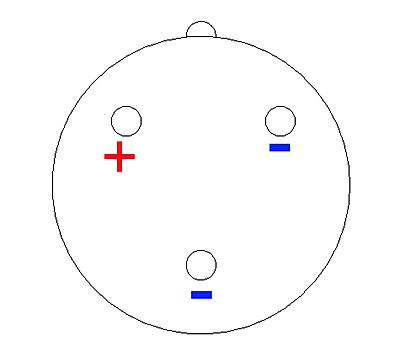

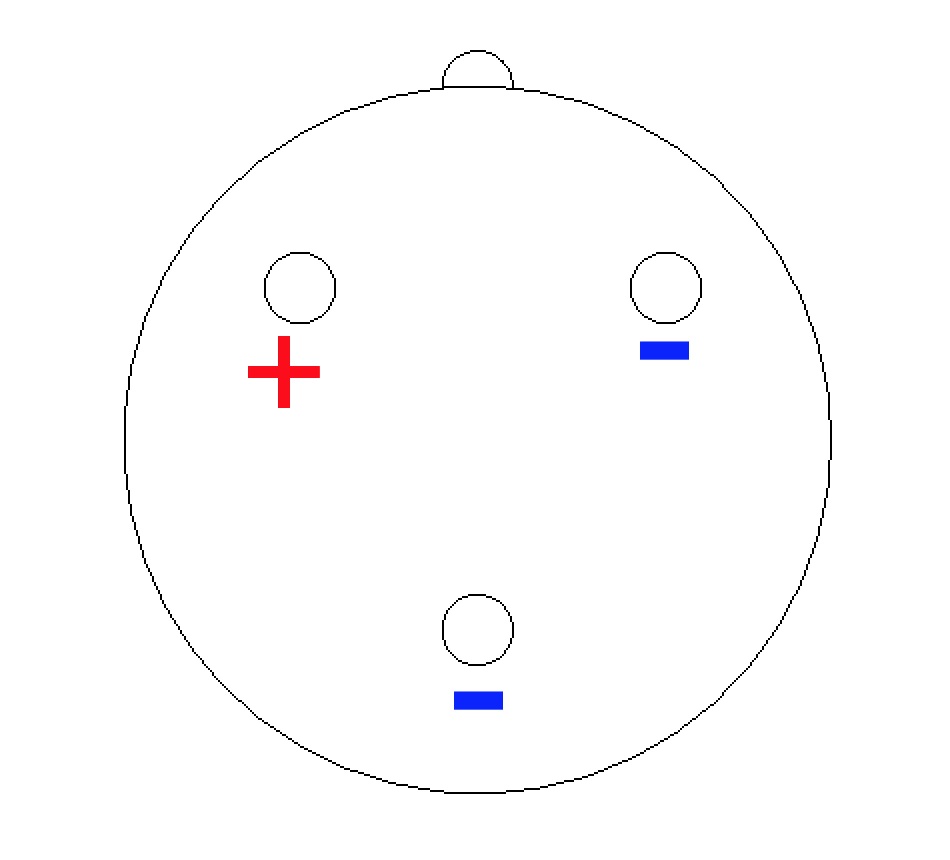

Upper left is +.
Upper right is -
Bottom is -
The case is not connected to ground. That it it is not connected to negative or -.
Attached Thumbnails
Power Connector Pinout-screen-shot-2014-02-19-8.10.17-am.jpg   Power Connector Pinout-nsc3f.jpg

__________________
Olof Ekbergh olof@WestsideAV.com
Westside A V Studios http://www.WestsideAVstore.com/

Last edited by Olof Ekbergh; February 19th, 2014 at 10:02 AM.
Olof Ekbergh is offline   Reply With Quote
Old February 19th, 2014, 12:19 PM   #4
Regular Crew

Join Date: Nov 2003
Location: Los Angeles, CA
Posts: 137
Re: Power Connector Pinout

excellent - thanks.
__________________
Brian Young - Los Angeles - www.FlacaProductions.com
F800, F5, FS7, A7s
Brian T. Young is offline   Reply With Quote
Old February 19th, 2014, 12:53 PM   #5
Inner Circle

Join Date: Dec 2002
Location: Augusta Georgia
Posts: 5,413
Re: Power Connector Pinout

Dear Brian,

Olof answered your question before our production team was able to get back with me.

Dear Olof,

Thank you for answering Brian's question.

Respectfully,
