Old July 7th, 2011, 11:53 AM   #1
Wrangler

Join Date: Jan 2002
Location: Los Angeles, CA
Posts: 6,781
Reverse telecine (24p to 60i) question

Have some footage that was shot 24p that needs to be matched to a 60i program. Any thoughts on best way to conform it? Something that can interpolate the missing fields to alter the motion cadence? I'm sure it won't be perfect but I imagine this isn't impossible.
__________________
Charles Papert
www.charlespapert.com
Charles Papert is offline   Reply With Quote
Old July 7th, 2011, 12:25 PM   #2
Kino-Eye

Join Date: Jul 2005
Location: Boston, MA
Posts: 455
Re: Reverse telecine (24p to 60i) question

You can accomplish this conversion with either Episode Pro, the Nattress plug-ins for Final Cut Pro 7, or Apple's Compressor. What platform are you working with?

24p to 60i would not be reverse telecine, as you would be adding the pulldown cadence to go from 24p to 60i.
__________________
David Tames { blog: http://Kino-Eye.com twitter: @cinemakinoeye }
David Tamés is offline   Reply With Quote
Old July 7th, 2011, 01:35 PM   #3
Wrangler

Join Date: Jan 2002
Location: Los Angeles, CA
Posts: 6,781
Re: Reverse telecine (24p to 60i) question

Wassup Tames!

I'm in FC7 and have Compressor. I have the Nattress plug-ins too. Which one would best do this? Please to explain.
__________________
Charles Papert
www.charlespapert.com
Charles Papert is offline   Reply With Quote
Old July 8th, 2011, 09:35 AM   #4
Kino-Eye

Join Date: Jul 2005
Location: Boston, MA
Posts: 455
Re: Reverse telecine (24p to 60i) question

There are two options when converting from 24p to 60i with Compressor.

(1) Do you prefer smooth motion and the temporal interpolation to be spread across all frames? Then you'd choose "Best" settings for the conversion in compressor.

(2) If you prefer frames 1,2,3 to be "clean" and only frames 4,5 of each 5 frame set to be "interpolated" then you would choose the fast settings.

I've attached images of the Compressor settings and three HDV movies:

HDV-24p-Original.mov (the original 24p movie)

HDV-60i-Output-Fast.mov (conversion output using the "fast settings' with crisper image and faster conversion)

HDV-60i-Output-HQ.mov (conversion output using the "best settings' for smoother temporal conversion)

It's instructive to loop these and look at them on both a progressive and interlaced display at full screen. It's also interesting to note that the conversion of the "fast" version took about 15 second on my laptop, but the "best" took like 90 seconds, so a long piece of footage is probably better converted on faster hardware :-)

David.
Attached Thumbnails

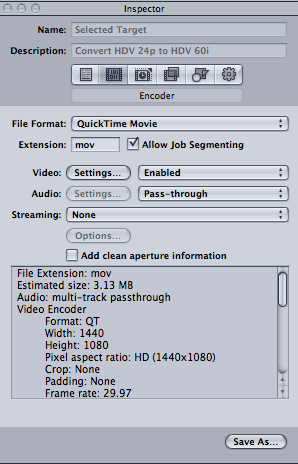

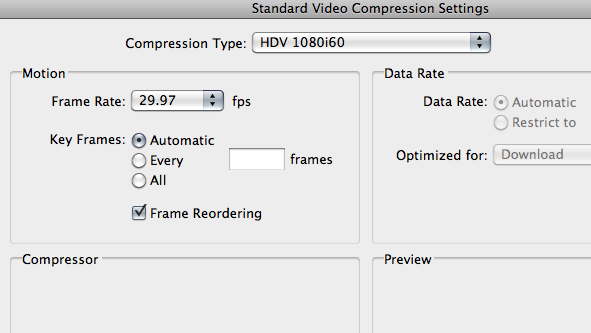

Reverse telecine (24p to 60i) question-1.-compressor-video-settings.png   Reverse telecine (24p to 60i) question-2.-compressor-video-settings-panel.png

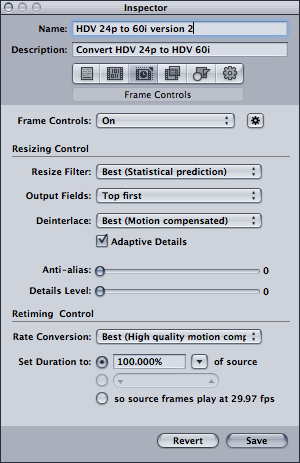

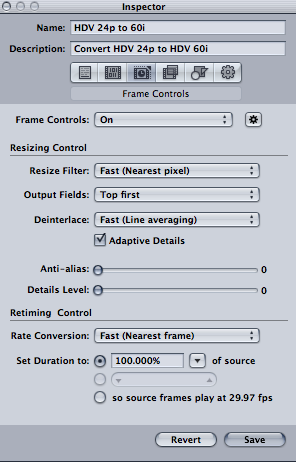

Reverse telecine (24p to 60i) question-3.-compressor-frame-controls-crisper-frames.png   Reverse telecine (24p to 60i) question-4.-compressor-frame-controls-smooth-motion.png

Attached Files
File Type: mov HDV-24p-Original.mov (3.17 MB, 127 views)
File Type: mov HDV-60i-Output-Fast.mov (3.30 MB, 117 views)
File Type: mov HDV-60i-Output-HQ.mov (3.19 MB, 126 views)
__________________
David Tames { blog: http://Kino-Eye.com twitter: @cinemakinoeye }
David Tamés is offline   Reply With Quote
Old July 8th, 2011, 11:46 AM   #5
Wrangler

Join Date: Jan 2002
Location: Los Angeles, CA
Posts: 6,781
Re: Reverse telecine (24p to 60i) question

Genius. Thanks. I'll let you know how it works out.
__________________
Charles Papert
www.charlespapert.com
Charles Papert is offline   Reply
