Nokia OZO PROFESSIONAL VIRTUAL REALITY CAMERA PC-01

Nokia OZO PROFESSIONAL VIRTUAL REALITY CAMERA PC-01


OZO is the first Virtual Reality camera system specifically designed for professional production.
Powerful yet compact, OZO captures 360 spherical video and 360x360 surround sound with cutting-edge Live Virtual Reality Preview, and seamlessly integrates with existing video and audio compositing workflows.


Presence CaptureSpherical and stereoscopic video capture with 360x360 surround sound array
Video Sensor TypeProgressive Scan with Global Shutter
Video Sensor ArrayEight, synchronised, 2K x 2K sensors
Video Area CoverageFull-spherical, 360 x 180 degrees
Min Imaging Distance0.5m / 20" (spherical video coverage)
Stereoscopic CoverageCenterline +/- 130(h), +/- 65(v) degrees
Lens Interoptic DistanceEffective max. 86 mm / 3.4"
Lens Angle of View195 degrees per lens
Relative Aperturef/2.4
Video Dynamic Range60 dB / 10 stops
Base Color Temperature5,000 degrees Kelvin
Base SensitivityISO 400
Audio Sensor TypeOmnidirectional, solid state
Audio Area CoverageFull-spherical, 360 x 360 degrees
Audio Dynamic Range64dB S/N, 120dB max SPL
Master File FormatMOV wrapped OZO Virtual Reality with 8Ch raw Video and 8Ch PCM Audio
Video CompressionWavelet-based raw
Media Module500GB, Solid State Media
Record Duration45 min per Media Module
Program Output3G-SDI SMPTE 242M, DIN connector
Capture Frame Rate30.00 fps
Cooling SystemPassive (fanless) design
Battery PackRechargeable Lithium Ion
Power Consumption12V DC, approx 30W in record mode
OZO Remote ApplicationAvailable for OSX 10.10 Yosemite
Camera Controlvia 802.11 Wifi
Monitor OutputHDMI, Stereoscopic Virtual Reality render
OZO Creator ApplicationAvailable for OSX 10.10 Yosemite
Audio Mix Preview OutputMOV, monoscopic stitched panorama
Video Composition OutputDPX, 8K x 4K, 10-bit, sRGB color space
Weight4.2kg / 9.3lbs including Battery
ConstructionMilled Aluminium Alloy
ColorLava Grey
Dimensions - camera head only264 x 170 x 160mm / 10.4 x 6.7 x 6.3"
Dimensions - with camera mount264 x 170 x 238mm / 10.4 x 6.7 x 9.4"
Planned CertificationsCE, FCC Part 15 Class A
Operating Temperature0C to +25C (+32F to +77F)
Storage Temperature-40C to +50C (-4F to +122F)


https://ozo.nokia.com/
Attached Thumbnails

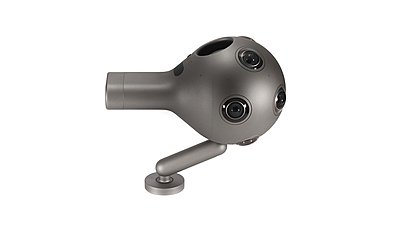

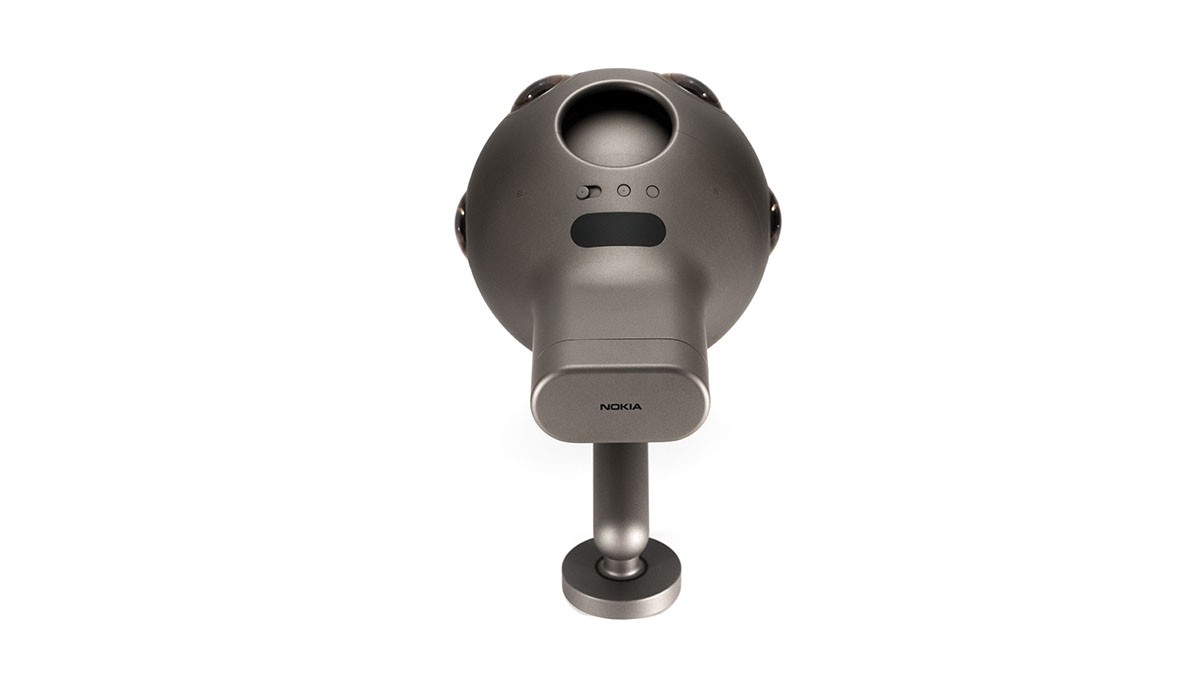

Nokia OZO PROFESSIONAL VIRTUAL REALITY CAMERA PC-01-ozo_images_0008_ozo_1.jpg   Nokia OZO PROFESSIONAL VIRTUAL REALITY CAMERA PC-01-ozo_images_0009_ozo_2.jpg

Brian Rhodes is offline   Reply With Quote
Old December 28th, 2015, 06:07 AM   #2
Major Player

Join Date: Dec 2005
Posts: 848
Re: Nokia OZO PROFESSIONAL VIRTUAL REALITY CAMERA PC-01

For $60k I'd expect surround sound.
Jim Michael is offline   Reply With Quote
Old December 28th, 2015, 12:30 PM   #3
Wrangler

Join Date: Jun 2002
Location: Vancouver, British Columbia
Posts: 8,308
Re: Nokia OZO PROFESSIONAL VIRTUAL REALITY CAMERA PC-01

I'm sorry... did you say $60k as in $60,000?!?
I looked at it and thought "neat webcam!"

Clearly I'm not the target market. :)
__________________
Need to rent camera gear in Vancouver BC?
Check me out at camerarentalsvancouver.com
Dylan Couper is offline   Reply With Quote
Old December 28th, 2015, 12:49 PM   #4
Major Player

Join Date: Dec 2005
Posts: 848
Re: Nokia OZO PROFESSIONAL VIRTUAL REALITY CAMERA PC-01

Yes, that one's a tad spendy.Global shutter though. Woohoo.
Jim Michael is offline   Reply With Quote
Old December 28th, 2015, 07:57 PM   #5
Trustee

Join Date: Sep 2004
Location: Bristol, CT (Home of EPSN)
Posts: 1,182
Re: Nokia OZO PROFESSIONAL VIRTUAL REALITY CAMERA PC-01

LOL. Take a handful of cellphone lenses and...
__________________
Paul Cascio
www.pictureframingschool.com
Paul Cascio is offline   Reply With Quote
Old December 30th, 2015, 12:44 AM   #6
Inner Circle

Join Date: Feb 2009
Location: Brisbane, Australia
Posts: 2,261
Re: Nokia OZO PROFESSIONAL VIRTUAL REALITY CAMERA PC-01

Wow. Only $5k deposit. :-)

Andrew
Andrew Smith is offline   Reply With Quote
Old December 30th, 2015, 12:23 PM   #7
Registered Member

Join Date: Jun 2009
Location: Antartica
Posts: 128
Re: Nokia OZO PROFESSIONAL VIRTUAL REALITY CAMERA PC-01

Fantastic! I'll take three!
Ed Arszyla is offline   Reply With Quote
Old December 30th, 2015, 12:33 PM   #8
Trustee

Join Date: May 2007
Location: Minneapolis, MN
Posts: 1,242
Re: Nokia OZO PROFESSIONAL VIRTUAL REALITY CAMERA PC-01

This is my pick for best new video technology. I love being able to look around and "direct" the scene! I guess we'll see if it takes off.
__________________
Nate Haustein PXW-FS5 / iMac i7 / FCPX
www.flightcreativemedia.com
Nate Haustein is offline   Reply With Quote
Old December 30th, 2015, 02:01 PM   #9
Wrangler

Join Date: Jun 2002
Location: Vancouver, British Columbia
Posts: 8,308
Re: Nokia OZO PROFESSIONAL VIRTUAL REALITY CAMERA PC-01

Hmm... I do know one industry that I'd like to direct the scene in.

Soap operas... obviously.
