Another DIY dolly

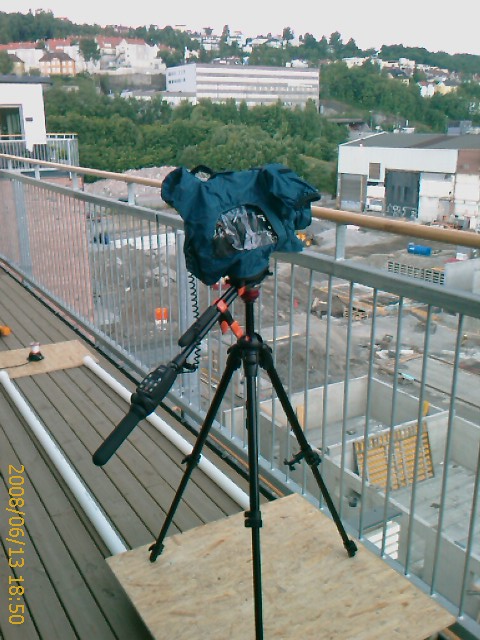

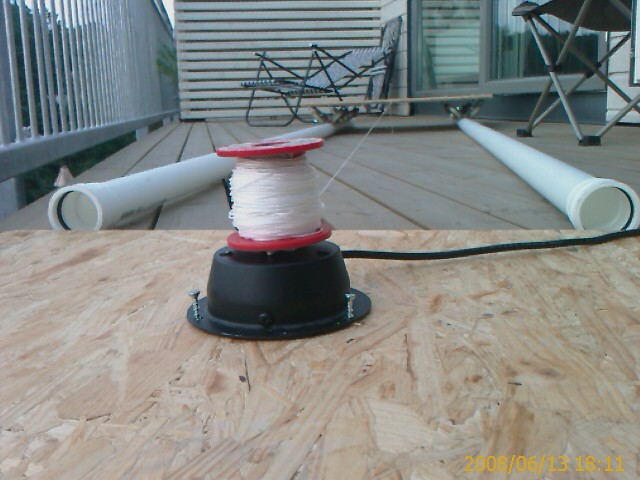

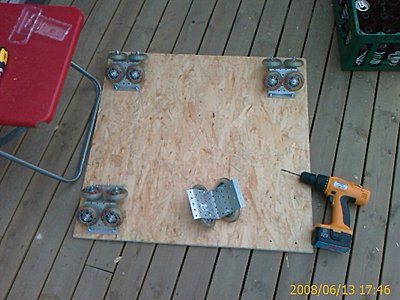

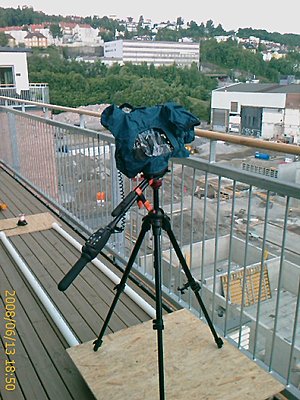

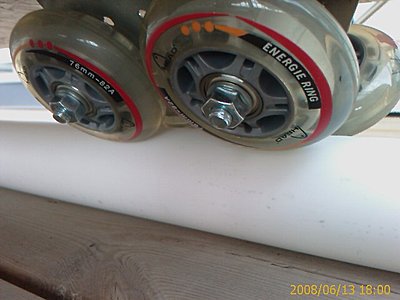

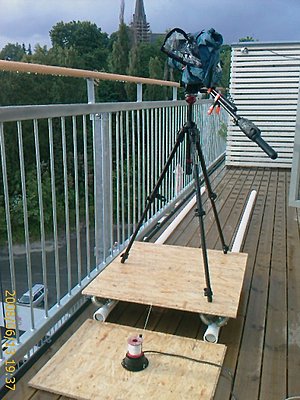

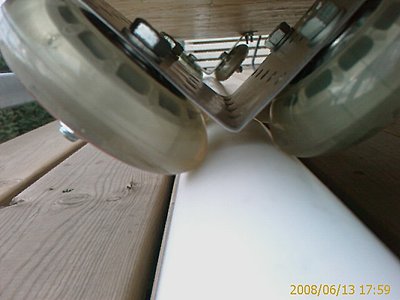

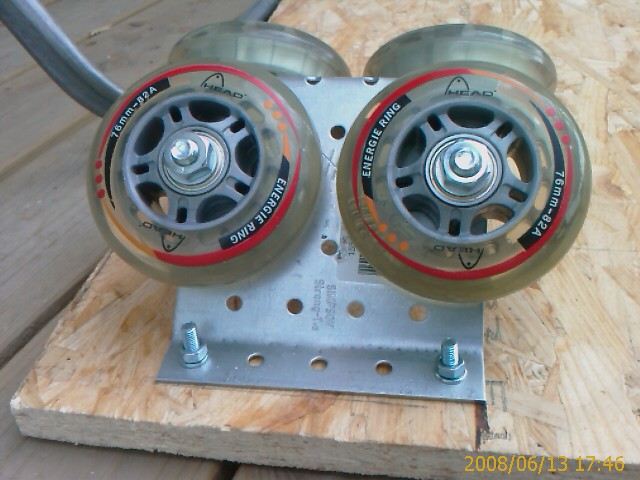

Here is a video and some pictures of my build.

http://www.youtube.com/watch?v=5_NzTRPLKDA

The thing did not cost that much, and i used 16 75mm rollerblades wheels with abec5 bearings.

Used regular standard aluminium plates and bent them for the wheel mount.

It rolls like a charm.

There is even more pictures of my DIY projects here

http://www.facebook.com/album.php?ai...5&id=510063049
Attached Thumbnails

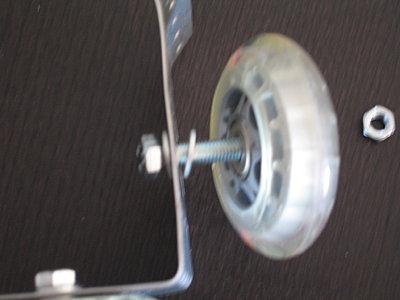

Another DIY dolly-imag0212.jpg   Another DIY dolly-imag0217.jpg

Another DIY dolly-imag0218.jpg   Another DIY dolly-imag0222.jpg

Another DIY dolly-imag0229.jpg   Another DIY dolly-imag0228.jpg

Another DIY dolly-img_1874.jpg   Another DIY dolly-imag0210.jpg


Last edited by Vegard Paulsen; June 14th, 2008 at 05:05 AM. Reason: needed an url
Vegard Paulsen is offline   Reply With Quote
Old June 14th, 2008, 06:38 AM   #2
Slash Rules!

Join Date: Apr 2002
Location: Houston, Texas
Posts: 4,723
Do your rollerblade wheels work as well as skateboard wheels? I built a crap dolly following a faulty design, using a bunch of rollerblade wheels.

Also, how did you bend the metal that holds the wheels so precisely?
Josh Bass is offline   Reply With Quote
Old June 15th, 2008, 05:54 AM   #3
Regular Crew

Join Date: Jan 2008
Location: Oslo, Norway
Posts: 175
I have no trouble with my rollerblade wheels :)

they work smooooth.

I guess there are less contact between the pipe and the wheels with rollerbladewheels than with skateboardwheels, and since the diameter is bigger they have a smoother ride.

I bent the metal with a hammer and a workbench.
(my english sucks)
If you measure out where you want to bend the metal, and then thighten it in a bench, you can just use our bodyweight to bend it.
to even the edges out to a harder degree angle you just use a hammer and something hard to hold it against while you hit it.
Vegard Paulsen is offline   Reply With Quote
Old June 15th, 2008, 06:48 AM   #4
Slash Rules!

Join Date: Apr 2002
Location: Houston, Texas
Posts: 4,723
Your English is fine. Better than some native speakers (just look around the internet).

Do you have any noise/squeak issues? My crap dolly rolls okay, but it makes noise, so basically no good on PVC pipe, for which it was meant. I may have tried it on metal, too. I don't recall.
Josh Bass is offline   Reply With Quote
Old June 15th, 2008, 07:20 AM   #5
Regular Crew

Join Date: Jan 2008
Location: Oslo, Norway
Posts: 175
mine doesnt make a sound at all.
hmm
what diameter is the pvc piping you use?

if the diameter is too thin the pipe gives in and gets squeezed.
i use 50mm with a thickness of 1.8mm

put up some pictures of it.
maybe i can help you
Vegard Paulsen is offline   Reply With Quote
Old June 15th, 2008, 07:42 AM   #6
Slash Rules!

Join Date: Apr 2002
Location: Houston, Texas
Posts: 4,723
I appreciate that, but I went through this with the guys on this board 2 years ago when I built it---bad design, period. Basically, my wheels were inline like yours, but were parallel to each other, instead of at an angle (causing the squeak). I need to rebuild the wheel part to be like yours, or any common skateboard dolly design. That's all there is to it. I don't have a project right now that would make it worthwhile, but I might get to it someday.
Josh Bass is offline   Reply With Quote
Old June 15th, 2008, 07:45 AM   #7
Regular Crew

Join Date: Jan 2008
Location: Oslo, Norway
Posts: 175
I see :(
To bad then. But hey. You can always rebuild it.
Have a nice weekend
Vegard Paulsen is offline   Reply With Quote
Old June 15th, 2008, 07:51 AM   #8
Slash Rules!

Join Date: Apr 2002
Location: Houston, Texas
Posts: 4,723
It is too bad.

Here's the original thread about it:

http://www.dvinfo.net/conf/showthread.php?t=78028

There are pics in the first post. You can kind of see how the wheels are arranged, though I didn't take closeups.

Maybe I can use the inline wheels I already have instead of spending $90 more on skateboard wheels.
Josh Bass is offline   Reply With Quote
Old June 15th, 2008, 08:00 AM   #9
Regular Crew

Join Date: Jan 2008
Location: Oslo, Norway
Posts: 175
If i where you i would reconstruct the holders for the wheels. Do it like i did or someone else that uses the same type construction.
The wheels can be reused : )
Vegard Paulsen is offline   Reply With Quote
Old June 15th, 2008, 08:17 AM   #10
Slash Rules!

Join Date: Apr 2002
Location: Houston, Texas
Posts: 4,723
Exactly. I wonder if my wheels are too soft, though. How hard are yours? Do you know the rating?
Josh Bass is offline   Reply With Quote
Old June 16th, 2008, 06:00 PM   #11
Regular Crew

Join Date: Jan 2008
Location: Oslo, Norway
Posts: 175
i have no clue about the rating.
they are quite hard though.


here is my second shoot with the dolly

http://dvinfo.net/conf/showthread.ph...123#post894123
Vegard Paulsen is offline   Reply With Quote
Old June 17th, 2008, 04:18 AM   #12
Regular Crew

Join Date: Jan 2008
Location: Oslo, Norway
Posts: 175
or the link directly

http://www.youtube.com/watch?v=3uxQTLxhv3E
Vegard Paulsen is offline   Reply With Quote
Old June 17th, 2008, 05:49 PM   #13
New Boot

Join Date: Jul 2006
Location: Milwaukee Wisconsin USA
Posts: 23
I built a neat one - and I have a animated view of it moving here: http://www.tbcstudios.com/custom_shop.asp
__________________
Mike
http://www.tbcstudios.com
Michael Frkovich is offline   Reply With Quote
Old June 18th, 2008, 04:17 AM   #14
Regular Crew

Join Date: May 2007
Location: Netherlands
Posts: 51
Quote:
Originally Posted by Josh Bass View Post
Exactly. I wonder if my wheels are too soft, though. How hard are yours? Do you know the rating?
Hi Josh,

I would use a fairly low rating (high rating = very hard). I used 72A for my dolly.
The reason is that softer wheels will most likely be more forgiving when small bumps in the track are encountered.

Regards, Andre.
Andre Theelen is offline   Reply With Quote
Old June 18th, 2008, 04:31 AM   #15
Regular Crew

Join Date: May 2007
Location: Netherlands
Posts: 51
Quote:
Originally Posted by Vegard Paulsen View Post
here is my second shoot with the dolly

http://dvinfo.net/conf/showthread.ph...123#post894123
Hi Vegard,

Great shots!
Your solution seems to be working very well.
I built a dolly very much like yours (http://www.dvinfo.net/conf/showthread.php?t=123388) and I also find that it moves very smooth and silent.

I was thinking of building something small like this http://www.trevswork.com/mo/ for use with a photo camera for creating those long slow moving time lapse recordings.
But your solution is pretty simple as it is, so I might try that first ;)

Best regards, Andre.
Andre Theelen is offline   Reply
