DVD STUDIO PRO Questions

Hi,

1# I have 2 questions, i am putting together a dvd with a few showreels on it, i also wanter to add a excel file, and a PDF File, can some on tell is there a way in DVD STUDIO Pro, to do this.

2#Add audio, i have a sound track for the showreel, audio sound is fine (-6db) when i add it into DVD STUDIO Pro, and go to preview or burn, on play back the audio level drop lower, Say i use one of the templates with audio, the template audio is fine, but hit play and i have to turn up the TV Volume to hear the audio, I also tried adding the same audio at (+6db) still the final master audio drop to a lower level.

Rob.
__________________
Rob.
www.rpbproductions.com
robert@rpbproductions.com

HD101/G5 Mac/4gig Ram/1TB HDD/30" Cinema Display/FCP.
Robert Bale is offline   Reply With Quote
Old April 24th, 2009, 12:43 AM   #2
Major Player

Join Date: Jul 2007
Location: Los Angeles, CA
Posts: 628
First off - DVD SP, to the best of my knowledge, cannot support PDF or Excel files. You'd have to convert it to a PNG and import it as a still. You can set up DVD SP to display this still file through the menu.

About the audio: Without knowing how you are generating this file (ie- which application to dither the audio) it is hard for me to offer advice. Note - is always better to use compressor to mux the audio into an AC3 before bringing it into DVD SP.

If you haven't done that, do that first. Over the years I've learned that DVD SP is terrible at encoding both audio and video - the sure-fire way of getting decent picture and audio is having compressor do the heavy lifting.

-C
Christopher Drews is offline   Reply With Quote
Old April 24th, 2009, 02:37 AM   #3
Major Player

Join Date: May 2006
Location: australia
Posts: 407
Quote:
Originally Posted by Christopher Drews View Post
First off - DVD SP, to the best of my knowledge, cannot support PDF or Excel files. You'd have to convert it to a PNG and import it as a still. You can set up DVD SP to display this still file through the menu.

About the audio: Without knowing how you are generating this file (ie- which application to dither the audio) it is hard for me to offer advice. Note - is always better to use compressor to mux the audio into an AC3 before bringing it into DVD SP.

If you haven't done that, do that first. Over the years I've learned that DVD SP is terrible at encoding both audio and video - the sure-fire way of getting decent picture and audio is having compressor do the heavy lifting.

-C
Yes i use use compressor to mux the audio into an AC3, then import the the audio file that compressor has made, still the sound is very low.
__________________
Rob.
www.rpbproductions.com
robert@rpbproductions.com

HD101/G5 Mac/4gig Ram/1TB HDD/30" Cinema Display/FCP.
Robert Bale is offline   Reply With Quote
Old April 24th, 2009, 02:11 PM   #4
Major Player

Join Date: Dec 2007
Location: Northampton, UK
Posts: 259
Re question 1, I assume you want to put the spreadsheet and pdf on the DVD so your recipients can put the disc in a PC and open them. If so, create a folder and copy the files into it. Then at the bottom of the disc inspector (click on the grey around the menu/track/etc tiles) click the tick box under DVD-ROM and choose that directory. DVDSP will include those files when it burns the DVD.

Nick
Nick Wilson is offline   Reply With Quote
Old April 26th, 2009, 03:33 AM   #5
Major Player

Join Date: May 2006
Location: australia
Posts: 407
Quote:
Originally Posted by Nick Wilson View Post
Re question 1, I assume you want to put the spreadsheet and pdf on the DVD so your recipients can put the disc in a PC and open them. If so, create a folder and copy the files into it. Then at the bottom of the disc inspector (click on the grey around the menu/track/etc tiles) click the tick box under DVD-ROM and choose that directory. DVDSP will include those files when it burns the DVD.

Nick
Hey Nick, Big thanks to you.
__________________
Rob.
www.rpbproductions.com
robert@rpbproductions.com

HD101/G5 Mac/4gig Ram/1TB HDD/30" Cinema Display/FCP.
Robert Bale is offline   Reply With Quote
Old April 26th, 2009, 02:21 PM   #6
Go Go Godzilla

Join Date: Nov 2004
Location: Scottsdale, AZ USA
Posts: 2,739
Images: 15
Future reference

Robert,

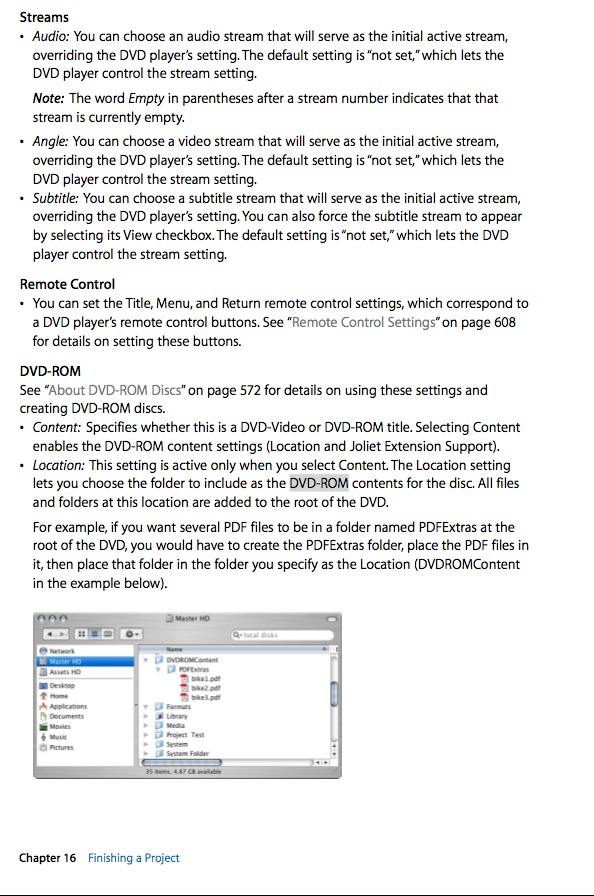

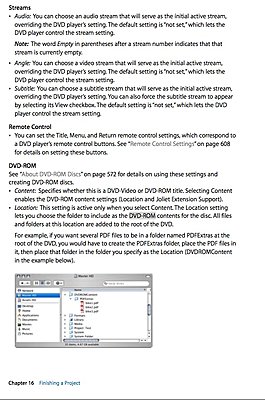

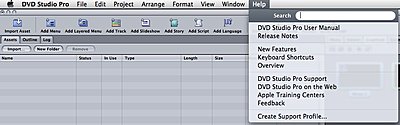

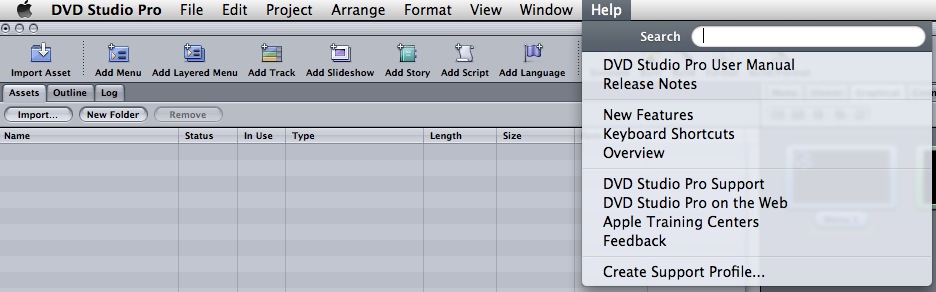

Just in case you get stuck in the future, there's a huge reference available to answer all your questions about Apple apps: The built-in User Manual located in the Help menu.

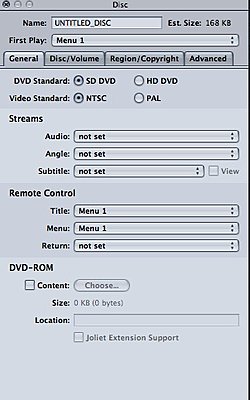

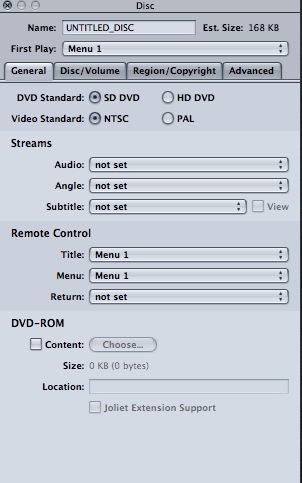

A quick search about DVD-rom content quickly brings up dozens of paragraphs about your original question. The functionality Nick referred to is in the Inspector panel when looking at the DISC Project properties.
Attached Thumbnails
DVD STUDIO PRO Questions-picture-2.jpg   DVD STUDIO PRO Questions-picture-4.jpg

DVD STUDIO PRO Questions-picture-6.jpg
__________________
Producer/CEO
Reel Lane Films LLC
Robert Lane is offline   Reply
