Old January 23rd, 2010, 06:22 PM   #1
Major Player

Join Date: Feb 2007
Location: USA
Posts: 522
External HDTV as Monitor (DVI to HDMI)

I did try to search for this before posting and nothing useful came up.

How do I set FCP to see my HDTV as an external monitor? I'm using a DVI to HDMI cable to connect the video and an optical cable to run audio.

I know that my HDTV is not broadcast safe etc etc but I'd rather watch my FCP sequence this way than burn DVDs when I want to watch it on my TV.

Thanks!
O.D.
Oliver Darden is offline   Reply With Quote
Old January 23rd, 2010, 07:42 PM   #2
Go Go Godzilla

Join Date: Nov 2004
Location: Scottsdale, AZ USA
Posts: 2,739
Images: 15
Sounds logical enough but I'll admit that's a first for me; never seen it attempted before.

If the device isn't available in your system preferences in FCP where you can specify the output then it may be that FCP doesn't recognize it as a valid option. You'll just have to experiment and see what happens.
__________________
Producer/CEO
Reel Lane Films LLC
Robert Lane is offline   Reply With Quote
Old January 23rd, 2010, 08:07 PM   #3
Inner Circle

Join Date: Sep 2002
Location: Vancouver, British Columbia (formerly Winnipeg, Manitoba) Canada
Posts: 4,087

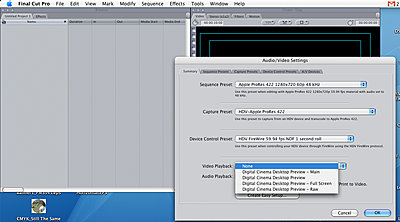

I BELIEVE the option you are looking for is here:
Attached Thumbnails
External HDTV as Monitor (DVI to HDMI)-fcp-output-options.jpg
__________________
Shaun C. Roemich Road Dog Media - Vancouver, BC - Videographer - Webcaster
www.roaddogmedia.ca Blog: http://roaddogmedia.wordpress.com/
Shaun Roemich is offline   Reply With Quote
Old January 23rd, 2010, 08:30 PM   #4
Major Player

Join Date: Feb 2007
Location: USA
Posts: 522
Shaun, I see those options and I tried each one them, but none shoots the preview window out to my TV.

Update:
Got It! Not only did I have to do what Shaun said, but I also had to go in at set: View - External Video - All Frames

Once I clicked "all frames" it popped right on and it looks great.

thanks!


The only thing I'm not getting is the optical output. I'm still getting audio from the computer.
Oliver Darden is offline   Reply With Quote
Old January 23rd, 2010, 08:36 PM   #5
Inner Circle

Join Date: Sep 2002
Location: Vancouver, British Columbia (formerly Winnipeg, Manitoba) Canada
Posts: 4,087
Great news. Yeah, forgot about the All Frames thing... sorry.
__________________
Shaun C. Roemich Road Dog Media - Vancouver, BC - Videographer - Webcaster
www.roaddogmedia.ca Blog: http://roaddogmedia.wordpress.com/
Shaun Roemich is offline   Reply With Quote
Old January 23rd, 2010, 10:36 PM   #6
Regular Crew

Join Date: Sep 2007
Location: 42 12' N, 72 32' W
Posts: 88
Optical out...

You did try changing the FCP: View > Audio Playback to "Digital" right? It's right below the setting you just discovered. You may have to deselect the "Audio Follows Video" choice first to get the other selections.

If you have a Mac Pro the Blackmagic Intensity Pro is great for this too. Saves using a DVI out with the optical cable. And the price has come down considerably and also allows you many other choices like Composite, Component and S-video. I use my HDTV both off of my Blackmagic and the fourth DVI port with Optical audio so I can use both Final Cut Pro's output as well as a 4th screen spanned monitor to display anything on my desktop for the room.
Paul E. Coleman is offline   Reply With Quote
Old March 12th, 2010, 08:15 AM   #7
Regular Crew

Join Date: Mar 2008
Location: Richmond, Canada
Posts: 117
I was shopping around because I wanted a Blackmagic Intensity Pro to hook my Mac Pro to an HDTV and get that colour accurate preview.

And then I thought, what if I just hook up a DVI-HDMI cable to an HDTV or monitor? (the DVI being plugged into the Mac Pro's included video card) Does it have the same effect? If someone can confirm, that would save me a lot of time :P Thanks!
Chris Estrella is offline   Reply With Quote
Old March 13th, 2010, 04:07 PM   #8
Inner Circle

Join Date: Sep 2002
Location: Vancouver, British Columbia (formerly Winnipeg, Manitoba) Canada
Posts: 4,087
Chris: the DVI out is RGB colour space and video is YUV. CLOSE but hardly "colour accurate", especially at the fringes of the gamut overlap.
__________________
Shaun C. Roemich Road Dog Media - Vancouver, BC - Videographer - Webcaster
www.roaddogmedia.ca Blog: http://roaddogmedia.wordpress.com/
Shaun Roemich is offline   Reply With Quote
Old March 18th, 2010, 01:34 AM   #9
Major Player

Join Date: Aug 2005
Location: Los Angeles
Posts: 352
Quote:
Originally Posted by Chris Estrella View Post
I was shopping around because I wanted a Blackmagic Intensity Pro to hook my Mac Pro to an HDTV and get that colour accurate preview.

And then I thought, what if I just hook up a DVI-HDMI cable to an HDTV or monitor? (the DVI being plugged into the Mac Pro's included video card) Does it have the same effect? If someone can confirm, that would save me a lot of time :P Thanks!
The DVI ports also dither the image and operate at computer monitor clock frequencies not TV clock frequencies. On top of that FCP, even in Digital Cinema Desktop mode, only puts out a proxy image that's intended to be used for preview/non-critical purposes only.


-Andrew
Andrew Kimery is offline   Reply With Quote
Old March 23rd, 2010, 12:58 PM   #10
Regular Crew

Join Date: Feb 2009
Location: Chicago
Posts: 94
DVI carries video only, not audio. HDMI carries both, but the audio signal is lost when you change it over to DVI in the chain.
__________________
www.rotterstudios.com photo-video-pro tools audio
Steve Rotter is offline   Reply With Quote
Old March 24th, 2010, 08:48 AM   #11
Trustee

Join Date: Dec 2008
Location: Kennewick, WA
Posts: 1,124
I would recommend buying a Matrox MXO2 as it converts the computers RGB output to YUV which is what you need for proper NTSC monitoring. There are many models to choose from, but they all have an HDMI output that's tied to software that allows you to calibrate the monitor for color correction work. We bought a Panasonic plasma and are VERY happy with the quality of the video. In the past we've bought a $3500 JVC professional monitor (HD-SDI) and it's crap compared to this setup. The off axis response of the JVC was aweful and so was the black levels.

If you can afford it, this is what I would recommend.
__________________
Sony EX3, Canon 5D MkII, Chrosziel Matte Box, Sachtler tripod, Steadicam Flyer, Mac Pro, Apple/Adobe software - 20 years as a local videographer/editor
Mitchell Lewis is offline   Reply With Quote
Old April 8th, 2011, 11:37 PM   #12
Trustee

Join Date: May 2007
Location: Minneapolis, MN
Posts: 1,241
Re: External HDTV as Monitor (DVI to HDMI)

Quote:
Originally Posted by Andrew Kimery View Post
On top of that FCP, even in Digital Cinema Desktop mode, only puts out a proxy image that's intended to be used for preview/non-critical purposes only.
Helpful thread, thank you all, I'm beginning to see the futility of trying to get an accurate grade without the proper I/O connections. I'd love to use a Matrox, but unfortunately don't have the cash on hand at the moment. I do, however, have another question related to this Digital Cinema Desktop view if anyone would know of a solution:

When I render out to Quicktime with current FCP sequence settings, the resulting video file is significantly brighter and less saturated than what I saw in the canvas, viewer and digital cinema desktop - even on the same monitor. I'm simply applying a 3-way Color Corrector filter while using ProRes422 @1080p. The option in Quicktime Pro to match FCP gamma is enabled, but the videos still look so different after exporting.

Any ideas on the cause of this? I just need a little consistency in my life!
__________________
Nate Haustein PXW-FS5 / iMac i7 / FCPX
www.flightcreativemedia.com
Nate Haustein is offline   Reply
