Motorize your IGUS Slider with the new IGUS Slider Kit

ServoCity now offers a simple way to motorize your IGUS W1080 slider. The kit is designed using the versatile line of Actobotics components so that once built, you can easily modify or add other components to create a custom system. The included motor mount is compatible with their 3-12V gearmotors and 6-12V precision gearmotors (motor sold separately). You can also use steppers motors if you purchase a stepper motor mount. Optional adjustable feet and limit switches are also available. See videos below for assembly instruction. IGUS slider, motor, and motor controller not included.
IGUS W1080-B Slider Kit

Assembly of the slider kit can be done with minimal tools (Phillips screwdriver, 3/32 allen driver, 7/64 allen driver, and a 5/32 allen driver). Please check out the assembly tutorial videos part 1 and part 2.

This kit is designed for use with the Igus W1080-B (1 meter) long slider. To make this kit compatible with longer IGUS Sliders, you can purchase a custom length of XL timing belt.

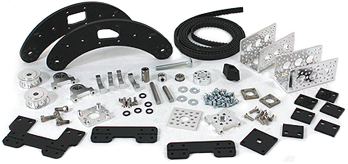

INCLUDED PARTS:
(8) 6-32 x 3/8 Flat Head Phillips Machine Screws
(8) 6-32 x 1/2 Flat Head Phillips Machine Screws
(2) 90 Dual Side Mount A (2 pack)
(1) Aluminum Hub Spacer (3/8 thick)
(1) Aluminum Motor Mount B
(2) Small Square Screw Plate
(1) Flat Single Channel Bracket
(2) 6-32 x 1/4 Socket Head Machine Screw (25pk)
(2) 1/4 Bore Pillow Block
(1) 90 Quad Hub Mount E
(4) #10 Standard Washers
(1) 1/4 Shafting and Tubing Spacers (12pk)
(2) 1/4 Bore Pinion Pulley - 16 tooth
(1) 1/4 x 1/2 OD Flanged Ball Bearing
(1) 1/4 to 6mm Set Screw Shaft Coupler
(1) 1/4 Aluminum Set Screw Collar
(1) 1/4 x 1.25 D-shaft
(1) 1/4 x 1.75 D-shaft
(2) 3 Aluminum Channel
(7) Timing Belt by the Foot
(2) ABS feet plates
(6) Spacer plates
(2) Small belt plates
(1) Large belt plate
(1) Carriage plate
(1) Carriage bolt
(1) 1/4-20 knob
Attached Thumbnails

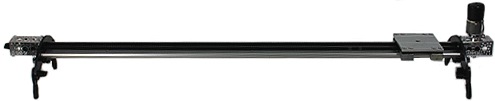

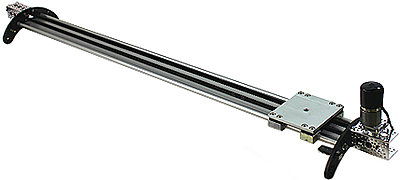

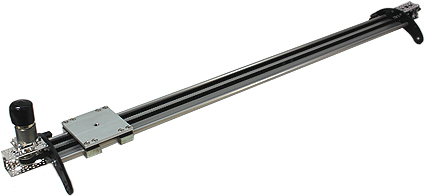

Motorize your IGUS Slider with the new IGUS Slider Kit-igus_slider_kit_1.jpg   Motorize your IGUS Slider with the new IGUS Slider Kit-igus_slider_kit_5.jpg

Motorize your IGUS Slider with the new IGUS Slider Kit-igus_slider_kit_2-1-.jpg
Attached Images

Lauren Lewis is offline   Reply With Quote
Old February 14th, 2014, 03:23 PM   #2
Sponsor: ServoCity

Join Date: Oct 2013
Location: Winfield, Kansas
Posts: 45
Re: Motorize your IGUS Slider with the new IGUS Slider Kit

We've also just released a version for the Igus W16 slider.
You can find more information here: IGUS W16 Slider Kit
Lauren Lewis is offline   Reply With Quote
Old April 30th, 2014, 03:40 PM   #3
Sponsor: ServoCity

Join Date: Oct 2013
Location: Winfield, Kansas
Posts: 45
Re: Motorize your IGUS Slider with the new IGUS Slider Kit

You can also make this kit compatible with a NEMA 23 stepper motor (like pictured in the attached file).
You will need the following items in addition to the Igus Slider kit (sold separately):
(4) 6-32 x 3/8 round standoffs
(1) NEMA 23 Motor Mount
(1) 1/4 to 1/4 Set Screw Shaft Coupler
Attached Images

Lauren Lewis is offline   Reply
