Home Made Video Camera Crane

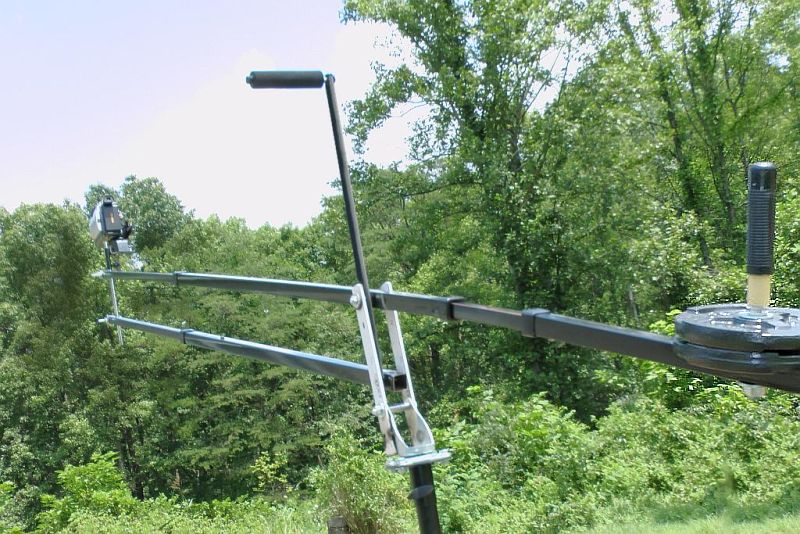

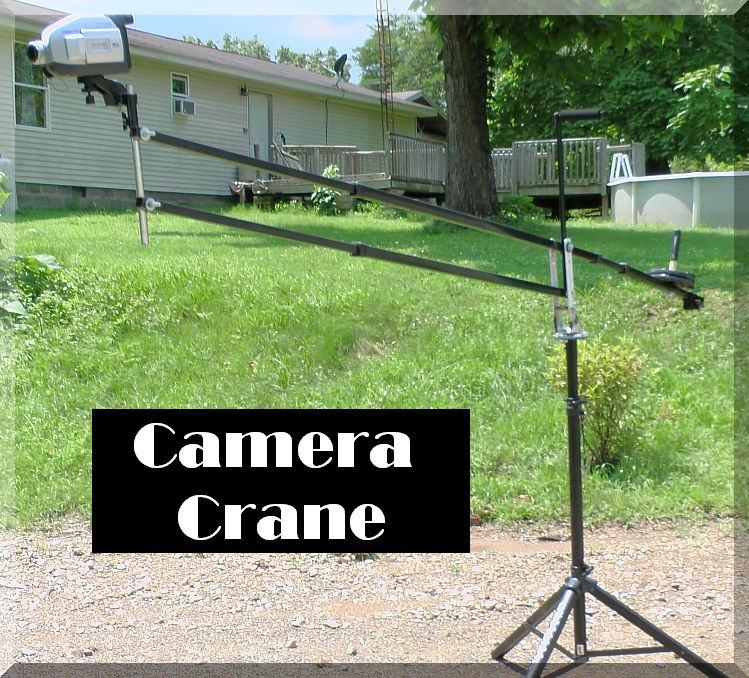

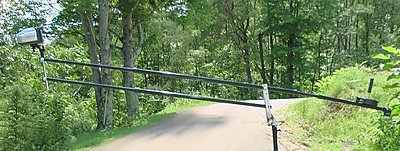

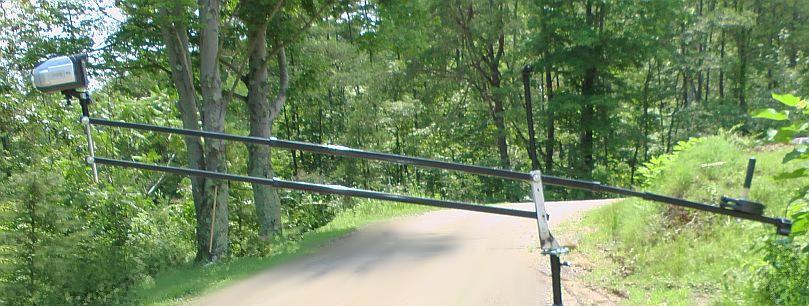

This is my first attempt at building a camera crane.

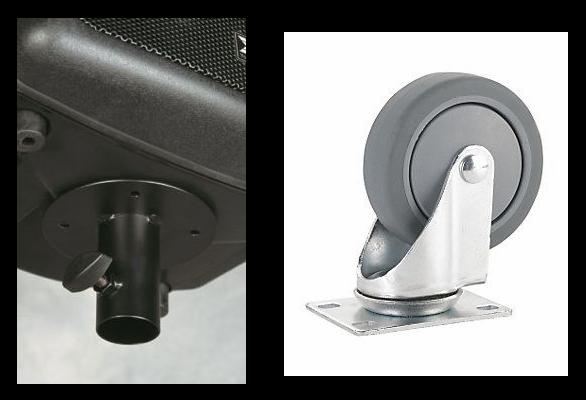

I built it out of 3 telescoping legs from a pop-up canopy. I used a speaker stand to mount the crane on, a wheel caster minus the wheel, and a speaker mount.

The weights are positioned so the camera is perfectly balanced. I can raise or lower the crane, let go, and the crane will stay put. By sliding the rear section of the top arm which the weights are fastened to in or out, I can reset the balance for a heavier or lighter camera.

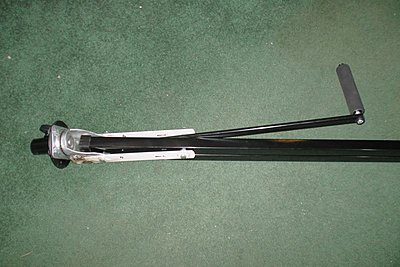

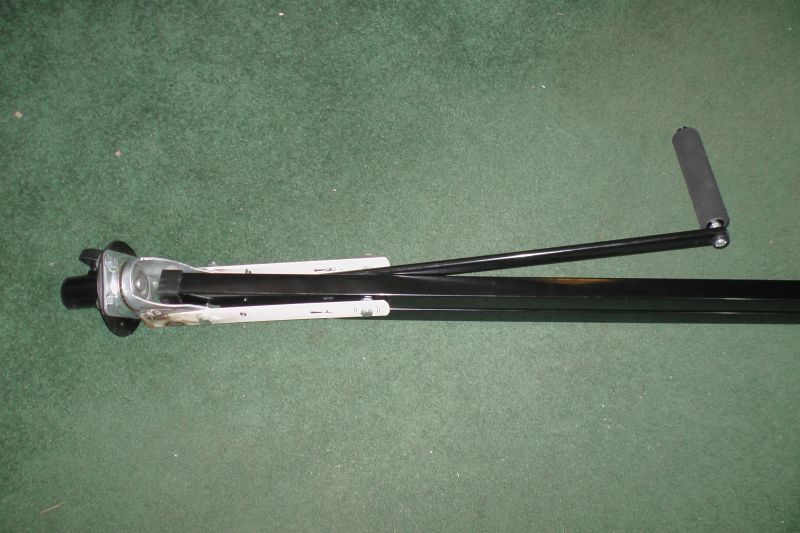

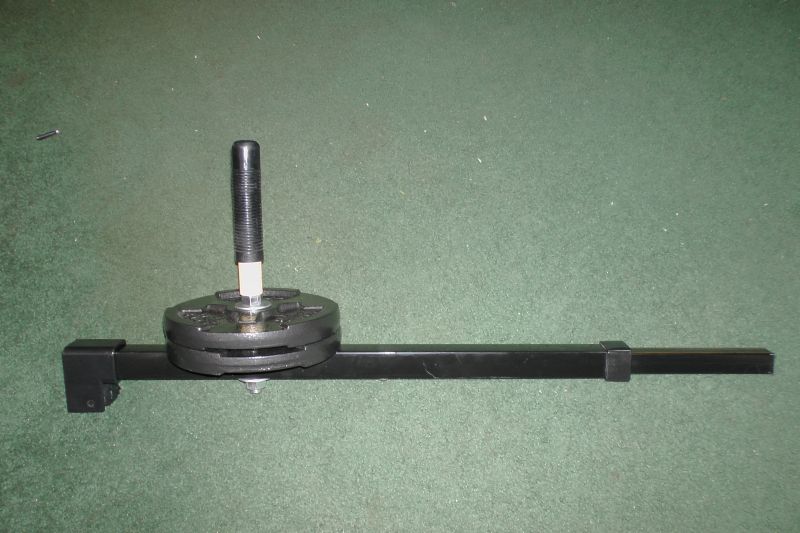

I mounted the weights on a piece of all thread, fastened them on with washers and nuts, then slid a piece of pvc pipe over the remainder of the all thread (going to paint pipe black). I then placed a rubber tool grip over the pipe, which fit snug.
Attached Thumbnails
Home Made Video Camera Crane-m1180004.jpg   Home Made Video Camera Crane-m1180006.jpg

Home Made Video Camera Crane-m1170006.jpg   Home Made Video Camera Crane-crane-3.jpg

Home Made Video Camera Crane-crane.jpg   Home Made Video Camera Crane-wheel-caster-speaker-mount.jpg

__________________
"Democracy is two wolves and a lamb deciding what to have for dinner. Liberty is a well-armed lamb" B. Franklin

Last edited by Ben Dailey; July 28th, 2013 at 07:41 PM. Reason: pictures were not uploaded
Ben Dailey is offline   Reply With Quote
Old August 9th, 2013, 01:10 AM   #2
Regular Crew

Join Date: Feb 2008
Location: Portland, Ohio
Posts: 32
Re: Home Made Video Camera Crane

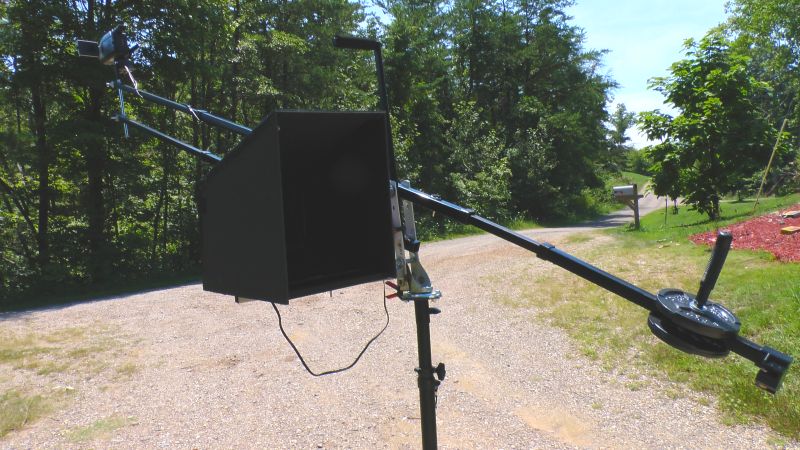

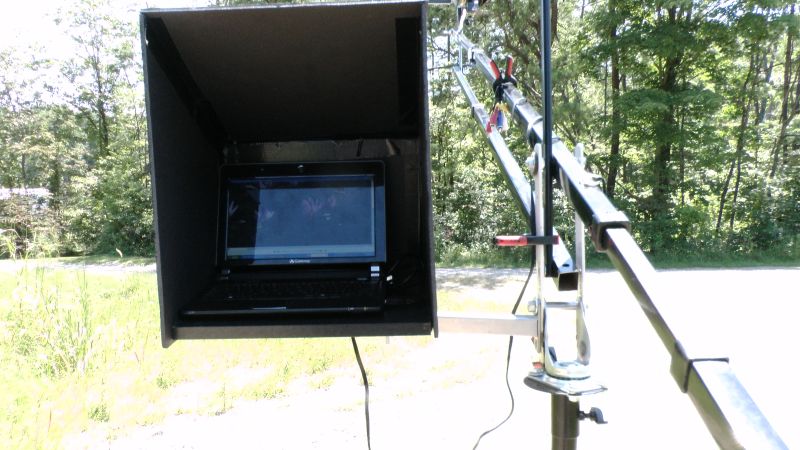

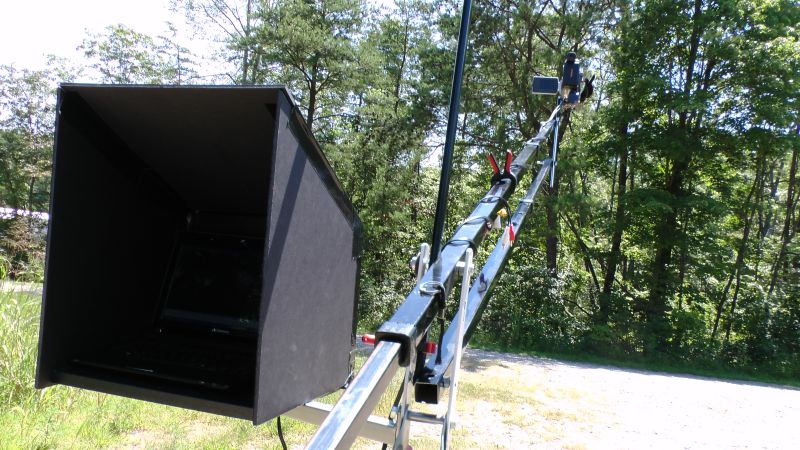

I created a hood for display out of foam board.
